Vertical Form Multi Head Weigher Fill Seal Packaging Machine

Smart auto packaging solution integrating multi-head weighing, vertical bag forming, and servo-driven sealing for accurate, clean, and reliable production.

Online inquiry

Industries Application Features Parameters Pakcaging Styles Warranty and Services

Industries Application

pets food packaging machine

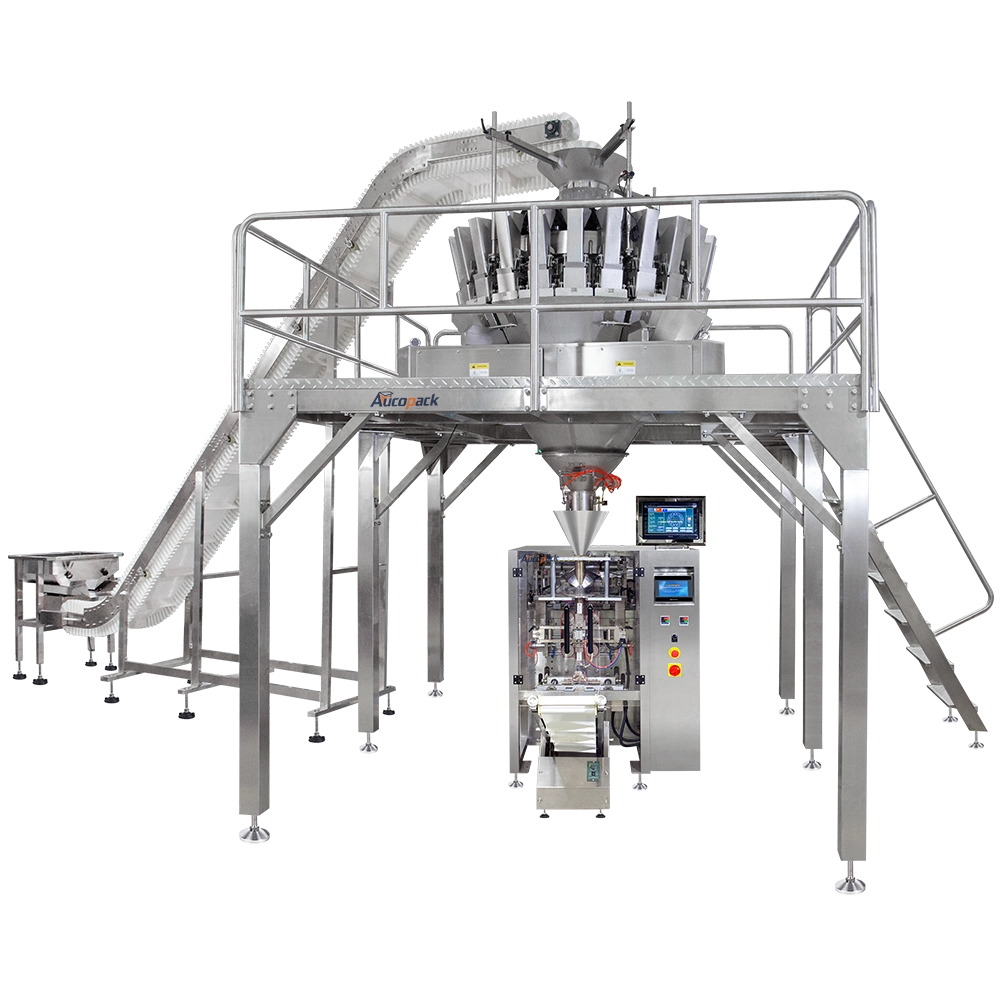

The Vertical Form Multi Head Weigher Fill Seal Packaging Machine is a high-performance solution for efficiently packaging products such as snacks, nuts, dried fruits, candies, and other granular or irregularly shaped items. This machine features a multi-head weigher, which ensures precise product measurement and portioning, minimizing product giveaway and maximizing accuracy. The vertical form fill seal (VFFS) system automates the entire process—from forming the film into bags, weighing the product, filling the bags, to sealing them—ensuring fast and efficient production. The multi-head weigher system allows for accurate distribution of products, making it ideal for packaging both lightweight and dense products with consistent precision.

Features

Combo Weighing for Complex Products
Designed for Mixed Granules & Snacks

This VFFS machine with multi-head weigher ensures fast, accurate dosing and tight bag sealing. Ideal for snacks, frozen foods, nuts, or dry pet food—maximize output while keeping your packaging precise and professional.

Vacuum-Assisted Product Feeding

Utilizes a vacuum pump system to ensure steady and precise product transfer, minimizing downtime due to product misfeeds.

Automated Product Weight Control

Integrated weighing system allows for automatic and accurate weight measurements for each package, ensuring product consistency.

Vacuum-Enhanced Product Flow

The vacuum feeder optimizes product flow, particularly for fine or lightweight materials, preventing blockages or uneven fills.

Reduced Maintenance with Sealed Components

Key machine components are sealed and protected from dust or debris, reducing maintenance frequency and prolonging equipment lifespan.

Precise Vacuum-Seal Technology

The machine's vacuum system enhances the sealing process, ensuring that packages are airtight and suitable for long-term storage.

Adjustable Form Fill Sizes

Easily adjustable forming tubes and sealing jaws allow for a range of package sizes, accommodating different product specifications.

Quick Product Changeover

Designed for fast product and packaging material changeovers, minimizing downtime and increasing production flexibility.

Advanced Vacuum Pump System

The machine’s advanced vacuum pump reduces air content inside packages, improving product freshness and packaging stability.

Parameters

Type	LD-420	LD-520	LDB-620	LDB-720
Film Width	Max. 420mm	Max. 520mm	150 - Max. 620mm	150 - Max. 720mm
Bag Length	80 - 300mm	60 - 400mm	60 - 450mm	60 - 500mm
Bag Width	60 - 200mm	100 - 250mm	65 - 300mm	65 - 350mm
Film Roll Diameter	Max. 600mm	Max. 600mm	Max. 600mm	Max. 600mm
Packing Speed	5 - 60 bag/min	5 - 40 bag/min	5 - 35 bag/min	5 - 30 bag/min
Making-bag Volume	1000ml	2000ml	3000ml	5000ml
Film Thickness	0.04 - 0.12mm
Film Material	BOPP/CPP, BOPP/VMCPP, BOPP/PE, PET/VMPET/PE, PET/AL/PE, PET/PET ETC.
Power Supply	220V, 50/60Hz, 3KW	220V, 50/60Hz, 3KW	220V, 50/60Hz, 3.2KW	220V, 50/60Hz, 3.2KW
Machine Size (LWH)	(L)1217(W)1015(H)1343mm	(L)1488(W)1080(H)1490mm	(L)1488(W)1180(H)1550mm	(L)1780(W)1350(H)2050mm
Machine Weight	About 650kg	About 680kg	About 700kg	About 750kg
Options	Air Filling Device, Angle Folding Device, Vision Inspection System, X-Ray Inspection System, Food Metal Detector, Checkweigher, Weight Grader

Pakcaging Styles

Pillow Bag: This is the most commonly used pouch style for products like snacks, nuts, granules, dried fruits, and confectioneries. It features seals at the top and bottom, along with a longitudinal back seal, providing a cost-effective and straightforward solution for most products.
Gusseted Bag: These bags have expandable side gussets, allowing for larger volume and enhanced stability. Gusseted bags are ideal for packaging bulkier items, such as coffee beans, grains, pet food, or other large quantities of products, providing a more compact design that stands up better during storage and on shelves.
Flat Bottom Bag: Also called block-bottom or quad-seal bags, these pouches offer both stability and a high-capacity packaging option. They provide a premium, box-like appearance suitable for larger volumes of dry goods, including cereals, rice, flour, and more. They also have the advantage of standing upright on shelves, improving visual appeal for retail settings.
Chain Bag (Linked Sachets): This style involves multiple small bags linked together, which can be separated easily. Chain bags are suitable for packing items that need to be portioned individually, such as small snacks, seasoning sachets, or sample packs.
Stick Pack: For single-serving or portion-controlled packaging, stick packs are a common choice. They are long and narrow, ideal for smaller quantities of products like sugar, powdered drink mixes, or spices, providing both convenience and easy usage for consumers.

Warranty and Services

12-month quality warranty.
24-month local fast replacement service for major electrical parts.
Comprehensive shipment services, including coordination of logistics, delivery tracking, and ensuring timely delivery to your location.
Technical support , Manual instructions, installation, and operation guides with delivery.
On-site setup, operation, and maintenance training as needed.

After the warranty period, we offer:

Lifelong maintenance services.
Spare parts support.
Operational training to ensure reliability.
Quick responses to any inquiries from our customer service team.
