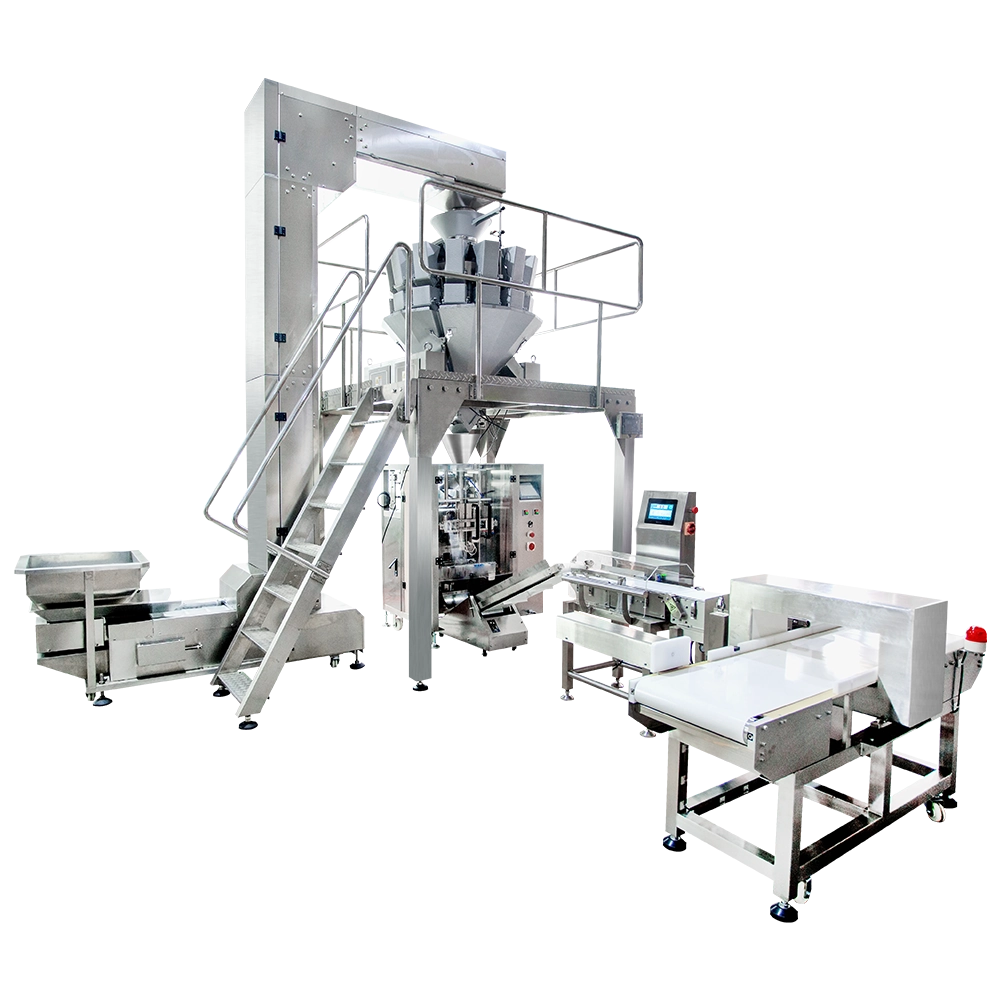

Vertical Form Fill Seal Machine with Weigher Metal Inspection

Transform production with this VFFS marvel: seamless filling, precise weighing, and advanced metal detection for premium, safe packaging.

Online inquiry

Industries Application Features Parameters Pakcaging Styles Warranty and Services

Industries Application

snack food packaging machine

The Vertical Form Fill Seal Machine with Weigher and Metal Inspection is a comprehensive packaging solution designed for industries where product safety and precision are critical, such as food, pharmaceuticals, and chemicals. This machine combines an advanced multi-head weigher for accurate portioning with integrated metal detection technology to ensure that every package is free from any unwanted metal contaminants. The vertical form fill seal (VFFS) system automates the packaging process by forming bags, filling them with the weighed product, and securely sealing them. The built-in weigher ensures precise and consistent product filling, while the metal inspection system scans each product batch to guarantee compliance with safety and quality standards. This packaging machine is highly versatile, supporting a variety of bag sizes and formats to suit different product types.

Features

Pack Precisely. Detect Instantly
Designed for Critical Control Points

This VFFS machine integrates a multihead weigher and metal detector, ensuring both accurate fills and contaminant-free bags. Ideal for snacks, nuts, or frozen foods that demand both quality and food safety compliance.

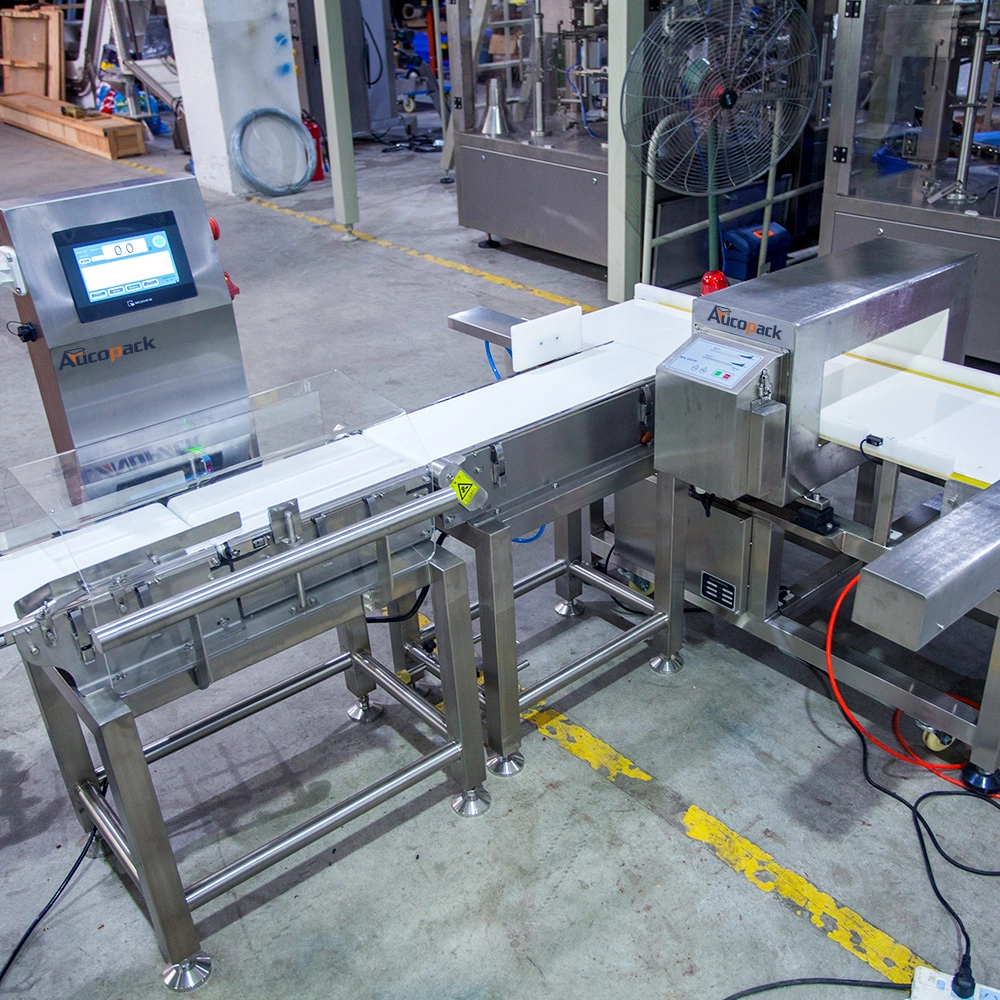

Integrated Weigher & Metal Detection
Integrated Weigher and Metal Detection System

This machine combines accurate weighing & metal inspection, ensuring precise measurement while detecting and rejecting metal contaminants.

High-Speed Form Fill Seal Technology

The vertical form fill seal process operates at high speed, optimizing packaging efficiency for industries with large production demands.

Flexible Packaging Options
Enhanced Product Safety

Enables flexible packaging with multiple bag styles, such as pillow, gusseted, and block-bottom, adapting to diverse production needs.

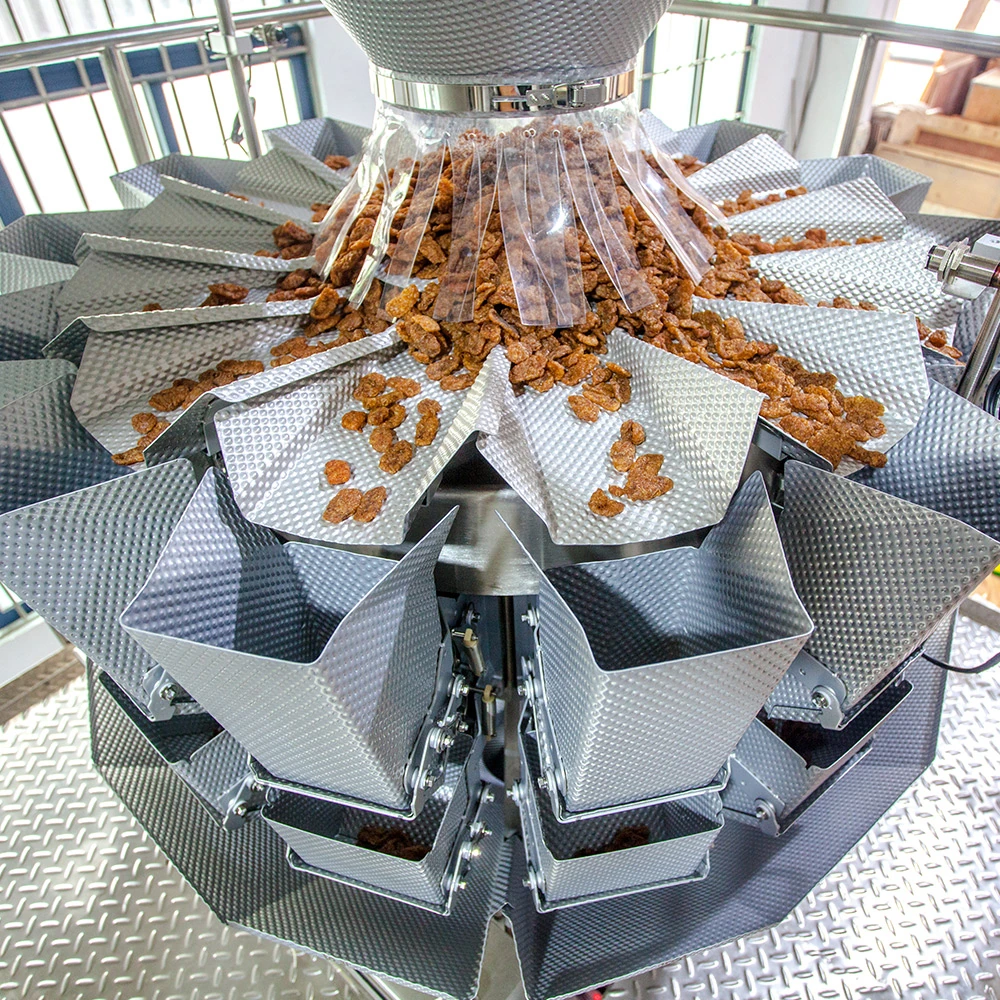

Precise Multi-Head Weighing

The integrated multi-head weigher offers high-precision product weighing, ensuring accurate portioning to improve packaging accuracy.

Durable Stainless Steel Construction
Intuitive HMI (Human-Machine Interface) with PLC control

Built from high-grade stainless steel, the machine offers durability and resistance to corrosion, making it suitable for food-grade environments.

Advanced Sealing Technology
Sanitary, stainless steel construction

The machine employs reliable and airtight sealing mechanisms, preserving product freshness and protecting against contamination.

Energy-Efficient Design
High-speed synchronized operation

The machine’s components are designed for minimal energy consumption, ensuring a cost-effective and eco-friendly operation.

Versatile Packaging Capabilities
Compact Footprint

Suitable for various products, from food to pharmaceuticals, the machine accommodates various bag formats, offering flexible packaging solutions.

Parameters

Type	LD-420	LD-520	LDB-620	LDB-720
Film Width	Max. 420mm	Max. 520mm	150 - Max. 620mm	150 - Max. 720mm
Bag Length	80 - 300mm	60 - 400mm	60 - 450mm	60 - 500mm
Bag Width	60 - 200mm	100 - 250mm	65 - 300mm	65 - 350mm
Film Roll Diameter	Max. 600mm	Max. 600mm	Max. 600mm	Max. 600mm
Packing Speed	5 - 60 bag/min	5 - 40 bag/min	5 - 35 bag/min	5 - 30 bag/min
Making-bag Volume	1000ml	2000ml	3000ml	5000ml
Film Thickness	0.04 - 0.12mm
Film Material	BOPP/CPP, BOPP/VMCPP, BOPP/PE, PET/VMPET/PE, PET/AL/PE, PET/PET ETC.
Power Supply	220V, 50/60Hz, 3KW	220V, 50/60Hz, 3KW	220V, 50/60Hz, 3.2KW	220V, 50/60Hz, 3.2KW
Machine Size (LWH)	(L)1217(W)1015(H)1343mm	(L)1488(W)1080(H)1490mm	(L)1488(W)1180(H)1550mm	(L)1780(W)1350(H)2050mm
Machine Weight	About 650kg	About 680kg	About 700kg	About 750kg
Options	Air Filling Device, Angle Folding Device, Vision Inspection System, X-Ray Inspection System, Food Metal Detector, Checkweigher, Weight Grader

Pakcaging Styles

Pillow Bag: The most commonly produced pouch style for this type of machine, suitable for snacks, grains, nuts, confectioneries, and various other products. It is a cost-effective and versatile packaging solution featuring seals at the top, bottom, and a back seam.
Gusseted Bag: Featuring expandable sides, gusseted bags allow for greater packing volume and enhanced stability, making them ideal for bulk products like coffee beans, legumes, pet food, and other larger quantities.
Flat Bottom Bag: Also known as block-bottom bags, this pouch style provides a box-like structure with a stable base, allowing it to stand upright. It is ideal for products such as dry foods, cereals, flour, and large-volume goods, offering an attractive and sturdy shelf presence.
Quad Seal Bag: This packaging style features seals on all four corners, creating a box-like shape that offers improved strength and visual appeal. It is ideal for premium products or heavier items that benefit from a more structured pouch design.

Warranty and Services

12-month quality warranty.
24-month local fast replacement service for major electrical parts.
Comprehensive shipment services, including coordination of logistics, delivery tracking, and ensuring timely delivery to your location.
Technical support , Manual instructions, installation, and operation guides with delivery.
On-site setup, operation, and maintenance training as needed.

After the warranty period, we offer:

Lifelong maintenance services.
Spare parts support.
Operational training to ensure reliability.
Quick responses to any inquiries from our customer service team.
