Automatic Vffs Food Candy Pouch Filling & Packaging Machine

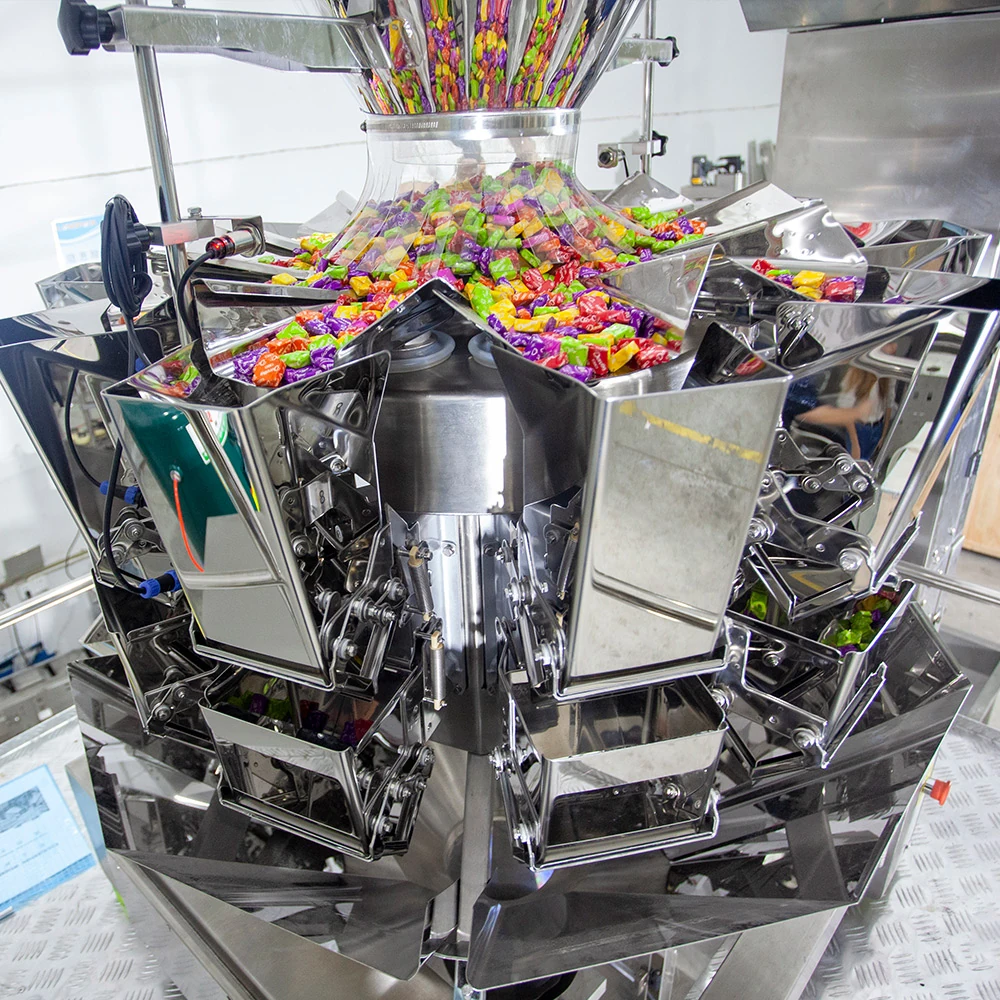

Advanced multi-head scale design features dynamic load distribution, minimizing candy breakage during weighing, maintaining accurate dosing.

Online inquiry

Industries Application Features Parameters Pakcaging Styles Warranty and Services

Industries Application

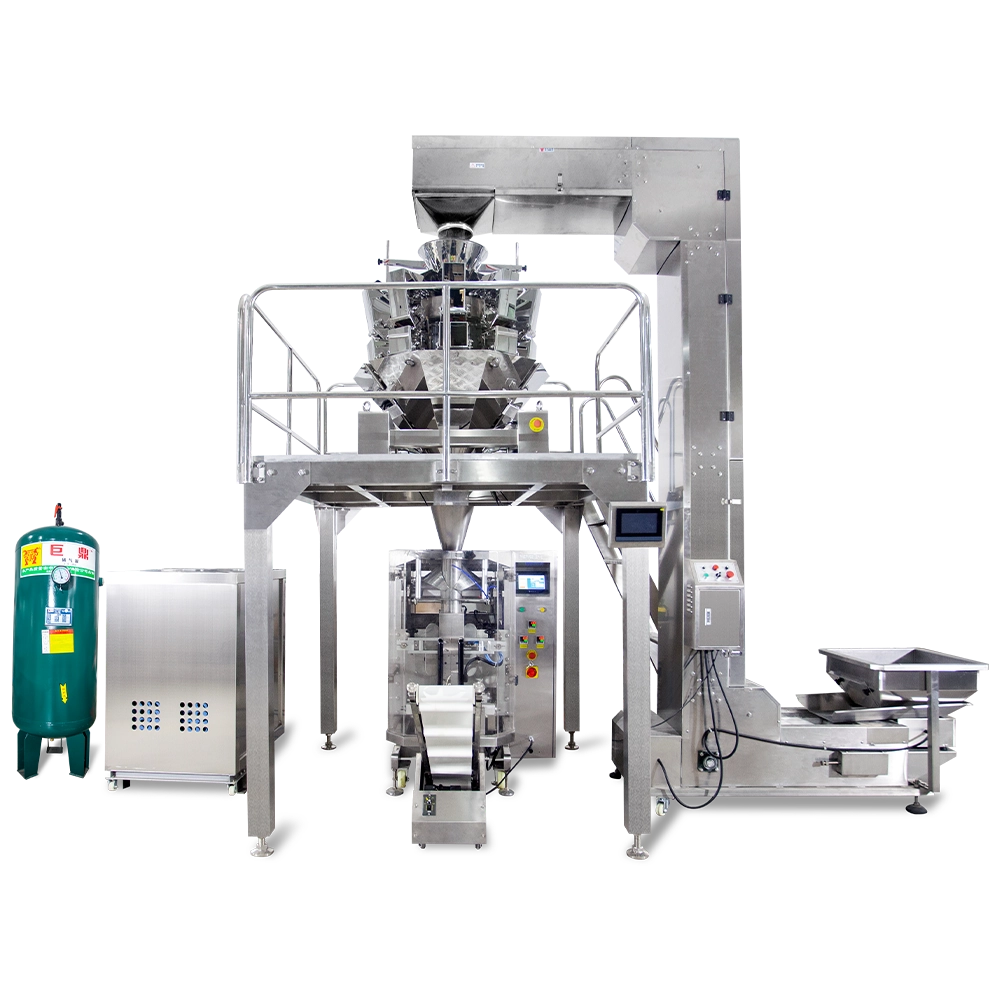

The Automatic Vertical Form Fill Seal (VFFS) Food Candy Pouch Filling & Packaging Machine is an advanced solution for high-speed, precise packaging of candies, sweets, and other small food items. This machine automates the entire packaging process, from pouch forming and product filling to secure sealing, ensuring efficient and consistent operation for large-scale production environments. The VFFS system forms pouches from roll stock film, fills them with candy or other small products, and seals them with a strong, tamper-proof seal. This process maintains product freshness and extends shelf life. The machine supports various pouch formats, such as pillow pouches and gusseted bags, making it versatile for different packaging

Features

Neat Bags, Fast Output
Designed for Automatic Candy Packing

With fast-forming vertical bagging and optional multi-head weighing, this machine keeps your candy line moving efficiently. Choose pillow, gusseted, or euro-hole bags—all with tight seals and bright shelf presence.

Vertical Form Fill Seal Technology
Vertical Form Fill Seal (VFFS) Technology

This machine integrates forming, filling, and sealing in a continuous vertical process, making it ideal for efficiently packaging food and candy products.

Automatic Pouch Filling

The machine automatically fills pouches with precision, reducing human intervention and ensuring consistent product quantities.

High-Speed Operation

With its high-speed capabilities, the machine is designed to meet the demands of large-scale food production, packaging multiple pouches per minute.

Versatile Pouch Packaging

The machine supports various pouch styles and sizes, offering flexibility for different product requirements and customer preferences.

Precise Product Weighing

Equipped with an integrated weighing system, the machine ensures accurate product filling, reducing overfilling or product giveaway.

Reliable Sealing Mechanism

The machine uses advanced sealing technology to ensure that each pouch is airtight, protecting food and candy from external contamination.

Energy-Efficient Operation

The machine's innovative design optimizes energy consumption, the machine is designed to meet the demands of large-scale food production.

Quick Changeover Capabilities

The system allows for fast product and pouch size changeovers, improving production flexibility and minimizing downtime.

Parameters

Type	LD-420	LD-520	LDB-620	LDB-720
Film Width	Max. 420mm	Max. 520mm	150 - Max. 620mm	150 - Max. 720mm
Bag Length	80 - 300mm	60 - 400mm	60 - 450mm	60 - 500mm
Bag Width	60 - 200mm	100 - 250mm	65 - 300mm	65 - 350mm
Film Roll Diameter	Max. 600mm	Max. 600mm	Max. 600mm	Max. 600mm
Packing Speed	5 - 60 bag/min	5 - 40 bag/min	5 - 35 bag/min	5 - 30 bag/min
Making-bag Volume	1000ml	2000ml	3000ml	5000ml
Film Thickness	0.04 - 0.12mm
Film Material	BOPP/CPP, BOPP/VMCPP, BOPP/PE, PET/VMPET/PE, PET/AL/PE, PET/PET ETC.
Power Supply	220V, 50/60Hz, 3KW	220V, 50/60Hz, 3KW	220V, 50/60Hz, 3.2KW	220V, 50/60Hz, 3.2KW
Machine Size (LWH)	(L)1217(W)1015(H)1343mm	(L)1488(W)1080(H)1490mm	(L)1488(W)1180(H)1550mm	(L)1780(W)1350(H)2050mm
Machine Weight	About 650kg	About 680kg	About 700kg	About 750kg
Options	Air Filling Device, Angle Folding Device, Vision Inspection System, X-Ray Inspection System, Food Metal Detector, Checkweigher, Weight Grader

Pakcaging Styles

Pillow Bag: The most common pouch style for candies, featuring seals at the top, bottom, and a back seam. It is a cost-effective solution that provides ample protection for candies, allowing for efficient high-speed production.
Gusseted Bag: Featuring expandable sides, gusseted bags provide additional volume, making them ideal for packing larger quantities of candies. These bags also offer a more visually appealing presentation, making them suitable for retail display.
Stick Pack: A long, narrow pouch used for small servings of candy, such as chewable candies or mints. This type of pouch is convenient for portion control, providing an easy-to-use packaging solution for on-the-go consumption.
Flat Bottom Bag: Also known as block-bottom bags, this style provides a stable base and premium presentation, making it ideal for larger quantities or premium candy products that need an attractive, upright display on shelves.
Chain Bag (Linked Sachets): Multiple small sachets linked together to allow for easy separation. This pouch style is useful for single-serving candies, allowing the consumer to tear off individual portions conveniently.

Warranty and Services

12-month quality warranty.
24-month local fast replacement service for major electrical parts.
Comprehensive shipment services, including coordination of logistics, delivery tracking, and ensuring timely delivery to your location.
Technical support , Manual instructions, installation, and operation guides with delivery.
On-site setup, operation, and maintenance training as needed.

After the warranty period, we offer:

Lifelong maintenance services.
Spare parts support.
Operational training to ensure reliability.
Quick responses to any inquiries from our customer service team.
