Automatic Potato Chips Packing Machine Line with Nitrogen

A next-generation potato chips packaging solution merging nitrogen flushing, high-speed weighing, and digital control for unmatched product integrity.

Online inquiry

Industries Application Features Parameters Pakcaging Styles Warranty and Services

Industries Application

snack food packaging machine

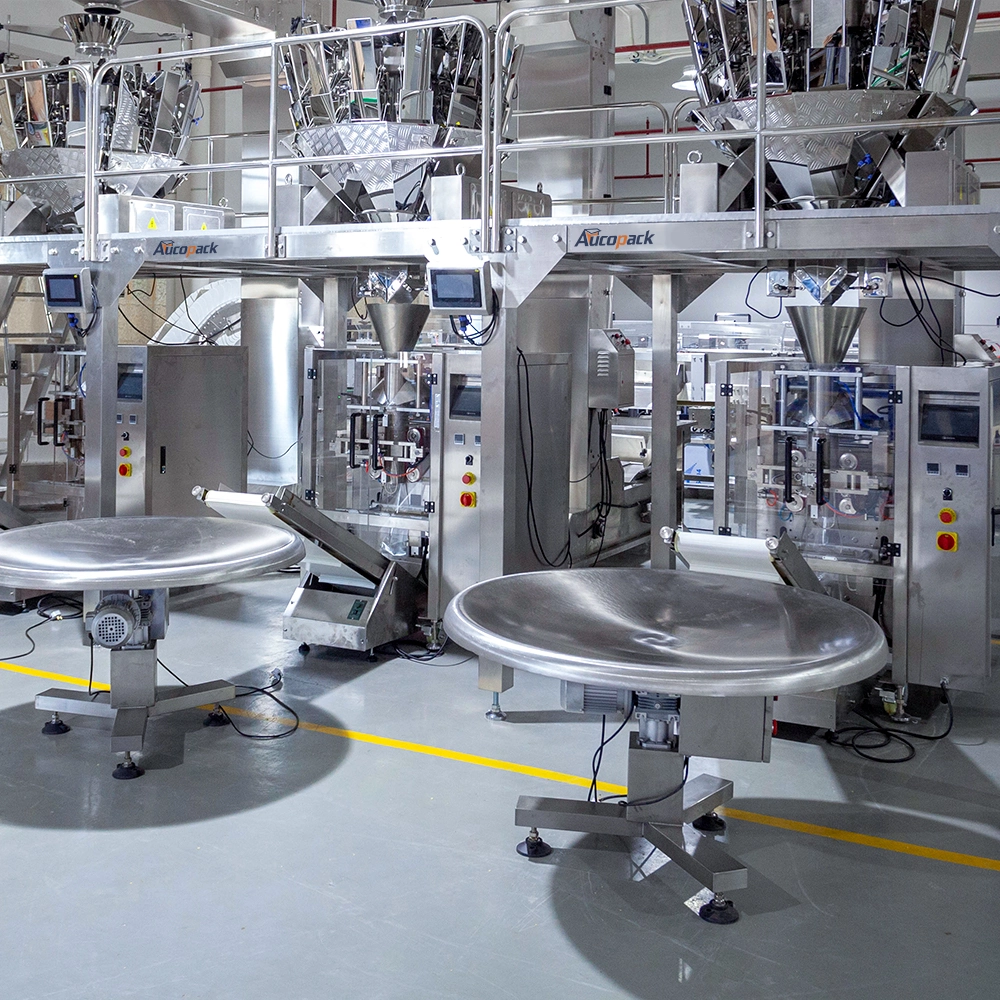

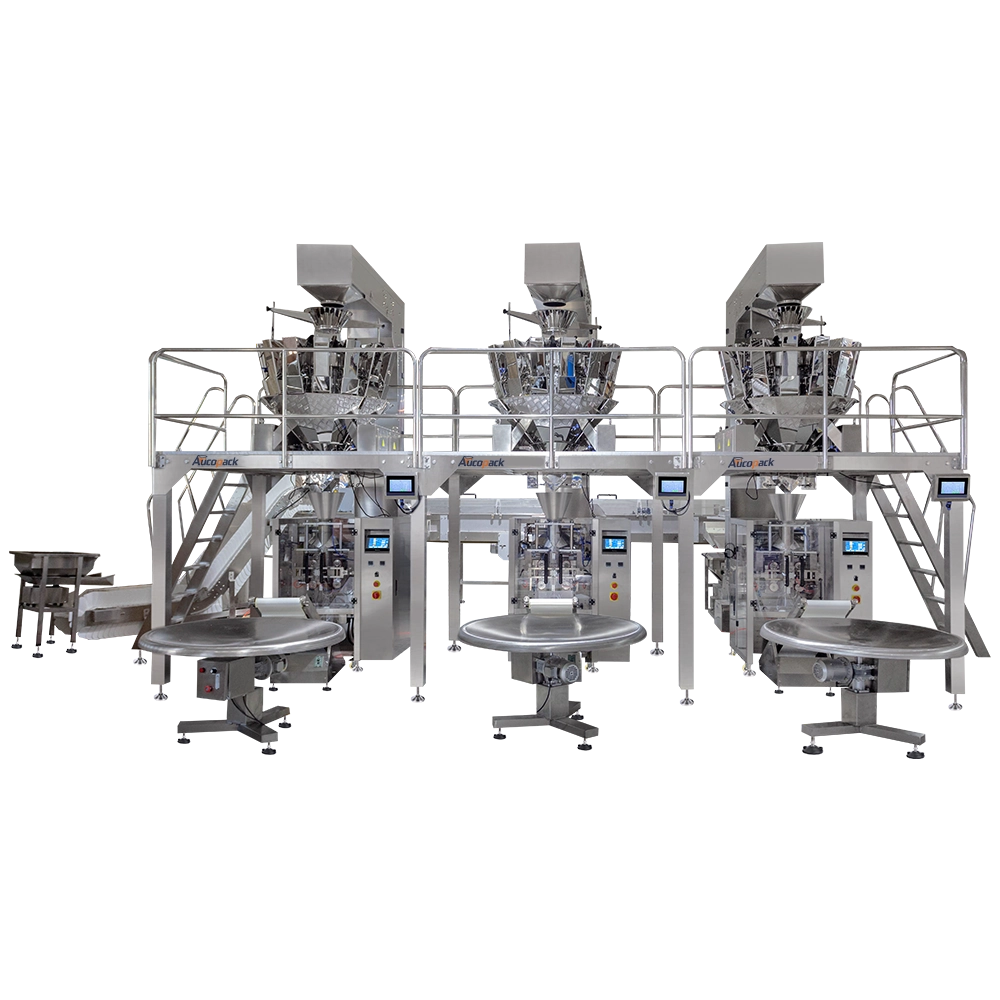

The Automatic Potato Chips Packing Machine Line with Nitrogen is a specialized packaging solution designed for the efficient and protective packaging of potato chips, crisps, and other delicate snack products. This machine line integrates nitrogen flushing technology, which displaces oxygen in the packaging to prevent oxidation, maintain freshness, and extend the shelf life of the chips.The fully automated line handles the entire process, from feeding and weighing to filling, nitrogen flushing, and sealing the bags. The nitrogen flushing ensures that the fragile chips are cushioned inside the bag, reducing breakage during transportation. Equipped with an advanced multi-head weigher, the machine guarantees precise portion control, minimizing product waste. This packaging solution is ideal for snack manufacturers looking to improve packaging efficiency while maintaining the highest standards of product freshness and quality.

Features

Seal in Freshness. Deliver the Crunch
Designed for Potato Chips & Snacks

This automated line packs potato chips with speed and care. Integrated nitrogen flushing keeps every bag crisp and fresh, while vertical sealing and weighing ensure clean, airtight results with minimal breakage.

Nitrogen Flushing for Freshness
Nitrogen Flushing for Extended Freshness

The machine line is equipped with a nitrogen flushing system, ensuring that potato chips are packaged in a nitrogen-filled environment, extending shelf life and preserving freshness.

Automatic Weighing and Filling

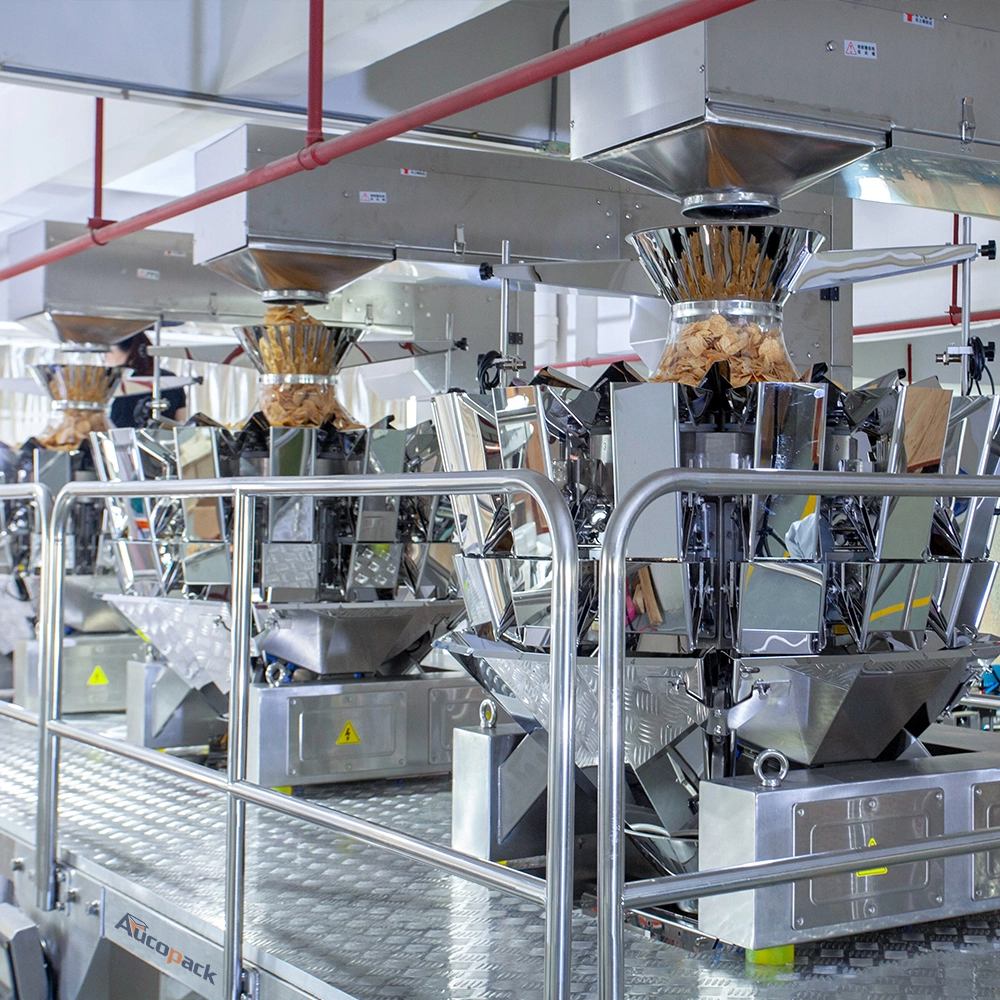

The integrated automatic weighing system ensures precise measurement of potato chips, minimizing product giveaway and improving packaging consistency.

High-Speed Packaging Line

Designed for high production volumes, the machine can efficiently package large quantities of potato chips with minimal downtime, optimizing output for commercial production.

Gentle Product Handling

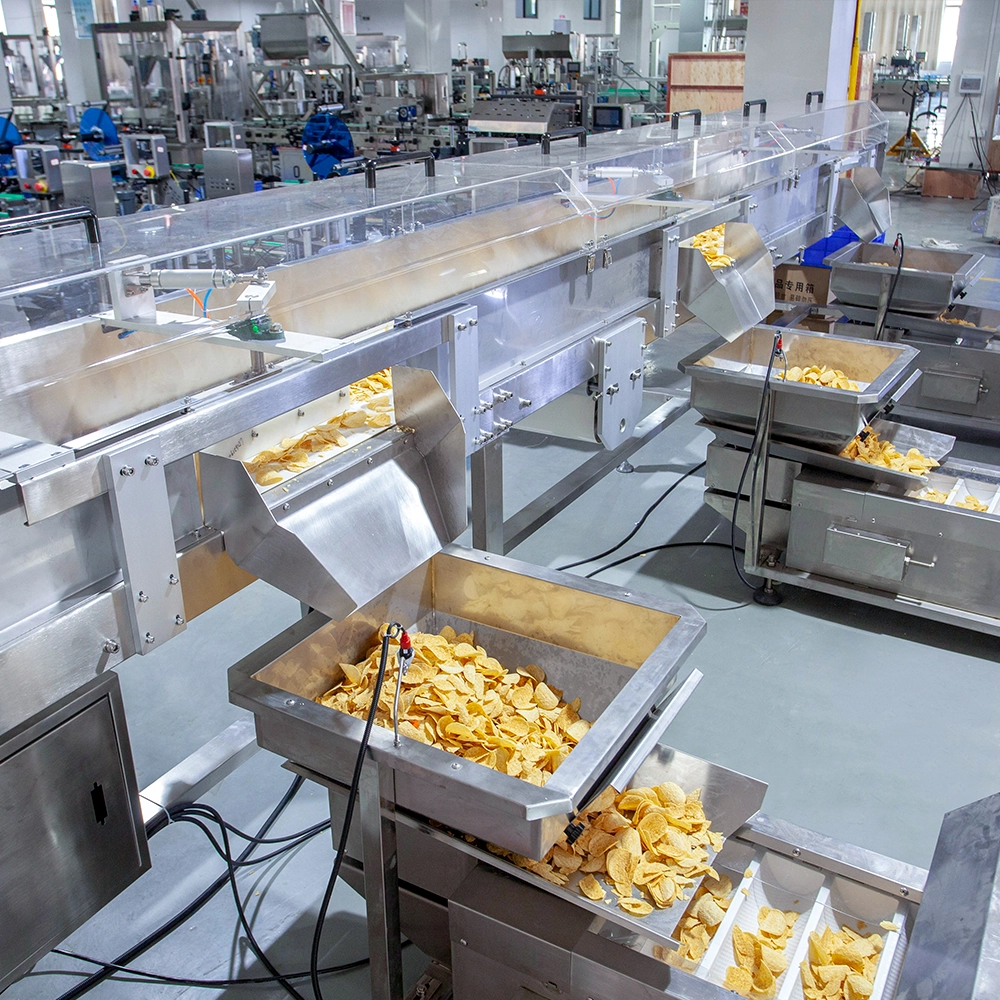

The machine uses a gentle conveying and filling process to prevent chip breakage during packaging, ensuring that chips remain intact from production to delivery.

Integration with Production Lines
Seamless Nitrogen Integration

Seamlessly integrated with potato chip frying, seasoning, and conveying systems, creating a fully automated production line.

Adjustable Packaging Sizes

The machine allows for easy adjustment of bag sizes, enabling customization based on product requirements or customer preferences.

Advanced Sealing Technology

The machine uses high-precision sealing to ensure airtight packaging, protecting chips from moisture and external contaminants.

Energy-Efficient System
Energy-Efficient Nitrogen System

The nitrogen flushing system is designed for minimal energy consumption while maintaining high levels of packaging efficiency, reducing operational costs.

Parameters

Type	LD-420	LD-520	LDB-620	LDB-720
Film Width	Max. 420mm	Max. 520mm	150 - Max. 620mm	150 - Max. 720mm
Bag Length	80 - 300mm	60 - 400mm	60 - 450mm	60 - 500mm
Bag Width	60 - 200mm	100 - 250mm	65 - 300mm	65 - 350mm
Film Roll Diameter	Max. 600mm	Max. 600mm	Max. 600mm	Max. 600mm
Packing Speed	5 - 60 bag/min	5 - 40 bag/min	5 - 35 bag/min	5 - 30 bag/min
Making-bag Volume	1000ml	2000ml	3000ml	5000ml
Film Thickness	0.04 - 0.12mm
Film Material	BOPP/CPP, BOPP/VMCPP, BOPP/PE, PET/VMPET/PE, PET/AL/PE, PET/PET ETC.
Power Supply	220V, 50/60Hz, 3KW	220V, 50/60Hz, 3KW	220V, 50/60Hz, 3.2KW	220V, 50/60Hz, 3.2KW
Machine Size (LWH)	(L)1217(W)1015(H)1343mm	(L)1488(W)1080(H)1490mm	(L)1488(W)1180(H)1550mm	(L)1780(W)1350(H)2050mm
Machine Weight	About 650kg	About 680kg	About 700kg	About 750kg
Options	Air Filling Device, Angle Folding Device, Vision Inspection System, X-Ray Inspection System, Food Metal Detector, Checkweigher, Weight Grader

Pakcaging Styles

Pillow Bag: This is the most commonly used pouch style for packing potato chips. It features seals at the top, bottom, and back, forming a pillow-like shape. The nitrogen flushing helps maintain the freshness and crispness of the chips by preventing oxidation and providing a cushioning effect to avoid breakage.
Gusseted Bag: Gusseted bags feature expandable sides, allowing for larger volume and more stability. These bags are often used for larger packages of potato chips and other snacks, providing an appealing look and making it easier to stack and display the product.
Flat Bottom Bag: Also known as block-bottom bags, these pouches offer excellent stability and a premium look. They are used for larger quantities of chips and snacks that need a sturdy structure for better presentation on store shelves.

Warranty and Services

12-month quality warranty.
24-month local fast replacement service for major electrical parts.
Comprehensive shipment services, including coordination of logistics, delivery tracking, and ensuring timely delivery to your location.
Technical support , Manual instructions, installation, and operation guides with delivery.
On-site setup, operation, and maintenance training as needed.

After the warranty period, we offer:

Lifelong maintenance services.
Spare parts support.
Operational training to ensure reliability.
Quick responses to any inquiries from our customer service team.
