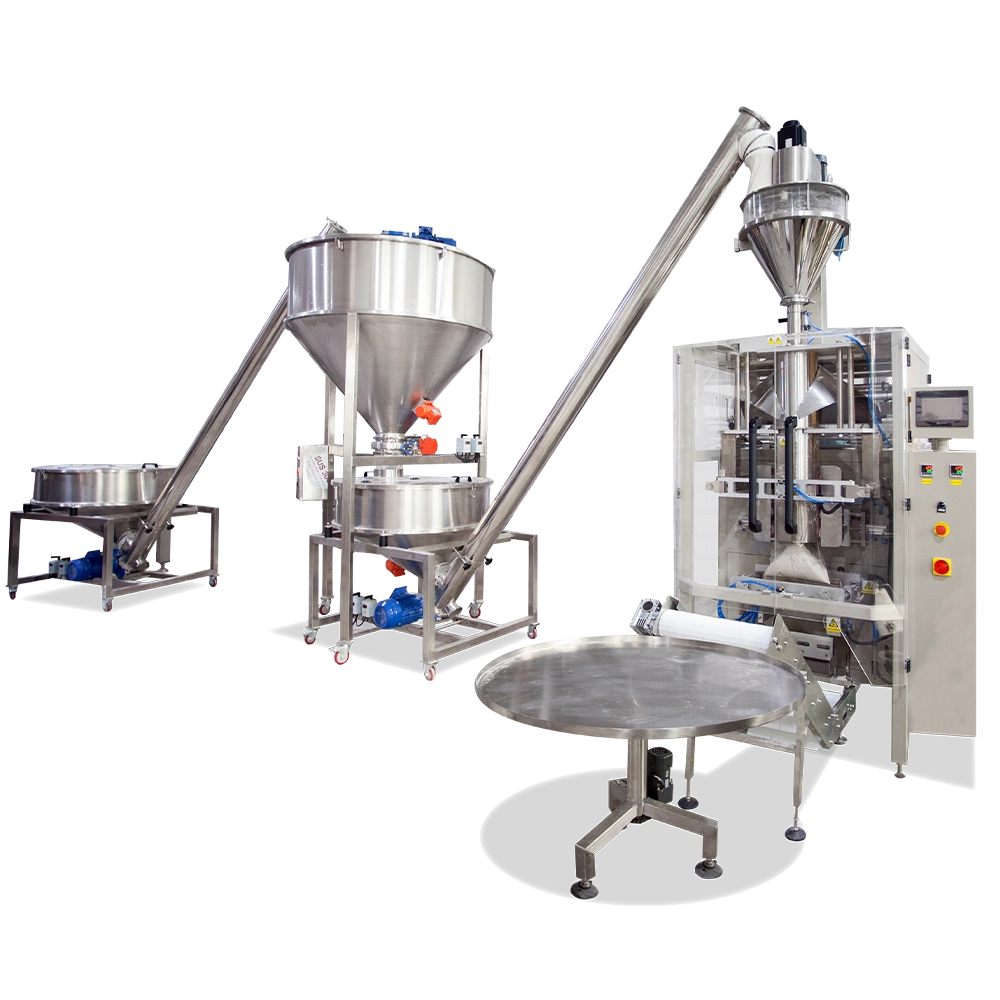

Automatic Dry Powder Weighing and Filling Machine Equipment

Premium dry powder filling solution combining speed, precision, and reliability—engineered to optimize production and enhance brand reputation.

Online inquiry

Industries Application Features Parameters Pakcaging Styles Warranty and Services

Industries Application

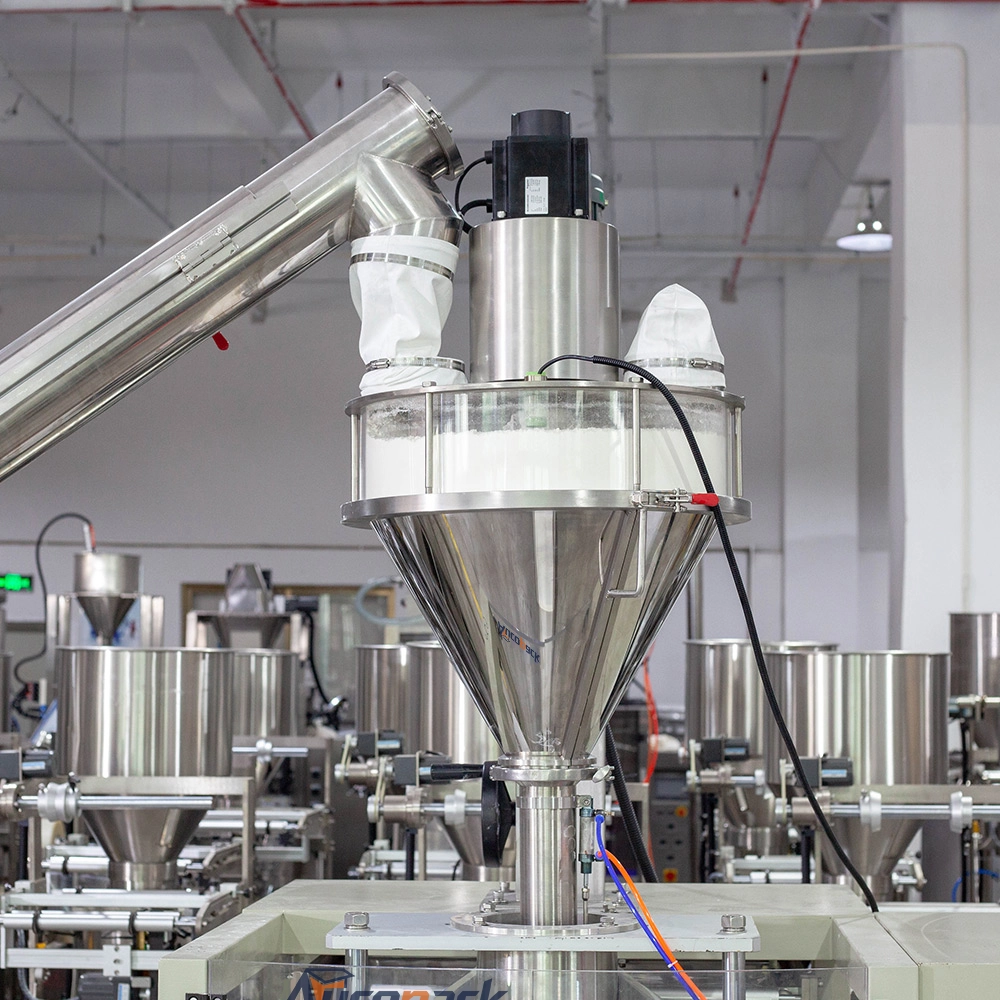

The Automatic Dry Powder Weighing and Filling Machine Equipment is a precise and efficient solution designed for packaging fine powder products such as flour, protein powder, spices, and chemical powders. This machine automates the entire process, from weighing the product to accurately filling it into bags or pouches, ensuring consistent and high-quality packaging. Its auger filling system is ideal for fine or free-flowing powders, allowing for smooth and accurate filling. This equipment is highly versatile, supporting various packaging sizes and types to meet different industry needs. It is perfect for industries such as food, pharmaceuticals, and chemicals that require precise dosing and efficient production.

Features

Precise Weighing. Dust-Free Filling
Designed for Dry Powder Industries

Handle dry powders with ease—this machine offers servo-controlled dosing, real-time weighing, and clean filling. From dosing to discharge, this powder filler ensures minimal dust, precise weight, and fast throughput. Ideal for protein powder, spice blends, or pharmaceutical-grade materials.

Accurate Powder Weighing System

Equipped with a highly accurate weighing system, ensuring precise measurement of dry powders for each fill.

Automatic Filling Mechanism

This equipment automates the filling process for dry powders, improving production efficiency.

High-Speed Operation

Designed for high throughput, the machine can quickly weigh and fill large quantities of dry powder.

Dust-Free Filling Process

The machine's enclosed design minimizes dust dispersion during filling, maintaining a clean working environment.

Versatile Powder Handling

Capable of handling a variety of powder types, the machine is suitable for pharmaceuticals & food industries.

Advanced Sealing Technology

Ensures airtight sealing of powder-filled containers, protecting products from moisture and contamination.

Energy-Efficient Design

The machine operates with optimized energy consumption, reducing operational costs.

Quick Changeover Capabilities

Easy adjustment when switching between different powder types or bay sizes, increasing flexibility.

Parameters

Type	LD-420	LD-520	LDB-620	LDB-720
Film Width	Max. 420mm	Max. 520mm	150 - Max. 620mm	150 - Max. 720mm
Bag Length	80 - 300mm	60 - 400mm	60 - 450mm	60 - 500mm
Bag Width	60 - 200mm	100 - 250mm	65 - 300mm	65 - 350mm
Film Roll Diameter	Max. 600mm	Max. 600mm	Max. 600mm	Max. 600mm
Packing Speed	5 - 60 bag/min	5 - 40 bag/min	5 - 35 bag/min	5 - 30 bag/min
Making-bag Volume	1000ml	2000ml	3000ml	5000ml
Film Thickness	0.04 - 0.12mm
Film Material	BOPP/CPP, BOPP/VMCPP, BOPP/PE, PET/VMPET/PE, PET/AL/PE, PET/PET ETC.
Power Supply	220V, 50/60Hz, 3KW	220V, 50/60Hz, 3KW	220V, 50/60Hz, 3.2KW	220V, 50/60Hz, 3.2KW
Machine Size (LWH)	(L)1217(W)1015(H)1343mm	(L)1488(W)1080(H)1490mm	(L)1488(W)1180(H)1550mm	(L)1780(W)1350(H)2050mm
Machine Weight	About 650kg	About 680kg	About 700kg	About 750kg
Options	Air Filling Device, Angle Folding Device, Vision Inspection System, X-Ray Inspection System, Food Metal Detector, Checkweigher, Weight Grader

Pakcaging Styles

Pillow Bag: This is a straightforward and commonly used pouch style for dry powder products, featuring seals at the top and bottom with a longitudinal back seam. It is suitable for packing products like flour, protein powder, spices, and other dry powders in an economical and efficient way.
Gusseted Bag: Featuring expandable side gussets, this pouch style provides extra volume and improved stability. Gusseted bags are ideal for larger quantities of powder products such as coffee, milk powder, or baking ingredients, where additional space and better shelf presence are desired.
Flat Bottom Bag: Also called block-bottom bags, these pouches offer a stable structure that can stand upright on shelves. They are suitable for premium or bulk powder products such as nutritional supplements, flour, or other dry ingredients, offering an attractive packaging solution with high capacity.
Quad Seal Bag: A four-sided seal bag that forms a box-like structure, providing enhanced stability and visual appeal. This pouch style is ideal for packaging larger quantities of powder products, such as protein powders or specialty flour, that benefit from a more structured and premium presentation.

Warranty and Services

12-month quality warranty.
24-month local fast replacement service for major electrical parts.
Comprehensive shipment services, including coordination of logistics, delivery tracking, and ensuring timely delivery to your location.
Technical support , Manual instructions, installation, and operation guides with delivery.
On-site setup, operation, and maintenance training as needed.

After the warranty period, we offer:

Lifelong maintenance services.
Spare parts support.
Operational training to ensure reliability.
Quick responses to any inquiries from our customer service team.
