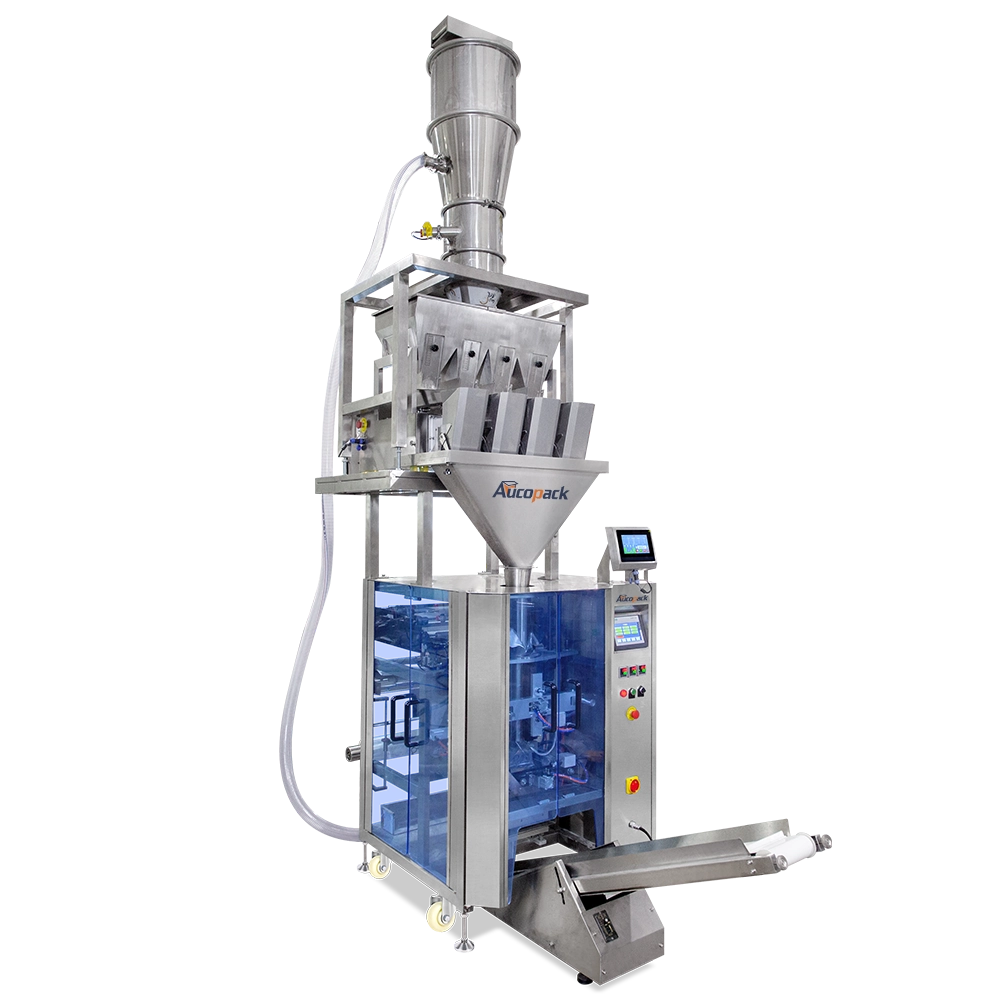

Auto Vertical Form Fill Seal Machine with Vacuum Pump Feeder

Advanced VFFS machine with vacuum pump integration—delivering exact dosing, airtight sealing, and intelligent control for consistent product quality.

Online inquiry

Industries Application Features Parameters Pakcaging Styles Warranty and Services

Industries Application

frozen food packaging machine

The Auto Vertical Form Fill Seal Machine with Vacuum Pump Feeder is an advanced packaging solution designed for efficient and precise packaging of products such as powders, granules, and small items. This machine integrates a vacuum pump feeder that automatically transports materials into the machine, ensuring a continuous and smooth product flow while reducing the need for manual handling. The vacuum pump feeder enhances production efficiency by streamlining material feeding, making it particularly useful for bulk production environments. This machine is ideal for industries such as food, pharmaceuticals, and chemicals, offering flexibility with various bag sizes and materials. nd improve overall production efficiency.

Features

Gentle Lift, Tight Seal
Designed for Granules That Flow

Vacuum pump feeding keeps granule flow smooth, while the vertical system forms and seals high-quality bags. this machine handles delicate or free-flowing granules without breakage or loss. Great for products like rice, dry seeds, or fertilizer, ensuring reliable output and minimal waste.

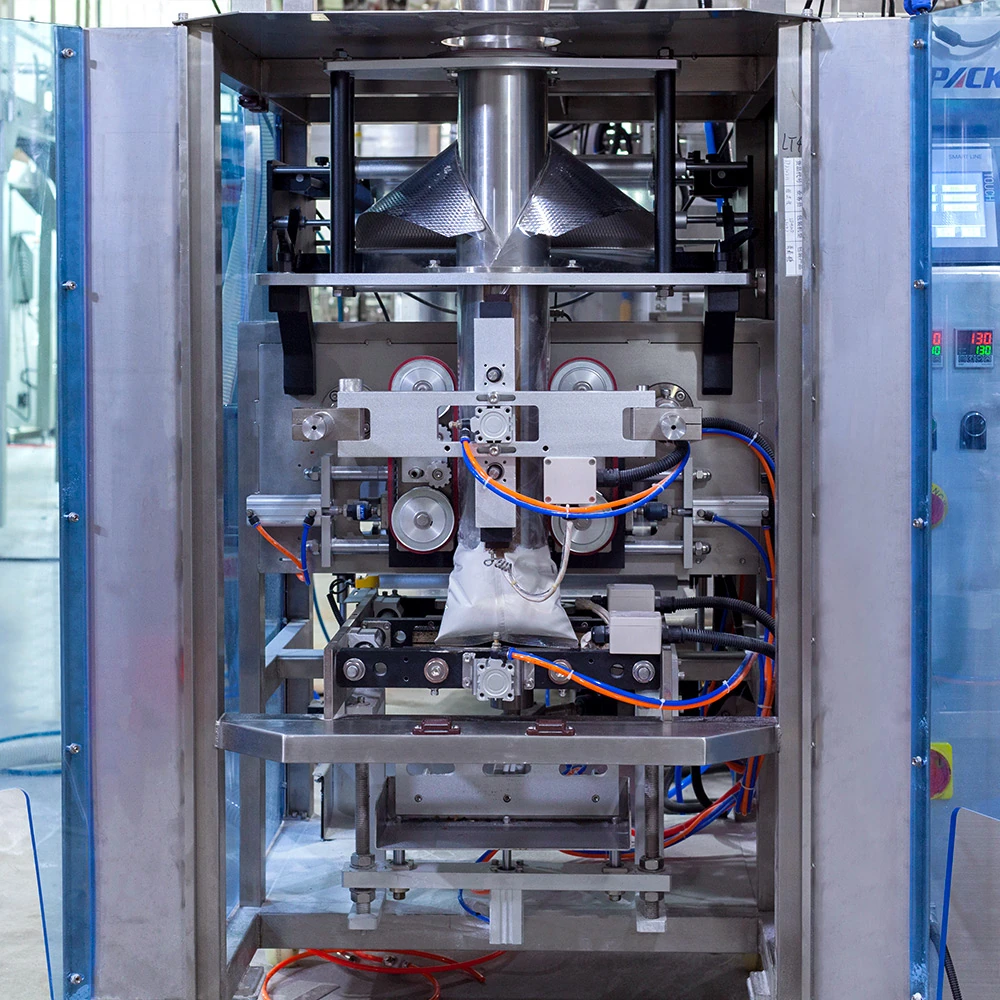

Vertical Form Fill Seal Technology
Advanced Vertical Form Fill Seal Technology

This machine combines forming, filling, and sealing in one seamless process, optimizing packaging efficiency for a variety of products.

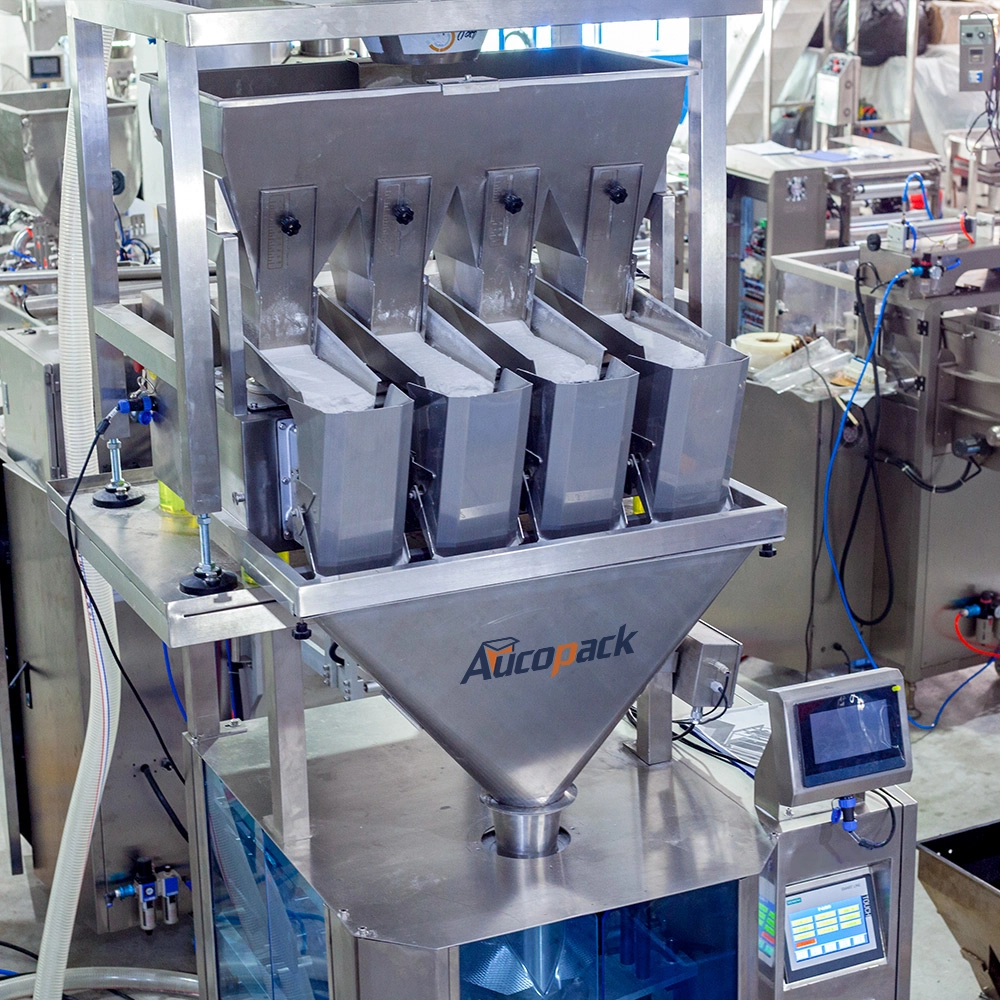

Integrated Vacuum Pump Feeder

The built-in vacuum pump feeder ensures precise product feeding, reducing spillage and enhancing accuracy, particularly for powders.

High-Speed Operation
Versatile premade pouch handling capabilities

Capable of high-speed packaging, this machine is designed to meet demanding production schedules without compromising on accuracy.

Versatile Packaging Applications

Suitable for a wide range of products, from powders to granules, the machine is ideal for food, pharmaceutical, and chemical industries.

Easy Touchscreen Interface Operate
Easy to Operate with Touchscreen Interface

The user-friendly touchscreen control panel simplifies operation, enabling quick adjustments and real-time monitoring of the packaging process.

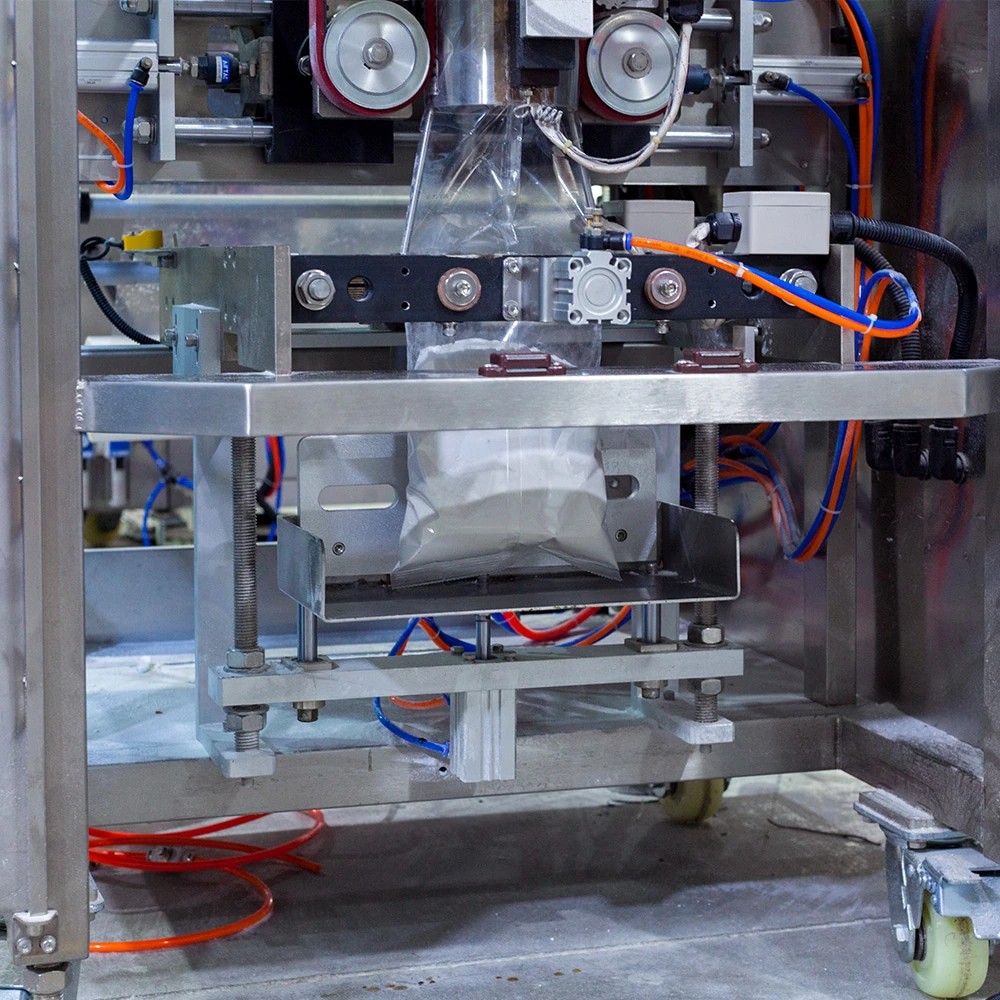

Precise Sealing Mechanism

The machine uses state-of-the-art sealing technology, ensuring airtight and tamper-proof packaging for maximum product protection.

Energy-Saving Design

Featuring energy-efficient components, the machine minimizes power consumption while maintaining high packaging performance.

Customizable Packaging Sizes

With adjustable forming tubes and feeders, the machine allows flexibility in packaging sizes, catering to diverse product requirements.

Parameters

Type	LD-420	LD-520	LDB-620	LDB-720
Film Width	Max. 420mm	Max. 520mm	150 - Max. 620mm	150 - Max. 720mm
Bag Length	80 - 300mm	60 - 400mm	60 - 450mm	60 - 500mm
Bag Width	60 - 200mm	100 - 250mm	65 - 300mm	65 - 350mm
Film Roll Diameter	Max. 600mm	Max. 600mm	Max. 600mm	Max. 600mm
Packing Speed	5 - 60 bag/min	5 - 40 bag/min	5 - 35 bag/min	5 - 30 bag/min
Making-bag Volume	1000ml	2000ml	3000ml	5000ml
Film Thickness	0.04 - 0.12mm
Film Material	BOPP/CPP, BOPP/VMCPP, BOPP/PE, PET/VMPET/PE, PET/AL/PE, PET/PET ETC.
Power Supply	220V, 50/60Hz, 3KW	220V, 50/60Hz, 3KW	220V, 50/60Hz, 3.2KW	220V, 50/60Hz, 3.2KW
Machine Size (LWH)	(L)1217(W)1015(H)1343mm	(L)1488(W)1080(H)1490mm	(L)1488(W)1180(H)1550mm	(L)1780(W)1350(H)2050mm
Machine Weight	About 650kg	About 680kg	About 700kg	About 750kg
Options	Air Filling Device, Angle Folding Device, Vision Inspection System, X-Ray Inspection System, Food Metal Detector, Checkweigher, Weight Grader

Pakcaging Styles

Pillow Bag: This is the most common pouch style produced by vertical form fill seal machines. It features seals at the top, bottom, and back, forming a pillow-like shape. It is widely used for packing products like snacks, granules, powders, and dry foods due to its simple design and cost-effectiveness.
Gusseted Bag: Featuring expandable side gussets, these bags provide additional volume, making them suitable for packing larger quantities. Gusseted bags are ideal for bulk products such as rice, grains, coffee, and pet food, where extra capacity is required.
Flat Bottom Bag: Also known as block-bottom bags, these pouches offer a stable structure that allows them to stand upright on shelves. They are used for packing products like flour, sugar, or other powders and grains where a high-volume, stable package is needed for display purposes.
Quad Seal Bag: This style has four side seals, creating a box-like shape with better structure and stability. Quad seal bags are used for products requiring a premium appearance and additional packaging strength, such as larger quantities of powders or dry products.

Warranty and Services

12-month quality warranty.
24-month local fast replacement service for major electrical parts.
Comprehensive shipment services, including coordination of logistics, delivery tracking, and ensuring timely delivery to your location.
Technical support , Manual instructions, installation, and operation guides with delivery.
On-site setup, operation, and maintenance training as needed.

After the warranty period, we offer:

Lifelong maintenance services.
Spare parts support.
Operational training to ensure reliability.
Quick responses to any inquiries from our customer service team.
