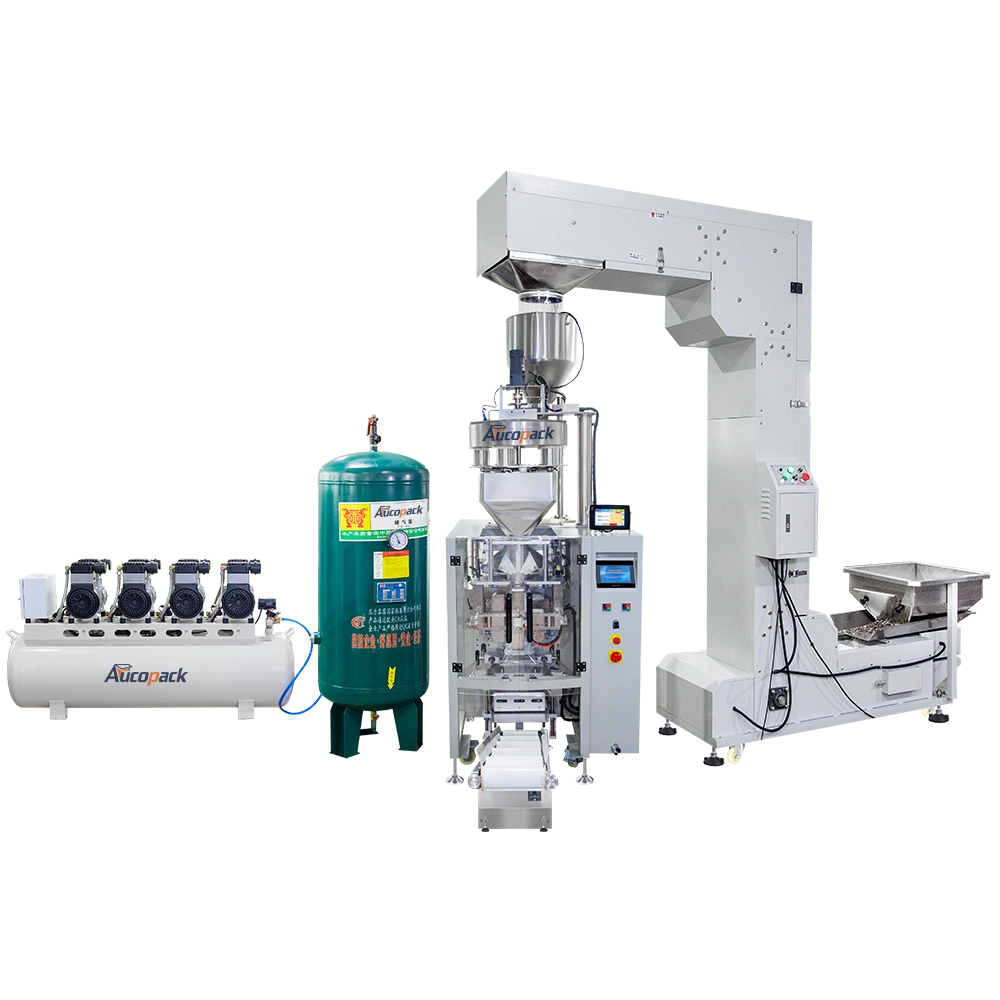

Auto Cup Measure Granule Packing Machine with Air Compressor

Next-generation granule packing machine combining cup measurement, pneumatic feeding, and digital control for consistent, high-precision packaging.

Online inquiry

Industries Application Features Parameters Pakcaging Styles Warranty and Services

Industries Application

pets food packaging machine

The Auto Cup Measure Granule Packing Machine with Air Compressor is a high-efficiency solution tailored for the precise packaging of granular products such as rice, sugar, beans, and snacks. Utilizing a cup measuring system, this machine ensures accurate portioning, reducing product waste and maintaining consistent packaging quality. The built-in air compressor provides additional functionality by assisting in bag forming, sealing, and maintaining packaging integrity. This integration of air compression ensures that bags are tightly sealed, providing extra protection against external factors such as moisture or air leakage, which is crucial for preserving product freshness.

Features

Air-Powered Efficiency in Every Pack
Designed for Free-Flowing Granules

With a rotary cup filler and air compressor-driven automation, this machine delivers consistent bag weights and strong seals. Great for packing granular products where speed and simplicity matter.

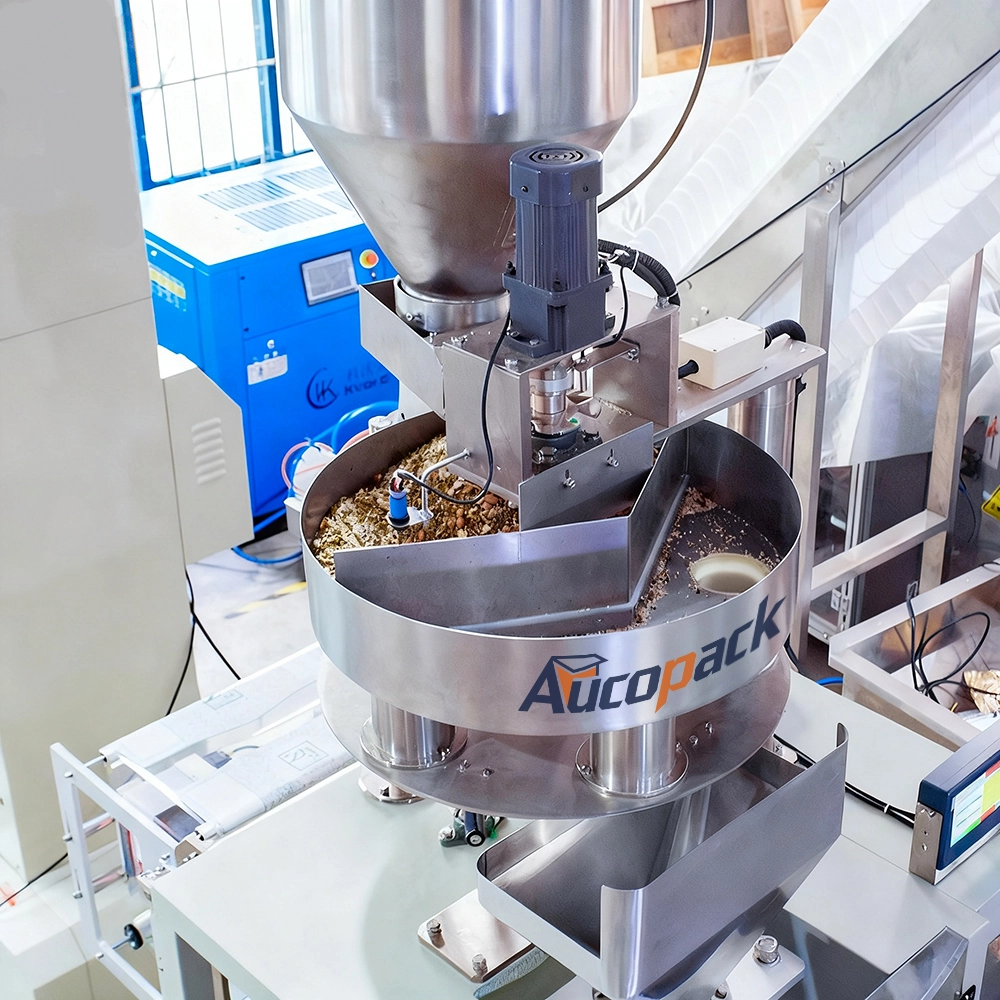

Accurate Auto Measuring System
Accurate Automatic Measuring System

This machine is equipped with a precision cup-based measuring system, ensuring accurate granule dispensing, minimizing material waste.

Built-in Air Compressor

The integrated air compressor provides stable and continuous power, eliminating the need for external equipment and improving the machine's compact design.

High Packaging Speed

With its fast sealing capabilities, the machine can handle a large volume of granule products per minute, meeting the demands of high-volume production.

Versatile for Various Granule Products

The machine is designed to accommodate a wide range of granule products, making it suitable for industries such as food, pharmaceuticals.

User-Friendly Interface

Equipped with an intuitive control panel, the machine offers easy operation and quick adjustments, reducing training time and operator errors.

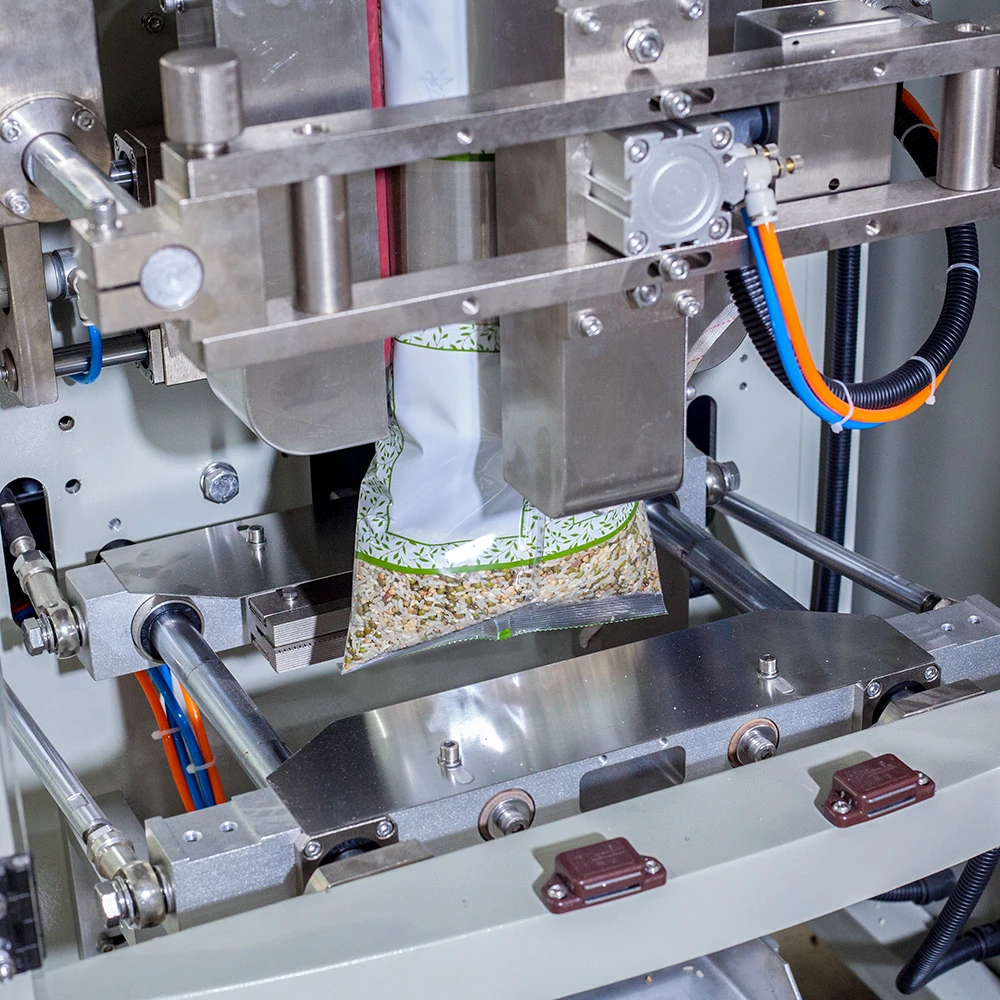

Precision Sealing Technology

Advanced sealing mechanisms ensure airtight and secure packaging, maintaining product freshness and preventing contamination.

Energy-Efficient Operation

The integrated air compressor and optimized power consumption reduce operational costs while maintaining high performance.

Customizable Packaging Sizes

The adjustable cup measuring system allows for flexible packaging sizes, making it adaptable to different customer needs and product requirements.

Parameters

Type	LD-420	LD-520	LDB-620	LDB-720
Film Width	Max. 420mm	Max. 520mm	150 - Max. 620mm	150 - Max. 720mm
Bag Length	80 - 300mm	60 - 400mm	60 - 450mm	60 - 500mm
Bag Width	60 - 200mm	100 - 250mm	65 - 300mm	65 - 350mm
Film Roll Diameter	Max. 600mm	Max. 600mm	Max. 600mm	Max. 600mm
Packing Speed	5 - 60 bag/min	5 - 40 bag/min	5 - 35 bag/min	5 - 30 bag/min
Making-bag Volume	1000ml	2000ml	3000ml	5000ml
Film Thickness	0.04 - 0.12mm
Film Material	BOPP/CPP, BOPP/VMCPP, BOPP/PE, PET/VMPET/PE, PET/AL/PE, PET/PET ETC.
Power Supply	220V, 50/60Hz, 3KW	220V, 50/60Hz, 3KW	220V, 50/60Hz, 3.2KW	220V, 50/60Hz, 3.2KW
Machine Size (LWH)	(L)1217(W)1015(H)1343mm	(L)1488(W)1080(H)1490mm	(L)1488(W)1180(H)1550mm	(L)1780(W)1350(H)2050mm
Machine Weight	About 650kg	About 680kg	About 700kg	About 750kg
Options	Air Filling Device, Angle Folding Device, Vision Inspection System, X-Ray Inspection System, Food Metal Detector, Checkweigher, Weight Grader

Pakcaging Styles

Pillow Bag: The most commonly used packaging style for granular products, such as sugar, salt, seeds, or rice. It features a simple design with seals at the top and bottom and a longitudinal back seam, offering a cost-effective and efficient solution for packing various types of granules.
Gusseted Bag: This style features expandable sides, allowing for larger volume and better stability. Gusseted bags are ideal for packing bulkier granular products, providing a more compact and visually appealing presentation. The gussets give extra room and make the bag stand upright, which is advantageous for products like legumes, grains, or pet food.
Stick Pack: For smaller quantities, stick packs are an option. These long, narrow bags are ideal for single-serving portions of granules, such as spices, sugar, or other small products. The stick pack design offers convenience for consumers and is suitable for products that need portion control.

Warranty and Services

12-month quality warranty.
24-month local fast replacement service for major electrical parts.
Comprehensive shipment services, including coordination of logistics, delivery tracking, and ensuring timely delivery to your location.
Technical support , Manual instructions, installation, and operation guides with delivery.
On-site setup, operation, and maintenance training as needed.

After the warranty period, we offer:

Lifelong maintenance services.
Spare parts support.
Operational training to ensure reliability.
Quick responses to any inquiries from our customer service team.
