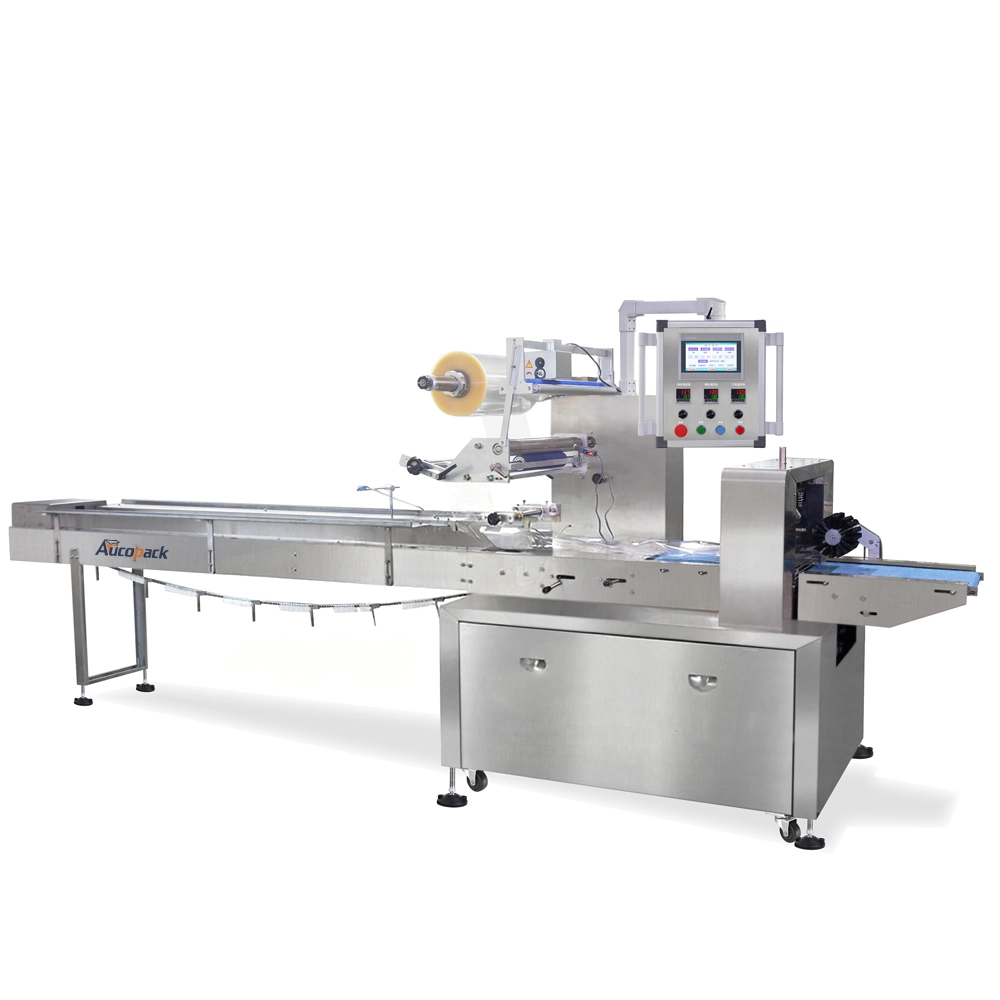

Flow Pack Machine

Aucopack™ flow wrappers perform three tasks in one fluid and continuous operation – forming a bag, filling it with product, and sealing the finished pack.

Online inquiry

Industries Application Features Parameters Pakcaging Styles Warranty and Services

Industries Application

Flow Pack Machine

A Flow Pack Machine is a versatile and high-speed packaging solution designed to wrap products in protective film, commonly used in industries such as food, pharmaceuticals, and consumer goods. This machine automates the process of feeding, wrapping, sealing, and cutting products, offering a seamless, continuous operation that improves production efficiency. Flow Pack Machines are ideal for packaging a wide range of items, including bakery products, candies, snacks, pharmaceuticals, and even non-food items like toys or hardware. The machine wraps products individually in flexible packaging materials, providing airtight, tamper-evident seals that protect the products from contamination, moisture, and damage. Capable of handling different product sizes and shapes, flow pack machines offer flexibility for manufacturers to meet diverse packaging needs.

Features

Flexible and Reliable Packaging
Advanced Flow Packing Solutions

Designed for modern production lines, these machines combine fast film feeding with accurate sealing. Ideal for snacks, medical supplies, and consumer goods, they ensure product protection while maximizing output and reducing waste.

Continuous Flow Wrapping System

The flow pack machine is designed for high-speed, continuous packaging, ideal for wrapping a variety of products such as food items, pharmaceuticals.

Versatile Product Handling

Its ability to accommodate diverse product shapes and sizes makes it an ideal choice for manufacturers in food, pharmaceuticals, and cosmetics.

Servo-Controlled Film Feed & Seal
Servo-Controlled Film Feeding and Sealing

Features a servo-driven film feeding system, ensuring precise control over film tension and placement, resulting in a tightly sealed.

Customizable Packaging Formats

Supports multiple packaging formats, including pillow packs, gusseted bags, and flat pouches. providing flexibility for different requirements.

Advanced Heat Sealing Technology

Integrated with adjustable temperature-controlled sealing modules, the machine provides airtight seals that are essential for preserving freshness.

Feeding & Synchronized Conveyance
Automated Product Feeding and Synchronized Conveyance

The machine includes an automated product feeding system that synchronizes with the wrapping process, ensuring accurate product alignment.

Optional Extended Functionality
Optional Features for Extended Functionality

Equipped with optional features like gas flushing systems for modified atmosphere packaging (MAP) or integrated labeling systems.

Energy-Efficient and Compact Design

Built for efficiency, the compact footprint ensures it can fit into existing production lines without taking up excessive floor space.

Parameters

Model Type	LP-350	LP-450	LP-600
Film Width	Max.350mm	Max.450mm	Max.600mm
Bag Length	120-280mm	150-450mm	160-500mm
Bag Width	50-160mm	50-180mm	100-280mm
Product Height	Max.40mm	Max.75mm	Max.110mm
Packaging Rate	30-80 bags/min	30-70 bags/min	30-60 bags/min
Machine Size	(L)3920* (W)670* (H)1320 mm	(L)4030* (W)820* (H)1420 mm	(L)4030* (W)970* (H)1500 mm
Machine Quality	About 550kg	About 650kg	About 680kg
Power	220V, 50HZ
Remarks	Optional air filling device /optional angle folding
Film material	OPP, PE, PVC, OPP/CPP, PT/PE, KOP/CPP metallized film, metallized f ilm

Pakcaging Styles

Flow Wrap (Pillow Pack): The most commonly used packaging style produced by flow pack machines. It features top and bottom seals, as well as a longitudinal back seam, forming a pillow-like shape around the product. This style is used for items like snacks, biscuits, baked goods, and confectionery.
Fin Seal Wrap: Similar to the pillow pack, but with a fin-like seal along the back of the package. The fin seal design provides additional strength, making it suitable for products that need extra protection, such as chocolate bars and other snack items.
Gusseted Flow Wrap: This packaging style includes expandable sides that provide extra volume, making it ideal for packaging larger or bulkier products, such as bread loaves or pastries.

Warranty and Services

12-month quality warranty.
24-month local fast replacement service for major electrical parts.
Comprehensive shipment services, including coordination of logistics, delivery tracking, and ensuring timely delivery to your location.
Technical support , Manual instructions, installation, and operation guides with delivery.
On-site setup, operation, and maintenance training as needed.

After the warranty period, we offer:

Lifelong maintenance services.
Spare parts support.
Operational training to ensure reliability.
Quick responses to any inquiries from our customer service team.
