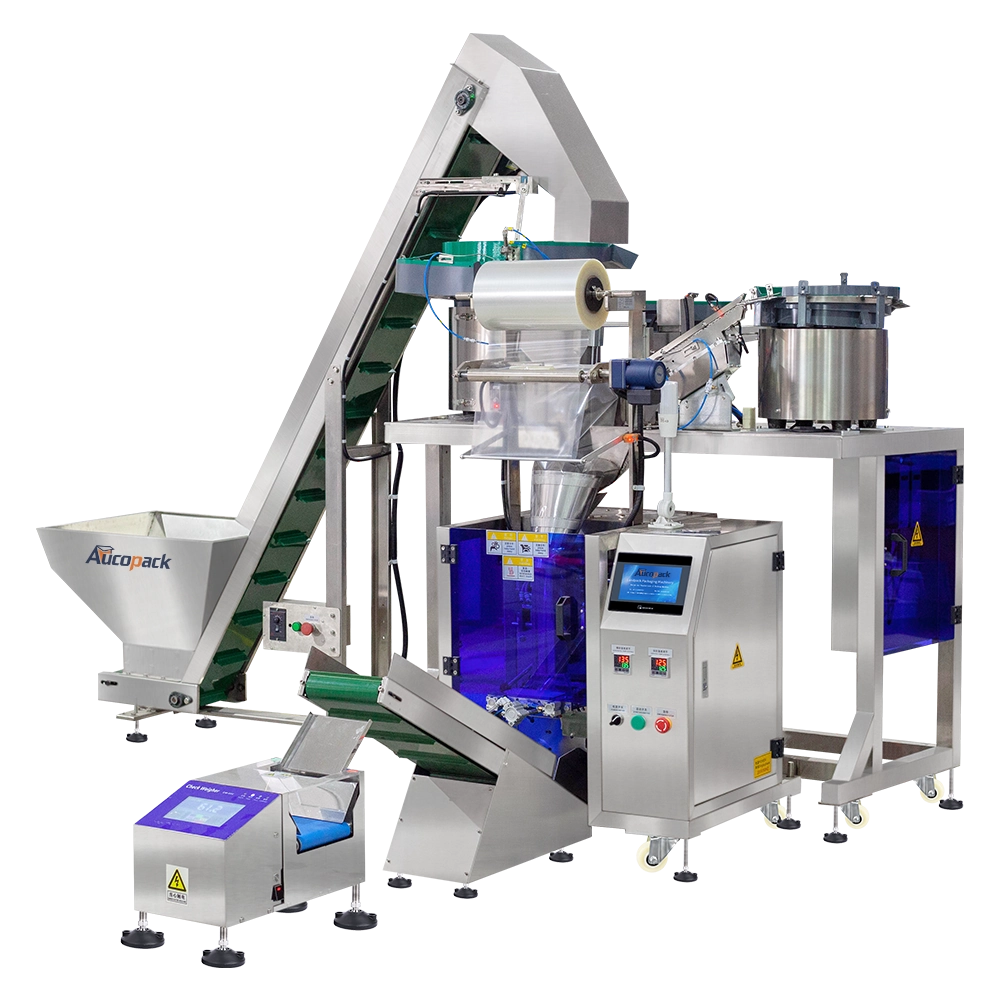

Hardware Screw Furniture Fittings Counting and Packing Machine

High-efficiency screw packing solution for furniture fittings combines intelligent sensors, fast cycle times, and customizable packaging formats.

Online inquiry

Industries Application Features Parameters Pakcaging Styles Warranty and Services

Industries Application

Counting and Mixing fasteners Packaging Machines.jpg

The Hardware Screw Furniture Fittings Counting and Packing Machine are tailored for the accurate counting and packaging of small hardware components like screws, nails, bolts, and other furniture fittings. This machine is designed to meet the needs of hardware manufacturers and furniture assembly companies, where precision and efficiency are essential for packaging assembly kits or hardware parts. Featuring a high-speed counting system, this machine ensures precise quantities in every package, reducing manual labor and increasing production speed. The automated process covers counting, filling, sealing, and even labeling, making it a comprehensive packaging solution. Its versatility allows for easy adjustment to accommodate a wide range of hardware sizes and shapes, ensuring flexibility in production.

Features

Smart Counting for Smarter Assembly
Designed for Furniture Hardware Bags

Automatically count and combine multiple screw types into one pouch. Great for cabinets, beds, or shelving units, this machine streamlines your packing process—minimizing errors and speeding up kit preparation. Reliable part counts—ideal for ready-to-assemble furniture.

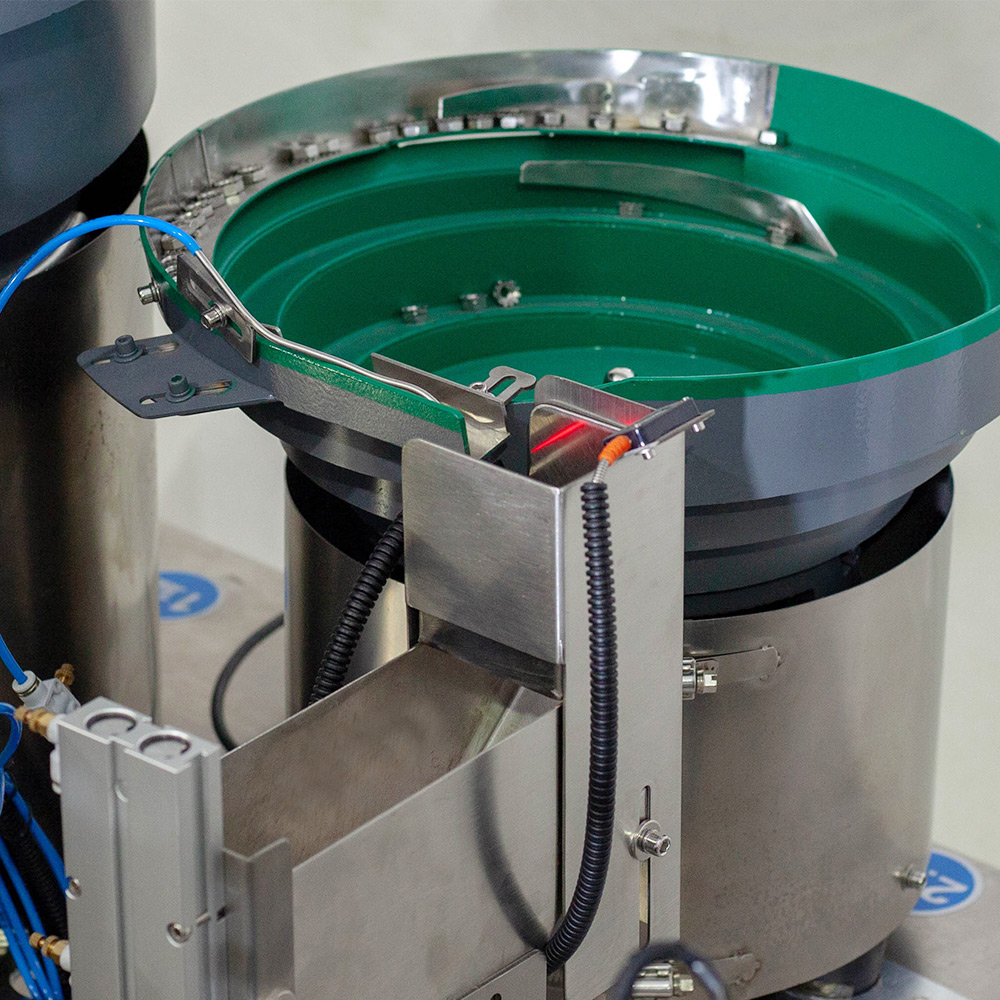

Turntable-Based Precision Counting

The machine employs a high-precision turntable counting system, optimized for accurately and efficiently counting without jamming or miscounting.

Advanced Error Detection Mechanism

Integrated with an intelligent error detection system, automatically corrects any discrepancies in the counting process, identifying missing hardware.

Durable Industrial Design
Durable Industrial Design with Low Maintenance

Built for long-term industrial use, the turntable system is engineered for durability and ease of maintenance, ensuring continuous operation.

Customizable Turntable Speed

The turntable's rotation speed can be easily adjusted through the PLC control system, allowing the machine to accommodate different requirements.

Space-Saving Compact Design

The turntable system is designed to optimize space utilization, making the machine ideal for factories with limited floor space.

Multi-Material Packaging Compatibility

Supports a wide range of packaging materials, from traditional plastic bags to biodegradable alternatives, offering flexibility in packaging options.

Static and Dust Control
Static and Dust Control for Smooth Operation

The turntable system is equipped with anti-static and dust prevention features, ensuring smooth operation in environments prone to dust.

Intuitive PLC Monitoring & Control
Intuitive PLC Control with Real-Time Monitoring

The machine features an easy-to-use PLC control system with a touch screen interface, enabling real-time monitoring and quick adjustments.

Parameters

Type	LD-420	LD-520	LDB-620	LDB-720
Film Width	Max. 420mm	Max. 520mm	150 - Max. 620mm	150 - Max. 720mm
Bag Length	80 - 300mm	60 - 400mm	60 - 450mm	60 - 500mm
Bag Width	60 - 200mm	100 - 250mm	65 - 300mm	65 - 350mm
Film Roll Diameter	Max. 600mm	Max. 600mm	Max. 600mm	Max. 600mm
Packing Speed	5 - 60 bag/min	5 - 40 bag/min	5 - 35 bag/min	5 - 30 bag/min
Making-bag Volume	1000ml	2000ml	3000ml	5000ml
Film Thickness	0.04 - 0.12mm
Film Material	BOPP/CPP, BOPP/VMCPP, BOPP/PE, PET/VMPET/PE, PET/AL/PE, PET/PET ETC.
Power Supply	220V, 50/60Hz, 3KW	220V, 50/60Hz, 3KW	220V, 50/60Hz, 3.2KW	220V, 50/60Hz, 3.2KW
Machine Size (LWH)	(L)1217(W)1015(H)1343mm	(L)1488(W)1080(H)1490mm	(L)1488(W)1180(H)1550mm	(L)1780(W)1350(H)2050mm
Machine Weight	About 650kg	About 680kg	About 700kg	About 750kg

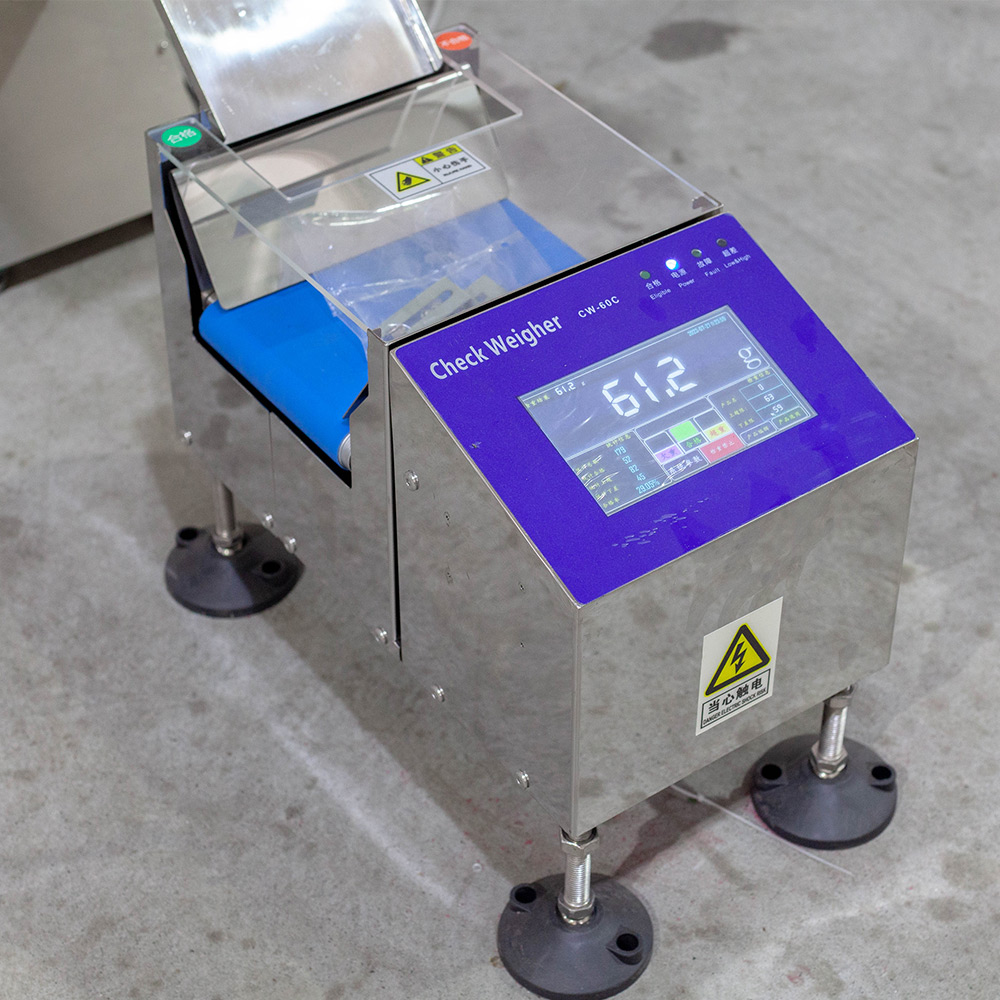

Options	Air Filling Device, Angle Folding Device, Vision Inspection System, X-Ray Inspection System, Food Metal Detector, Checkweigher, Weight Grader

Pakcaging Styles

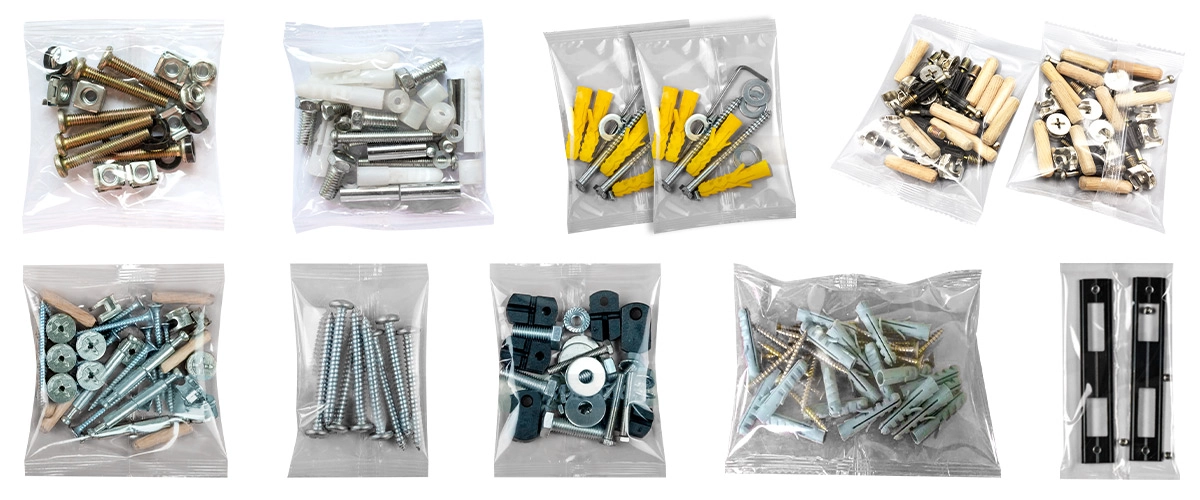

Pillow Bag: This is the most widely used pouch style for hardware furniture fittings when using a vertical packaging machine. It is formed with two horizontal seals (top and bottom) and a longitudinal back seal, creating a pillow-like shape. Pillow bags are ideal for packing hardware items like screws, bolts, and nails. The simplicity and cost-effectiveness of this pouch make it highly suitable for bulk packaging and retail settings.
Three-Side Sealed Pouch: A vertical packaging machine can also produce three-side sealed pouches, which are sealed on three sides, leaving one side open for filling before sealing. This type of pouch is well-suited for assortments of hardware pieces such as hinges, brackets, or mixed screws, providing secure and straightforward packaging. It also makes organizing and storing small parts easier for consumers.

Warranty and Services

12-month quality warranty.
24-month local fast replacement service for major electrical parts.
Comprehensive shipment services, including coordination of logistics, delivery tracking, and ensuring timely delivery to your location.
Technical support , Manual instructions, installation, and operation guides with delivery.
On-site setup, operation, and maintenance training as needed.

After the warranty period, we offer:

Lifelong maintenance services.
Spare parts support.
Operational training to ensure reliability.
Quick responses to any inquiries from our customer service team.
