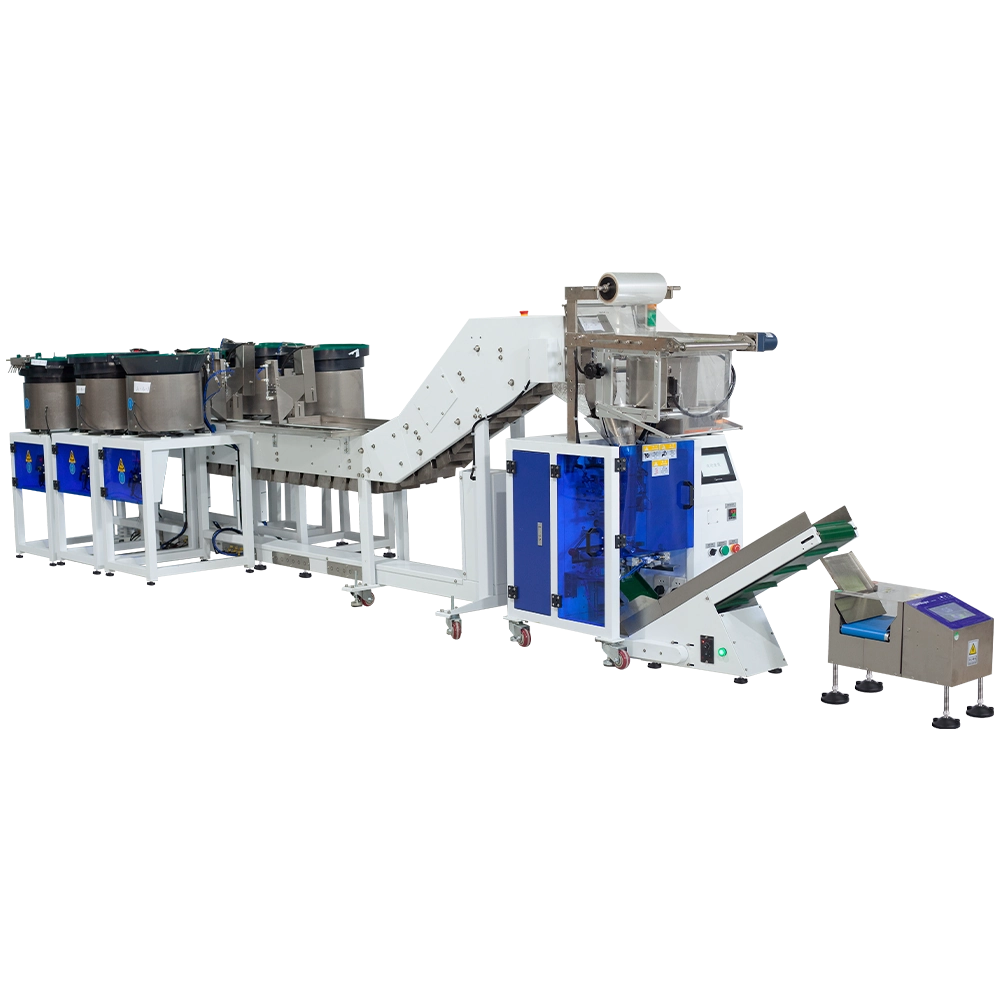

Hardware Screw Counting and Packing Machine with Check Weigher

Streamline your screw packaging line with our advanced counting machine and check weigher—automated, accurate, and designed for industrial productivity.
Online inquiry
Industries Application Features Parameters Pakcaging Styles Warranty and Services
Industries Application

fastenners packaging machine.jpg


Features


Zero-Tolerance Hardware Packing
Designed for Precision with Recheck Control

After fast optical counting, a high-precision check weigher verifies total pack weight. Any deviation triggers automatic rejection—making it ideal for critical-use parts like screws, nails, and washers. Ensure perfect part counts every time.


Integrated Accuracy Check Weigher
Integrated Check Weigher for Enhanced Accuracy
This machine combines high-precision counting with a built-in check weigher, any deviation from the set weight triggers automatic rechecks.
Screw Counting Technology
High-Speed Screw Counting Technology
Equipped with advanced optical sensors and counting algorithms, the machine delivers fast and precise counting of screws, bolts, hardware components.
Real-Time Weight Verification
Real-Time Weight Verification
The integrated check weigher continuously monitors the weight of each package in real time, automatically rejecting under- or overfilled packs.
Customizable Packaging Solutions
Customizable Packaging Solutions
The machine offers lexibility packaging options, supporting various bag, and allows easy adjustments for different screw sizes and quantities.
Intuitive PLC-Controlled System
PLC-Controlled System with Intuitive Interface
Features PLC control system enabling to set precise counting, weighing, and packaging parameters with real-time monitoring of the entire process.
Auto Sorting and Feeding Mechanism
Automatic Sorting and Feeding Mechanism

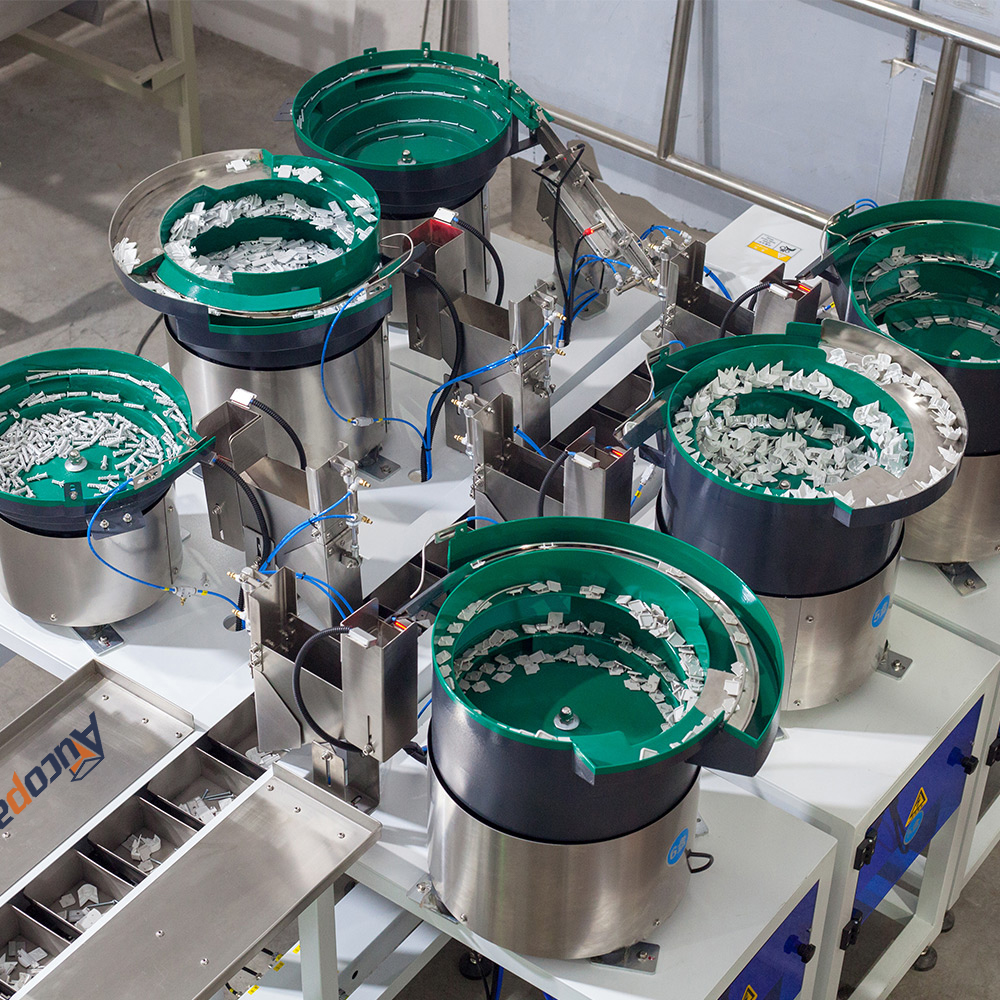

Equipped with an efficient vibration or belt feeding system, the machine automatically sorts and feeds hardware pieces into the packaging station.
Durable Industrial Construction
Durable Construction for Industrial Use
The machine is built with high-grade, durable materials to withstand the rigors of continuous industrial use, providing reliable performance.
Error Detection and Correction
Error Detection and Correction
The system is equipped with error detection mechanisms that alert to counting discrepancies, ensuring consistent quality in every package.


Parameters
TypeLD-420LD-520LDB-620LDB-720
Film WidthMax. 420mmMax. 520mm150 - Max. 620mm150 - Max. 720mm
Bag Length80 - 300mm60 - 400mm60 - 450mm60 - 500mm
Bag Width60 - 200mm100 - 250mm65 - 300mm65 - 350mm
Film Roll DiameterMax. 600mmMax. 600mmMax. 600mmMax. 600mm
Packing Speed5 - 60 bag/min5 - 40 bag/min5 - 35 bag/min5 - 30 bag/min
Making-bag Volume1000ml2000ml3000ml5000ml
Film Thickness0.04 - 0.12mm
Film MaterialBOPP/CPP, BOPP/VMCPP, BOPP/PE, PET/VMPET/PE, PET/AL/PE, PET/PET ETC.
Power Supply220V, 50/60Hz, 3KW220V, 50/60Hz, 3KW220V, 50/60Hz, 3.2KW220V, 50/60Hz, 3.2KW
Machine Size (L*W*H)(L)1217*(W)1015*(H)1343mm(L)1488*(W)1080*(H)1490mm(L)1488*(W)1180*(H)1550mm(L)1780*(W)1350*(H)2050mm
Machine WeightAbout 650kgAbout 680kgAbout 700kgAbout 750kg
OptionsAir Filling Device, Angle Folding Device, Vision Inspection System, X-Ray Inspection System, Food Metal Detector, Checkweigher, Weight Grader
Pakcaging Styles

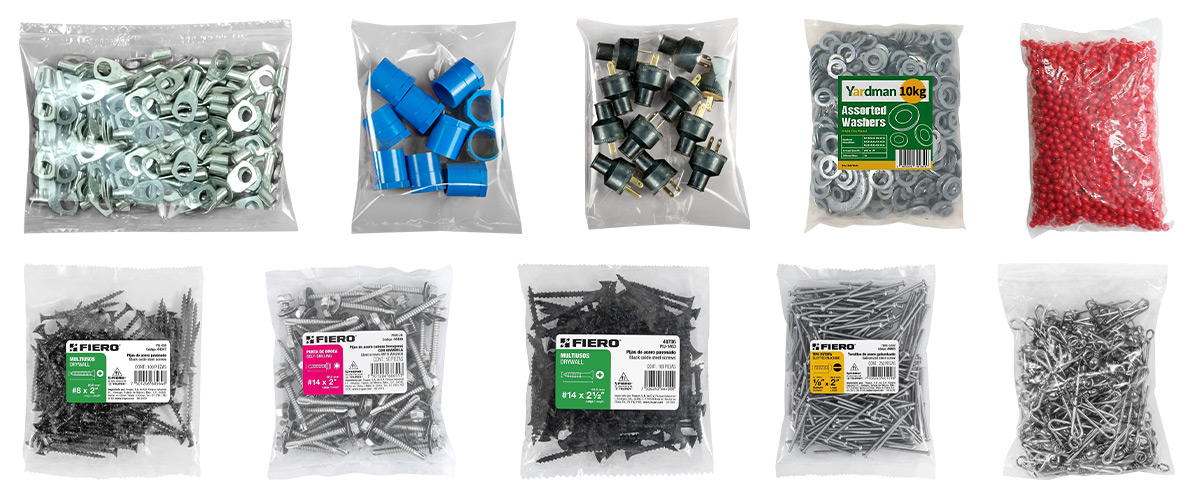

  • Pillow Bag: This is the most widely used pouch style for hardware furniture fittings when using a vertical packaging machine. It is formed with two horizontal seals (top and bottom) and a longitudinal back seal, creating a pillow-like shape. Pillow bags are ideal for packing hardware items like screws, bolts, and nails. The simplicity and cost-effectiveness of this pouch make it highly suitable for bulk packaging and retail settings.
  • Three-Side Sealed Pouch: A vertical packaging machine can also produce three-side sealed pouches, which are sealed on three sides, leaving one side open for filling before sealing. This type of pouch is well-suited for assortments of hardware pieces such as hinges, brackets, or mixed screws, providing secure and straightforward packaging. It also makes organizing and storing small parts easier for consumers.
Warranty and Services
  • 12-month quality warranty.
  • 24-month local fast replacement service for major electrical parts.
  • Comprehensive shipment services, including coordination of logistics, delivery tracking, and ensuring timely delivery to your location.
  • Technical support , Manual instructions, installation, and operation guides with delivery.
  • On-site setup, operation, and maintenance training as needed.

After the warranty period, we offer:

  • Lifelong maintenance services.
  • Spare parts support.
  • Operational training to ensure reliability.
  • Quick responses to any inquiries from our customer service team.
