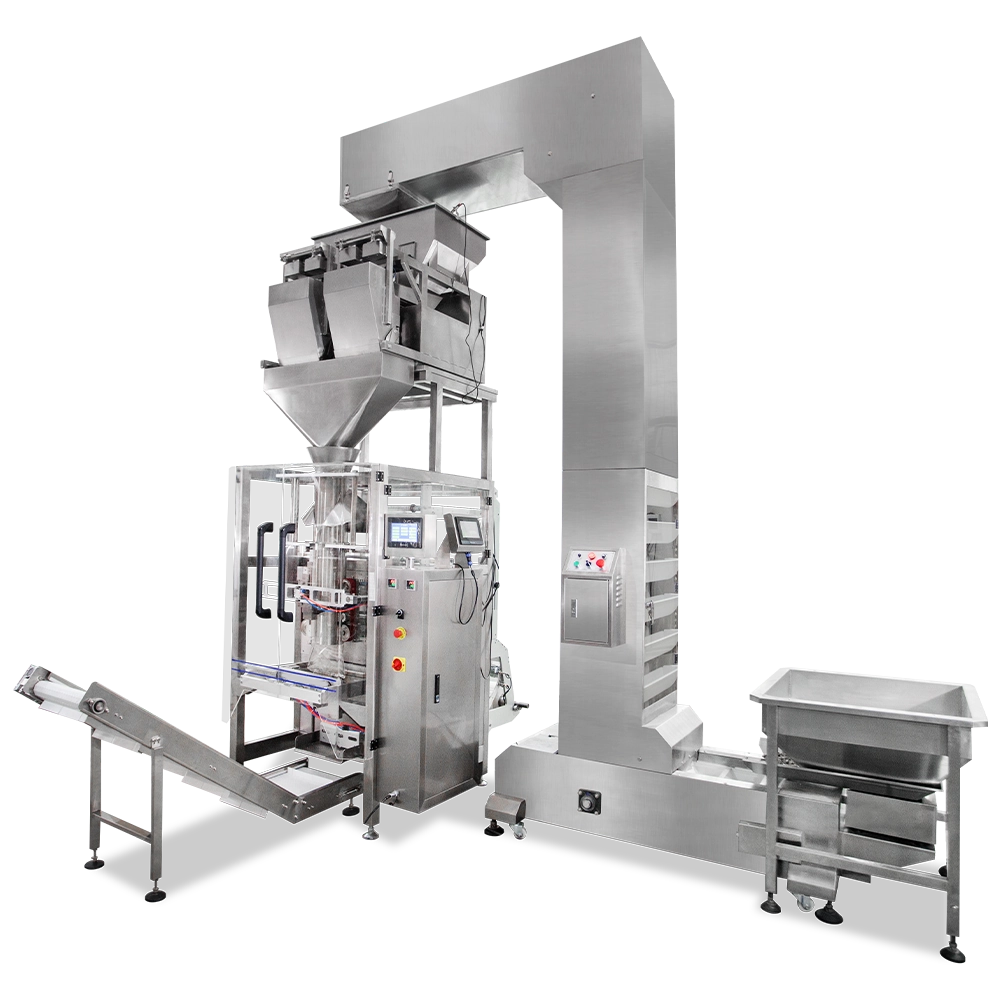

Fully Automatic Linear Weigher Ice Granule Packing Machine

Setting benchmarks in packaging automation, automatic linear weigher ensures precise ice granule dosing with fast, consistent packing and airtight sealing.

Online inquiry

Industries Application Features Parameters Pakcaging Styles Warranty and Services

Industries Application

Fully Automatic Linear Weigher Ice Granule Packing Machine.jpg

The Fully Automatic Linear Weigher Ice Granule Packing Machine is specially designed for the accurate and efficient packaging of ice granules and similar granular products. With its advanced linear weigher system, this machine ensures precise portioning, which is crucial for maintaining consistency in packaging and minimizing product waste. Ideal for ice production facilities, this machine automates the entire process, from weighing and filling to bag forming and sealing. Its fully automated operation allows for high-speed production, making it perfect for businesses handling large volumes of ice granules. The machine’s durable components are designed to withstand cold and wet conditions, ensuring reliable performance in demanding environments.

Features

Granular Ice, Neatly Bagged
Designed for Low-Temp Packaging Lines

Built with anti-freeze materials and smooth-flow components, this machine fills and seals bags of ice or similar granules quickly and accurately. precise weight control and fast sealing—ideal for foodservice and retail markets.

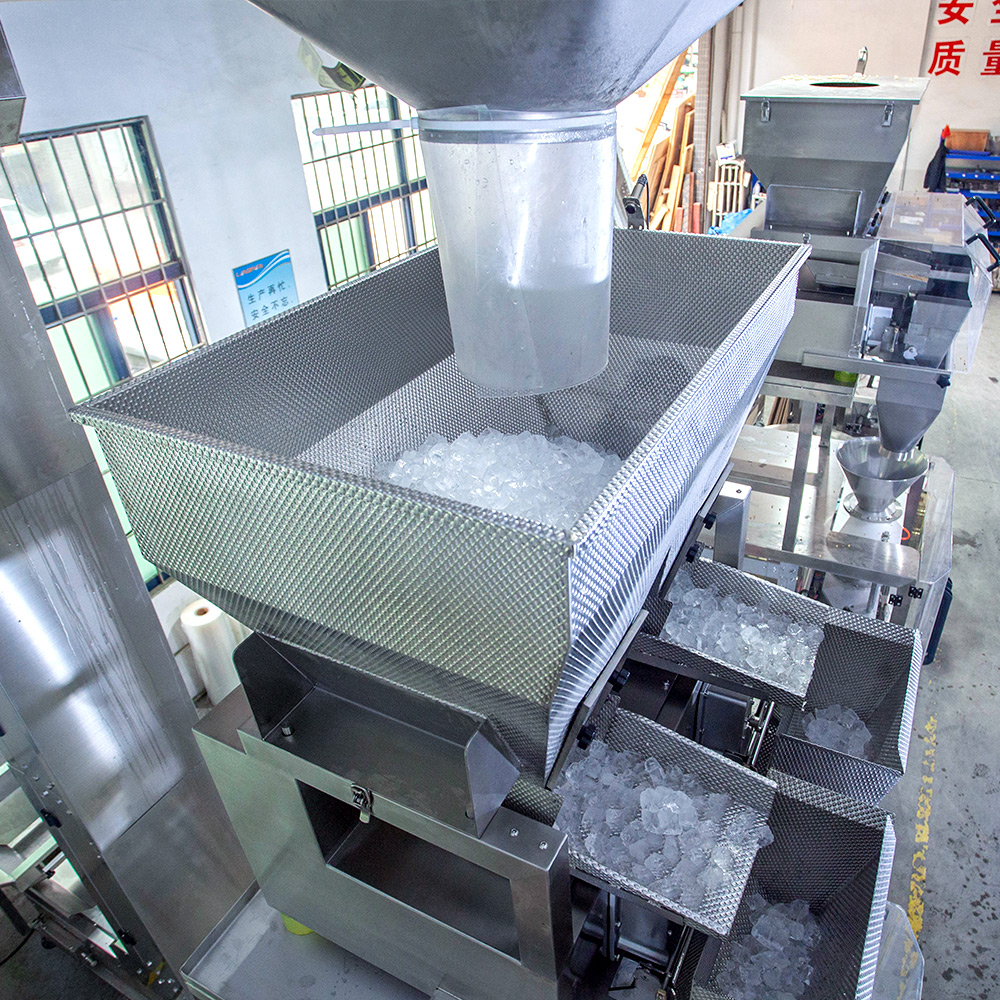

Precision Linear Weighing System
High-Precision Linear Weighing System

Equipped with a fully automatic linear weigher, ensures consistent weighing of ice granules, maintaining accuracy even in high-speed operations.

Design for Ice Temperature Handling
Temperature-Resistant Design for Ice Handling

Specifically designed for handling frozen products, built with cold-resistant materials and components to prevent freezing or condensation issues.

Fast and Efficient Packaging

The machine delivers high-speed bagging with rapid weighing, filling, and sealing processes, optimizing production efficiency for ice packaging.

Robust Stainless Steel Construction

Constructed from food-grade stainless steel, the machine offers superior durability, ideal for continuous operation in wet or cold conditions.

Adjustable Bag Packaging Formats
Adjustable Bag Sizes and Packaging Formats

The machine supports various bag sizes and materials, including polyethylene and other frozen-grade films, providing flexibility for different needs.

Intelligent PLC Real-Time Monitoring
Intelligent PLC Control with Real-Time Monitoring

The advanced PLC system allows for adjusting packaging parameters such as weight, speed, and sealing temperature, and provides performance monitoring.

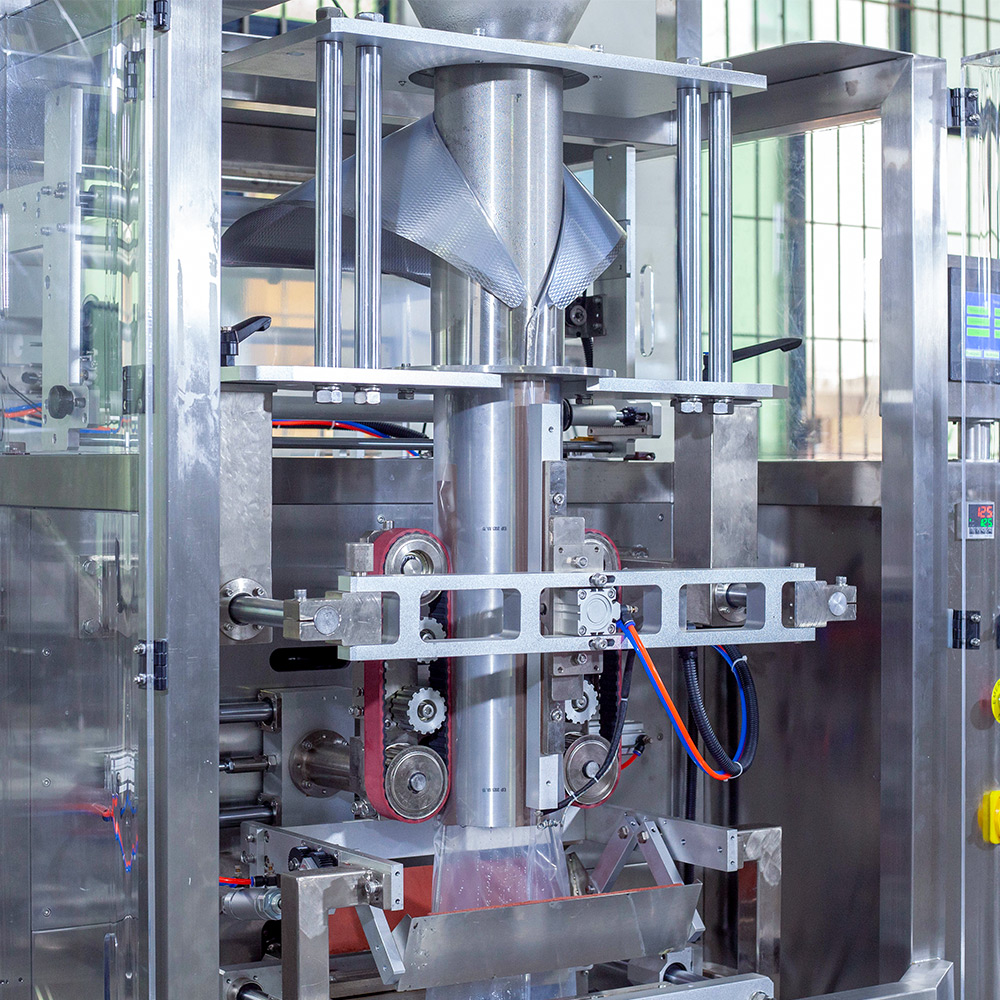

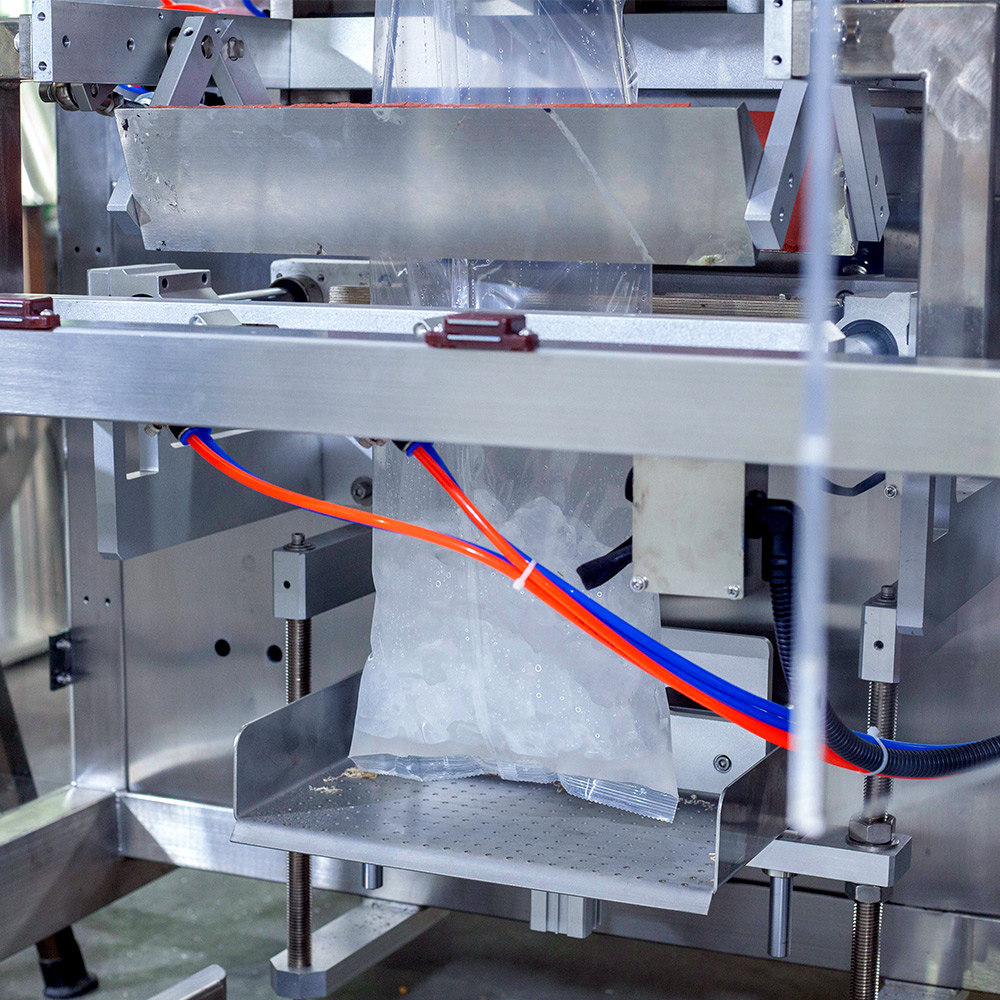

Auto Feeding and Sealing System
Automatic Feeding and Sealing System

Integrated with a fully automated feeding system, the machine efficiently transfers ice granules into the packaging unit while ensuring tight control.

Energy-Efficient Operation

Designed to reduce energy consumption, the machine maintains high-speed performance, making it a friendly option for frozen product packaging.

Parameters

Type	LD-420	LD-520	LDB-620	LDB-720
Film Width	Max. 420mm	Max. 520mm	150 - Max. 620mm	150 - Max. 720mm
Bag Length	80 - 300mm	60 - 400mm	60 - 450mm	60 - 500mm
Bag Width	60 - 200mm	100 - 250mm	65 - 300mm	65 - 350mm
Film Roll Diameter	Max. 600mm	Max. 600mm	Max. 600mm	Max. 600mm
Packing Speed	5 - 60 bag/min	5 - 40 bag/min	5 - 35 bag/min	5 - 30 bag/min
Making-bag Volume	1000ml	2000ml	3000ml	5000ml
Film Thickness	0.04 - 0.12mm
Film Material	BOPP/CPP, BOPP/VMCPP, BOPP/PE, PET/VMPET/PE, PET/AL/PE, PET/PET ETC.
Power Supply	220V, 50/60Hz, 3KW	220V, 50/60Hz, 3KW	220V, 50/60Hz, 3.2KW	220V, 50/60Hz, 3.2KW
Machine Size (LWH)	(L)1217(W)1015(H)1343mm	(L)1488(W)1080(H)1490mm	(L)1488(W)1180(H)1550mm	(L)1780(W)1350(H)2050mm
Machine Weight	About 650kg	About 680kg	About 700kg	About 750kg
Options	Air Filling Device, Angle Folding Device, Vision Inspection System, X-Ray Inspection System, Food Metal Detector, Checkweigher, Weight Grader

Pakcaging Styles

Pillow Bag: The most common style for packing ice granules, pillow bags are sealed at the top and bottom, providing a straightforward and economical solution. This style allows for efficient packing and quick sealing, ideal for ice packaging.
Gusseted Bag: Gusseted bags have expandable sides, offering extra volume, making them suitable for packing larger quantities of ice. The gusseted design allows for greater stability when stacked, which is useful in storage and transport.
Flat Bottom Bag: Also known as block-bottom bags, these pouches provide a stable, stand-up package that can accommodate larger volumes. They are ideal for situations where higher capacity and better shelf presentation are required.

Warranty and Services

12-month quality warranty.
24-month local fast replacement service for major electrical parts.
Comprehensive shipment services, including coordination of logistics, delivery tracking, and ensuring timely delivery to your location.
Technical support , Manual instructions, installation, and operation guides with delivery.
On-site setup, operation, and maintenance training as needed.

After the warranty period, we offer:

Lifelong maintenance services.
Spare parts support.
Operational training to ensure reliability.
Quick responses to any inquiries from our customer service team.
