Home > Products > Vertical Form Fill Seal Machine

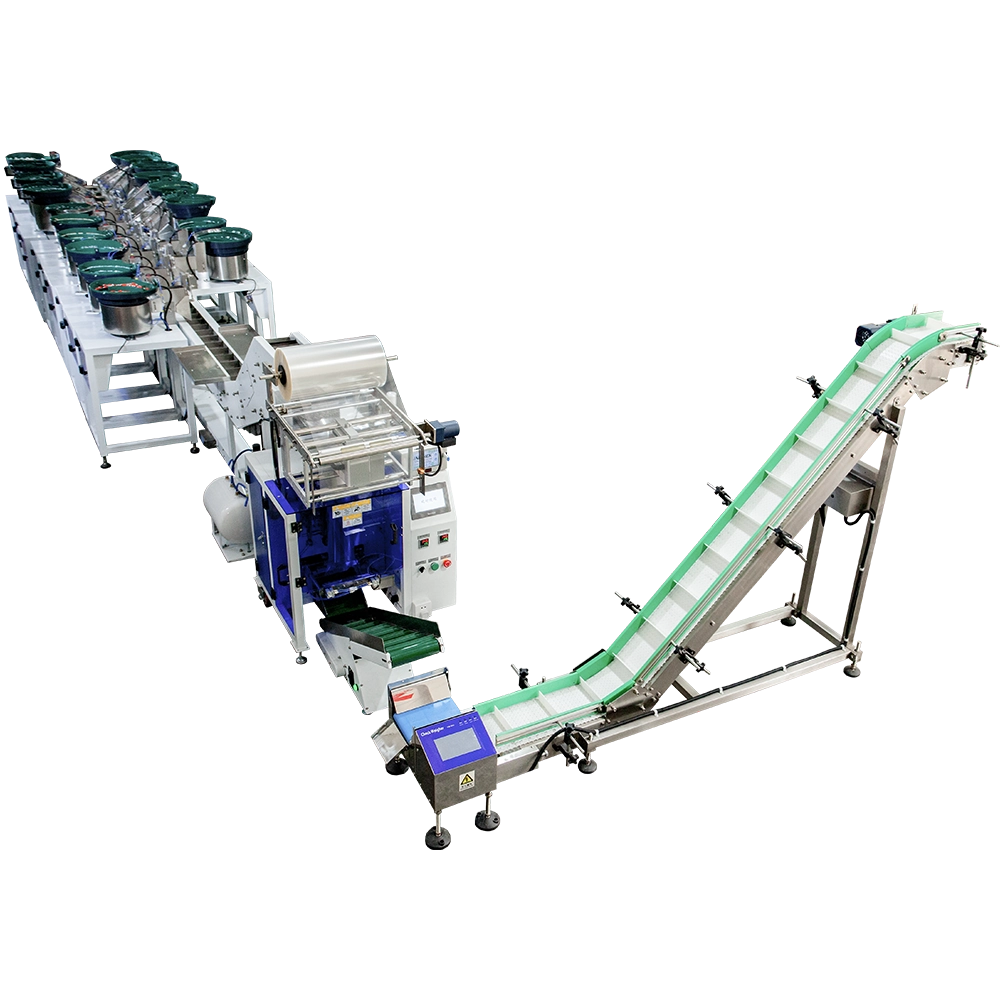

Automatic Hardware Parts Furniture Fittings Packing Machine

Advanced packing machine for hardware parts fittings integrates smart sorting, precise dosing, and high-speed operation for optimized packaging efficiency.

Online inquiry

Industries Application Features Parameters Pakcaging Styles Warranty and Services

Industries Application

fastenners packaging machine.jpg

Features

Smart Packing for Complex Kits
Designed for Furniture Kit Packing

This machine automatically counts, sorts, and packs hardware components like screws, dowels, and brackets into ready-to-ship kits. Multiple vibrating feeders and sensors handle mixed part types with ease and precision. Great for RTA furniture, lighting, plumbing, and construction hardware kits.

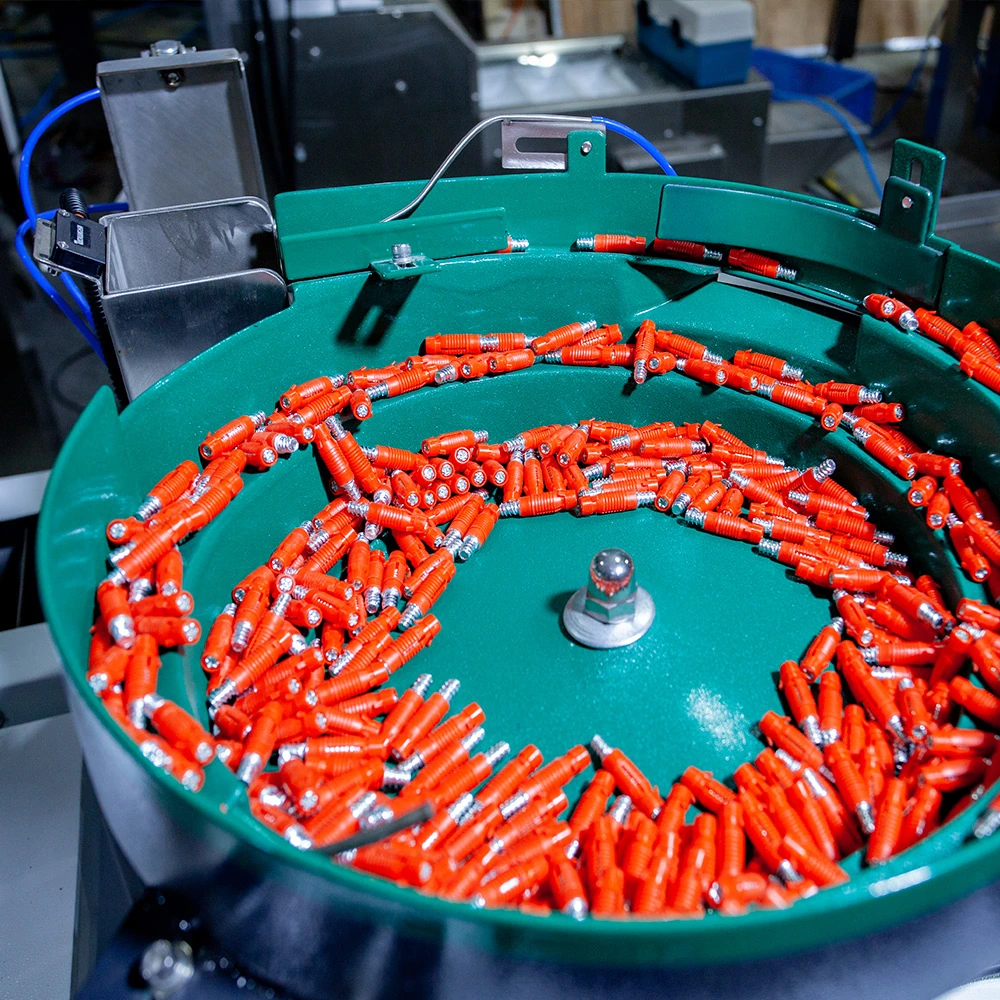

Automated High-Precision Counting

Equipped with an advanced automated counting system specifically designed for various hardware parts and furniture fittings, ensuring consistent.

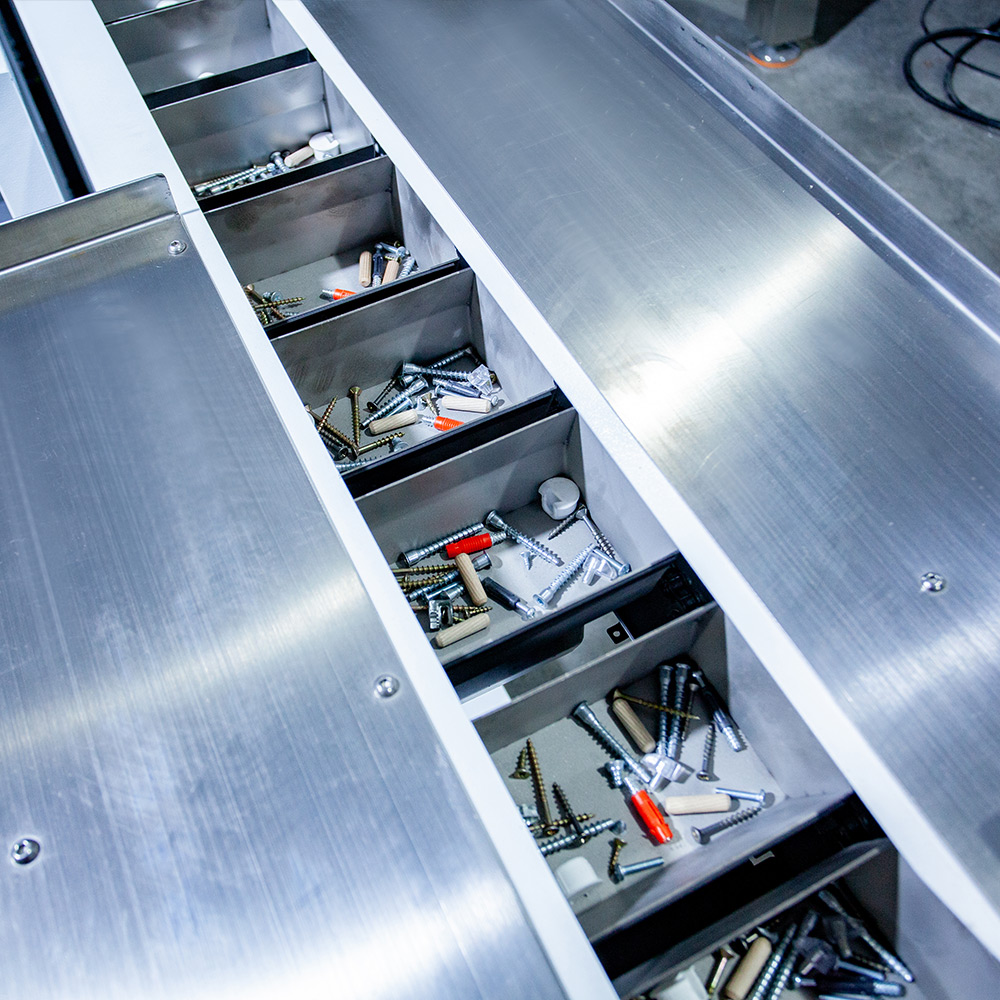

Flexible Multi-Part Packaging

Capable of handling multiple types of hardware fittings, the machine allows for the precise packing of different components in a single package.

Compact and Efficient Design

The machine’s compact design maximizes space efficiency, making it an ideal solution for production lines with limited floor space.

PLC-Controlled Automation

Featuring a PLC system with an intuitive touch screen interface, this machine offers full automation, easily adjust counting, packaging speed.

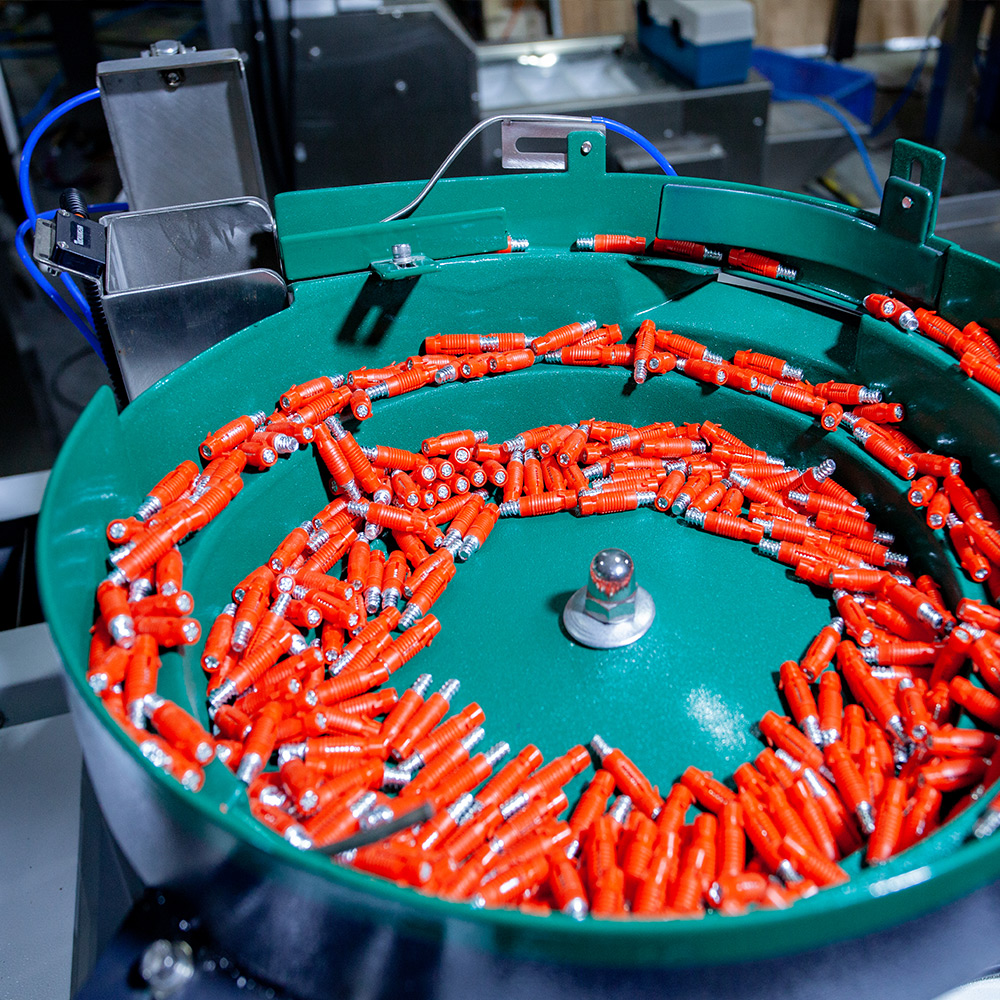

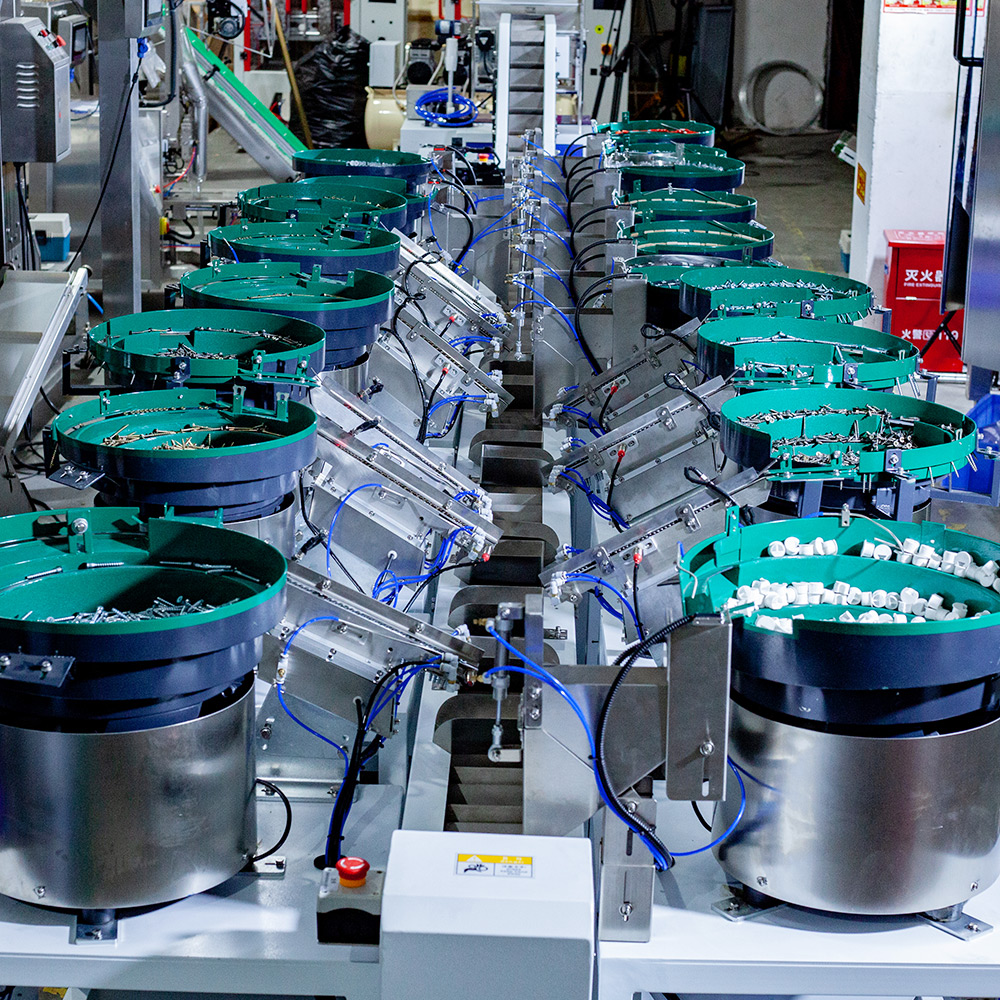

Auto Sorting and Feeding Mechanism
Automatic Sorting and Feeding Mechanism

Equipped with sorting and feeding system, the machine efficiently handles and feeds different hardware components into the packing station.

Durable and Industrial-Grade Materials

Built with industrial-grade materials, the machine is designed for demanding environments, providing reliability in packaging delicate hardware parts.

Customizable Packaging Options

Compatible with a wide range of packaging materials, able to accommodate different sizes and weights, offers customizable solutions.

Error Detection and Correction

Integrated with an advanced error detection system, the machine identifies and corrects miscounts or missing parts, ensuring accurate and complete.

Parameters

Type	LD-420	LD-520	LDB-620	LDB-720
Film Width	Max. 420mm	Max. 520mm	150 - Max. 620mm	150 - Max. 720mm
Bag Length	80 - 300mm	60 - 400mm	60 - 450mm	60 - 500mm
Bag Width	60 - 200mm	100 - 250mm	65 - 300mm	65 - 350mm
Film Roll Diameter	Max. 600mm	Max. 600mm	Max. 600mm	Max. 600mm
Packing Speed	5 - 60 bag/min	5 - 40 bag/min	5 - 35 bag/min	5 - 30 bag/min
Making-bag Volume	1000ml	2000ml	3000ml	5000ml
Film Thickness	0.04 - 0.12mm
Film Material	BOPP/CPP, BOPP/VMCPP, BOPP/PE, PET/VMPET/PE, PET/AL/PE, PET/PET ETC.
Power Supply	220V, 50/60Hz, 3KW	220V, 50/60Hz, 3KW	220V, 50/60Hz, 3.2KW	220V, 50/60Hz, 3.2KW
Machine Size (LWH)	(L)1217(W)1015(H)1343mm	(L)1488(W)1080(H)1490mm	(L)1488(W)1180(H)1550mm	(L)1780(W)1350(H)2050mm
Machine Weight	About 650kg	About 680kg	About 700kg	About 750kg
Options	Air Filling Device, Angle Folding Device, Vision Inspection System, X-Ray Inspection System, Food Metal Detector, Checkweigher, Weight Grader

Pakcaging Styles

Pillow Bag: This is the most widely used pouch style for hardware furniture fittings when using a vertical packaging machine. It is formed with two horizontal seals (top and bottom) and a longitudinal back seal, creating a pillow-like shape. Pillow bags are ideal for packing hardware items like screws, bolts, and nails. The simplicity and cost-effectiveness of this pouch make it highly suitable for bulk packaging and retail settings.
Three-Side Sealed Pouch: A vertical packaging machine can also produce three-side sealed pouches, which are sealed on three sides, leaving one side open for filling before sealing. This type of pouch is well-suited for assortments of hardware pieces such as hinges, brackets, or mixed screws, providing secure and straightforward packaging. It also makes organizing and storing small parts easier for consumers.

Warranty and Services

12-month quality warranty.
24-month local fast replacement service for major electrical parts.
Comprehensive shipment services, including coordination of logistics, delivery tracking, and ensuring timely delivery to your location.
Technical support , Manual instructions, installation, and operation guides with delivery.
On-site setup, operation, and maintenance training as needed.

After the warranty period, we offer:

Lifelong maintenance services.
Spare parts support.
Operational training to ensure reliability.
Quick responses to any inquiries from our customer service team.
