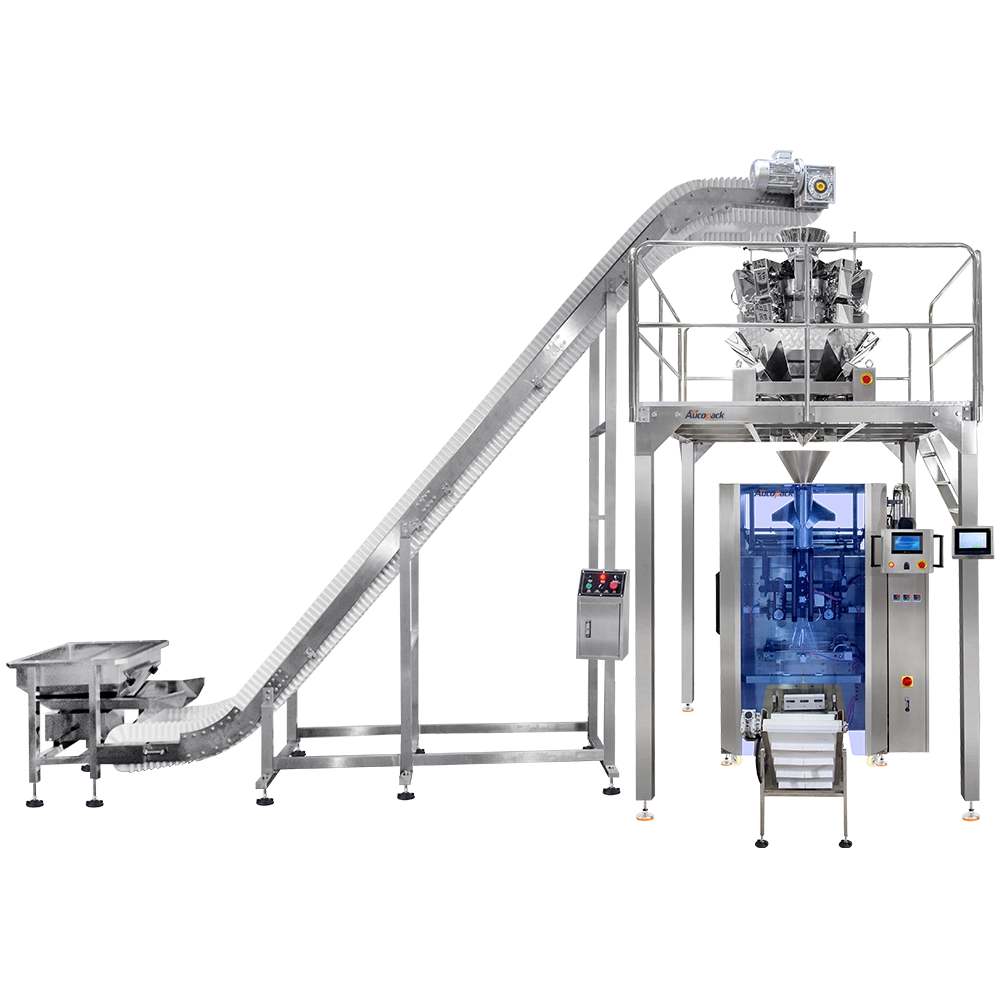

Automatic Granule Packing Machine with Skirtboard Elevator

Optimize your production with our automatic granule packing machine—integrated skirtboard elevator ensures smooth feeding, accuracy, and high efficiency.

Online inquiry

Industries Application Features Parameters Pakcaging Styles Warranty and Services

Industries Application

frozen food packaging machine.jpg

The Automatic Granule Packing Machine with Skirtboard Elevator is an efficient and versatile packaging solution designed for the fast and accurate handling of granular products such as grains, seeds, snacks, and chemicals. The integrated skirtboard elevator allows for smooth product transport from the hopper to the packing machine, ensuring a continuous, automated workflow and reducing manual handling. This machine is equipped with precise weighing and filling systems to ensure accurate portioning, minimizing product waste and ensuring consistent packaging quality. The skirtboard elevator’s gentle lifting mechanism prevents damage to delicate products during transport, making it ideal for both food and industrial granules.

Features

Designed for Fully Automated Packing
Designed for Grain, Feed & Fertilizer

This system features an automatic skirtboard elevator that gently lifts product to the weigher, then fills and seals bags seamlessly. Perfect for handling bulk grains, seeds, or snacks with minimal spillage and consistent speed.Ideal for food, agriculture, or chemical packaging—reducing labor and keeping your line flowing.

Integrated Skirtboard Elevator

The machine is equipped with a skirtboard elevator, transports granular material from the ground level to the filling station with minimal spillage.

High-Speed Granule Packaging

This fully automatic machine delivers fast and accurate packaging of granular products, optimizing production efficiency for high-volume operations.

Versatile Packaging Solutions

Supports a wide range of packaging sizes and materials, from small retail packs to larger bulk bags, and accommodates various granule types.

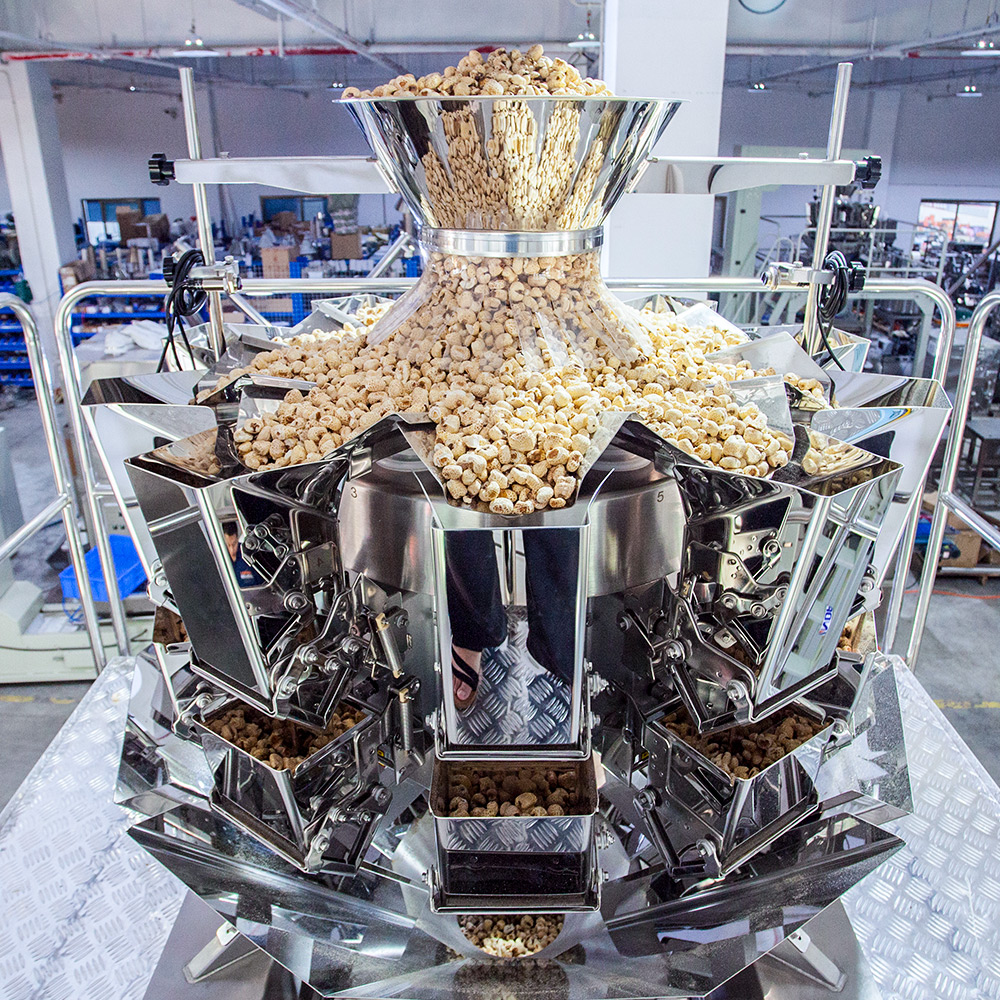

Advanced Weighing System

Featuring a precision multihead or linear weigher, the machine guarantees consistent and accurate weighing of granules before packaging.

Durable Skirtboard Construction

The skirtboard elevator is built with reinforced, food-grade materials to handle granular products, reducing maintenance requirements.

Fully Automated PLC Controln

Equipped with an intelligent PLC system, operators can easily control and monitor the entire process, from material feeding to final sealing.

Seamless Production Integration
Seamless Integration with Production Lines

The machine’s automated feeding and packaging system integrates seamlessly with existing production lines, providing a streamlined workflow.

Reliable Sealing and Protection
Reliable Sealing and Product Protection

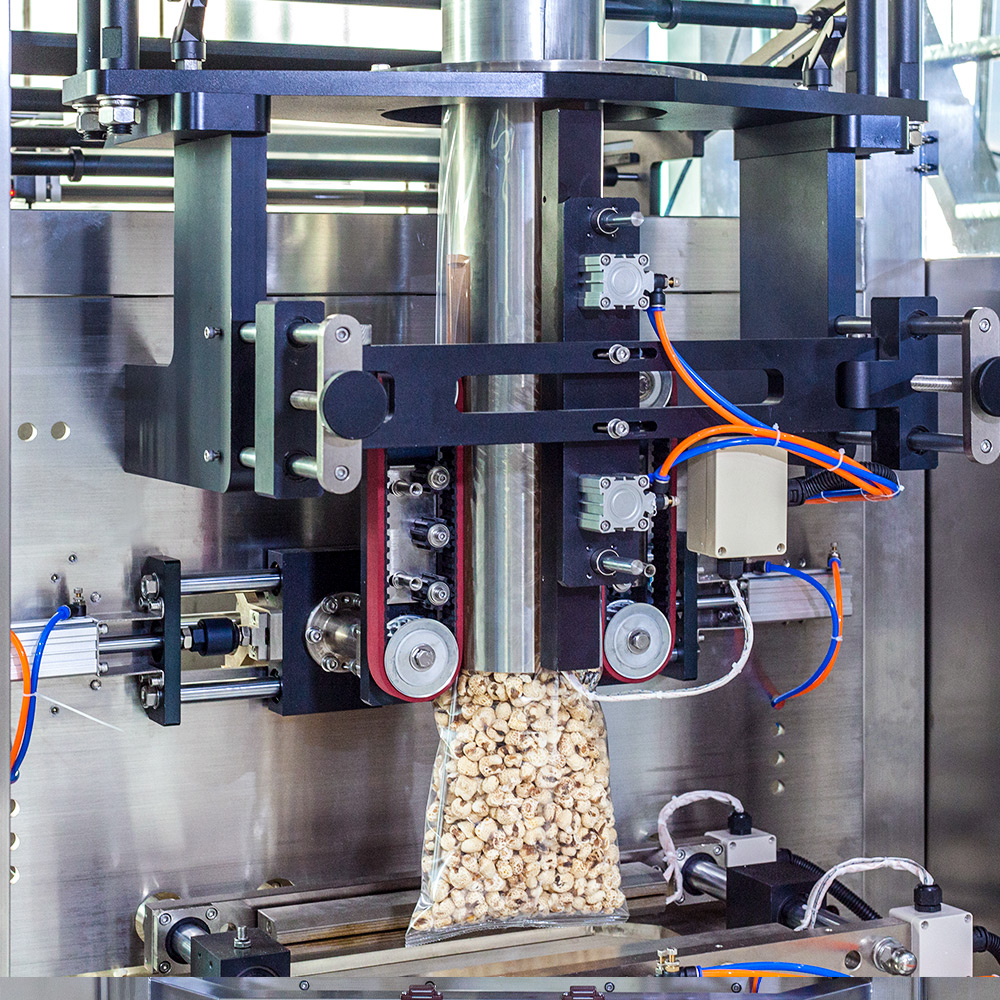

The machine ensures strong, airtight seals using heat-sealing technology, protecting granules from moisture and contamination, extending shelf life.

Parameters

Type	LD-420	LD-520	LDB-620	LDB-720
Film Width	Max. 420mm	Max. 520mm	150 - Max. 620mm	150 - Max. 720mm
Bag Length	80 - 300mm	60 - 400mm	60 - 450mm	60 - 500mm
Bag Width	60 - 200mm	100 - 250mm	65 - 300mm	65 - 350mm
Film Roll Diameter	Max. 600mm	Max. 600mm	Max. 600mm	Max. 600mm
Packing Speed	5 - 60 bag/min	5 - 40 bag/min	5 - 35 bag/min	5 - 30 bag/min
Making-bag Volume	1000ml	2000ml	3000ml	5000ml
Film Thickness	0.04 - 0.12mm
Film Material	BOPP/CPP, BOPP/VMCPP, BOPP/PE, PET/VMPET/PE, PET/AL/PE, PET/PET ETC.
Power Supply	220V, 50/60Hz, 3KW	220V, 50/60Hz, 3KW	220V, 50/60Hz, 3.2KW	220V, 50/60Hz, 3.2KW
Machine Size (LWH)	(L)1217(W)1015(H)1343mm	(L)1488(W)1080(H)1490mm	(L)1488(W)1180(H)1550mm	(L)1780(W)1350(H)2050mm
Machine Weight	About 650kg	About 680kg	About 700kg	About 750kg
Options	Air Filling Device, Angle Folding Device, Vision Inspection System, X-Ray Inspection System, Food Metal Detector, Checkweigher, Weight Grader

Pakcaging Styles

Pillow Bag: A widely used pouch style for granular products, featuring seals at the top and bottom and a back seam. It is cost-effective and ideal for packing items such as sugar, rice, grains, and snacks.
Gusseted Bag: Featuring side gussets that provide additional volume, these bags are perfect for larger quantities of granular products. Gusseted bags offer better shelf stability, making them suitable for items like coffee, legumes, and pet food.
Quad Seal Bag: This pouch style has seals on all four corners, giving it a box-like shape that offers enhanced strength and better shelf presence. It is often used for premium granular products where both presentation and capacity are important.
Flat Bottom Bag: Also known as block-bottom bags, these pouches provide excellent stability and large packing capacity, making them ideal for bulk products like rice, cereals, and large quantities of granules.

Warranty and Services

12-month quality warranty.
24-month local fast replacement service for major electrical parts.
Comprehensive shipment services, including coordination of logistics, delivery tracking, and ensuring timely delivery to your location.
Technical support , Manual instructions, installation, and operation guides with delivery.
On-site setup, operation, and maintenance training as needed.

After the warranty period, we offer:

Lifelong maintenance services.
Spare parts support.
Operational training to ensure reliability.
Quick responses to any inquiries from our customer service team.
