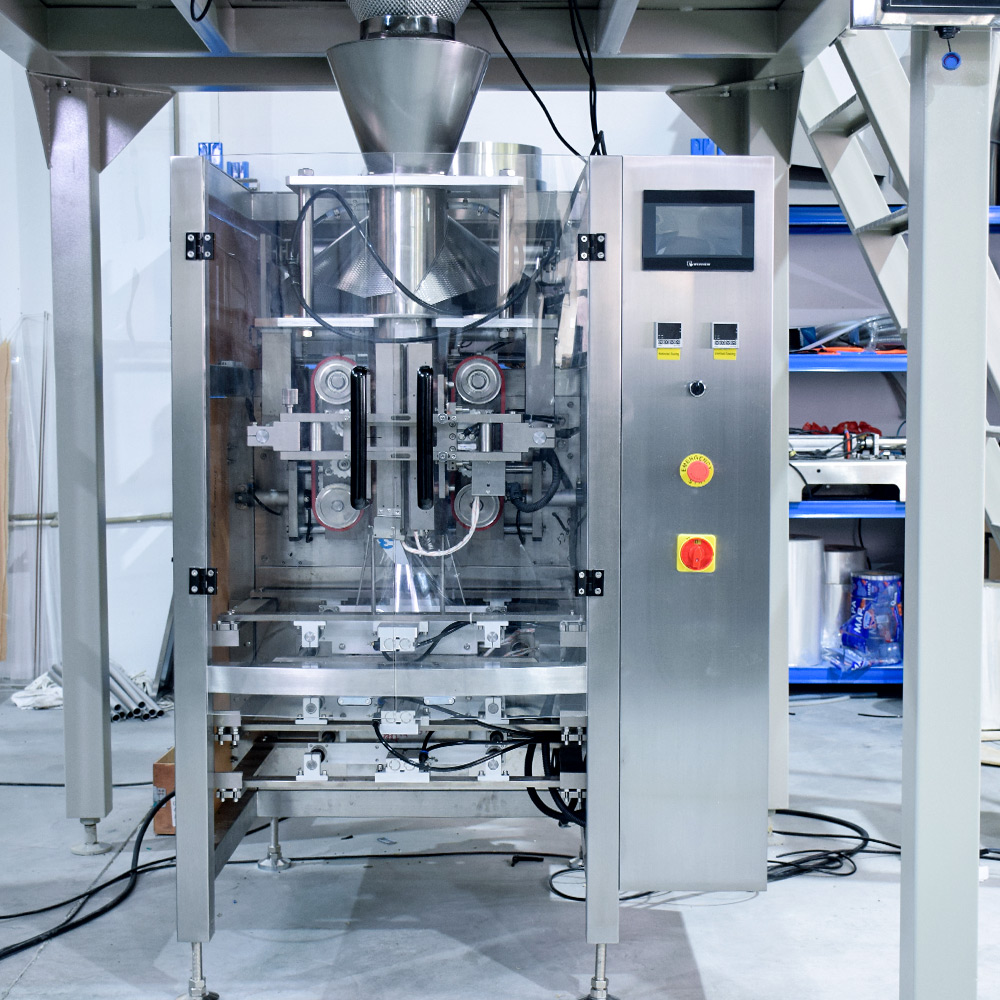

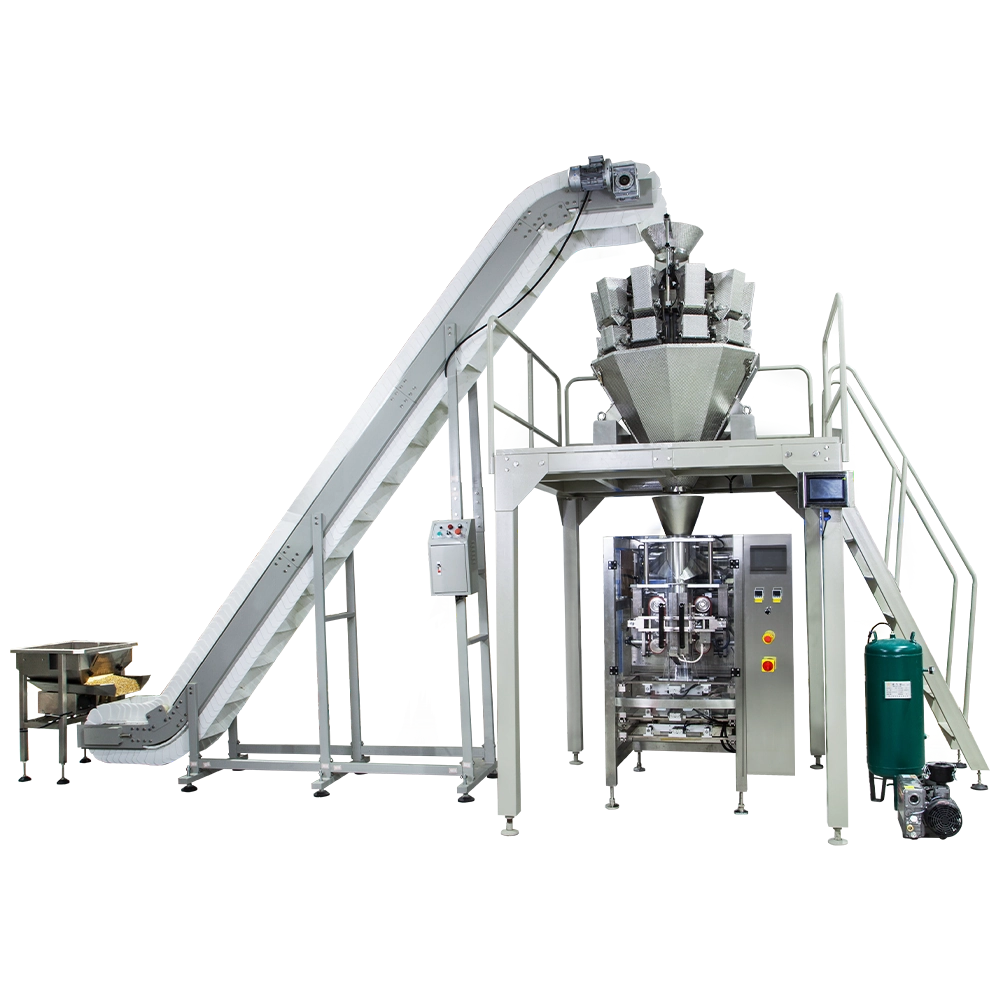

Automatic Commercial Food Granular Vacuum Packaging Machine

Achieve superior freshness with Automatic Food Vacuum Packaging Machine. Cutting-edge vacuum sealing technology to extend shelf life & prevent contamination.

Online inquiry

Industries Application Features Parameters Pakcaging Styles Warranty and Services

Industries Application

frozen food packaging machine.jpg

The Automatic Commercial Food Granular Vacuum Packaging Machine is a top-tier solution for efficiently packaging granular food products such as rice, beans, nuts, and coffee. This machine uses vacuum technology to remove air from the packaging, significantly extending the shelf life of products by protecting them from moisture, oxidation, and contamination. Its fully automated operation streamlines the packaging process, from product loading, vacuuming, and sealing, to final output. The vacuum process ensures the preservation of freshness, taste, and quality, making it ideal for commercial food producers.

Features

Vacuum Power for Granular Products
Preserve Taste. Reduce Waste.

This machine automatically fills and vacuum-seals granular foods like rice, beans, nuts, and pet food. Keep granular foods fresher for longer. This automatic vacuum packing system removes air and tightly seals every bag—perfect for grains, seeds, and dried foods in high-output production lines.

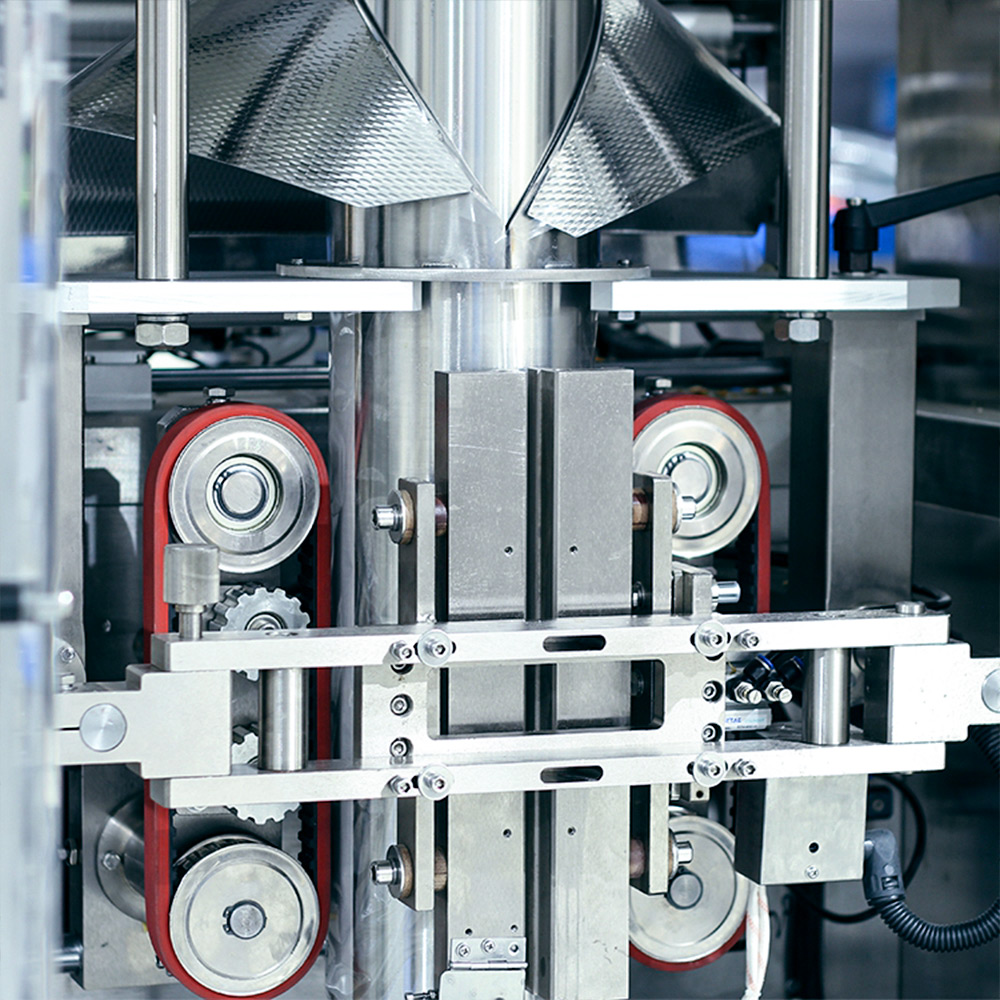

Advanced Vacuum Sealing Tech
Advanced Vacuum Sealing Technology

This machine features a high-performance vacuum sealing system that efficiently removes air from packaging, ensuring freshness and quality.

Automated Filling and Packaging
Automated Granular Filling and Packaging

The machine offers a fully automated process, from precise granular food filling to vacuum sealing, significantly increasing commercial production.

Durable Stainless Steel Construction

Built with food-grade stainless steel, the machine complies with hygiene and safety standards, ensuring corrosion resistance and long-term durability.

Customizable Vacuum and Sealing

The machine allows for easy adjustment of vacuum levels and sealing times to accommodate different product types and flexible packaging materials.

Efficient Multi-Product Handling

Capable of handling various granular food items, the machine supports packaging sizes ranging, ensuring adaptability for different production.

Intuitive PLC Control System

The built-in PLC control system offers real-time monitoring of the vacuum packaging process, allowing to make quick optimization of performance.

High-Speed Packaging Operations
High-Speed Packaging for Large-Scale Operations

The machine is designed for commercial-scale operations, providing high-speed, continuous packaging with minimal downtime, making it ideal for food.

Enhanced Reliable Seal Integrity
Reliable Seal Integrity for Enhanced Product Protection

The machine ensures strong, airtight seals that protect granular food products from moisture and contamination, maintaining product quality.

Parameters

Type	LD-420	LD-520	LDB-620	LDB-720
Film Width	Max. 420mm	Max. 520mm	150 - Max. 620mm	150 - Max. 720mm
Bag Length	80 - 300mm	60 - 400mm	60 - 450mm	60 - 500mm
Bag Width	60 - 200mm	100 - 250mm	65 - 300mm	65 - 350mm
Film Roll Diameter	Max. 600mm	Max. 600mm	Max. 600mm	Max. 600mm
Packing Speed	5 - 60 bag/min	5 - 40 bag/min	5 - 35 bag/min	5 - 30 bag/min
Making-bag Volume	1000ml	2000ml	3000ml	5000ml
Film Thickness	0.04 - 0.12mm
Film Material	BOPP/CPP, BOPP/VMCPP, BOPP/PE, PET/VMPET/PE, PET/AL/PE, PET/PET ETC.
Power Supply	220V, 50/60Hz, 3KW	220V, 50/60Hz, 3KW	220V, 50/60Hz, 3.2KW	220V, 50/60Hz, 3.2KW
Machine Size (LWH)	(L)1217(W)1015(H)1343mm	(L)1488(W)1080(H)1490mm	(L)1488(W)1180(H)1550mm	(L)1780(W)1350(H)2050mm
Machine Weight	About 650kg	About 680kg	About 700kg	About 750kg
Options	Air Filling Device, Angle Folding Device, Vision Inspection System, X-Ray Inspection System, Food Metal Detector, Checkweigher, Weight Grader

Pakcaging Styles

Vacuum Pouch: A simple, flat pouch that is vacuum-sealed, providing excellent protection against moisture and oxygen. This style is widely used for granular foods like rice, beans, nuts, and coffee.
Gusseted Vacuum Bag: Featuring expandable side gussets, this pouch style offers additional volume and better storage capacity. It is suitable for high-capacity packaging of larger quantities of products such as grains or bulk spices.
Embossed Vacuum Bag: These bags have a textured surface, allowing for better air extraction during vacuum sealing. This style is commonly used for packing products like dried fruits, nuts, or coarse ground spices.
Quad Seal Vacuum Bag: With four sides sealed, this pouch style provides a sturdy structure and stability. It is ideal for larger quantities of granular products that require both a high-quality vacuum seal and an appealing presentation.

Warranty and Services

12-month quality warranty.
24-month local fast replacement service for major electrical parts.
Comprehensive shipment services, including coordination of logistics, delivery tracking, and ensuring timely delivery to your location.
Technical support , Manual instructions, installation, and operation guides with delivery.
On-site setup, operation, and maintenance training as needed.

After the warranty period, we offer:

Lifelong maintenance services.
Spare parts support.
Operational training to ensure reliability.
Quick responses to any inquiries from our customer service team.
