Automatic Multi Lane Small Liquid Stick Sachet Filling Machine

Combining intelligent filling technology with reliable sealing, sachet machine optimizes liquid packaging efficiency while maintaining product freshness.

Online inquiry

Industries Application Features Parameters Pakcaging Styles Warranty and Services

Industries Application

4 side sealing sauce packaging machine.jpg

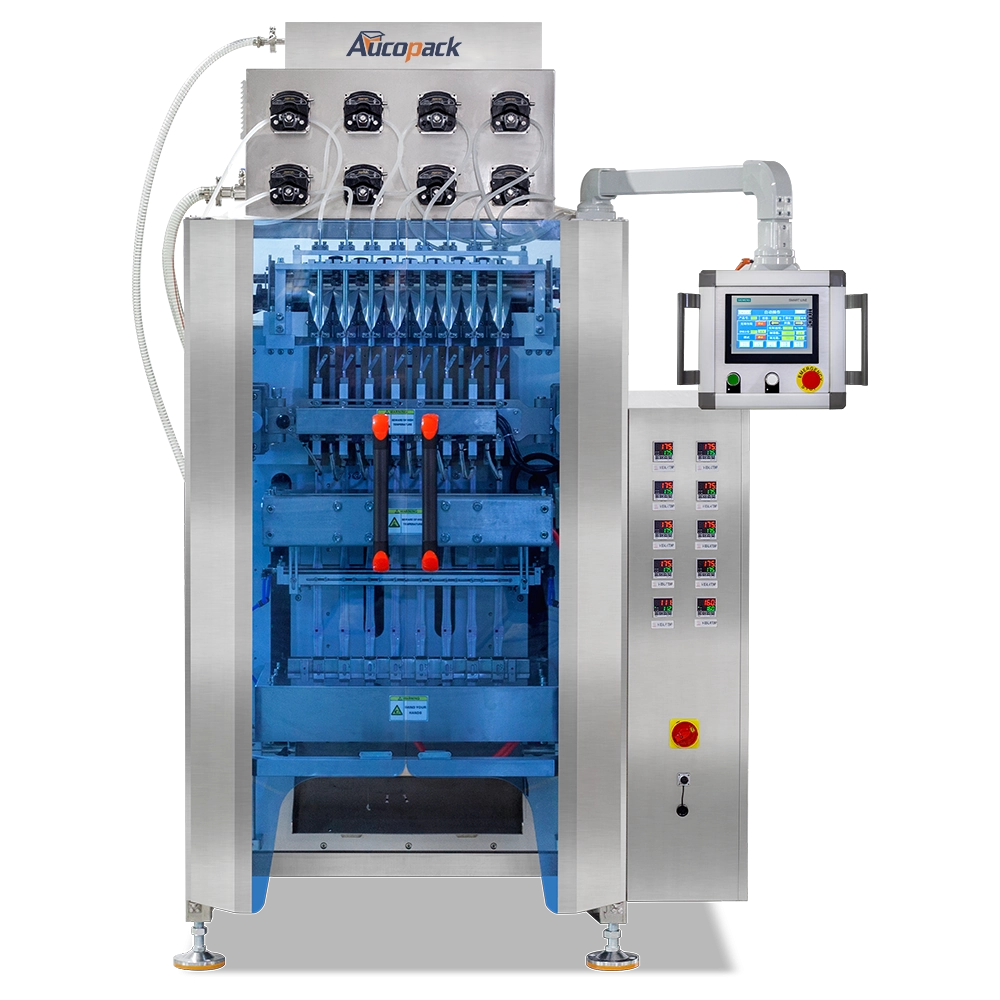

The Automatic Multi Lane Small Liquid Stick Sachet Filling Machine is designed to efficiently package liquid products such as sauces, gels, creams, and beverages into compact, single-serve stick sachets. Its multi-lane design allows for simultaneous production across several lanes, making it ideal for high-volume production environments where speed and accuracy are essential. Each lane operates with a precision liquid filling system, ensuring accurate portioning of liquid into every stick sachet while minimizing product waste. This machine supports various stick sachet sizes and is adaptable for different liquid viscosities, from thin liquids to thicker creams. The advanced sealing technology ensures that each sachet is leak-proof, maintaining product freshness and quality. Ideal for industries such as food, cosmetics, and pharmaceuticals.

Features

Fast & Precise Liquid Stick Filling
Multi-Lane Performance Made Simple

From precise micro-dosing to fast vertical sealing, this system delivers consistent output across every lane. Create neat, leak-proof sachets in parallel lanes with servo-driven filling.A go-to choice for compact liquid packaging in pharma, food, or cosmetics.

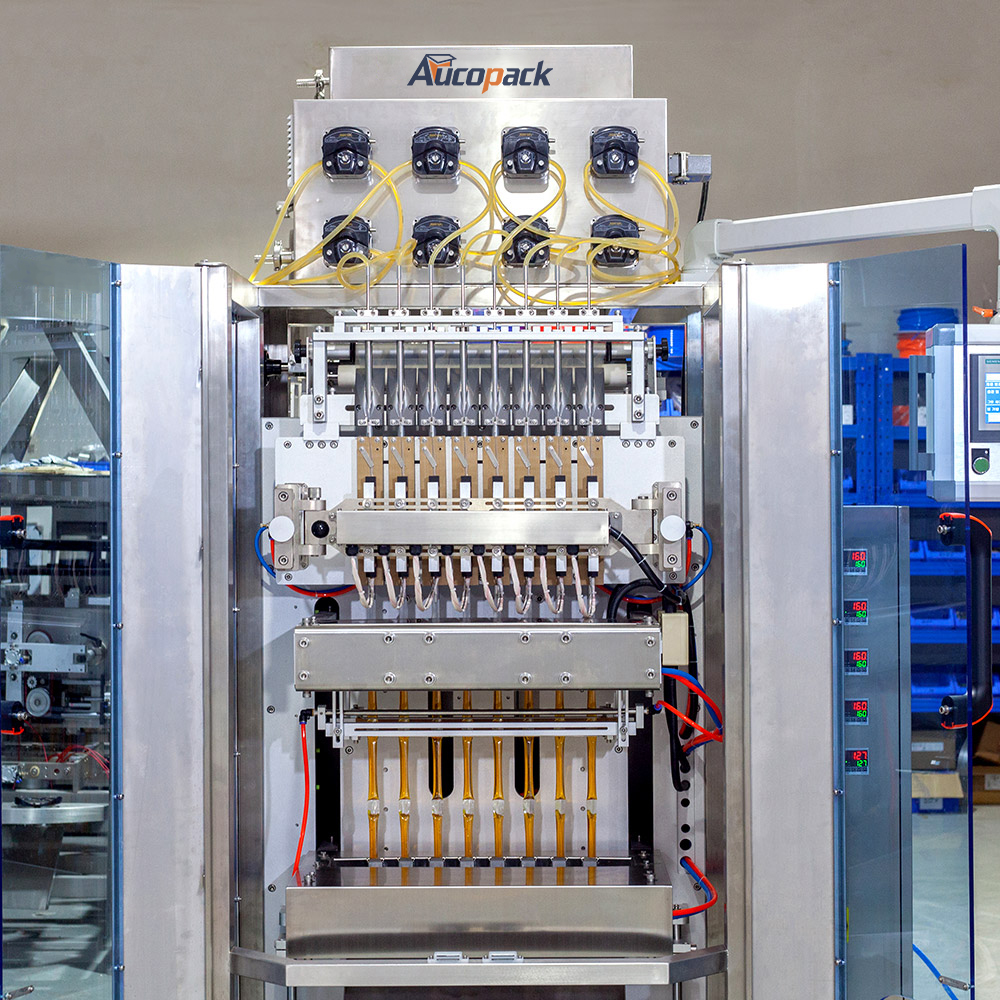

Optimized Multi-Lane Operation

Engineered to fill multiple small liquid stick sachets simultaneously, boosting production speed and efficiency for products such as sauces, juices.

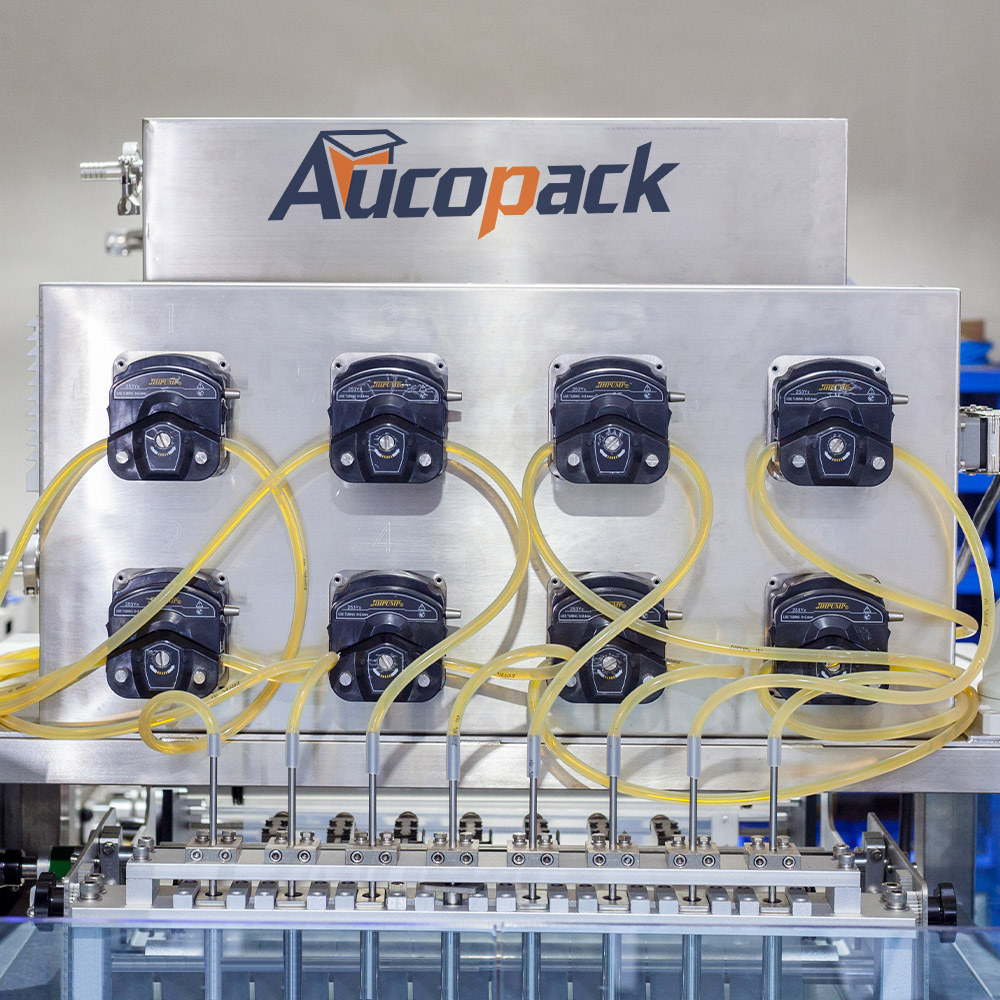

Precision Pump Filling Technology

Equipped with advanced piston or peristaltic pump systems, ensuring accurate liquid dosing that minimizes waste and maintains product quality.

Adaptable Sachet Size Options

Capable of accommodating various sachet sizes and liquid viscosities, making it suitable for industries like food, cosmetics, and pharmaceuticals.

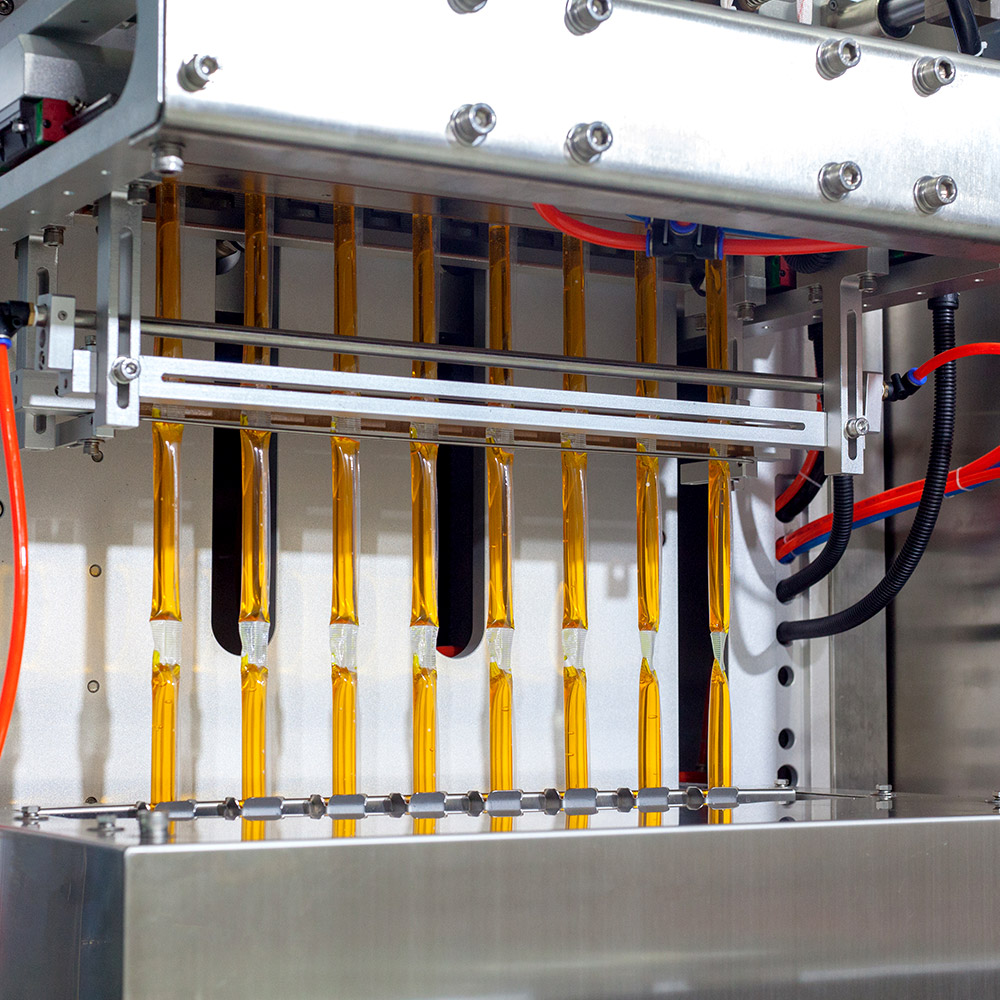

Secure Sealing Mechanism

Features a heat sealing system that delivers robust, leak-proof seals to protect product integrity throughout distribution.

Space-Efficient Structur

Compact machine design optimizes workspace usage, ideal for facilities with spatial limitations while maintaining high efficiency.

Broad Liquid Product Handling

Designed for compatibility with a wide range of liquid products, such as dressings, syrups, pharmaceutical liquids, and more.

Precise Photocell Technology

Uses high-precision photocell sensors to ensure accurate cutting and sealing, improving sachet alignment for better visual presentation.

Integrated Batch Coding and Counting

Built-in systems for batch coding and automatic counting ensure accurate tracking of each package, supporting full traceability and compliance.

Parameters

Model	LD-480Y	LD-720Y	LD-960Y
Number of Lanes	4-6 Lanes	4-10 Lanes	4-12 Lanes
Measurement Type	Peristaltic Pump / Piston Pump
Packaging Speed	Max. 40 cuts/min
Film Width	Max.480mm	Max.720mm	Max.960mm
Film Thickness	0.07-0.1mm
Bag Width	35-60mm	35-90mm	35-120mm
Bag Length	45-120mm
Sealing Type	4 side sealing
Cutting type	Flat cut / Serrated cut / Serrated cut
Air Pressure	0.8Mpa 0.8m ³/min
Power	2.8KW	4.1KW	5.5KW
Dimensions	950* 1470* 1750mm	1153* 1654* 1750mm	1415* 1686* 2130mm
Weight	300kg	400kg	500kg

Pakcaging Styles

Stick Pack: The primary packaging style produced by this machine, stick packs are long, narrow pouches ideal for single-serving portions of liquid products. These packs are used for items like honey, ketchup, salad dressing, and other condiments. Stick packs are convenient for on-the-go consumption, offering easy opening and precise portion control.
Four-Side Sealed Sachet: In addition to stick packs, four-side sealed sachets can also be produced by multi-lane machines. This style features seals on all four sides, providing a secure package suitable for individual servings of liquid products like shampoo, conditioner, or soy sauce. The four-side seal ensures leak-proof integrity, which is essential for liquids.

Warranty and Services

12-month quality warranty.
24-month local fast replacement service for major electrical parts.
Comprehensive shipment services, including coordination of logistics, delivery tracking, and ensuring timely delivery to your location.
Technical support , Manual instructions, installation, and operation guides with delivery.
On-site setup, operation, and maintenance training as needed.

After the warranty period, we offer:

Lifelong maintenance services.
Spare parts support.
Operational training to ensure reliability.
Quick responses to any inquiries from our customer service team.
