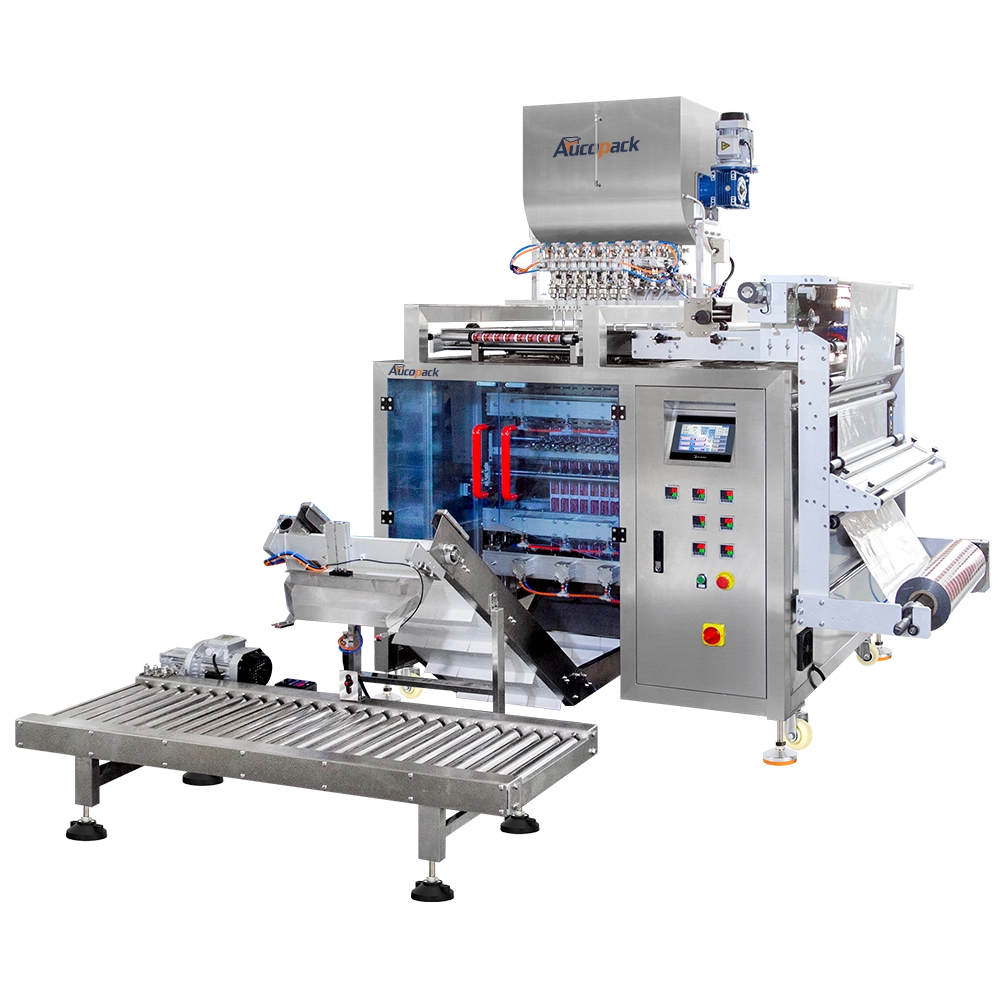

Automatic Multi Lane Sauce Sachet Counting Packing Machine

The Automatic Multi Lane Sauce Sachet Counting Packing Machine is a high-efficie

Online inquiry

Industries Application Features Parameters Pakcaging Styles Warranty and Services

Industries Application

4 side sealing sauce packaging machine.jpg

The Automatic Multi Lane Sauce Sachet Counting Packing Machine is a high-efficiency solution designed for the precise packaging of sauces, condiments, and liquid-based products into individual sachets. This machine features multiple lanes, allowing for simultaneous production of multiple sachets, making it ideal for high-volume production environments. Equipped with an accurate counting system, streamlining the packaging process and reducing manual errors. The machine automates the entire workflow, from forming and filling the sachets to sealing and counting them into batches for easy distribution. This versatile machine supports a variety of liquid products and can handle different sachet sizes and formats, making it suitable for industries such as food, condiments, and cosmetics.

Features

Designed for Multi-Lane Sachets
Count. Align. Pack. Done

This machine automatically counts and packs sauce sachets from multiple lanes into bags or boxes. It ensures accurate quantities, perfect alignment, and high-speed output—ideal for ketchup, mayo, soy sauce, and more.

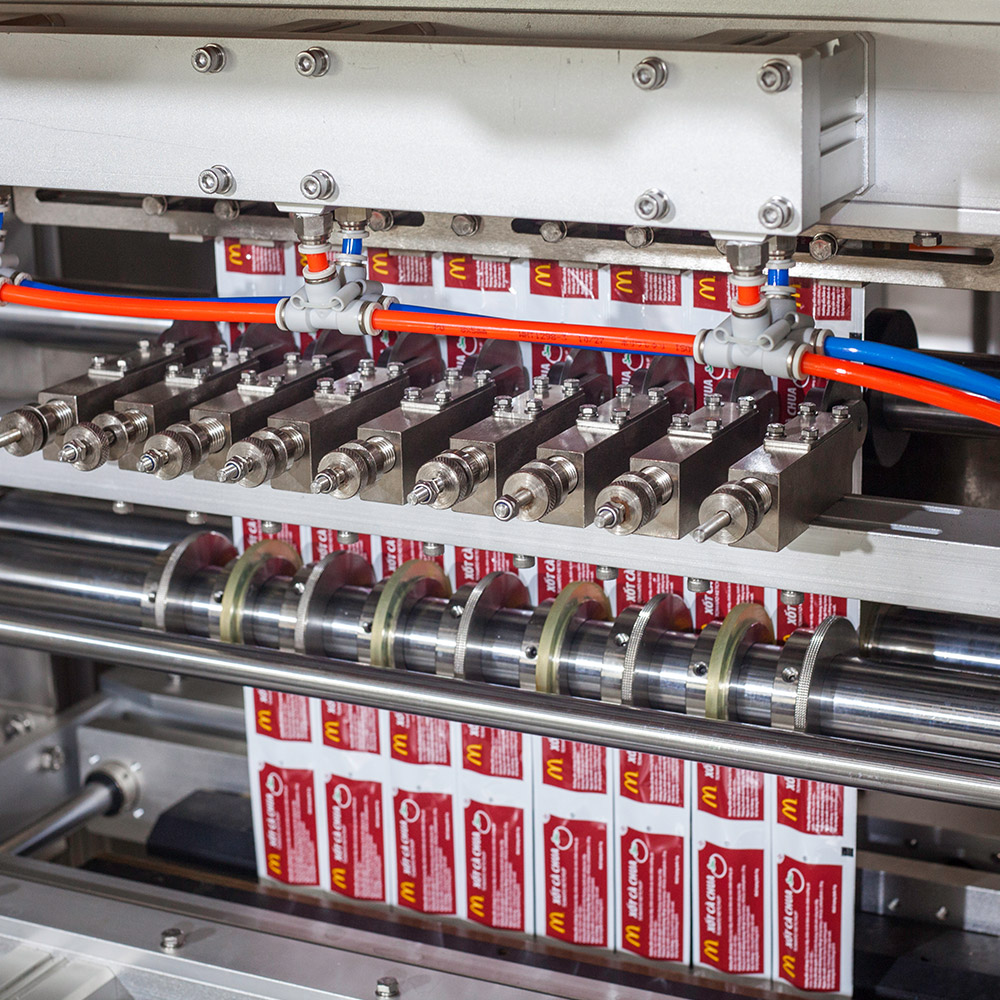

Multi-Lane Sachet Packing System
Multi-Lane High-Speed Sachet Packing System

The machine is designed with multiple lanes to simultaneously package sauce sachets, It is ideal for large-scale production environments.

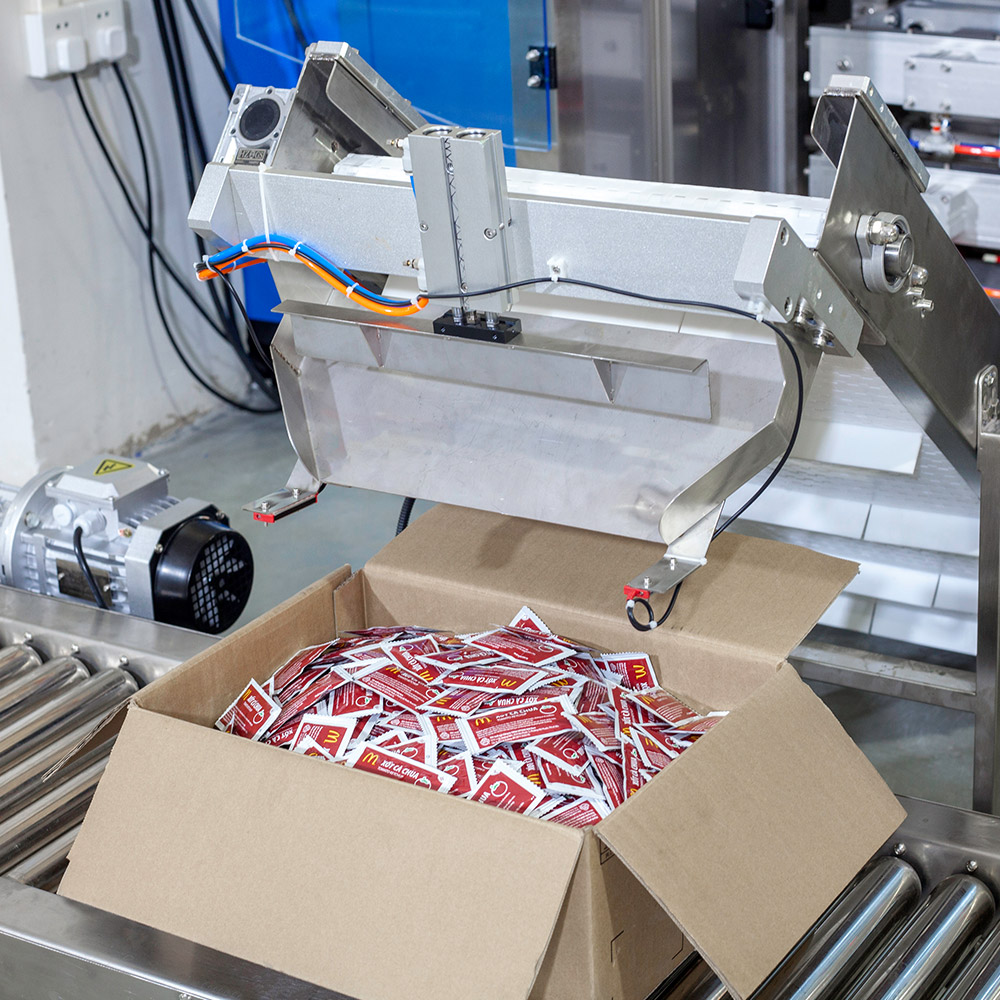

Auto Counting & Sorting Mechanism
Automated Counting and Sorting Mechanism

The machine is equipped with an advanced automated counting system that accurately counts sauce sachets, ensuring precise packaged quantities.

Versatile Sauce Handling

Capable of handling a wide range of sauces, from thick condiments liquid products, the machine is designed to accommodate varying viscosities.

Independent Flexible Lane Operation
Independent Lane Operation for Flexible Packaging

Each lane operates independently, allowing for flexibility in packaging different types of sauces or filling multiple sachet sizes concurrently.

Secure Heat Sealing Packaging
Heat Sealing for Secure and Airtight Packaging

The machine employs an advanced heat sealing system that maintains hermetic sealing, preserving the freshness and quality of sauces.

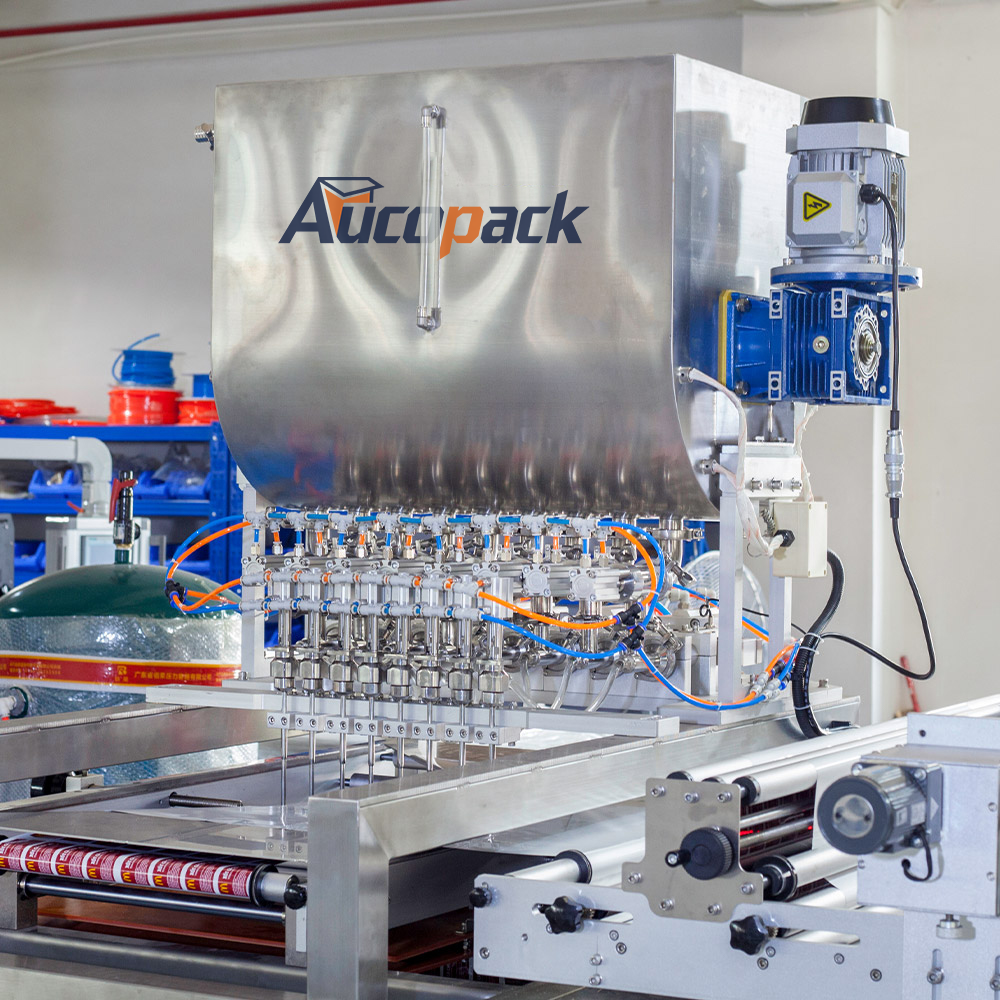

Auto Feeding and Film Handling
Automated Product Feeding and Film Handling

Integrated with an automated film feeding and cutting system, the machine ensures consistent sachet formation with minimal film wastage.

High-Capacity Production Output
High-Capacity Output for Large-Scale Production

Automated counting and packaging capabilities ensure that each box, carton, or batch contains the exact number of sachets required.

Optional Features Customization
Optional Features for Product Customization

Machine is equipped with optional features such as tear notches, batch coding, or product labeling, providing flexibility in final packaging designs.

Parameters

Model	LD-480Y	LD-720Y	LD-960Y
Number of Lanes	4-6 Lanes	4-10 Lanes	4-12 Lanes
Measurement Type	Peristaltic Pump / Piston Pump
Packaging Speed	Max. 40 cuts/min
Film Width	Max.480mm	Max.720mm	Max.960mm
Film Thickness	0.07-0.1mm
Bag Width	35-60mm	35-90mm	35-120mm
Bag Length	45-120mm
Sealing Type	4 side sealing
Cutting type	Flat cut / Serrated cut / Serrated cut
Air Pressure	0.8Mpa 0.8m ³/min
Power	2.8KW	4.1KW	5.5KW
Dimensions	950* 1470* 1750mm	1153* 1654* 1750mm	1415* 1686* 2130mm
Weight	300kg	400kg	500kg

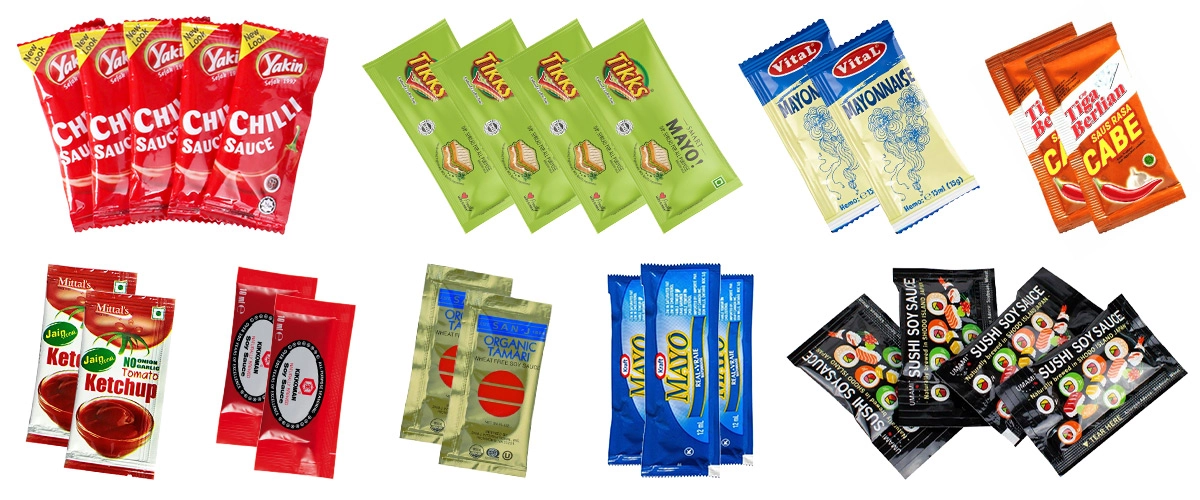

Pakcaging Styles

Four-Side Sealed Sachet: This is the most commonly produced pouch style for multi-lane machines, featuring seals on all four sides. It provides a secure and compact package, ideal for sauces like ketchup, mustard, mayonnaise, and other condiments. The four-side seal ensures leak-proof packaging and is suitable for single-serving applications.
Three-Side Sealed Sachet: This type of sachet is sealed on three sides, leaving one side open for filling. It is used for individual portions of sauces and condiments. The three-side seal is a practical and simple design that maintains the quality of the product while providing an efficient packaging solution.
Stick Pack: This narrow, elongated pouch style is used for smaller servings of liquid or semi-liquid products. It is ideal for on-the-go use, suitable for packing products like soy sauce, salad dressing, or similar condiments. Stick packs are convenient for single-use portions and are highly popular in the food service industry.

Warranty and Services

12-month quality warranty.
24-month local fast replacement service for major electrical parts.
Comprehensive shipment services, including coordination of logistics, delivery tracking, and ensuring timely delivery to your location.
Technical support , Manual instructions, installation, and operation guides with delivery.
On-site setup, operation, and maintenance training as needed.

After the warranty period, we offer:

Lifelong maintenance services.
Spare parts support.
Operational training to ensure reliability.
Quick responses to any inquiries from our customer service team.
