Automatic Multi Lane Sachet Stick Bag in Box Packing Machine

Enhance efficiency with our automatic stick sachet bag in box packing machine—smart control, strong performance, and premium packaging results.

Online inquiry

Industries Application Features Parameters Pakcaging Styles Warranty and Services

Industries Application

Automatic Multi Lane Sachet Stick Bag in Box Packing Machine.jpg

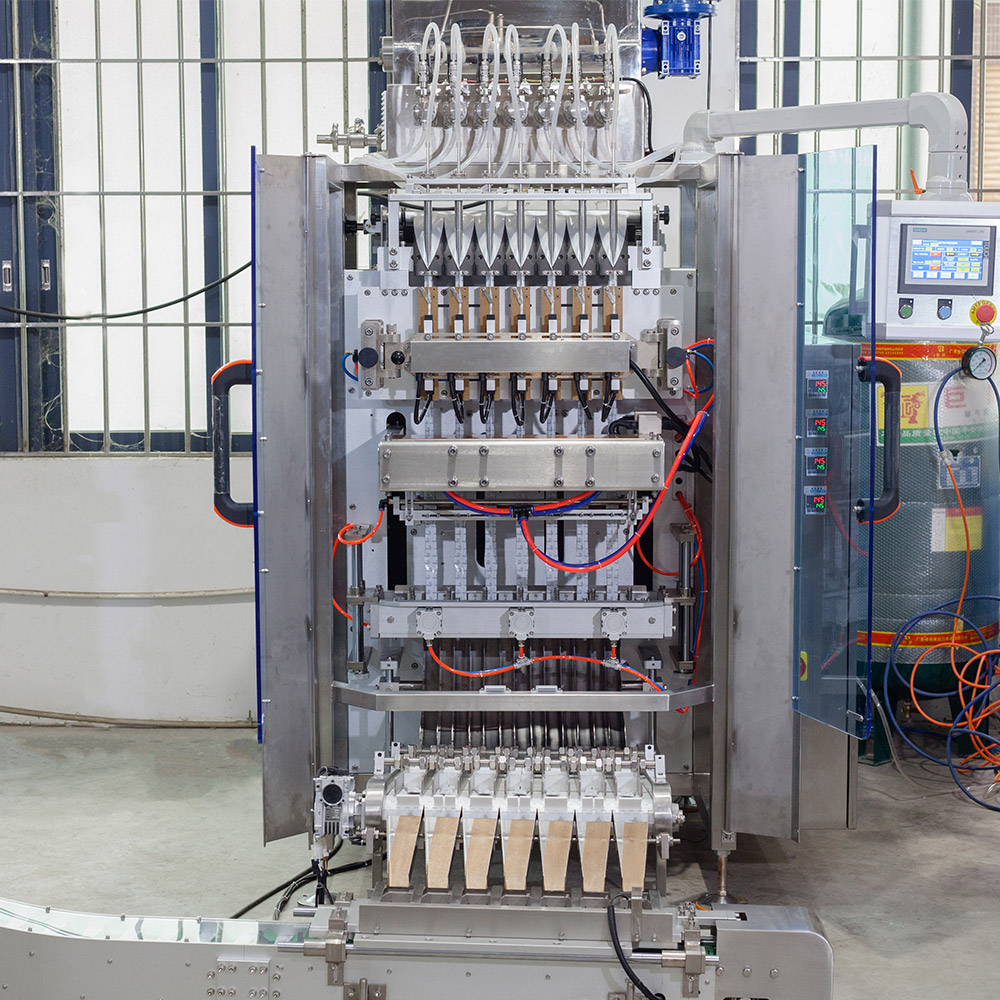

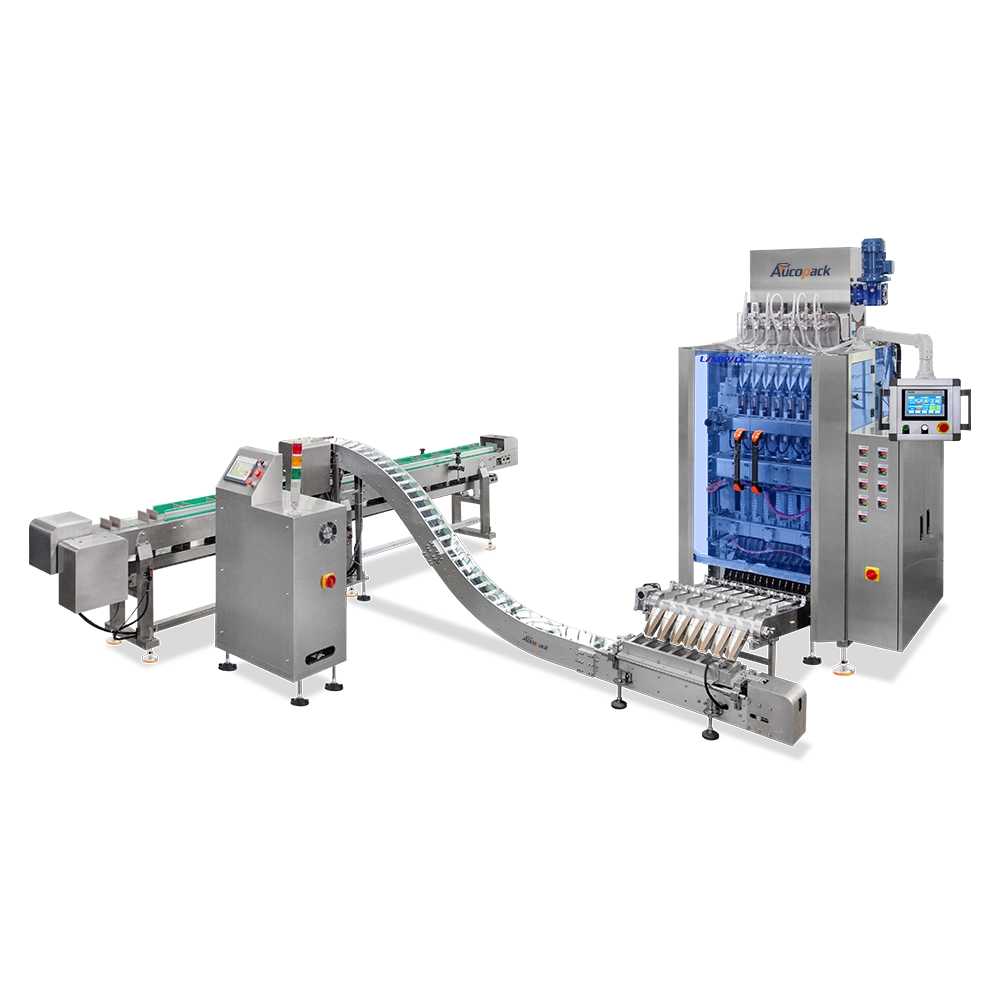

The Automatic Multi Lane Sachet Stick Bag in Box Packing Machine is a high-efficiency solution designed for packing stick sachets into boxes, offering an integrated approach to both primary and secondary packaging. This machine is ideal for industries that handle products such as coffee, sugar, powders, or liquids in stick sachets, and need to automate the process of packing multiple sachets into cartons or boxes. Featuring multiple lanes, the machine can simultaneously produce several stick sachets, filling them, sealing them, and then automatically organizing them into boxes in a structured and compact arrangement. This all-in-one solution is perfect for manufacturers in the food, beverage, and pharmaceutical industries.

Features

Smart Cartoning for Stick Sachets
Designed for Multi-Lane Integration

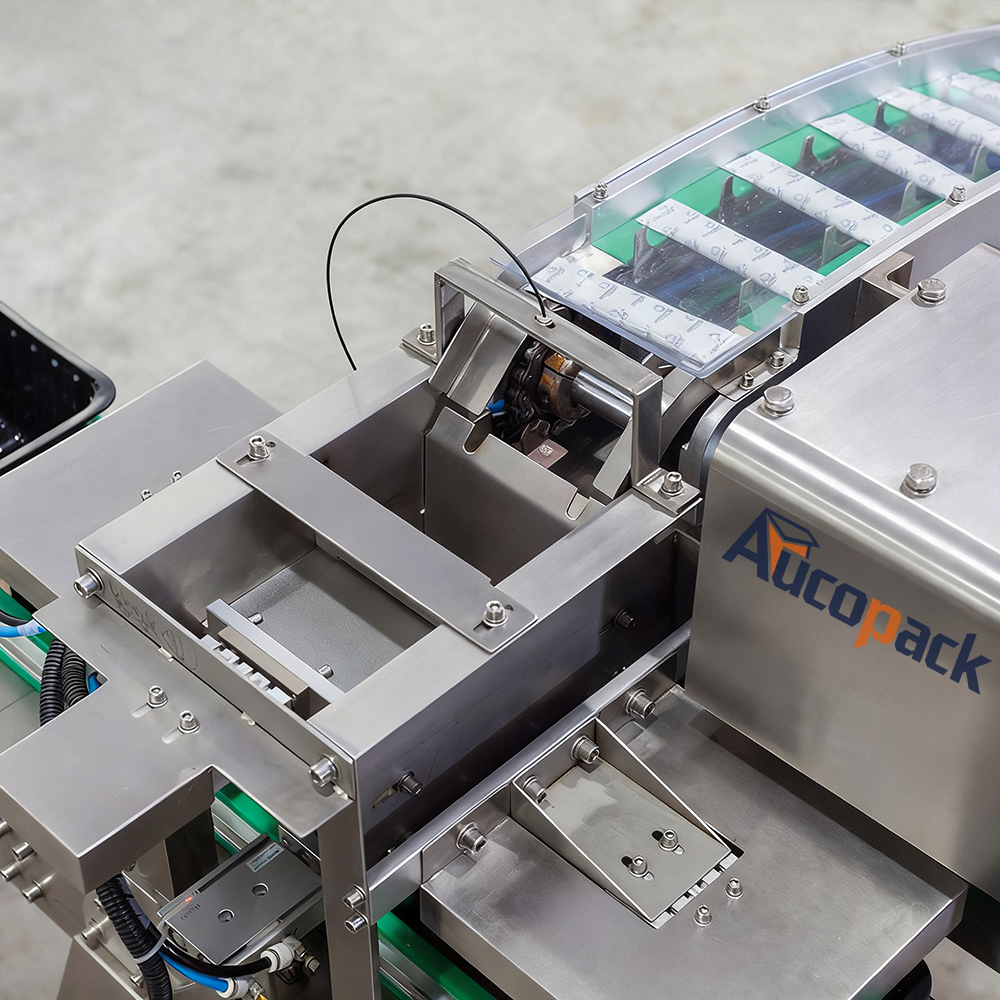

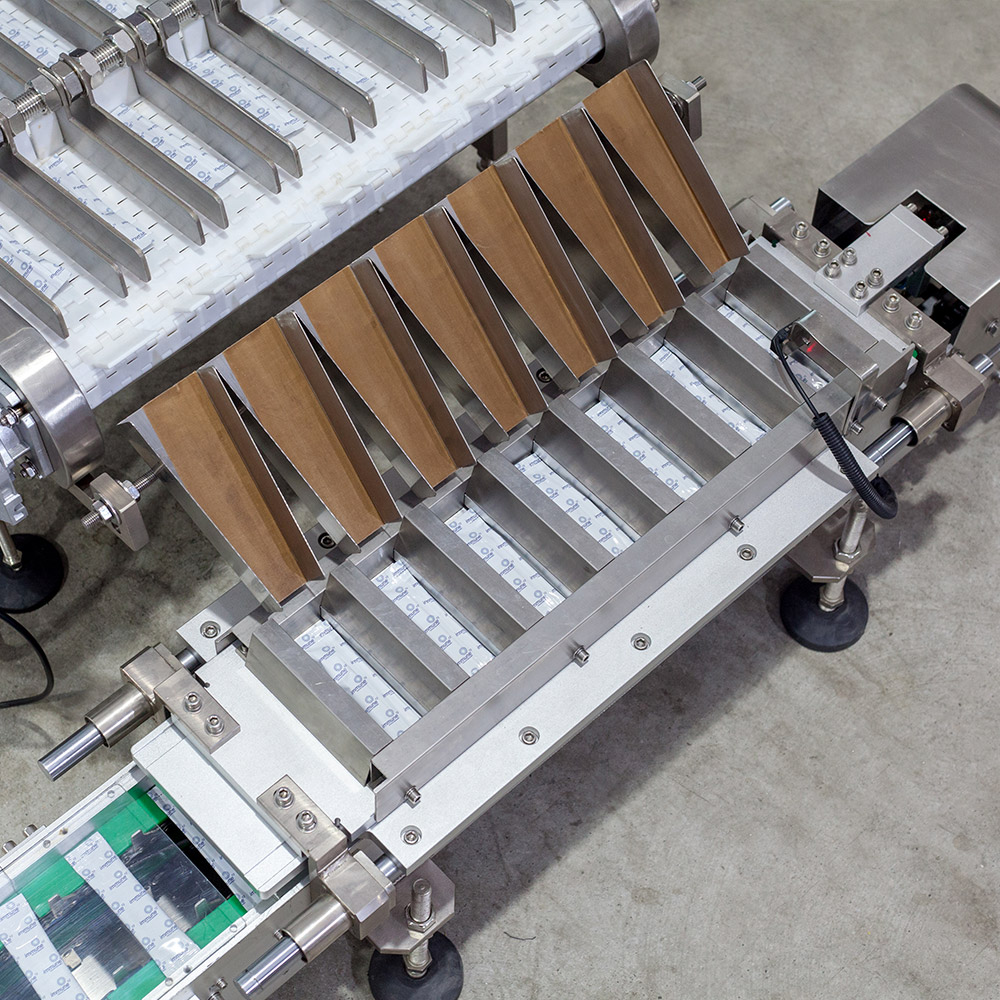

This compact machine aligns, stacks, and inserts sachets or stick bags into retail boxes with accuracy. Streamline your secondary packaging with automatic grouping and boxing of sachets.Ideal for coffee, powders, or oral liquids, it boosts packaging efficiency while maintaining perfect product alignment.

High-Speed Multi-Lane Operation

Features multiple lanes for simultaneous packing, significantly enhancing production efficiency, ideal for high-volume stick sachet packaging needs.

Integrated Bag-in-Box Packing System

Combining sachet packing with an automated bag-in-box packaging feature allows for efficient packaging into boxes, streamlining the production line.

Precision Dosing System

Equipped with an advanced volumetric or auger filler, it ensures precise dosing of products in each sachet, ensuring consistent quality.

Flexible Packaging Formats

Capable of handling a variety of stick sachet and box dimensions, providing versatility to meet different demands and optimize consumer convenience.

Advanced Sealing Technology

Incorporates a heat sealing system that delivers strong, consistent seals to protect the integrity of the product and maintain freshness.

Versatile Product Compatibility

Suitable for various granulated or powdered products, including sugar, salt, protein powder, and flour, offering a wide range of application possibilities.

High-Precision Photocell Registration

Ensures accurate cutting and packaging, perfectly aligning the sachets with print registration marks, enhancing the aesthetic appeal of the final product.

Auto Count, Pack & Code
Automated Bag Counting, Box Packing, and Batch Coding

Integrated with automatic counting, bag-in-box packing, and printing systems for batch numbers and expiration dates, streamlining the packaging process.

Parameters

Model	LD-480Y	LD-720Y	LD-960Y
Number of Lanes	4-6 Lanes	4-10 Lanes	4-12 Lanes
Measurement Type	Peristaltic Pump / Piston Pump
Packaging Speed	Max. 40 cuts/min
Film Width	Max.480mm	Max.720mm	Max.960mm
Film Thickness	0.07-0.1mm
Bag Width	35-60mm	35-90mm	35-120mm
Bag Length	45-120mm
Sealing Type	4 side sealing
Cutting type	Flat cut / Serrated cut / Serrated cut
Air Pressure	0.8Mpa 0.8m ³/min
Power	2.8KW	4.1KW	5.5KW
Dimensions	950* 1470* 1750mm	1153* 1654* 1750mm	1415* 1686* 2130mm
Weight	300kg	400kg	500kg

Pakcaging Styles

Stick Pack: Long, narrow pouches that are ideal for single-serving portions of powders or liquids. Stick packs are convenient for on-the-go use, offering precise portion control for products like sugar, drink mixes, or nutritional supplements. The machine creates multiple stick packs, which are then placed into a box for easy distribution and retail presentation.
Four-Side Sealed Sachet: Sachets sealed on all four sides, providing a compact and secure package. These sachets are suitable for individual servings of powders, granules, or liquids, such as condiments, spices, or vitamin supplements. The machine fills and seals sachets, and then these sachets are placed into boxes for efficient storage or retail packaging.
Bag-in-Box: After producing either stick packs or four-side sealed sachets, this machine automatically places the individual sachets or packs into larger cartons or boxes. This secondary packaging style is often used for retail purposes, ensuring that multiple small packets are organized and presented neatly in a larger box, which helps in bulk handling, transport, and retail display.

Warranty and Services

12-month quality warranty.
24-month local fast replacement service for major electrical parts.
Comprehensive shipment services, including coordination of logistics, delivery tracking, and ensuring timely delivery to your location.
Technical support , Manual instructions, installation, and operation guides with delivery.
On-site setup, operation, and maintenance training as needed.

After the warranty period, we offer:

Lifelong maintenance services.
Spare parts support.
Operational training to ensure reliability.
Quick responses to any inquiries from our customer service team.
