Automatic Multi Lane Powder Sachet Filling & Packaging Machine

Combining advanced multi lane technology with intelligent controls, powder packaging machine ensures consistent dosing and premium product presentation.

Online inquiry

Industries Application Features Parameters Pakcaging Styles Warranty and Services

Industries Application

nutritions powder packaging machine.jpg

The Automatic Multi-Lane Powder Sachet Filling & Packaging Machine is a highly efficient solution for packaging powdered products such as protein powder, instant coffee, spices, and pharmaceutical powders into individual sachets. With its multi-lane design, the machine can simultaneously produce multiple sachets, making it ideal for large-scale production environments where speed and efficiency are critical. Each lane operates independently, utilizing an advanced auger filling system to ensure precise dosing of powders, minimizing product waste and ensuring consistent sachet fill levels. This machine is perfect for industries such as food, pharmaceuticals, and cosmetics, helping businesses improve production efficiency, reduce labor costs, and maintain high standards of accuracy and packaging quality for powdered products.

Features

Smart Filling for Fine Powders
Designed for Instant Drinks & Supplements

This machine fills and seals multiple sachets in parallel, offering high-speed output for coffee powder, seasoning mixes, or pharma-grade powders. With auger dosing and tight sealing, it ensures accuracy and hygiene at every cycle.

Simultaneous Multi-Lane Operation

Designed with multiple independent lanes, allowing it to fill and package multiple sachets of powder simultaneously, enhancing speed.

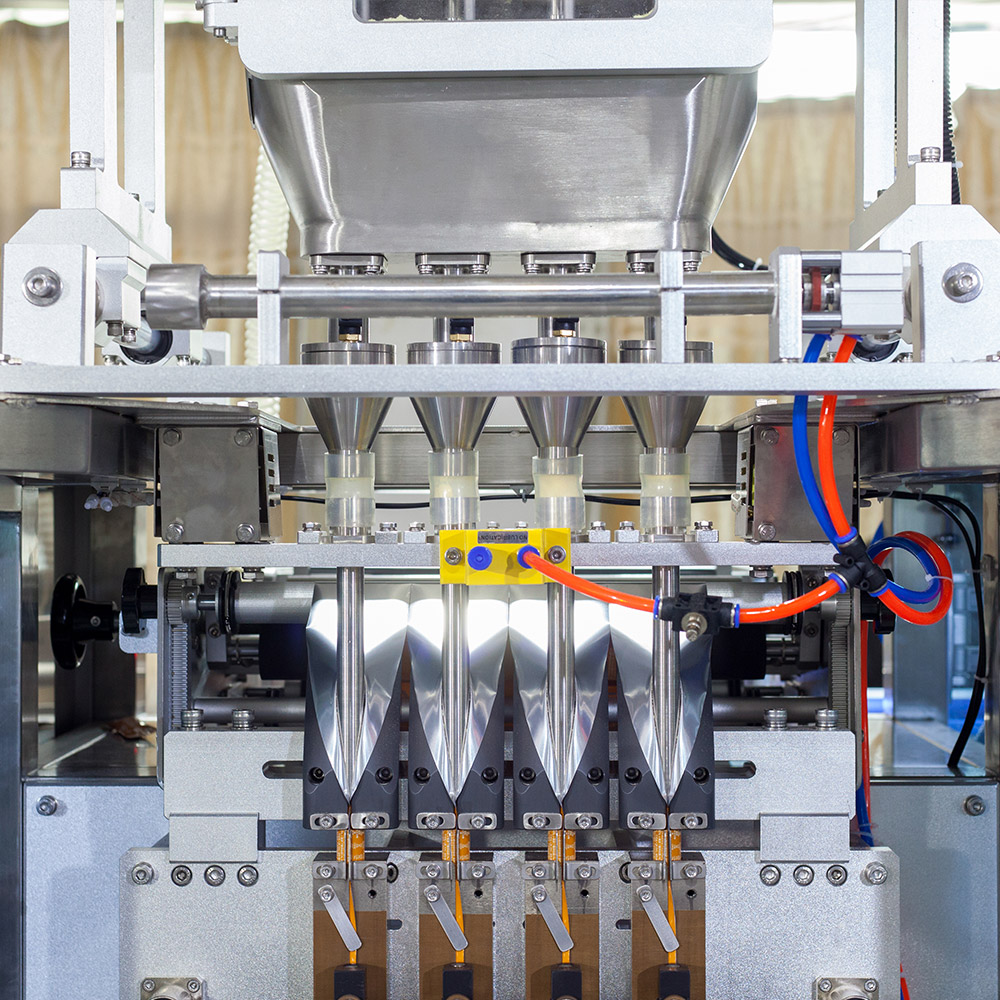

Precision Auger Filling System

Auger-based filling system tailored for powders, engineered to handle powders with various densities, maintaining consistency across all sachets.

Modular Sachet Configuration

The equipment offers adjustable lane configurations. This modular setup supports diverse production needs, allowing adaptation to requirements.

High-Speed Heat Sealing Integrity
High-Speed Heat Sealing for Product Integrity

Utilizing advanced heat-sealing technology, the machine ensures that each sachet is tightly sealed. Helping to preserve product freshness and quality.

Automated Counting & Grouping
Automated Product Counting and Grouping

Integrated with an automatic counting system, the machine can sort and count sachets during production. Improving efficiency in downstream processes.

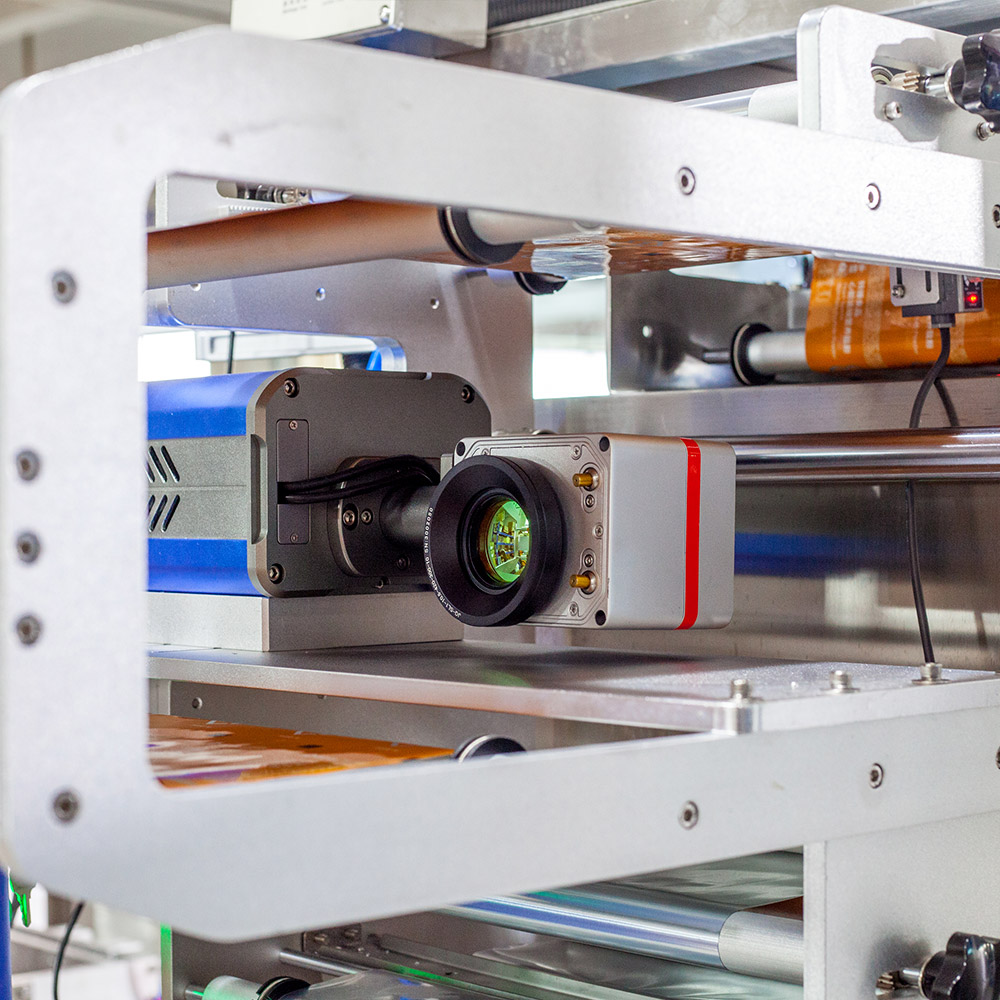

Film Alignment & Registration System
Film Alignment and Registration System

Features an automated film alignment mechanism that guarantees precise film positioning, enhancing the professional appearance final product.

Dust Control and Hygiene

Built with a focus on cleanliness, the machine incorporates a dust extraction system that minimizes airborne powder particles during filling process.

Energy-Efficient Servo Motors

The machine is equipped with energy-efficient servo motors that provide smooth and precise control over the filling, sealing, and cutting processes.

Parameters

Model	LD-480Y	LD-720Y	LD-960Y
Number of Lanes	4-6 Lanes	4-10 Lanes	4-12 Lanes
Measurement Type	Peristaltic Pump / Piston Pump
Packaging Speed	Max. 40 cuts/min
Film Width	Max.480mm	Max.720mm	Max.960mm
Film Thickness	0.07-0.1mm
Bag Width	35-60mm	35-90mm	35-120mm
Bag Length	45-120mm
Sealing Type	4 side sealing
Cutting type	Flat cut / Serrated cut / Serrated cut
Air Pressure	0.8Mpa 0.8m ³/min
Power	2.8KW	4.1KW	5.5KW
Dimensions	950* 1470* 1750mm	1153* 1654* 1750mm	1415* 1686* 2130mm
Weight	300kg	400kg	500kg

Pakcaging Styles

Four-Side Sealed Sachet: This is the most common pouch style produced by multi-lane machines, featuring seals on all four sides. It is well-suited for powder products such as instant coffee, drink mixes, sugar, and seasoning powders. The four-side seal ensures a secure, leak-proof package that is ideal for single-serving sachets.
Three-Side Sealed Sachet: Sealed on three sides, with one side left open for filling, this style is also used for single-serve powders. It offers an economical and efficient packaging solution for products like pharmaceutical powders, spices, or protein supplements in small quantities.
Stick Pack: This narrow, elongated pouch style is ideal for small servings of powder products, such as sugar, sweeteners, or drink mixes. Stick packs are convenient for on-the-go use, offering precise portion control and easy handling, making them highly popular in the food and beverage industry.

Warranty and Services

12-month quality warranty.
24-month local fast replacement service for major electrical parts.
Comprehensive shipment services, including coordination of logistics, delivery tracking, and ensuring timely delivery to your location.
Technical support , Manual instructions, installation, and operation guides with delivery.
On-site setup, operation, and maintenance training as needed.

After the warranty period, we offer:

Lifelong maintenance services.
Spare parts support.
Operational training to ensure reliability.
Quick responses to any inquiries from our customer service team.
