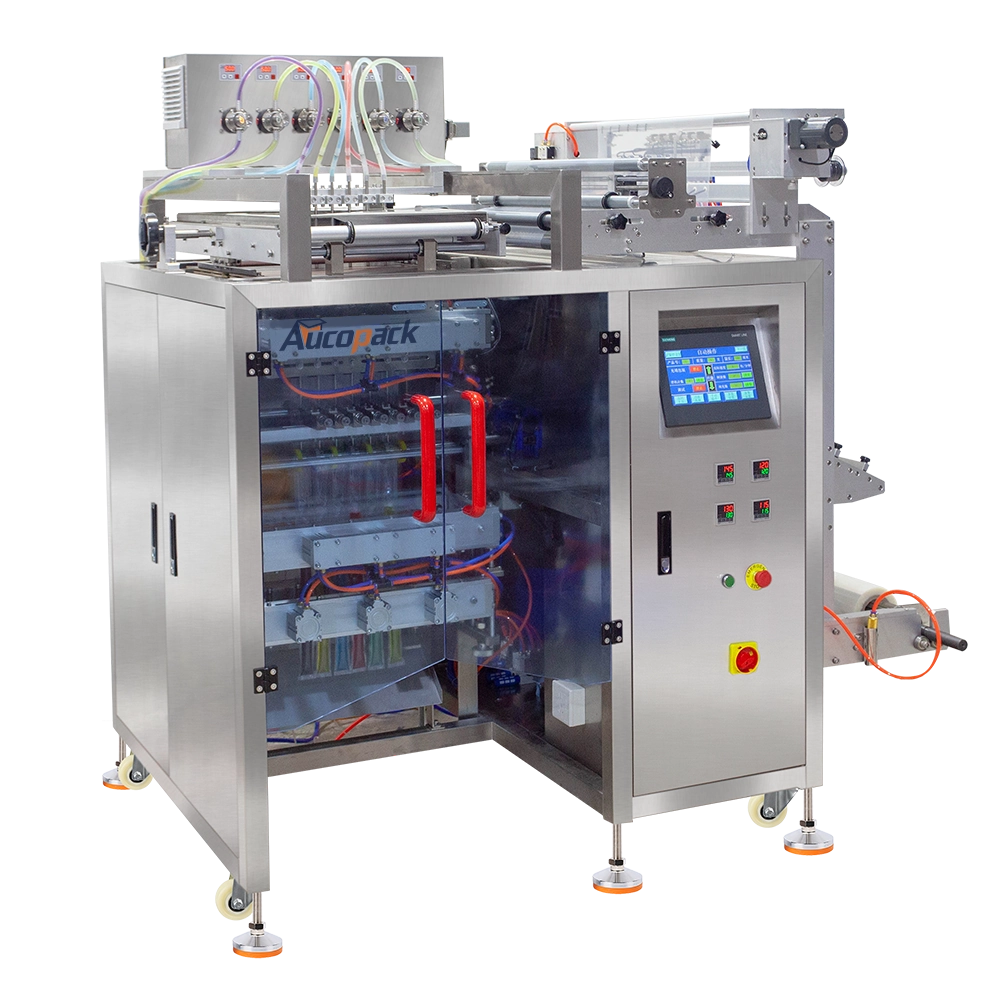

Automatic Multi Lane Liquid Sachet Filling & Packaging Machine

Streamline production with multi lane liquid sachet packaging machine, offering high-speed, precise filling and sealing for diverse liquid products.

Online inquiry

Industries Application Features Parameters Pakcaging Styles Warranty and Services

Industries Application

nutritions liquid packaging machine.jpg

The Automatic Multi Lane Liquid Sachet Filling & Packaging Machine is designed to efficiently package liquid products such as sauces, juices, creams, and other fluid-based items into single-serve sachets. Each lane operates independently, utilizing precision filling systems that ensure consistent liquid dosing across all sachets, reducing waste and ensuring uniformity. This machine supports a variety of sachet sizes and formats, allowing flexibility for different products and packaging needs. Its robust sealing technology ensures leak-proof, tamper-evident packaging, maintaining product freshness and preventing contamination. The machine is ideal for industries such as food, cosmetics, and pharmaceuticals, offering a reliable solution for manufacturers aiming to increase production efficiency, reduce labor costs, and maintain high-quality packaging standards for liquid products.

Features

Effortless Wellness Packaging
Speed Meets Precision

In the fast-growing health and supplement industry, packaging efficiency and hygiene are non-negotiable. That’s why forward-thinking brands are choosing our Automatic Vitamin Gummy Bear Premade Pouch Packaging Machine—a fully automated solution engineered to streamline production, maintain product integrity, and elevate your brand’s presentation.

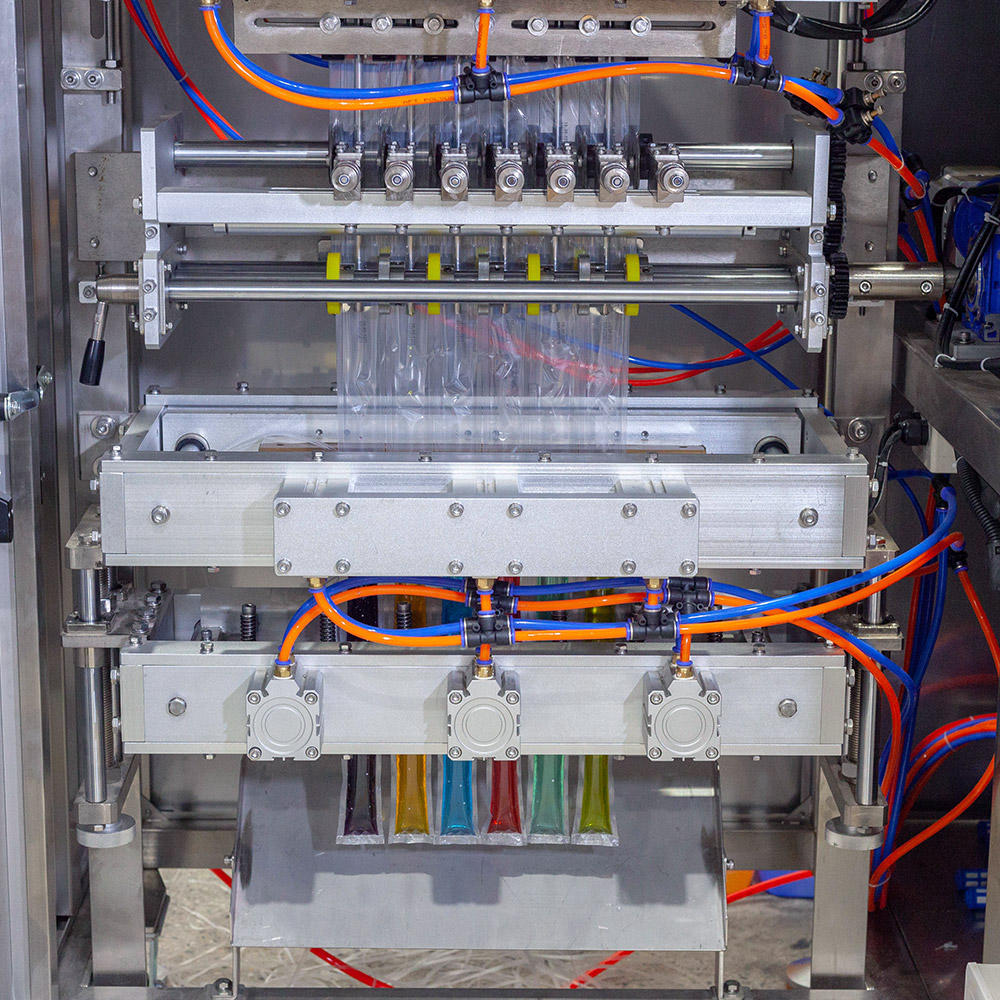

Multi-Lane Precision Filling System

This machine features a multi-lane configuration and volumetric pumps that fill and seal multiple sachets simultaneously, handle various viscosities

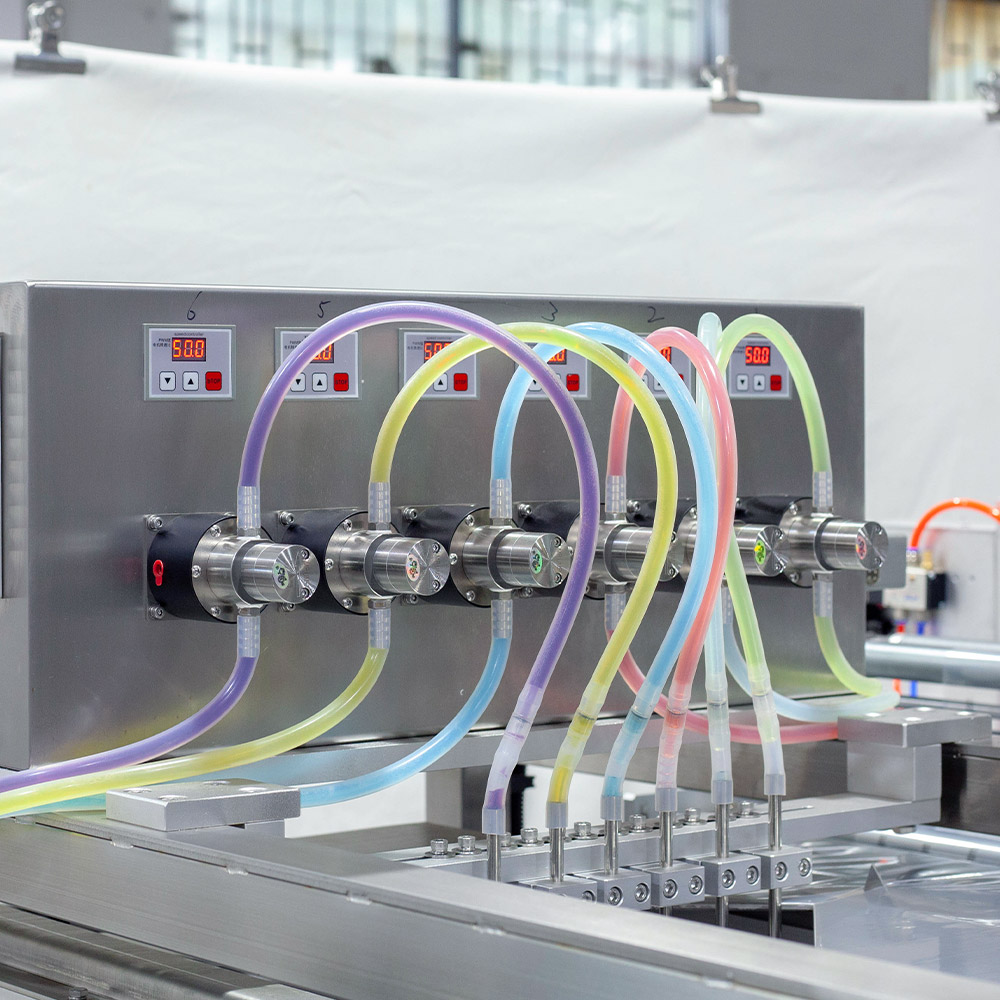

Servo-Driven Filling Heads

The servo-driven filling mechanism ensures precise dosing for each sachet. It handles liquids of varying viscosities, such as lotions and syrups.

Adjustable Sachet Sizes

The machine allows easy adjustments for sachet sizes and fill volumes. This flexibility is ideal for meeting diverse market needs.

Heat Sealing with Leak Prevention

The machine uses multi-zone heat sealing to provide strong, leak-proof seals. This ensures product integrity and protects liquids from contamination.

Independent Lane Operation

Each lane operates independently, allowing different products or sachet sizes to be processed at the same time, enhancing production flexibility.

Automated Film Handling

The film handling system includes advanced alignment controls for precise film positioning, ensuring that product information is correctly aligned.

High Efficiency with Minimal Waste

Designed for continuous high-speed production, Integrated sensors monitor film tension and sachet quality, optimizing both productivity.

Optional Custom Features

The machine can be equipped with options like gas flushing for extended shelf life, providing additional flexibility and compliance with requirements.

Parameters

Model	LD-480Y	LD-720Y	LD-960Y
Number of Lanes	4-6 Lanes	4-10 Lanes	4-12 Lanes
Measurement Type	Peristaltic Pump / Piston Pump
Packaging Speed	Max. 40 cuts/min
Film Width	Max.480mm	Max.720mm	Max.960mm
Film Thickness	0.07-0.1mm
Bag Width	35-60mm	35-90mm	35-120mm
Bag Length	45-120mm
Sealing Type	4 side sealing
Cutting type	Flat cut / Serrated cut / Serrated cut
Air Pressure	0.8Mpa 0.8m ³/min
Power	2.8KW	4.1KW	5.5KW
Dimensions	950* 1470* 1750mm	1153* 1654* 1750mm	1415* 1686* 2130mm
Weight	300kg	400kg	500kg

Pakcaging Styles

Four-Side Sealed Sachet: This is the most commonly used pouch style for multi-lane machines. It features seals on all four sides, making it a secure and compact packaging option. It is ideal for liquid products such as ketchup, soy sauce, salad dressing, and other condiments or personal care liquids. The four-side seal provides leak-proof protection and ensures a neat and professional look.
Three-Side Sealed Sachet: Featuring seals on three sides with one side open for filling, this sachet style is also widely used for small liquid products. It provides a convenient packaging solution for products like shampoo, conditioner, or other liquid samples. The three-side seal is practical for single-serve portions and ensures a secure seal after filling.
Stick Pack: A narrow, elongated pouch style used for single-serving liquid products like honey, syrup, or drink concentrates. Stick packs are highly convenient for on-the-go use, offering easy opening and precise portion control for consumers. This pouch style is popular for products that need to be used in small amounts or are designed for convenience.

Warranty and Services

12-month quality warranty.
24-month local fast replacement service for major electrical parts.
Comprehensive shipment services, including coordination of logistics, delivery tracking, and ensuring timely delivery to your location.
Technical support , Manual instructions, installation, and operation guides with delivery.
On-site setup, operation, and maintenance training as needed.

After the warranty period, we offer:

Lifelong maintenance services.
Spare parts support.
Operational training to ensure reliability.
Quick responses to any inquiries from our customer service team.
