Automatic Multi Lane Liquid Sachet Filling Machine Equipment

Innovative multi-lane liquid sachet filler integrates smart sensors, rapid lane switching, and modular design to deliver unmatched accuracy and efficiency.
Industries Application Features Parameters Pakcaging Styles Warranty and Services
Industries Application

3 sides sealing sauce packaging  machine.jpg

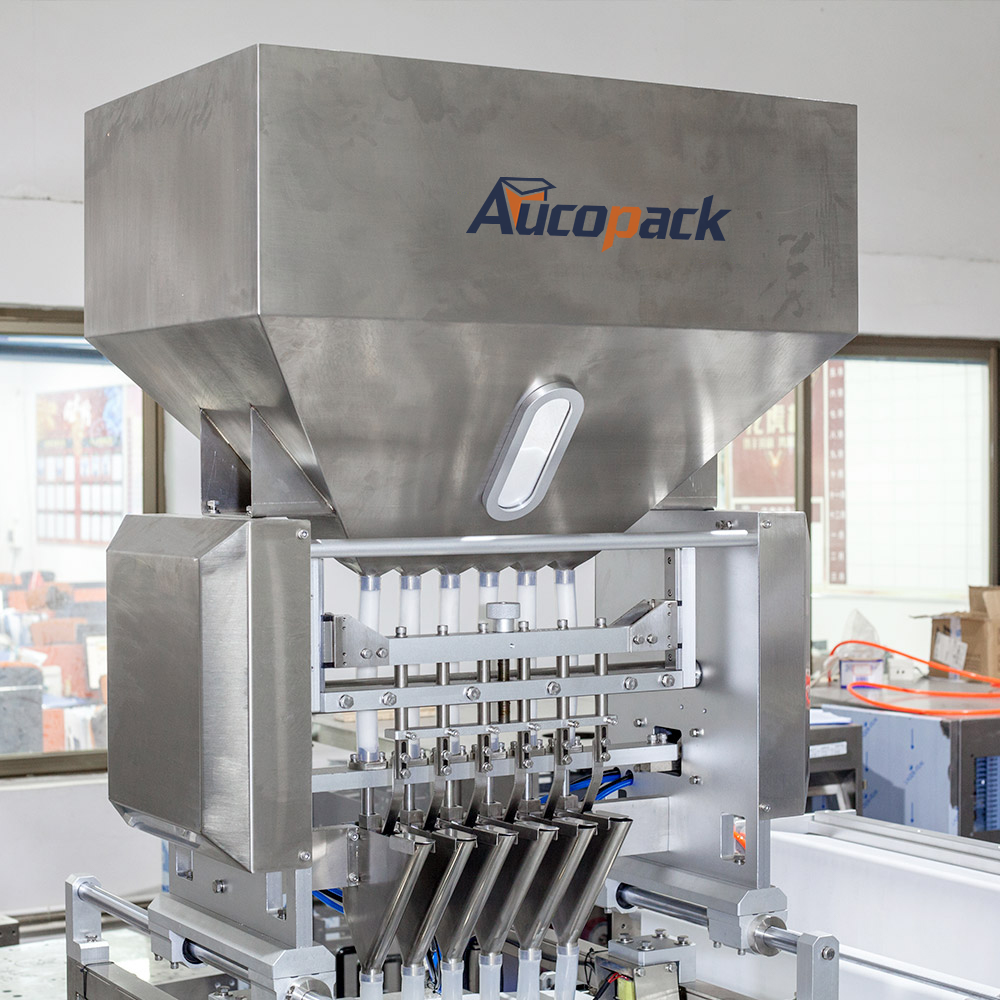

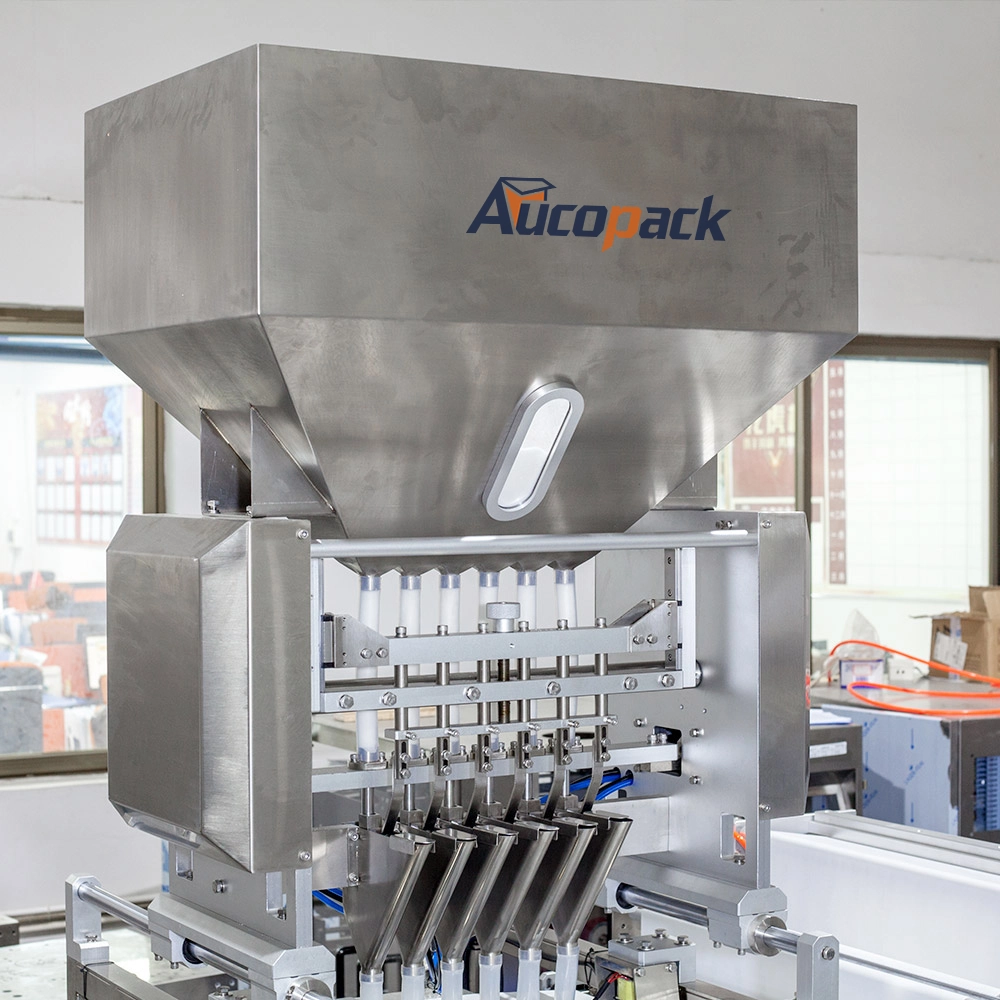

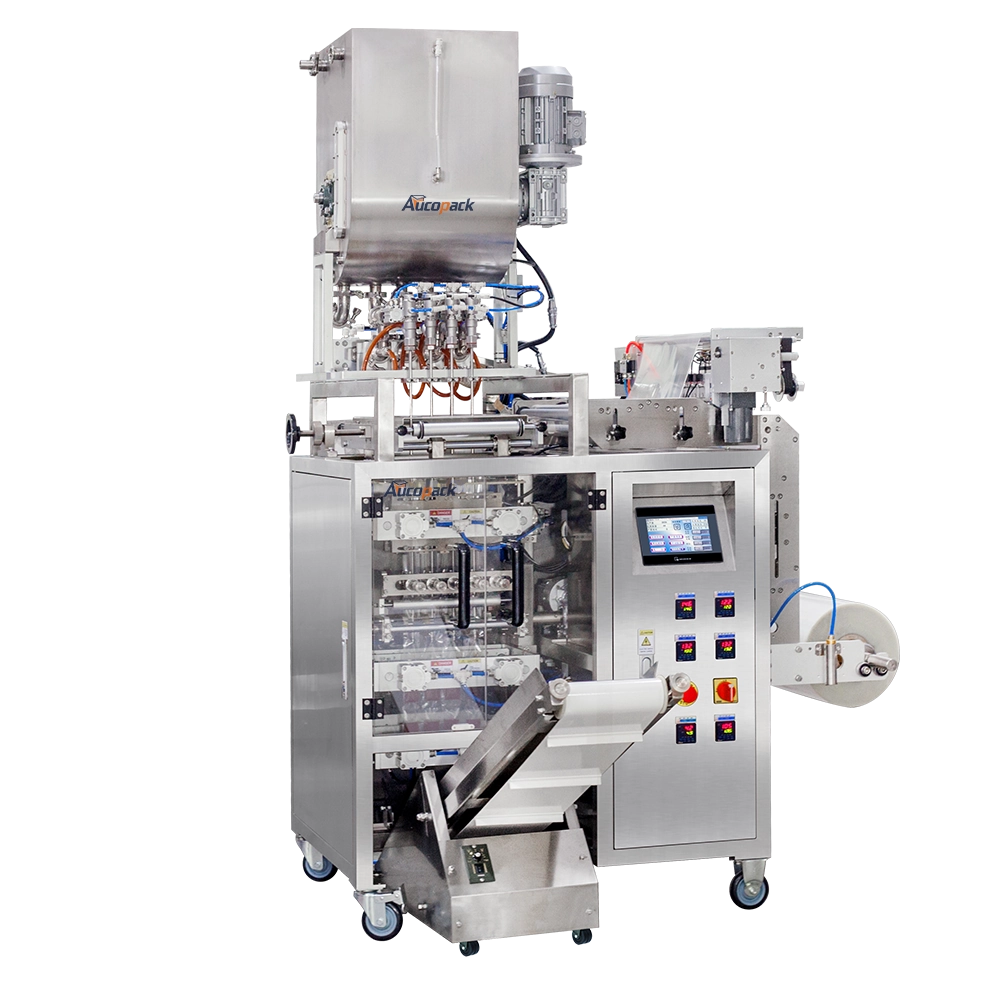

The Automatic Multi-Lane Liquid Sachet Filling Machine Equipment is designed for high-speed and efficient packaging of liquid products such as sauces, juices, creams, and other liquid-based items into individual sachets. With its multi-lane design, this machine can produce multiple sachets simultaneously, making it an excellent solution for businesses requiring high-volume production. Each lane operates independently, ensuring precise filling for every sachet, while the automated system handles everything from forming the sachets to accurately filling and sealing them. The machine is ideal for packaging a wide range of liquid viscosities, from thin liquids to thicker sauces, ensuring consistent portion control and minimal product waste. This equipment is perfect for industries such as food, cosmetics, and pharmaceuticals, providing a reliable and efficient way to enhance production speed and maintain high packaging standards for liquid products.

Features


More Lanes. More Output.
Designed for Liquid Sachets

Get reliable liquid filling across multiple lanes with pump or piston dosing options. Great for ketchup, soy sauce, and skincare liquids, this machine keeps pace with demanding production environments.

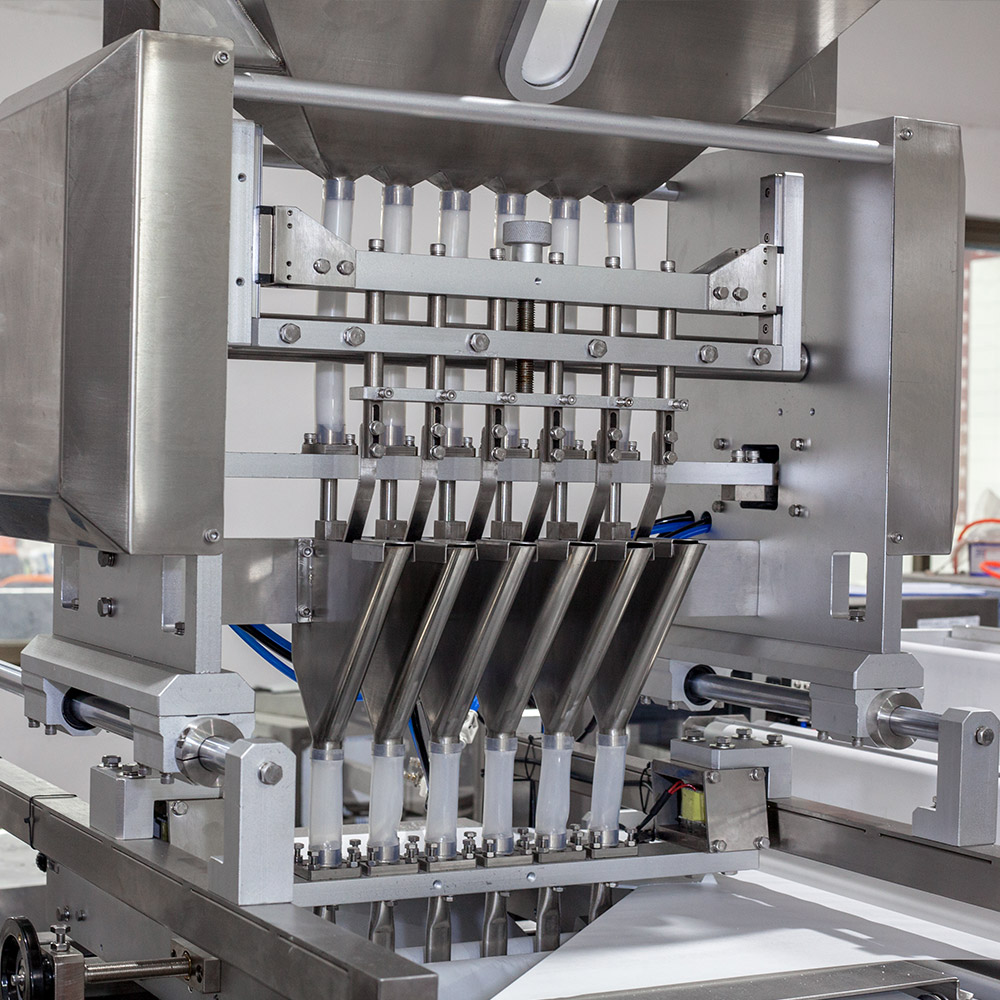

Multi-Lane Liquid Sachet Filling
Multi-Lane High-Speed Liquid Sachet Filling
Designed for high-volume liquid packaging, this machine features multiple lanes to simultaneously fill sachets, significantly enhancing production speed.
Precision Liquid Filling System
Precision Liquid Filling System
The machine is equipped with a highly accurate volumetric or piston-based liquid filling system, ensuring consistency in sachet content.
Customizable Filling Volumes
Customizable Filling Volumes and Sachet Sizes
Capable of handling different sachet sizes, the machine allows for easy adjustment of filling volumes to meet specific product and requirements.

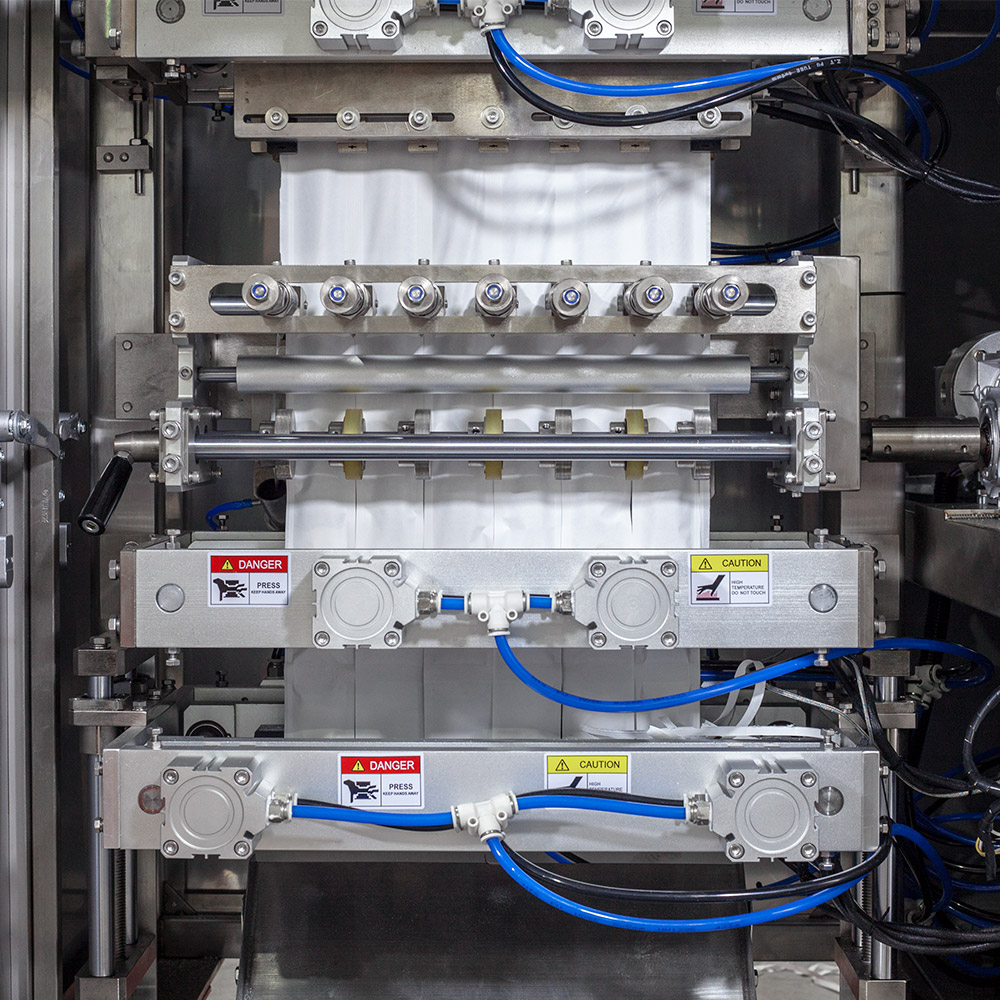

Heat Sealing for Leak-Proof Sachets
Heat Sealing for Leak-Proof Sachets
The machine incorporates a high-performance heat sealing system, ensuring that each sachet is sealed tightly to prevent leaks or contamination.
Independent Lane Operation
Independent Lane Operation for Enhanced Flexibility
Each lane operates independently, allowing for flexible production setups. providing manufacturers with the flexibility to handle simultaneously.
Automated Film Feeding Formation
Automated Film Feeding and Sachet Formation
The machine’s automated film feeding system ensures smooth and continuous operation. ensuring that each sachet is formed, filled, and sealed.
304 Stainless Steel Construction
Food-Grade Stainless Steel Construction
Constructed with food-grade stainless steel, meets the sanitary requirements necessary for the food, pharmaceutical, and cosmetic industries.
Optional Features for Customization
Optional Features for Customization
Customized with additional options such as tear notches, batch printing, and product labeling. Flexibility features to meet requirements.


Parameters
ModelLD-480YLD-720YLD-960Y
Number of Lanes

4-6 Lanes

4-10 Lanes4-12 Lanes
Measurement TypePeristaltic Pump / Piston Pump
Packaging SpeedMax. 40 cuts/min
Film WidthMax.480mm
Max.720mmMax.960mm
Film Thickness0.07-0.1mm
Bag Width35-60mm35-90mm35-120mm
Bag Length45-120mm
Sealing Type4 side sealing
Cutting typeFlat cut / Serrated cut / Serrated cut
Air Pressure0.8Mpa 0.8m ³/min
Power

2.8KW

4.1KW5.5KW
Dimensions950* 1470* 1750mm1153* 1654* 1750mm1415* 1686* 2130mm
Weight300kg
400kg500kg


Pakcaging Styles
  • Four-Side Sealed Sachet: This is the most commonly produced pouch style for multi-lane machines, featuring seals on all four sides. It provides a secure and compact package, ideal for sauces like ketchup, mustard, mayonnaise, and other condiments. The four-side seal ensures leak-proof packaging and is suitable for single-serving applications.
  • Three-Side Sealed Sachet: This type of sachet is sealed on three sides, leaving one side open for filling. It is used for individual portions of sauces and condiments. The three-side seal is a practical and simple design that maintains the quality of the product while providing an efficient packaging solution.
  • Stick Pack: This narrow, elongated pouch style is used for smaller servings of liquid or semi-liquid products. It is ideal for on-the-go use, suitable for packing products like soy sauce, salad dressing, or similar condiments. Stick packs are convenient for single-use portions and are highly popular in the food service industry.
Warranty and Services
  • 12-month quality warranty.
  • 24-month local fast replacement service for major electrical parts.
  • Comprehensive shipment services, including coordination of logistics, delivery tracking, and ensuring timely delivery to your location.
  • Technical support , Manual instructions, installation, and operation guides with delivery.
  • On-site setup, operation, and maintenance training as needed.

After the warranty period, we offer:

  • Lifelong maintenance services.
  • Spare parts support.
  • Operational training to ensure reliability.
  • Quick responses to any inquiries from our customer service team.
