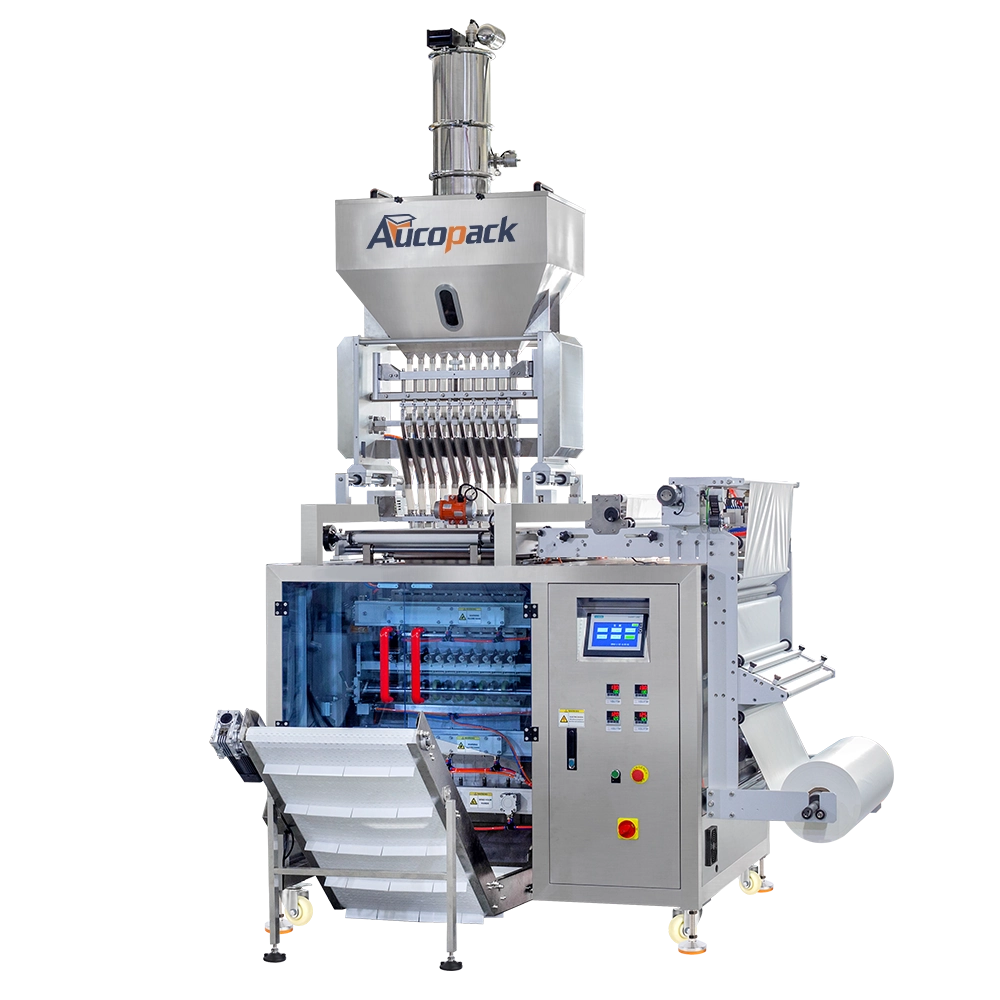

Auto Multi Lane Sugar Granule Stick Sachet Packing Machine

Transform your sugar packaging with a high-speed multi lane sachet machine—multi lane design, consistent quality, and easy operation for success.

Online inquiry

Industries Application Features Parameters Pakcaging Styles Warranty and Services

Industries Application

coffee powder packaging machine.jpg

The Auto Multi Lane Sugar Granule Stick Sachet Packing Machine is designed for high-speed packaging of granular products such as sugar, salt, and small snack items into convenient stick sachets. This machine supports various stick sachet sizes and is ideal for producing single-serve portions commonly used in the food and beverage industries. The advanced sealing technology ensures that each sachet is securely sealed, preserving the freshness and quality of the product. This machine is an excellent choice for manufacturers looking to improve packaging efficiency, reduce labor costs, and produce high-quality stick sachets in large quantities.

Features

Slim Sachets, High Throughput
Designed for Sugar, Salt & More

This automatic multi-lane packing machine fills and seals multiple stick sachets in parallel. With volumetric cup or servo dosing, it ensures consistent weights, tight seals, and sleek sachet shapes—ideal for sugar, salt, or coffee granules.

High-Speed Multi-Lane Operation

Features multiple lanes for simultaneous packing, significantly enhancing production efficiency, ideal for high-volume granule packaging needs.

Precision Dosing System

Equipped with an advanced auger filler, it ensures precise dosing of sugar granules in each sachet, minimizing product waste and ensuring consistency.

Flexible Packaging Formats

Capable of handling a variety of stick sachet dimensions, providing versatility to meet different market demands and optimize consumer convenience.

Advanced Sealing Technology

Incorporates a heat sealing system that delivers strong, consistent seals to protect the integrity of the product, preventing leakage.

Low Maintenance and Easy Cleaning

Features a modular design that facilitates quick access for maintenance and cleaning, reducing machine downtime and operating costs.

Versatile Product Compatibilit

Suitable not only for sugar granules but also for other granular products like salt, desiccants, or seasonings, offering a wide range of application possibilities.

High-Precision Photocell Registration

Ensures accurate cutting and packaging, perfectly aligning the sachets with print registration marks, enhancing the aesthetic appeal of the final product.

Auto Counting & Batch Coding
Automated Bag Counting and Batch Codin

Integrated with automatic counting and printing systems for batch numbers and expiration dates, streamlining the process and meeting requirements.

Parameters

Model	LD-480Y	LD-720Y	LD-960Y
Number of Lanes	4-6 Lanes	4-10 Lanes	4-12 Lanes
Measurement Type	Peristaltic Pump / Piston Pump
Packaging Speed	Max. 40 cuts/min
Film Width	Max.480mm	Max.720mm	Max.960mm
Film Thickness	0.07-0.1mm
Bag Width	35-60mm	35-90mm	35-120mm
Bag Length	45-120mm
Sealing Type	4 side sealing
Cutting type	Flat cut / Serrated cut / Serrated cut
Air Pressure	0.8Mpa 0.8m ³/min
Power	2.8KW	4.1KW	5.5KW
Dimensions	950* 1470* 1750mm	1153* 1654* 1750mm	1415* 1686* 2130mm
Weight	300kg	400kg	500kg

Pakcaging Styles

Stick Pack: This is the primary packaging style produced by a multi-lane sugar packing machine. Stick packs are narrow, elongated pouches designed for single servings. They are ideal for sugar, sweeteners, and other granular products that require easy, on-the-go convenience. The stick pack design allows for precise portion control and is popular in the food service industry, such as for coffee and tea.
Four-Side Sealed Sachet: This type of sachet has seals on all four sides, providing a secure, compact package. It is suitable for granular products like sugar, providing a convenient and easy-to-use serving size. Four-side sealed sachets are often used in hospitality or restaurants for single-serving needs.

Warranty and Services

12-month quality warranty.
24-month local fast replacement service for major electrical parts.
Comprehensive shipment services, including coordination of logistics, delivery tracking, and ensuring timely delivery to your location.
Technical support , Manual instructions, installation, and operation guides with delivery.
On-site setup, operation, and maintenance training as needed.

After the warranty period, we offer:

Lifelong maintenance services.
Spare parts support.
Operational training to ensure reliability.
Quick responses to any inquiries from our customer service team.
