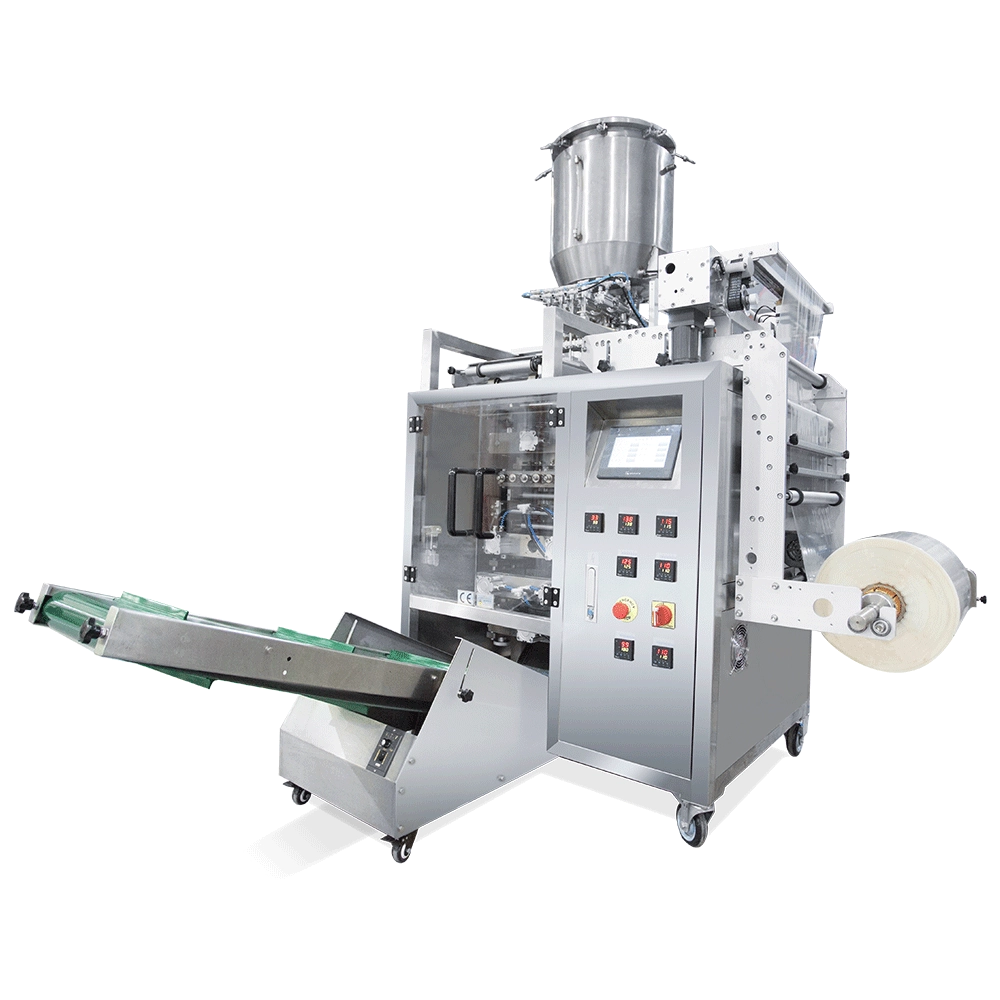

Auto Cosmetics Multi Lane Filling Packaging Machine Equipment

Revolutionize your cosmetics packaging with multi lane filling machine. From varying viscosities to complex packaging needs, ensures reliable performance.

Online inquiry

Industries Application Features Parameters Pakcaging Styles Warranty and Services

Industries Application

shaped pouch packaging machine.jpg

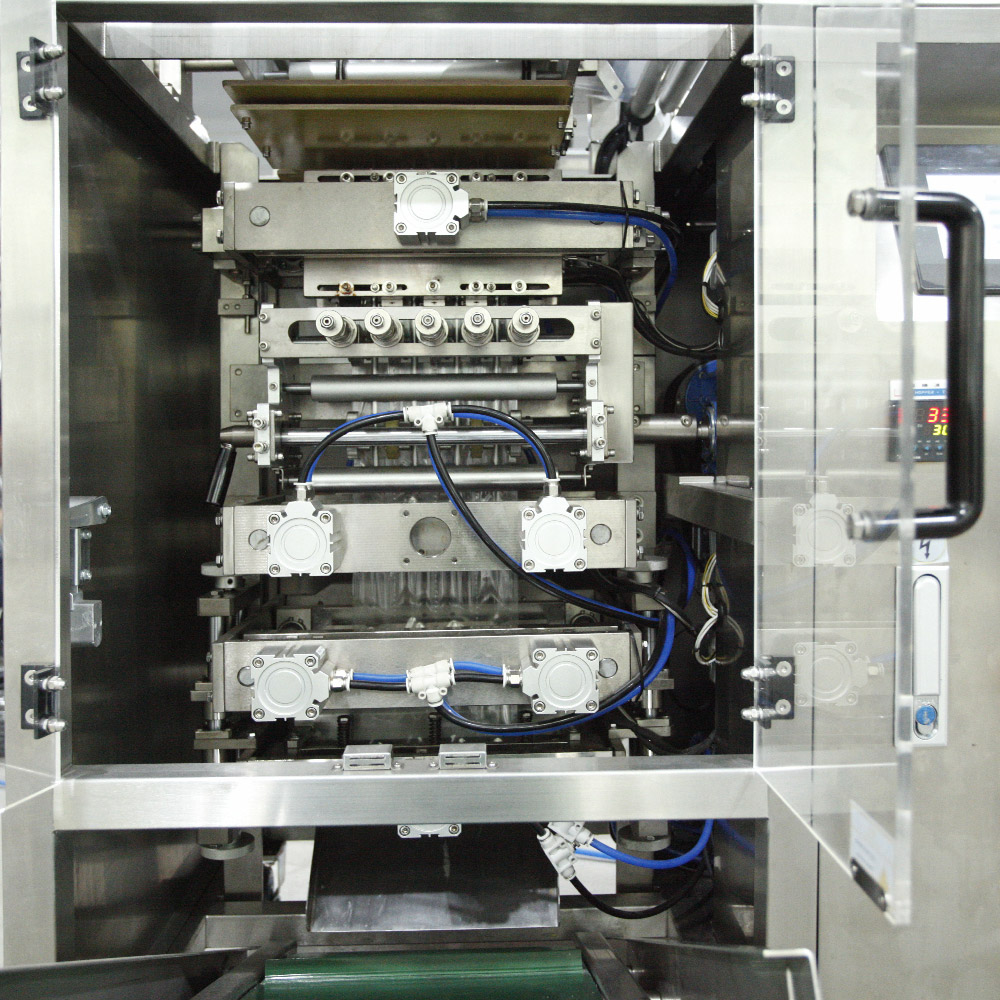

The Auto Cosmetics Multi-Lane Filling Packaging Machine Equipment is specifically designed for high-speed, efficient packaging of cosmetic products such as creams, lotions, gels, and serums into single-use sachets or tubes. Each lane operates with a precision filling system that ensures consistent dosing of cosmetic products, maintaining uniformity across all sachets or tubes. The machine automates the entire process, from forming sachets or tubes, accurately filling them with the desired cosmetic product, to sealing them for leak-proof and tamper-evident packaging. This versatile machine supports various packaging formats and sizes, making it adaptable for different cosmetic product lines.

Features

Effortless Wellness Packaging
Speed Meets Precision

In the fast-growing health and supplement industry, packaging efficiency and hygiene are non-negotiable. That’s why forward-thinking brands are choosing our Automatic Vitamin Gummy Bear Premade Pouch Packaging Machine—a fully automated solution engineered to streamline production, maintain product integrity, and elevate your brand’s presentation.

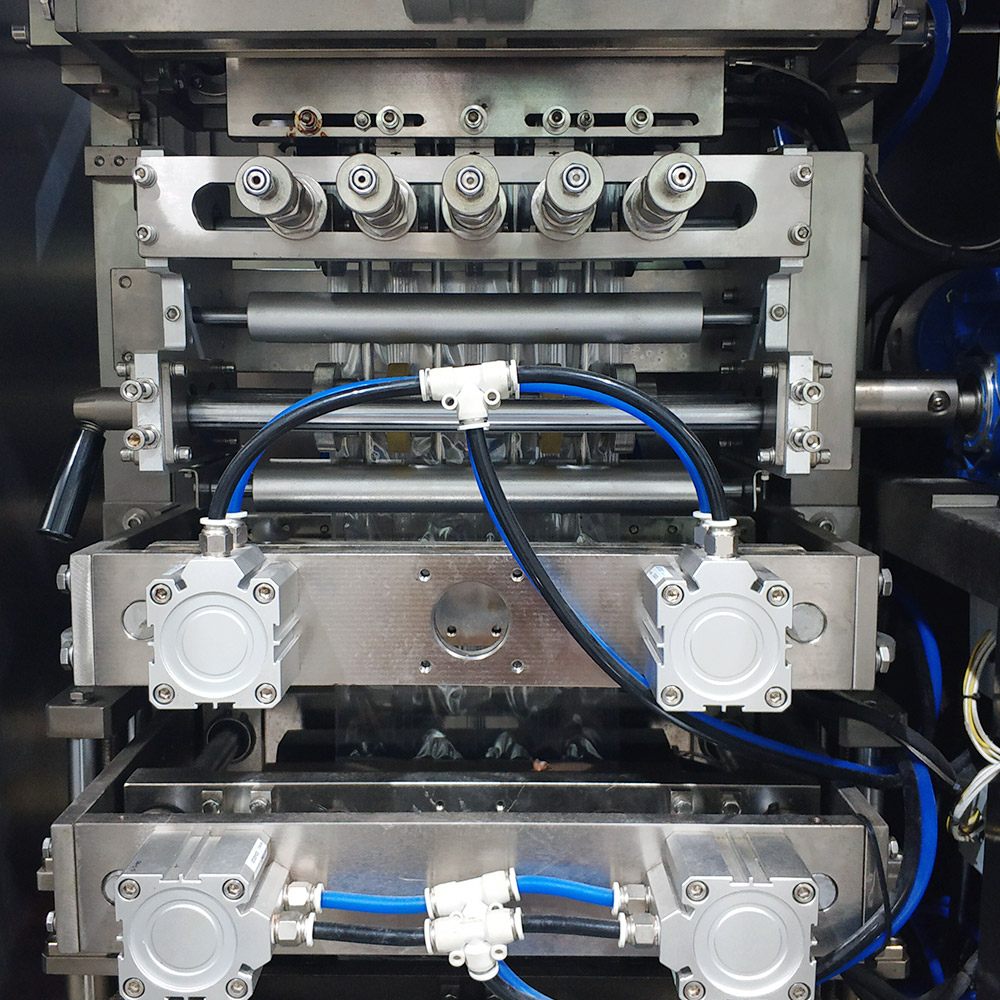

Optimized Multi-Lane Operation

Features multi-filling lanes that work simultaneously, allowing for customized sachet output settings to meet varying production requirements.

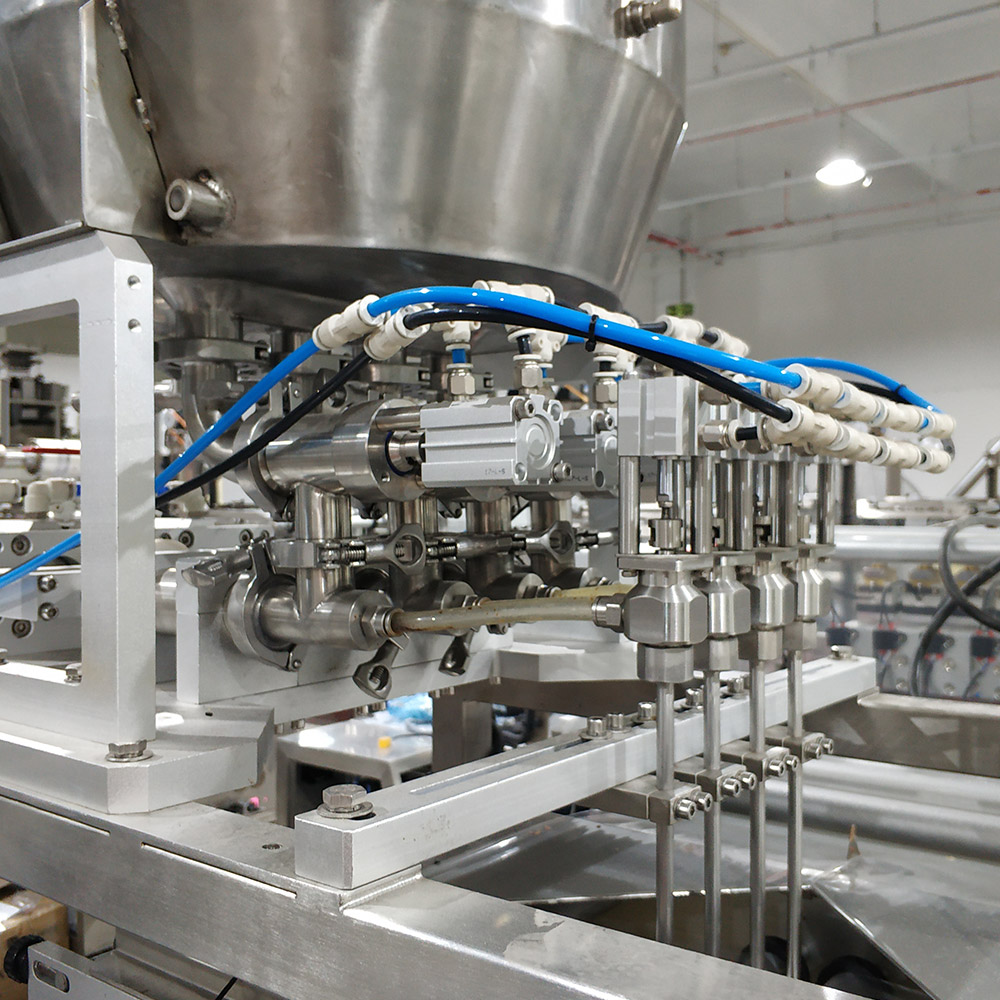

Advanced Pump Filling Technology

Incorporates servo-driven piston pumps for highly accurate dosing of cosmetic products, with adjustable speed and volume settings.

Flexible Packaging Size Handling

Offers adjustable sachet length and width settings with quick-change mechanisms, making it suitable for a wide variety of cosmetic products.

Intuitive Control Interface

Equipped with a smart HMI touch screen that allows operators to set up product recipes, monitor real-time data, and receive troubleshooting alerts.

Robust Sealing System

Uses ultrasonic sealing for enhanced precision and reliability, providing strong, leak-proof seals for various viscosities, reducing rework rates.

Versatile Product Compatibility

Handles a diverse range of cosmetic products, with dedicated nozzles and parts to prevent clogging and ensure smooth production transitions.

Accurate Photocell Registration

Utilizes dual photocell sensors for precise sachet alignment, ensuring consistent and visually appealing packaging, which is critical for brand quality perception.

Integrated Coding & Counting System
Integrated Coding and Counting System

Features an automated thermal transfer printer for high-quality batch coding and a sensor-driven counting system to track production.

Parameters

Model	LD-480Y	LD-720Y	LD-960Y
Number of Lanes	4-6 Lanes	4-10 Lanes	4-12 Lanes
Measurement Type	Peristaltic Pump / Piston Pump
Packaging Speed	Max. 40 cuts/min
Film Width	Max.480mm	Max.720mm	Max.960mm
Film Thickness	0.07-0.1mm
Bag Width	35-60mm	35-90mm	35-120mm
Bag Length	45-120mm
Sealing Type	4 side sealing
Cutting type	Flat cut / Serrated cut / Serrated cut
Air Pressure	0.8Mpa 0.8m ³/min
Power	2.8KW	4.1KW	5.5KW
Dimensions	950* 1470* 1750mm	1153* 1654* 1750mm	1415* 1686* 2130mm
Weight	300kg	400kg	500kg

Pakcaging Styles

Four-Side Sealed Sachet: This is the most commonly produced pouch style by multi-lane machines for cosmetic products. It features seals on all four sides, providing a compact and secure packaging solution. This style is ideal for packaging products like lotions, creams, gels, and shampoos, offering leak-proof integrity and ensuring product quality.
Stick Pack: A narrow, elongated pouch style used for single-use servings of liquid or gel cosmetic products, such as hair serums, facial serums, or sample-sized skincare products. Stick packs provide convenience and precise dosing for consumers, making them a popular choice for on-the-go use or as samples.
Three-Side Sealed Sachet: In addition to the above styles, some multi-lane machines can also produce three-side sealed sachets. These pouches are sealed on three sides, leaving one side open for filling before final sealing. They are suitable for packaging products like conditioners, face creams, or other liquid-based personal care products in small portions.

Warranty and Services

12-month quality warranty.
24-month local fast replacement service for major electrical parts.
Comprehensive shipment services, including coordination of logistics, delivery tracking, and ensuring timely delivery to your location.
Technical support , Manual instructions, installation, and operation guides with delivery.
On-site setup, operation, and maintenance training as needed.

After the warranty period, we offer:

Lifelong maintenance services.
Spare parts support.
Operational training to ensure reliability.
Quick responses to any inquiries from our customer service team.
