Home > Products > Flow Wrapper Packing Machine
flow wrapper
flow wrapper pillow packing machine fruit packaging machine fruits and vegetables packaging machines

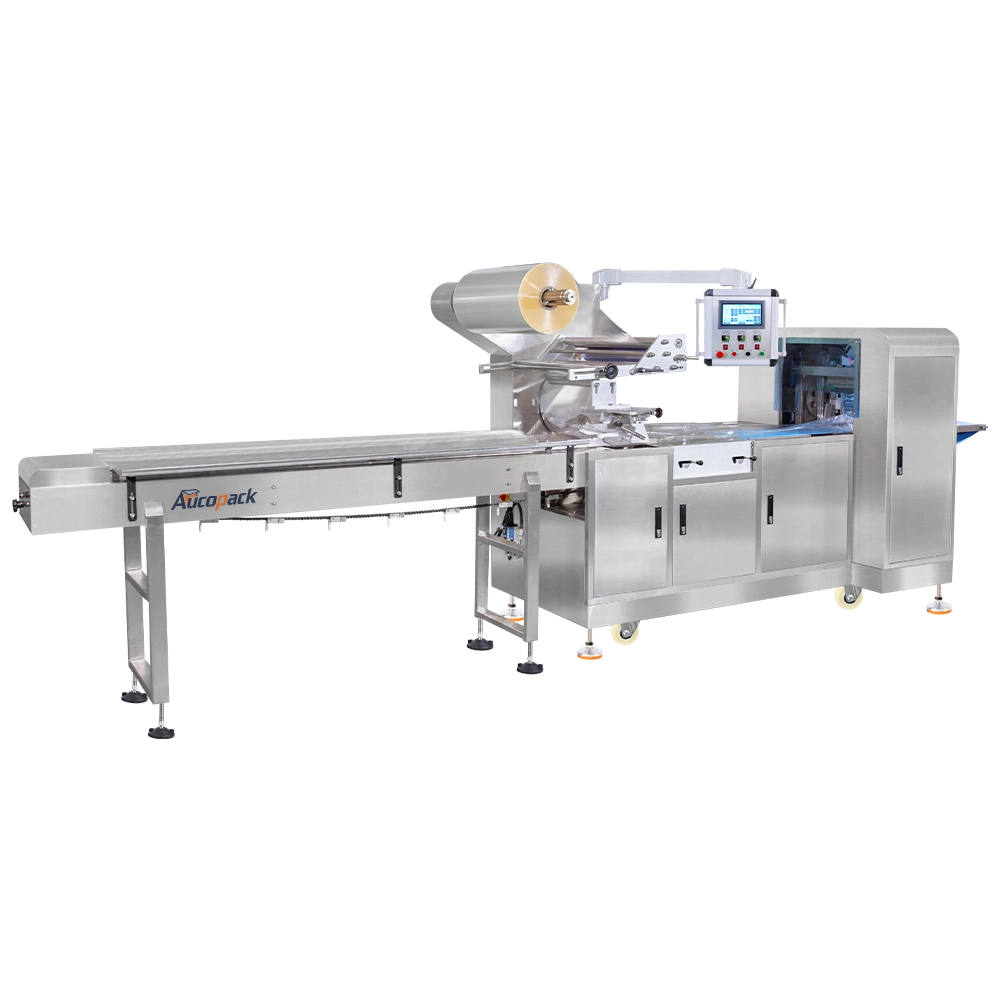

Automatic Hffs Food Flow Food Vegetable Wrap Sealing Machine

Featuring cutting-edge technology to ensures consistent, efficient sealing of Tray food, protecting freshness and hygiene while boosting production speed.
Online inquiry
Industries Application Features Parameters Pakcaging Styles Warranty and Services
Industries Application

Frozen Food Packaging Machine.jpg

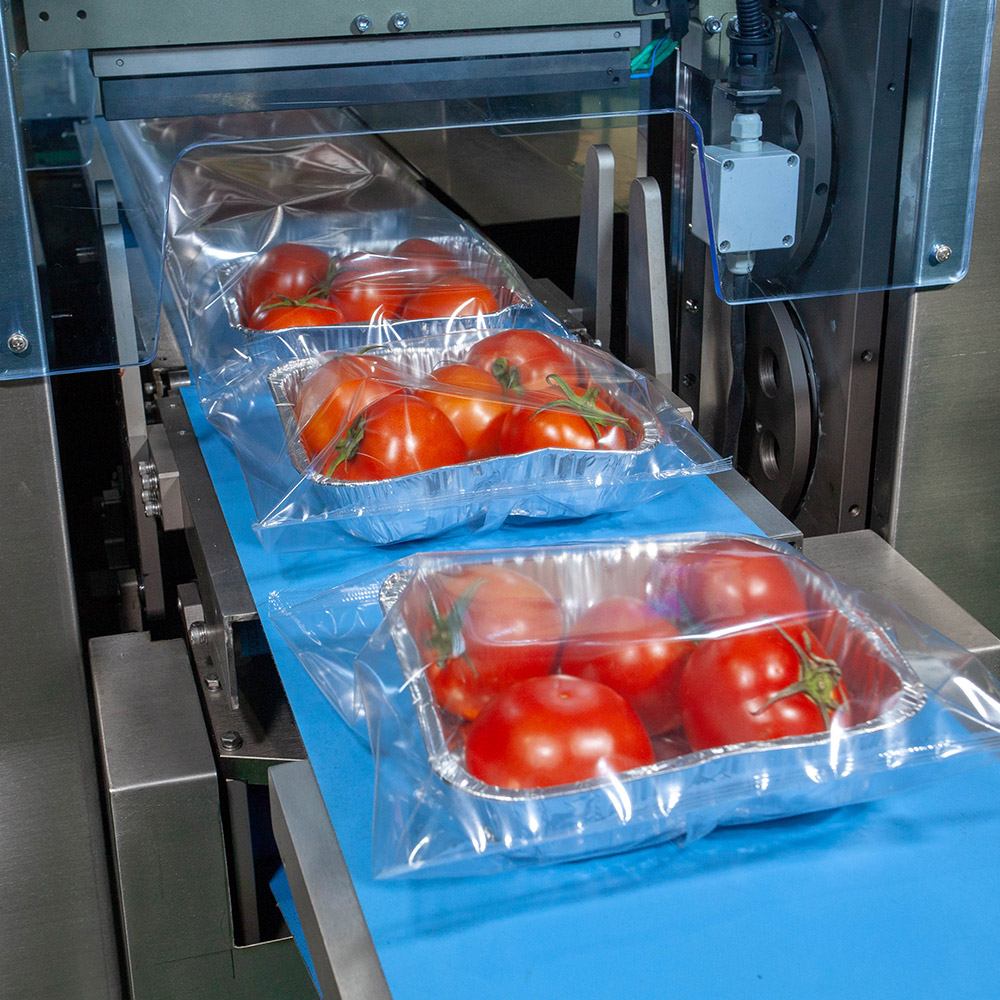

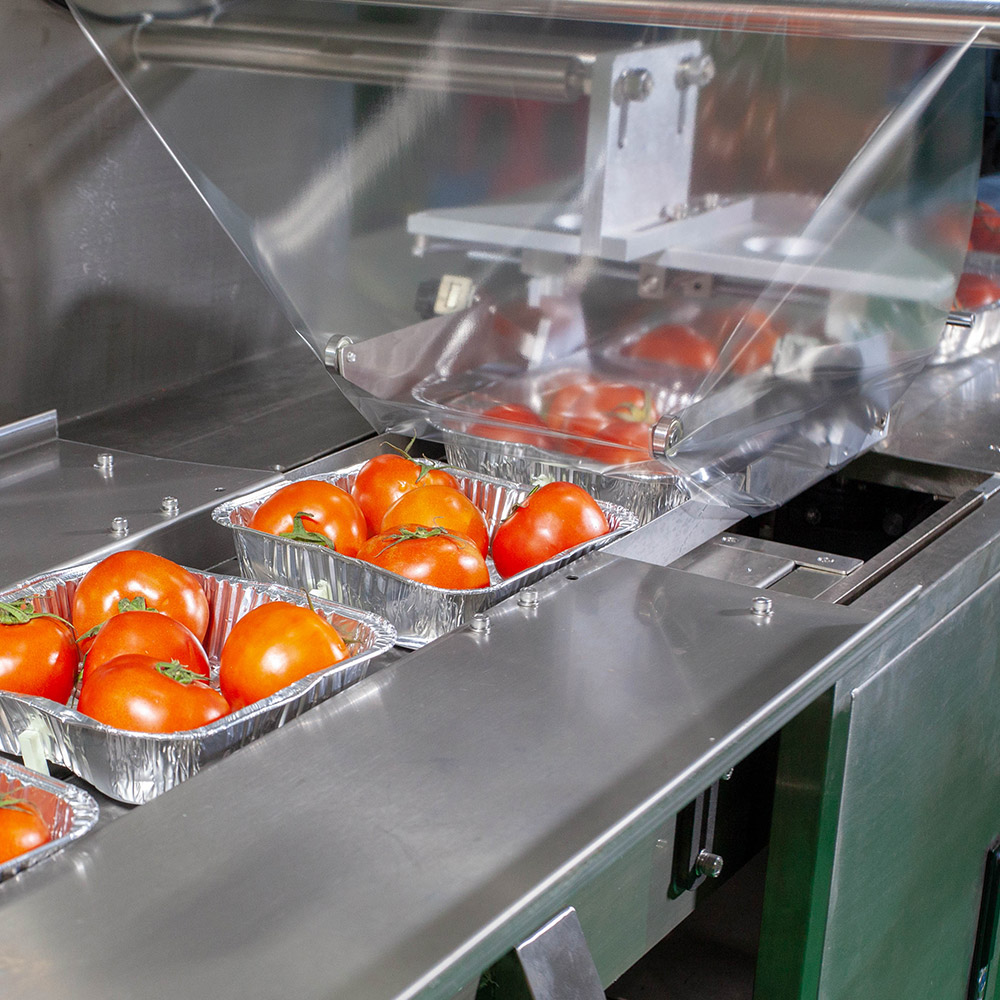

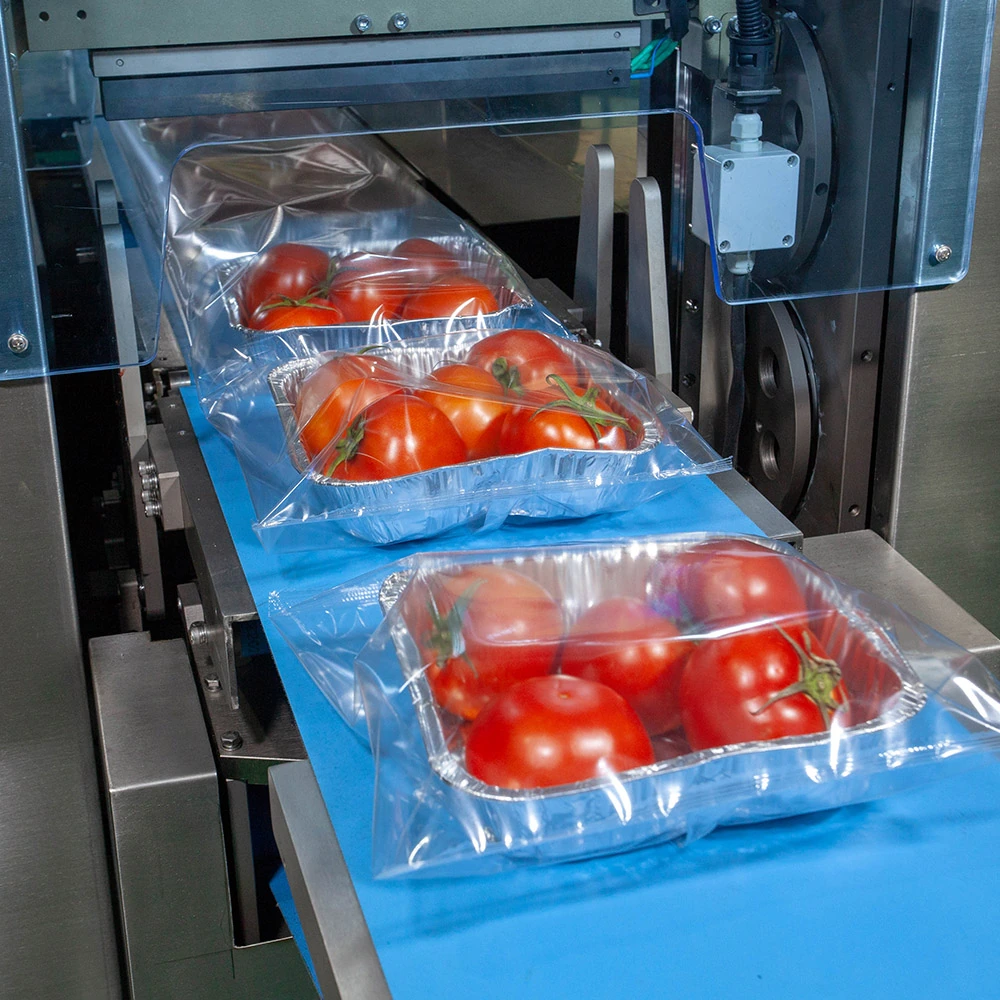

The Automatic HFFS Food Flow Pallet Tray Wrap Sealing Machine is designed to provide efficient packaging for food items placed in trays or pallets, utilizing Horizontal Form Fill Seal (HFFS) technology. This machine automates the process of wrapping food trays in protective film, sealing, and ensuring that the packaging is both secure and hygienic. Ideal for products such as ready-made meals, fresh produce, meats, and other food items, the machine wraps trays tightly to preserve freshness, prevent contamination, and extend shelf life. The machine can handle various tray sizes and configurations, making it adaptable for different food products and packaging needs. Equipped with robust sealing technology, it guarantees airtight and tamper-evident packaging, enhancing product protection during transport and storage.

Features


Tray-Packed, Perfectly Sealed
Designed for Food Flow Wrap with Tray

This HFFS machine wraps and seals tray-packed foods in clear, protective film. It ensures secure positioning, tight sealing, and strong shelf appeal—ideal for meat, bakery, ready meals, and produce.


Horizontal Form-Fill-Seal Technology
Horizontal Form-Fill-Seal (HFFS) Technology
Efficiently forms, fills, and seals pallet trays in a continuous flow, designed for food products that require secure tray packaging.
Automated Pallet Tray Wrapping
Automated Pallet Tray Wrapping
Capable of wrapping food products on pallet trays with high precision, ensuring that the packaging is tight and stable for storage and transportation.
High-Speed Operation
High-Speed Operation
Optimized for high-speed packaging lines, the machine ensures rapid processing without compromising on seal integrity or packaging consistency.
Hermetic Sealing System
Hermetic Sealing System
Provides airtight and secure seals, ideal for maintaining food freshness and preventing contamination, which is critical for perishable goods.
Customizable Tray and Film Formats
Customizable Tray and Film Formats
Supports various tray sizes and film types, allowing flexible packaging configurations for different food products and distribution requirements.

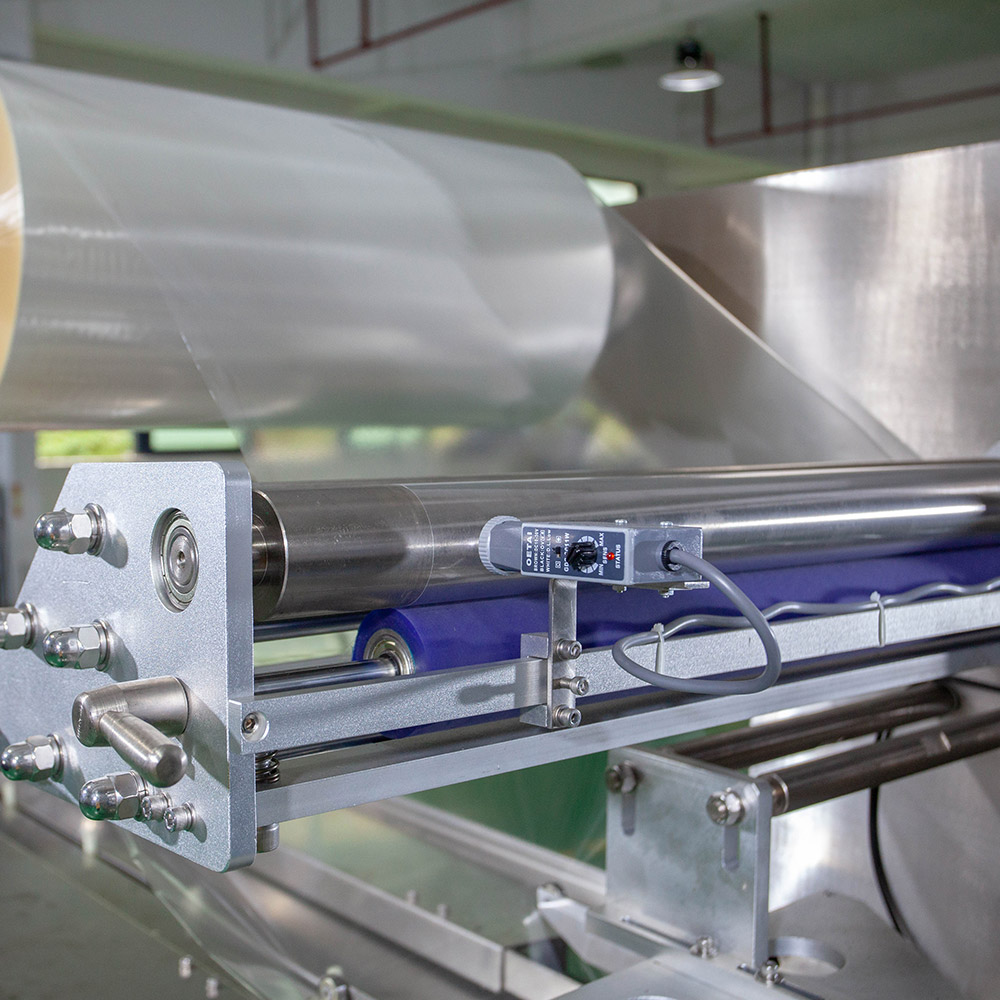

Servo-Controlled Film Feed
Servo-Controlled Film Feed
Ensures accurate film tension and alignment during wrapping, reducing material waste and ensuring consistent sealing quality across all trays.
Hygienic Design
Hygienic Design
Constructed with food-grade stainless steel, the machine is easy to clean and meets hygiene standards, making it suitable for processing environments.
User-Friendly Interface
User-Friendly Interface
Integrated Human-Machine Interface (HMI) easily controls and adjusts settings such as tray size, film tension, and sealing temperature in real-time.


Parameters
Model TypeLPW-450LPW-590
LPW-700
Packaging Speed20-120 bags/min20-80 bags/min20-80 bags/min
Bag Length90-500mm150-600mm180-600 mm
Bag Width20-200mm40-220mm40-320mm
Product Height5-80mm5-150mm5-150mm
Machine Dimension(L)4700* (W)1200* (H)1900mm
(L)4700* (W)1300* (H)1900mm(L)4700* (W)1400* (H)1900mm
Machine Weight1100kg1300kg1500kg
Power220V/50HZ
Film MaterialOPP, PE, PVC, OPP/CPP, PT/PE, KOP/CPP metallized film, metallized f ilm
Pakcaging Styles
  • Flow Wrap (Pillow Pack): The flow wrap is a common style where the product, often placed on a tray, is wrapped in flexible film with top, bottom, and back seals. It provides a tight seal to maintain freshness and is widely used for food items like bakery products, vegetables, and ready meals.
  • Tray Wrap with Flow Sealing: This packaging style involves placing the food product in a tray and then wrapping it with transparent film. The film is sealed around the tray, ensuring the product is securely held and visually appealing for retail display. This style is ideal for products such as cut fruits, ready meals, and meats that need added protection and stability.
Warranty and Services
  • 12-month quality warranty.
  • 24-month local fast replacement service for major electrical parts.
  • Comprehensive shipment services, including coordination of logistics, delivery tracking, and ensuring timely delivery to your location.
  • Technical support , Manual instructions, installation, and operation guides with delivery.
  • On-site setup, operation, and maintenance training as needed.

After the warranty period, we offer:

  • Lifelong maintenance services.
  • Spare parts support.
  • Operational training to ensure reliability.
  • Quick responses to any inquiries from our customer service team.
