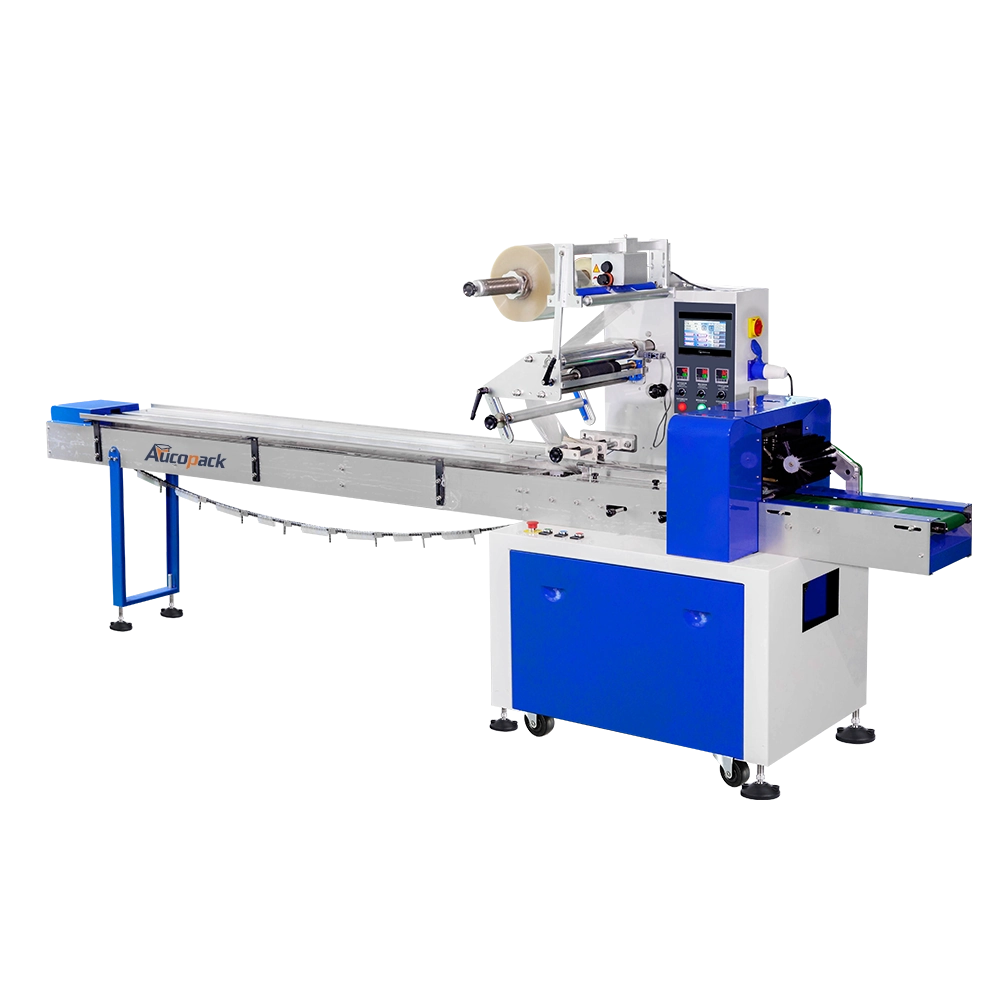

Automatic Energy Chocolate Bar Food Flow Wrapping Machine

Enhance production with high-speed, precision packaging solution, designed to efficiently wrap energy chocolate bars while ensuring top-quality results.

Online inquiry

Industries Application Features Parameters Pakcaging Styles Warranty and Services

Industries Application


The Automatic Energy Chocolate Bar Food Flow Wrapping Machine is designed for high-speed, precise packaging of energy bars, chocolate bars, and similar snack products. Equipped with advanced technology, the machine ensures that each bar is securely wrapped in airtight packaging, maintaining product freshness and protecting it from contamination. The flow wrap design provides a sleek, professional appearance, making it perfect for retail display. Its high-speed operation significantly enhances production efficiency, making it ideal for large-scale manufacturers. Capable of handling various bar sizes, the machine offers flexibility for different product lines. The reliable sealing technology guarantees tamper-evident, leak-proof packaging that preserves the bar’s quality. This machine is the perfect solution for energy and chocolate bar producers looking to optimize production speed, reduce manual labor, and maintain high packaging standards in a fast-paced production environment.

Features

Designed for Sticky and Coated Bars
Shape Retention, Speed & Shelf Appeal

Whether you're packing high-protein, low-sugar, or chocolate-filled bars, this wrapper keeps output fast and consistent. It handles chocolate, caramel, or nut bars with care, preserving product shape and finish for premium shelf display. Clean finishes and strong seals make every product shelf-ready.

High-Speed Flow Wrapping System

Specifically designed for energy bars, chocolate bars, and other similar products, this machine offers fast and precise packaging.

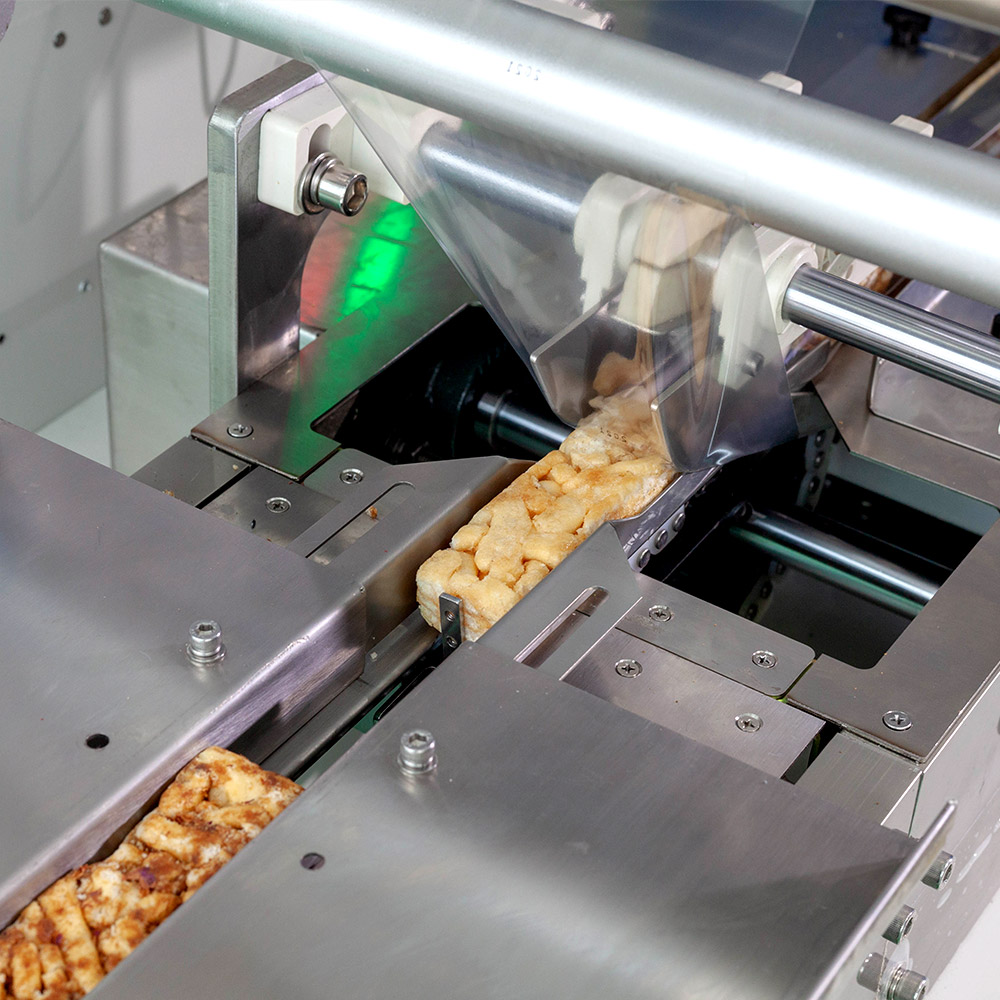

Auto Product Feeding & Alignment
Automatic product feeding and alignment

Features an automated conveyor system that ensures accurate feeding and alignment of energy bars for seamless flow into the wrapping station.

Temperature-Controlled Mechanism
Temperature-controlled sealing mechanism

Equipped with precise temperature control to create strong, airtight seals that protect the integrity of chocolate bars and energy bars.

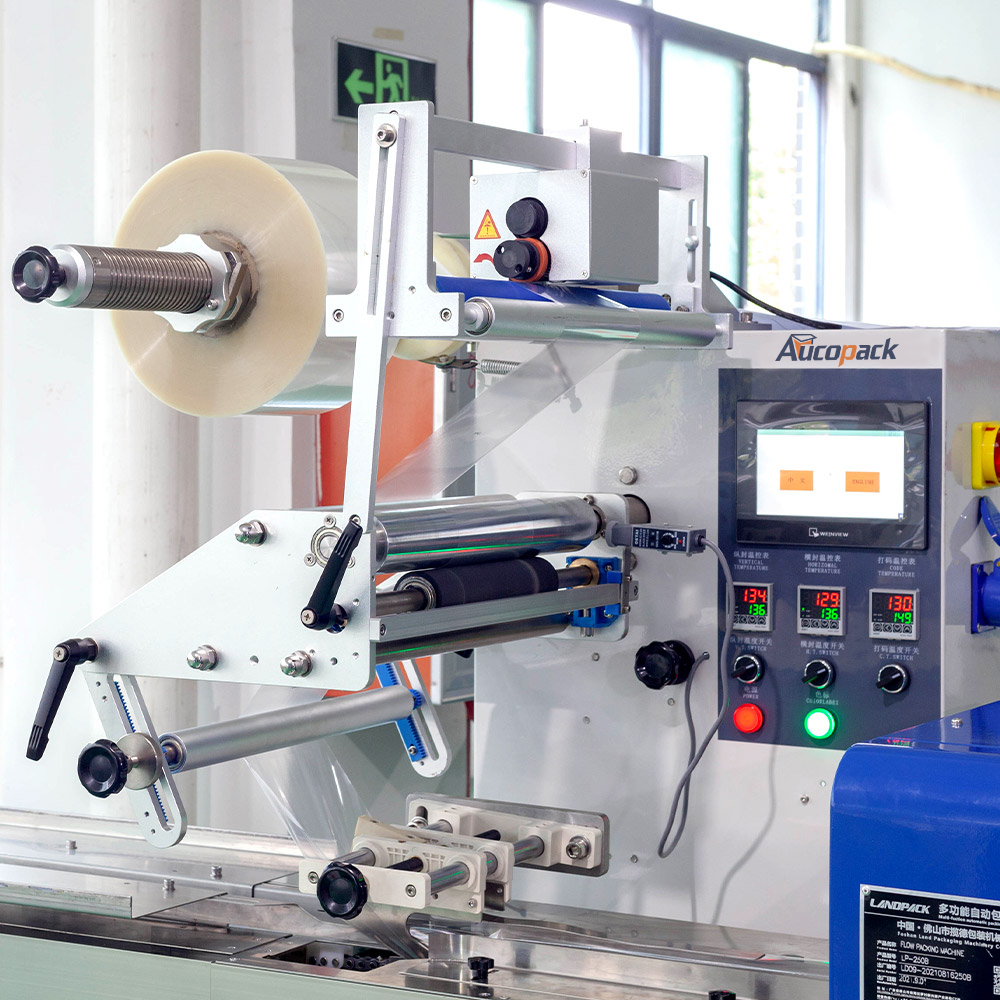

Precise Tension Control System
Film wrapping system with precise tension control

Utilizes a servo-driven film wrapping system that maintains consistent film tension, ensuring a tight, wrinkle-free package for a professional finish.

Flexible Packaging Size Compatibility

Supports a wide range of packaging formats and sizes, allowing for quick adjustments to accommodate different bar lengths and widths.

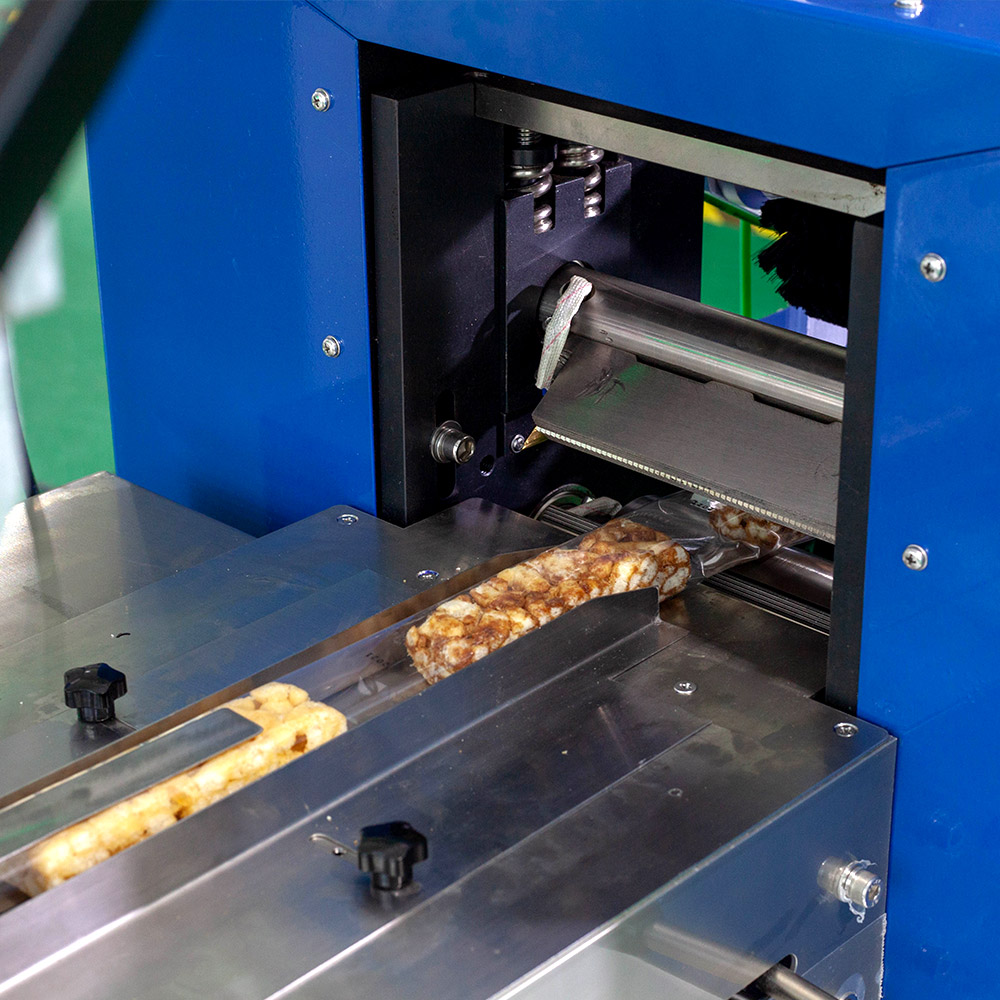

Integrated smooth Cutting & Sealing
Integrated cutting and sealing for smooth operation

Synchronizes the cutting and sealing process to ensure precise cuts and consistent sealing, ensuring an aesthetically appealing package.

Optional Gas Flushing Capability
Optional gas flushing (MAP) capability

Can be integrated with modified atmosphere packaging (MAP) to extend the shelf life of energy bars by displacing oxygen with nitrogen or other gases.

User-friendly Recipe HMI Management
User-friendly HMI with recipe management

The intuitive touchscreen control panel allows operators to easily adjust parameters such as sealing temperature, product size, and speed.

Parameters

Model Type	LP-350	LP-450	LP-600
Packaging Speed	30-80 bags/min	30-70 bags/min	30-60 bags/min
Bag Length	120-280mm	150-450mm	160-500 mm
Bag Width	50-160mm	50-180mm	100-280mm
Product Height	Max.40mm	Max.75mm	Max.110mm
Machine Dimension	(L)4030* (W)770* (H)1420mm	(L)4030* (W)820* (H)1420mm	(L)4030* (W)970* (H)1500mm
Machine Weight	580kg	650kg	680kg
Power	220V/50HZ
Film Material	OPP, PE, PVC, OPP/CPP, PT/PE, KOP/CPP metallized film, metallized f ilm

Pakcaging Styles

Flow Wrap (Pillow Pack): The primary packaging style used for energy and chocolate bars. The flow wrap, also known as a pillow pack, features a sealed top, bottom, and back seam, forming a pillow-like shape around the bar. This packaging style is cost-effective and ideal for preserving the freshness and quality of energy or chocolate bars while providing an appealing presentation for retail sales. It is also suitable for ensuring a secure and tamper-evident package.
Fin Seal Wrap: Another common style used in flow wrapping, featuring a continuous seal along the back of the package. This helps create a tight and neat package that keeps the energy or chocolate bar fresh. The fin seal provides a stable seal that helps protect the product during transportation.

Warranty and Services

12-month quality warranty.
24-month local fast replacement service for major electrical parts.
Comprehensive shipment services, including coordination of logistics, delivery tracking, and ensuring timely delivery to your location.
Technical support , Manual instructions, installation, and operation guides with delivery.
On-site setup, operation, and maintenance training as needed.

After the warranty period, we offer:

Lifelong maintenance services.
Spare parts support.
Operational training to ensure reliability.
Quick responses to any inquiries from our customer service team.
