Products

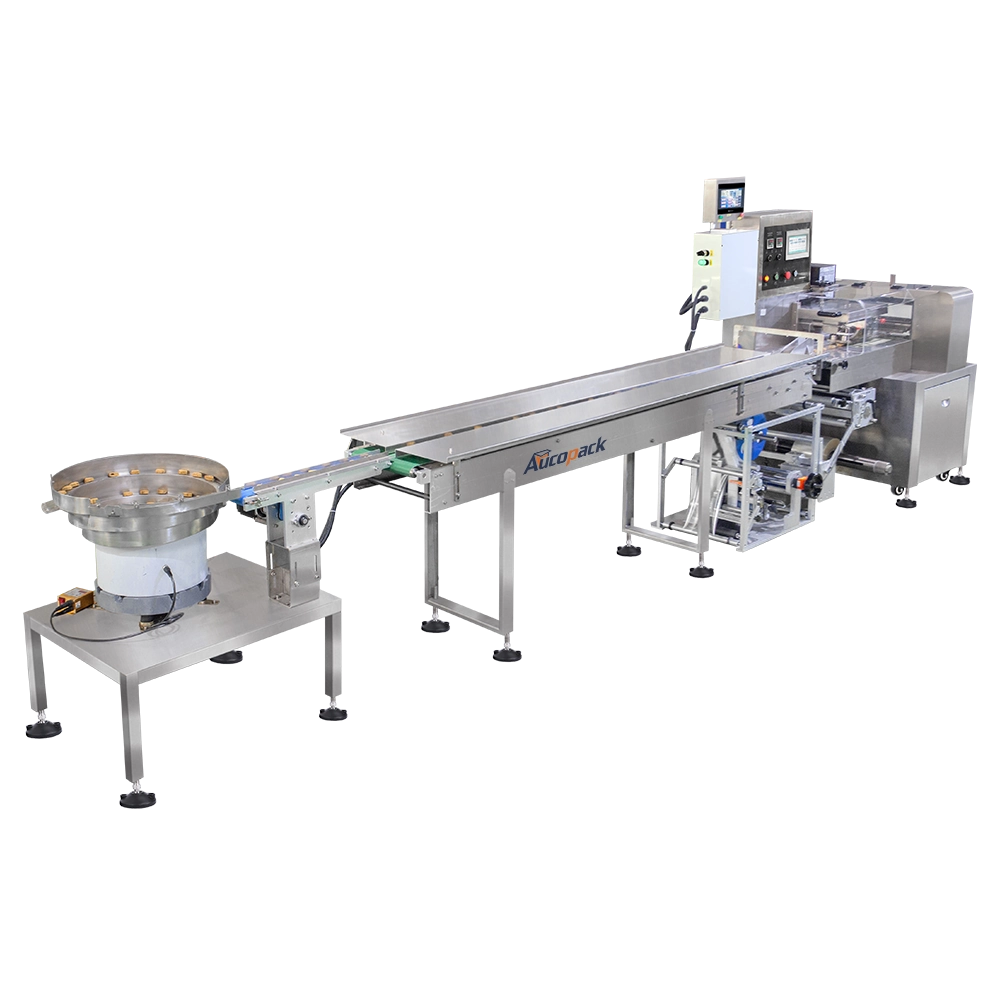

Automatic Dog Pet Food Flow Pouch Wrap Packaging Machine

Maximize packaging speed and quality with our machine, designed for precise, leak-proof seals and consistent portioning, keeping pet food fresh.
Industries Application Features Parameters Pakcaging Styles Warranty and Services
Industries Application


The Automatic Dog Pet Food Flow Pouch Wrap Packaging Machine is designed for the efficient packaging of pet food products, such as kibble, treats, and snacks, into flow-wrapped pouches. This machine offers a fully automated solution, from pouch forming and precise filling to sealing and cutting, ensuring high-speed and consistent packaging for pet food manufacturers. The flow wrap design provides strong, airtight packaging that keeps pet food fresh while offering excellent display potential for retail environments. Ideal for pet food manufacturers looking to streamline production, improve packaging speed, and ensure high-quality presentation, this machine provides a reliable and efficient solution for large-scale operations.

Features


Sealed Freshness Pets Deserve
Designed for Kibble & Treat Packaging

This automatic packaging machine delivers pillow-style flow wraps for dog treats, kibble, or soft chews. With high-speed performance and hygienic handling, it keeps every pouch clean, sealed, and shelf-ready.


High-Speed Pillow Packaging System
High-speed pillow packaging system
Specifically designed for dog and pet food, this pillow-style packaging machine offers fast and stable packaging of pet food into pillow pouches.

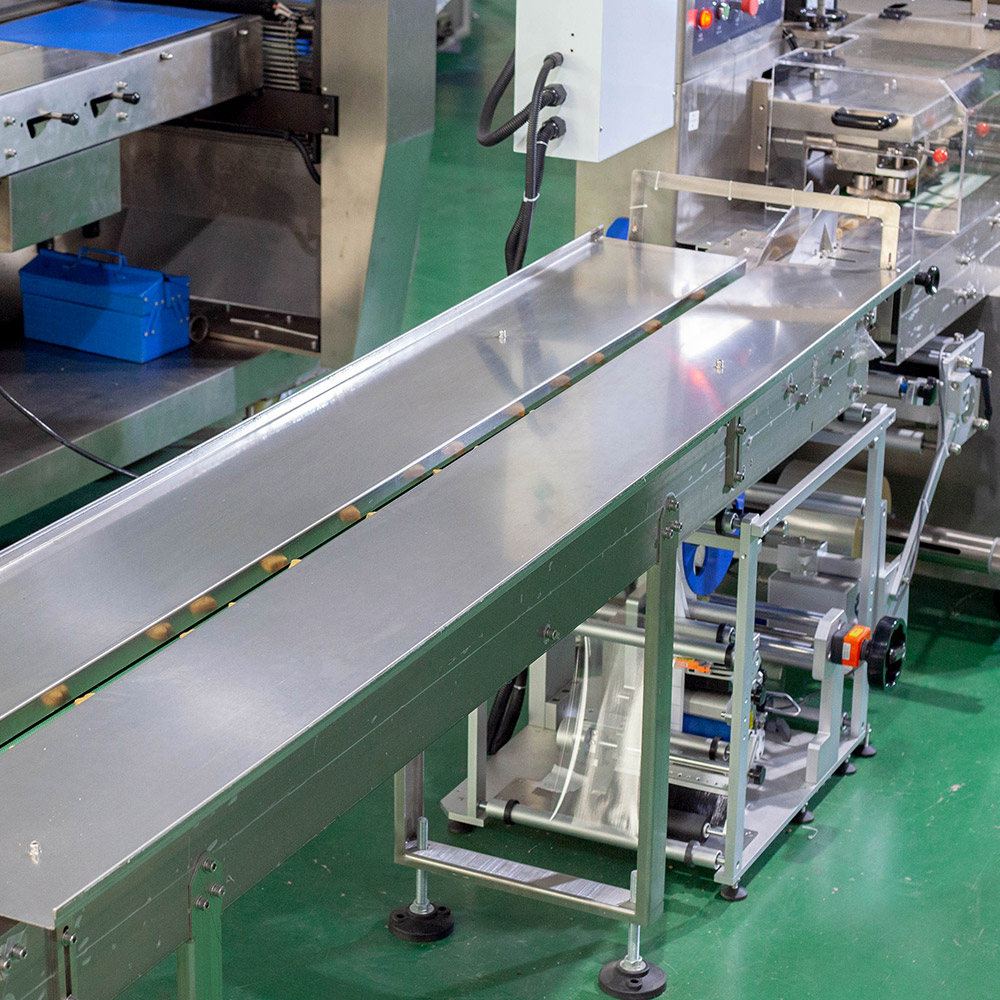

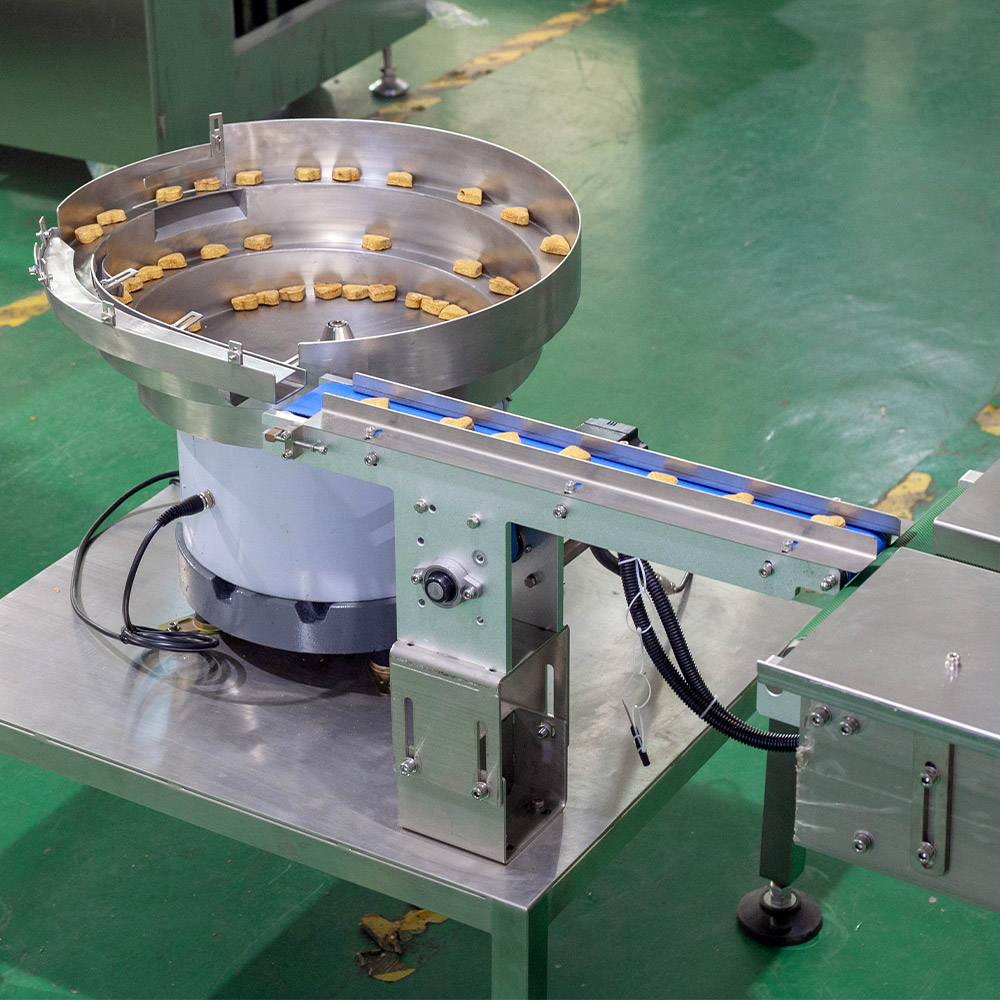

Auto Feed & Synchronized Conveying
Automated feeding and synchronized conveying
Equipped with an automated feeding system that precisely transports products to the packaging area, synchronized control of material feed & seal.

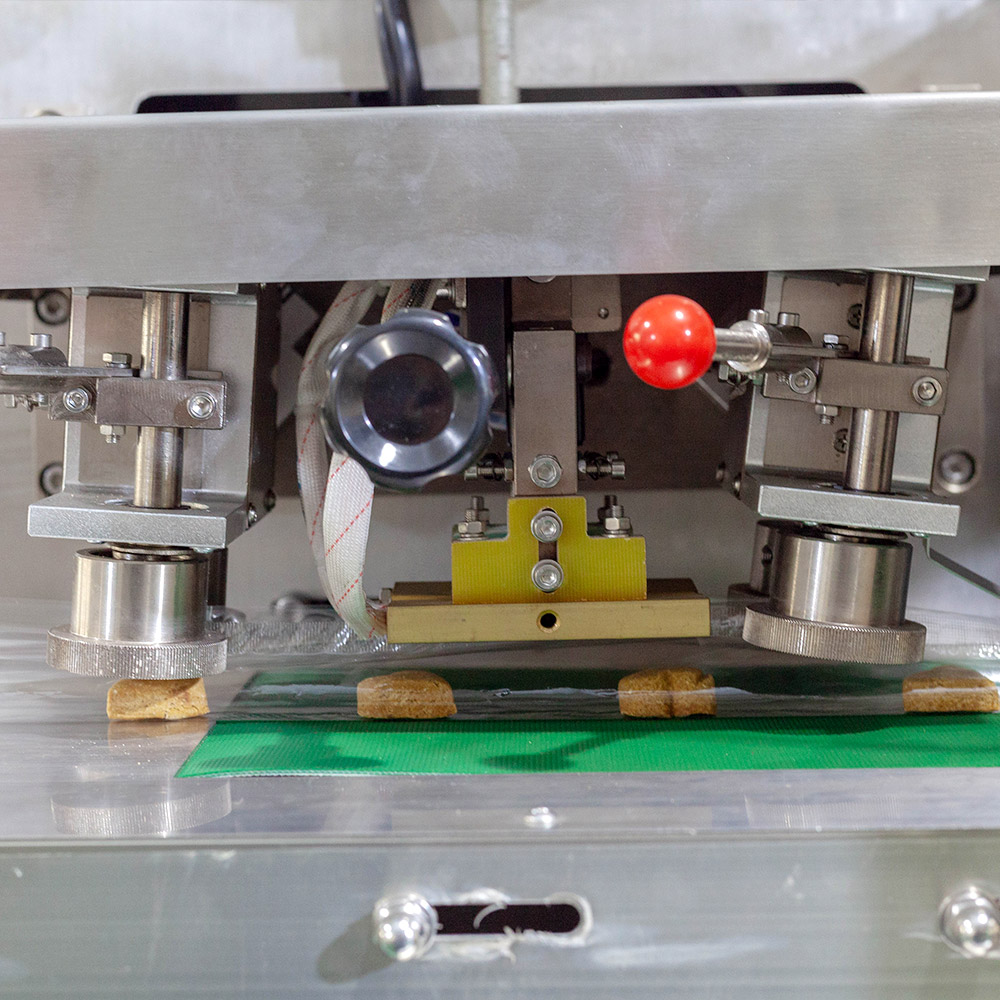

Temperature-Controlled Seal System
Temperature-controlled heat sealing system
Utilizes a reliable heat sealing mechanism with precise temperature control, delivering strong and airtight seals to protect pet food freshness.
Adjustable Pouch Size Compatibility
Adjustable pouch length and size compatibility
Allows flexible adjustment of pouch length to accommodate different sizes, providing versatility for various packaging formats of pet food packs.
Servo-Driven Wrap & Seal Mechanism
Servo-driven film wrapping and sealing mechanism
Ensures precise and efficient film wrapping around the product, with servo-controlled operation for consistent film tension and accurate sealing.
Integrated Product Detection System
Integrated product detection system
Automatically detects product positioning and verifies the correct filling before sealing, ensuring proper packaging without misaligned products.
Compact and Durable Design
Compact and durable design
The machine's space-saving design and durable construction provide long-lasting performance with minimal maintenance requirements.
Optional Gas Flushing System
Optional gas flushing system
For packaging products that require extended shelf life, it can be equipped with a gas flushing option to displace oxygen and preserve freshness.


Parameters
Model TypeLP-350LP-450
LP-600
Packaging Speed

30-80

bags/min

30-70

bags/min

30-60

bags/min

Bag Length120-280mm150-450mm160-500 mm
Bag Width50-160mm50-180mm100-280mm
Product HeightMax.40mmMax.75mmMax.110mm
Machine Dimension(L)4030* (W)770* (H)1420mm
(L)4030* (W)820* (H)1420mm(L)4030* (W)970* (H)1500mm
Machine Weight580kg650kg680kg
Power220V/50HZ
Film MaterialOPP, PE, PVC, OPP/CPP, PT/PE, KOP/CPP metallized film, metallized f ilm
Pakcaging Styles
  • Flow Wrap (Pillow Pack): The most common style produced by a wrap packaging machine, where a product is wrapped in a continuous film that is sealed at the top, bottom, and back. This style is used for individual items like snacks, candies, pet food, or personal care products, providing efficient and protective packaging.
  • Fin Seal Wrap: This type of wrapping involves sealing the film on the top and bottom edges, creating a "fin" along the back of the product. Fin seal wrapping is commonly used for products like bakery items, energy bars, or other retail products requiring secure wrapping.
Warranty and Services
  • 12-month quality warranty.
  • 24-month local fast replacement service for major electrical parts.
  • Comprehensive shipment services, including coordination of logistics, delivery tracking, and ensuring timely delivery to your location.
  • Technical support , Manual instructions, installation, and operation guides with delivery.
  • On-site setup, operation, and maintenance training as needed.

After the warranty period, we offer:

  • Lifelong maintenance services.
  • Spare parts support.
  • Operational training to ensure reliability.
  • Quick responses to any inquiries from our customer service team.
