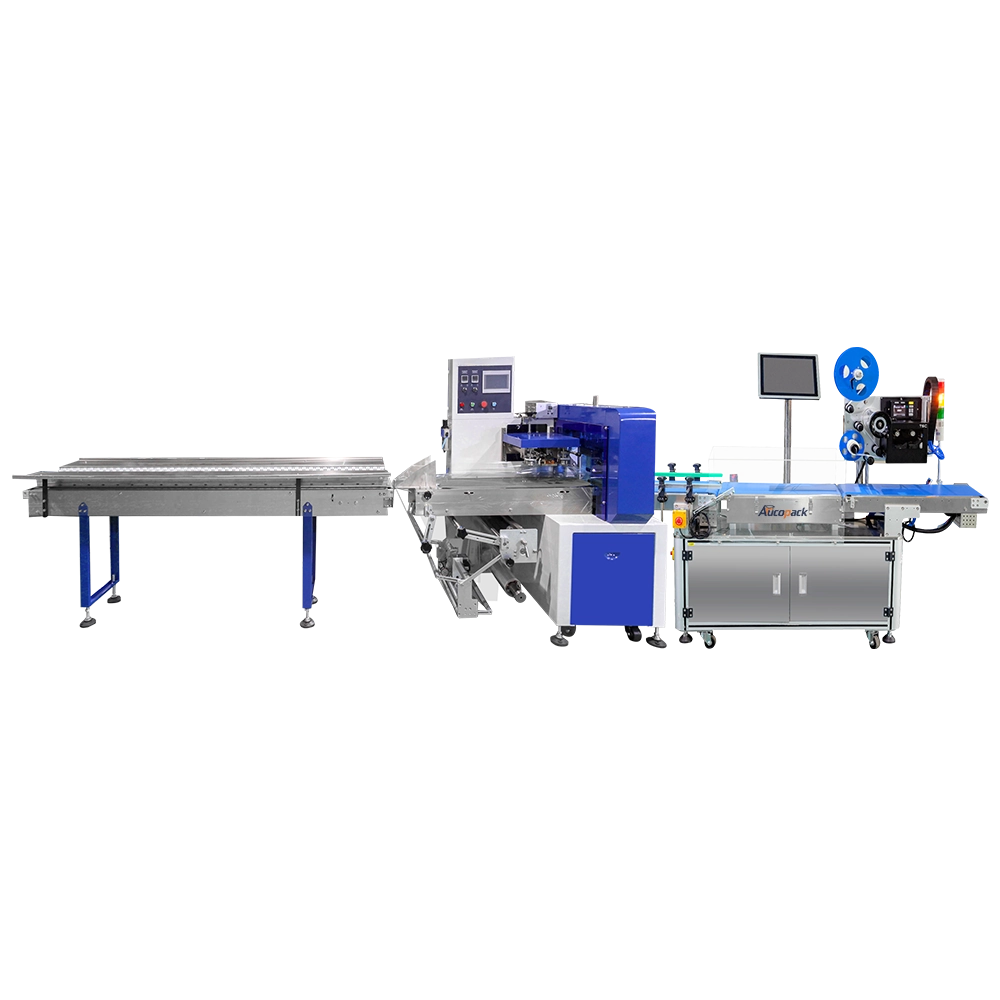

Auto Horizontal Flow Wrap Packing Machine with Check weigher

Revolutionize packing line with the ultimate in automation. Packing Machine with integrated check weigher delivers unmatched accuracy, and quality assurance.

Online inquiry

Industries Application Features Parameters Pakcaging Styles Warranty and Services

Industries Application

Fruit & Vegetable Packaging Machine.jpg

The Auto Horizontal Flow Wrap Packing Machine with Check Weigher is a high-performance packaging solution designed to package products such as baked goods, snacks, and confectioneries while ensuring precise weight control. The integrated check weigher adds an essential layer of quality control, automatically weighing each package to ensure it meets specified weight standards. If any package falls outside the acceptable range, it is automatically rejected, ensuring that only properly weighed and wrapped products reach the market.The machine can handle a variety of product sizes and shapes, making it adaptable for multiple industries.

Features

Smart Wrapping with Built-In Accuracy
Designed for Zero-Tolerance Lines

Ensure every pack is on-spec with this flow wrap system and integrated check weigher. It supports fast changeovers, weight tracking, and automatic rejection for under/overfilled products.

High-Speed Wrap System

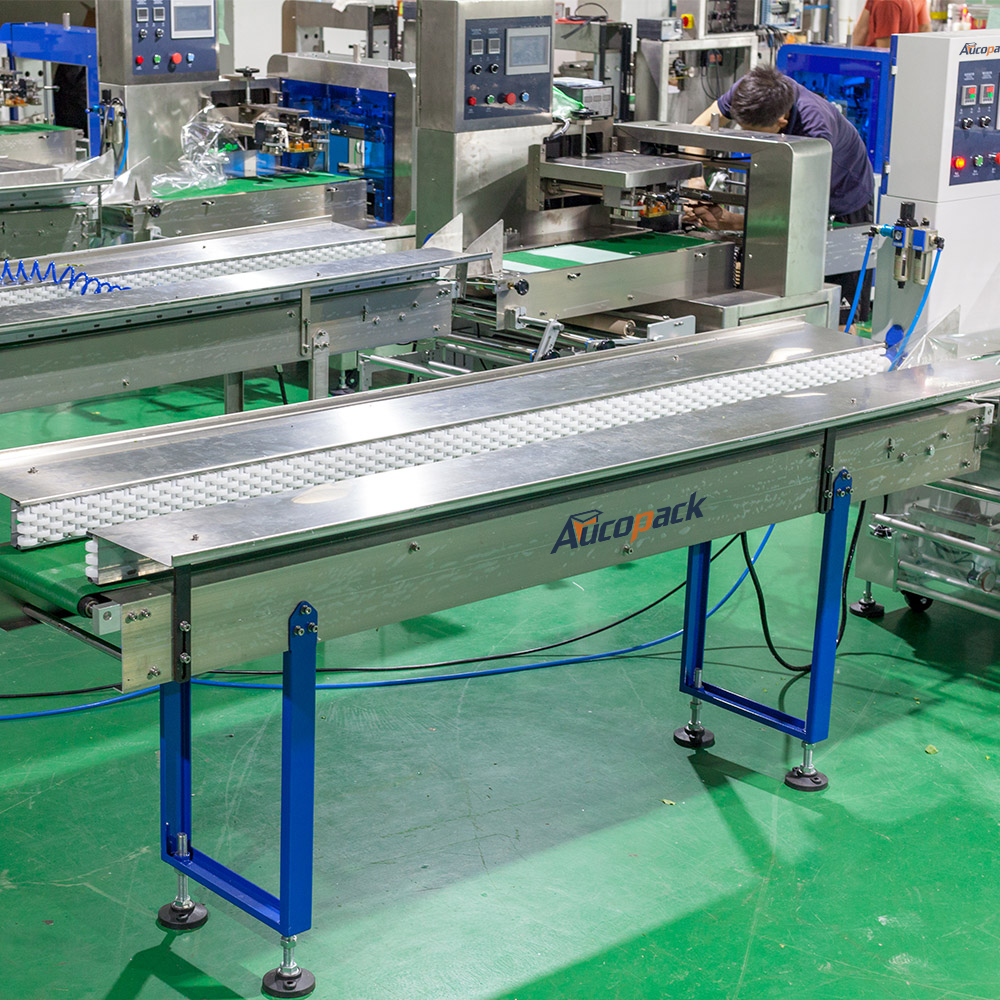

High-speed horizontal flow wrap packaging system

Designed for fast and efficient packaging of products such as snacks, confectionery, and bakery, this machine ensures seamless flow wrapping.

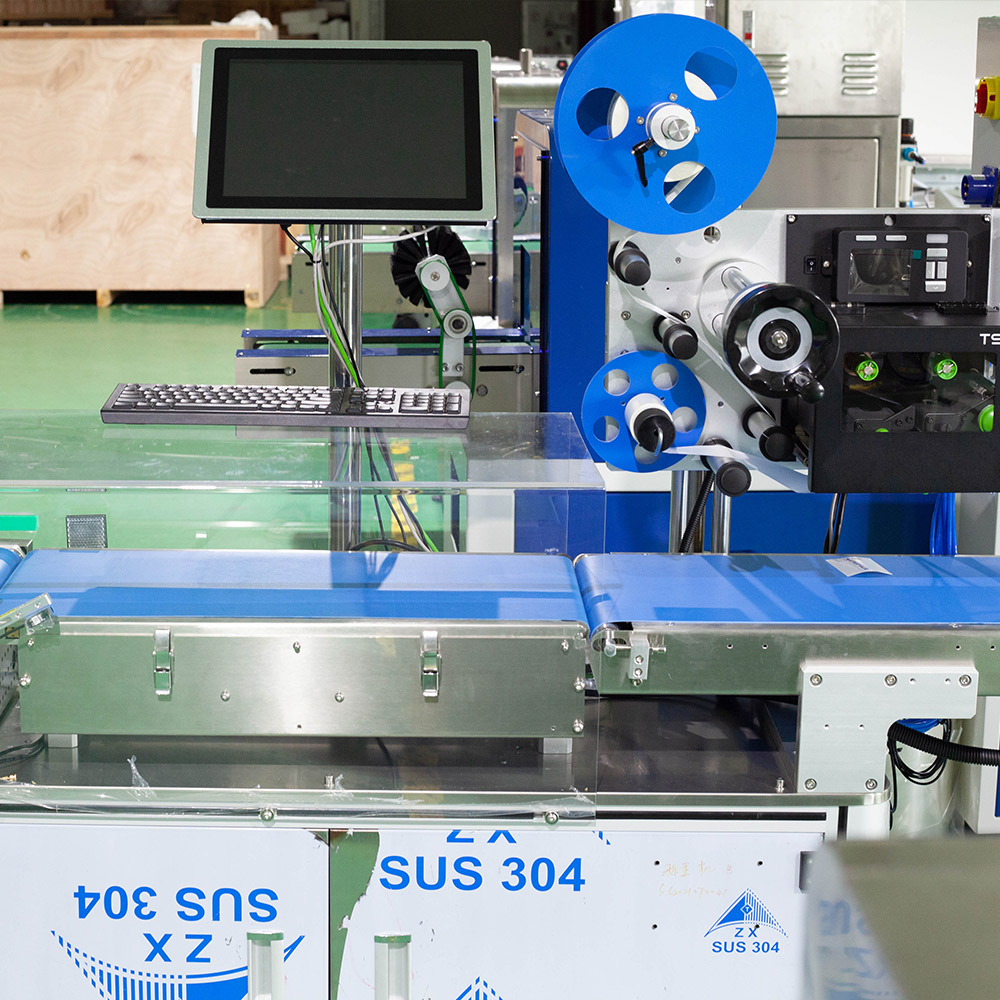

Integrated Check Weigher System

Automatically weighs each product before or after packaging to ensure accurate weight compliance, rejecting underweight or overweight packages.

Servo-Driven Film Wrapping System

Utilizes a servo-controlled mechanism for precise film tension and consistent wrapping, ensuring neat, wrinkle-free packages while minimizing waste.

Temperature-Controlled Heat Sealing

Features advanced sealing jaws with adjustable temperature settings for strong, airtight seals, ensuring product freshness and preventing contamination.

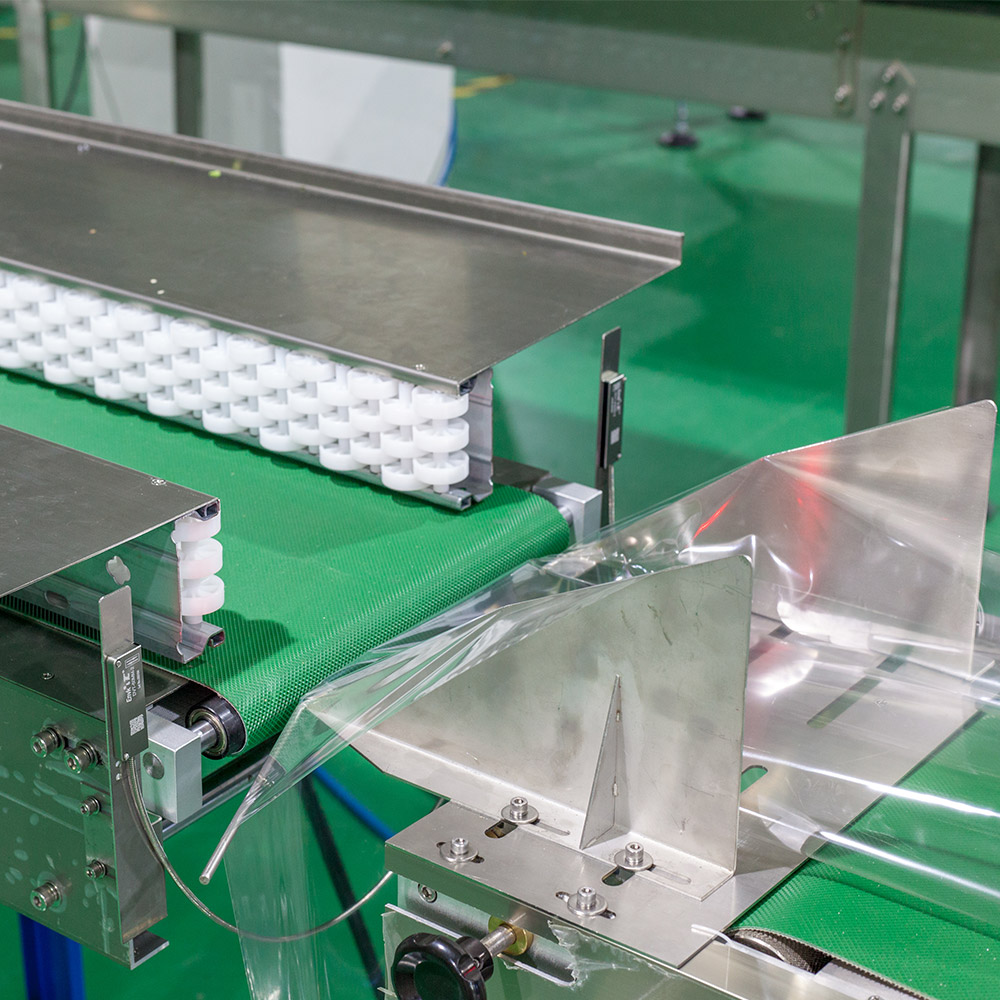

Auto Feeding & Alignment System
Cling film cutting and sealing system

Equipped with an automatic conveyor that feeds products into the machine and aligns them for accurate wrapping, increasing packaging speed.

Flexible Packaging Size Compatibility
Compact and space-saving design

Equipped with an automatic conveyor that feeds products into the machine and aligns them for accurate wrapping, increasing packaging speed.

User-friendly Recipe HMI Management
Efficient and cost-effective solution

Provides an intuitive touchscreen interface for real-time control of packaging parameters, such as speed, sealing temperature, and product size.

Compact and Efficient Design
Clear film wrapping for product visibility

The machine’s space-saving footprint allows for easy integration into existing production lines while maintaining high-speed output.

Parameters

Model Type	LP-350	LP-450	LP-600
Packaging Speed	30-80 bags/min	30-70 bags/min	30-60 bags/min
Bag Length	120-280mm	150-450mm	160-500 mm
Bag Width	50-160mm	50-180mm	100-280mm
Product Height	Max.40mm	Max.75mm	Max.110mm
Machine Dimension	(L)4030* (W)770* (H)1420mm	(L)4030* (W)820* (H)1420mm	(L)4030* (W)970* (H)1500mm
Machine Weight	580kg	650kg	680kg
Power	220V/50HZ
Film Material	OPP, PE, PVC, OPP/CPP, PT/PE, KOP/CPP metallized film, metallized f ilm

Pakcaging Styles

Flow Wrap (Pillow Pack): The primary packaging style produced by this machine. The flow wrap (also known as pillow pack) features seals at the top, bottom, and a back seam, creating a pillow-like shape around the product. It is used for a wide range of items, such as snacks, bakery goods, chocolate bars, and medical supplies. The pillow pack style offers a balance of efficiency, protection, and appealing presentation for retail environments.
Fin Seal Wrap: A variation of flow wrapping that includes a continuous longitudinal seal along the back of the package, known as a fin seal. This packaging style is ideal for products that require a secure and visually appealing package. The fin seal design helps maintain product freshness and protection, and is suitable for items like cookies, energy bars, and personal care products.

Warranty and Services

12-month quality warranty.
24-month local fast replacement service for major electrical parts.
Comprehensive shipment services, including coordination of logistics, delivery tracking, and ensuring timely delivery to your location.
Technical support , Manual instructions, installation, and operation guides with delivery.
On-site setup, operation, and maintenance training as needed.

After the warranty period, we offer:

Lifelong maintenance services.
Spare parts support.
Operational training to ensure reliability.
Quick responses to any inquiries from our customer service team.
