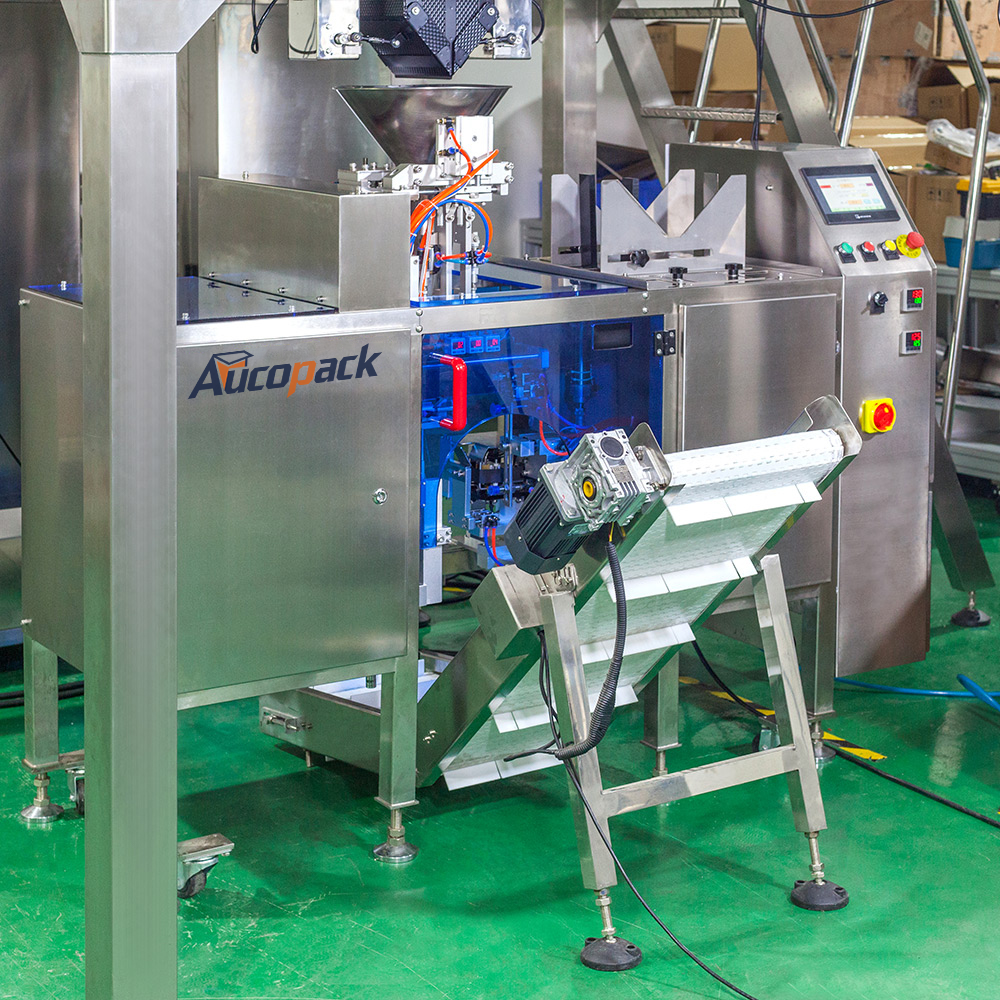

Teflon Multi Head Weigher Detergent Doypack Packing Machine

Maximize packaging accuracy with teflon-coated multi head weigher, ensures anti-static properties, preventing powder buildup and enhancing durability.
Industries Application Features Parameters Pakcaging Styles Warranty and Services
Industries Application


The Teflon Multi Head Weigher Detergent Doypack Packing Machine is specifically engineered for the precise and efficient packaging of detergent products. Equipped with a multi-head weigher system, it ensures accurate measurement and filling, making it ideal for handling granular or powdered detergents. The Teflon-coated components provide enhanced resistance to sticking, ensuring smooth product flow and reducing cleaning downtime. This machine is designed to work with pre-made Doypack pouches, offering a secure, aesthetically pleasing package. Its fully automated process—from pouch opening, filling, to sealing—improves production efficiency, reduces labor costs, and ensures consistent, high-quality packaging. The Teflon coating and advanced weighing system make it an optimal solution for large-scale detergent manufacturers seeking precision and reliability in their packaging operations.

Features


Teflon-Coated Performance
No Stick, No Waste

Powder detergents and granular chemicals can clump or stick to surfaces, causing downtime and waste. Our multi head weigher features Teflon-coated contact parts for corrosion resistance, chemical durability, and easy cleaning, ensuring smooth flow and residue-free filling. Every pouch is clean, consistent, and contamination-free—batch after batch. From bag pickup to zipper sealing, every step is servo-synchronized for clean, reliable presentation—ideal for retail and export packaging.

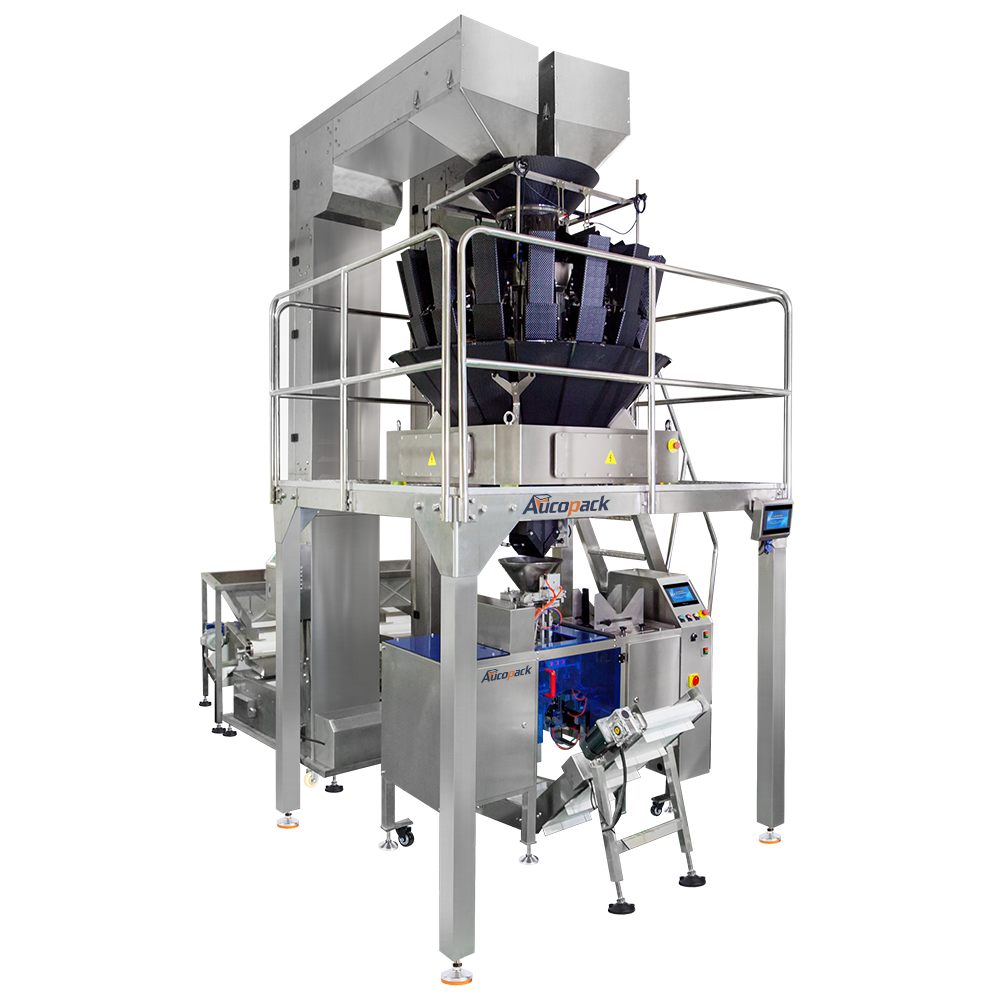

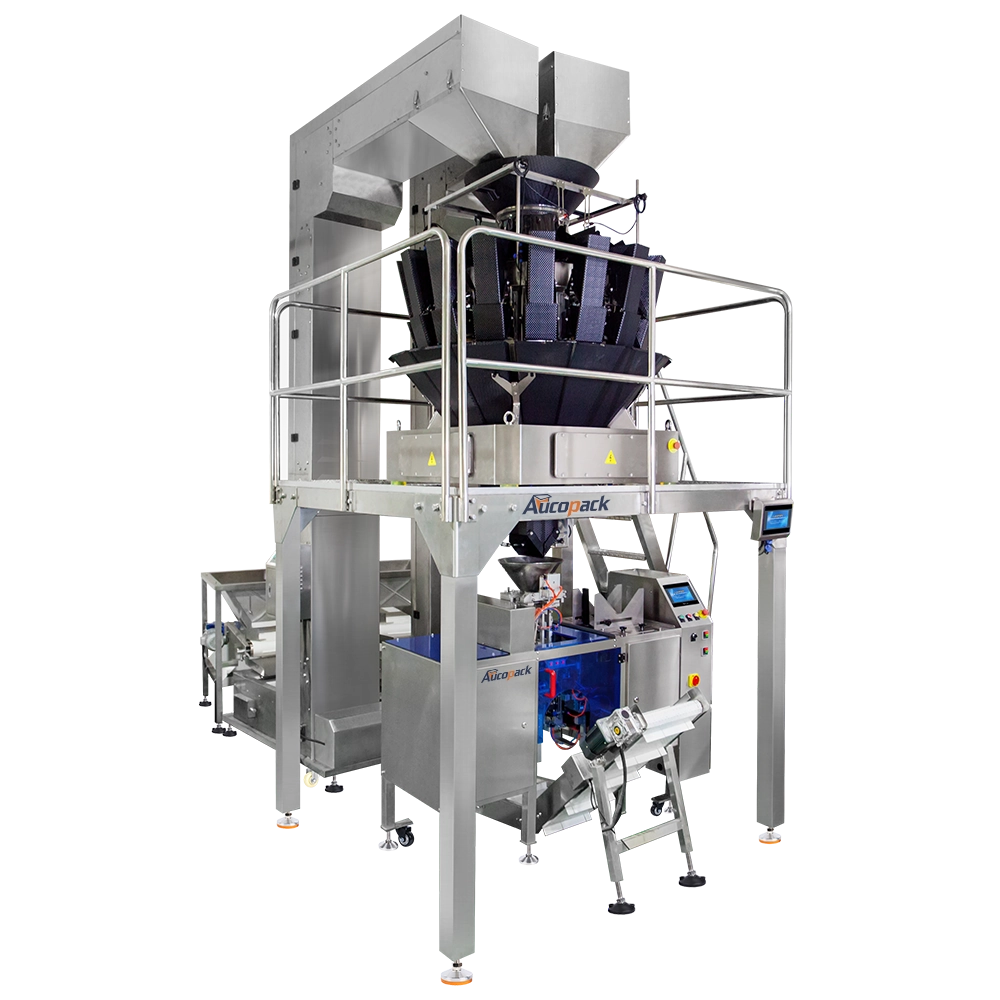

Teflon-Coated Multi-Head Weigher
Teflon-coated multi-head weigher system
Specially designed for detergent powders and granules, the Teflon coating prevents product adhesion, preventing buildup of detergent residue.

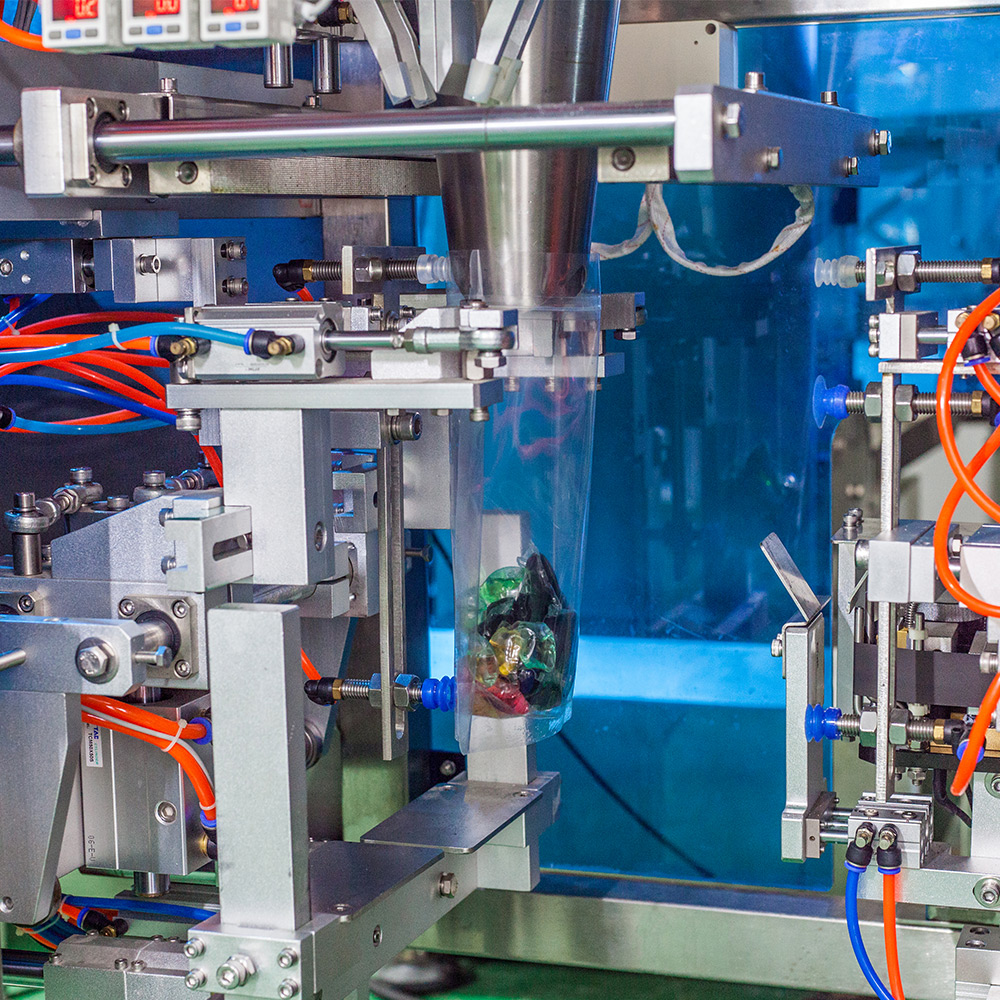

Pouch Handling Technology
Advanced doypack pouch handling technology
Capable of handling a wide range of doypack formats, including stand-up and gusseted pouches, ensuring precise alignment and sealing of pouches.
Anti-corrosive material handling
Anti-corrosive material handling
Components that come into contact with detergent are treated with anti-corrosive coatings, preventing wear and prolonging the machine’s life.
Vibration Feeding System
Multi-head weigher with vibration feeding system
Provides accurate weighing of detergent, using a vibratory feeding system to ensure even and consistent distribution across each pouch.
Dust Management Sealing System
Efficient sealing system with dust management
Equipped with a high-temperature sealing mechanism that ensures airtight and leak-proof seals for detergent pouches, with integrated dust extraction.
Servo-Driven Filling & Sealing
Servo-driven filling and sealing process
Ensures high-speed and precise operation, synchronizing the filling and sealing processes for detergent packaging with minimal downtime.
Detergent Settings Touchscreen HMI
Touchscreen HMI with detergent-specific settings
Offers pre-programmed options tailored to detergent packaging, allowing for real-time adjustments to accommodate different pouch sizes, product types.
Teflon-Coated Sanitary Design
Stainless steel sanitary design with Teflon-coated parts
Engineered for easy cleaning, the machine Teflon-coated surfaces prevent detergent buildup, while the overall design ensures compliance.


Parameters

Type

Compact Doypack Filling Machine
LDB-300LDB-430LDB-600
Bag Material

Multi-layer Composite Premade  Bag (e.g.:PET/PE)

Premade Bag Type3-sides sealing bag,stand-up bag
Upgraded Bag TypeGusset Bag, Zipper Bag, Box bag

(Need additional purchase of functional device)

Bag Size80mm≤ W ≤300mm80mm≤ W ≤300mm250mm≤ W ≤500mm
100mm≤ L ≤300mm100mm≤ L ≤430mm380mm≤ L ≤600mm
Speed0~15bags/min0~10bags/min
Sealing TypeStraight grain, pitch is 1mm (Optional reticulate)
Sealing Width10mm(5--20mm) can be customized
Votage220V,Single-phase,50/60HZ,1.2KW
Air Pressure0.65Mpa
Air Consumption0.3m³/min(Standard machine,no additional function)
Body Dimension1770*600*1230mm1677*1140*1450mm
Machine Weight300kg350kg450kg


Pakcaging Styles
  • Stand-up Pouch (Doypack): This is the most commonly used style for detergent packaging, especially for smaller quantities of powdered, granular, or liquid detergents. The bottom gusset allows the pouch to stand upright, making it suitable for retail shelves. The material is often durable, puncture-resistant, and includes barrier properties to protect against moisture.
  • Flat Bottom Pouch (Box Pouch): This pouch style is increasingly popular for larger quantities of detergents. It features a flat base and side gussets, allowing for greater volume and a box-like shape that provides more stability. This style is widely used for both powdered and liquid detergents.
  • Zipper Stand-up Pouch: Many detergent packs come with resealable zippers, which help to prevent spills and maintain product freshness. This style is convenient for consumers, especially for powdered detergents, allowing them to reseal the pouch after each use.
  • Spout Pouch: For liquid detergents, spout pouches are frequently used. They have an integrated spout at the top, which makes pouring the detergent easy while ensuring a leak-proof seal. This style is popular for fabric softeners, dishwashing liquids, and other liquid cleaning products.
  • Three-Side Seal Pouch with Zipper: Although less common, some detergents are packaged in three-side seal pouches that also feature a zipper for resealability. These are typically used for smaller portions or sample packs.
  • Quad Seal Pouch: Quad seal pouches provide extra durability with seals on all four corners, which makes them ideal for bulk packaging of powdered or granular detergents. The design ensures that the pouch maintains its shape, preventing collapse, and provides a stable presentation.
Warranty and Services
  • 12-month quality warranty.
  • 24-month local fast replacement service for major electrical parts.
  • Comprehensive shipment services, including coordination of logistics, delivery tracking, and ensuring timely delivery to your location.
  • Technical support , Manual instructions, installation, and operation guides with delivery.
  • On-site setup, operation, and maintenance training as needed.

After the warranty period, we offer:

  • Lifelong maintenance services.
  • Spare parts support.
  • Operational training to ensure reliability.
  • Quick responses to any inquiries from our customer service team.
