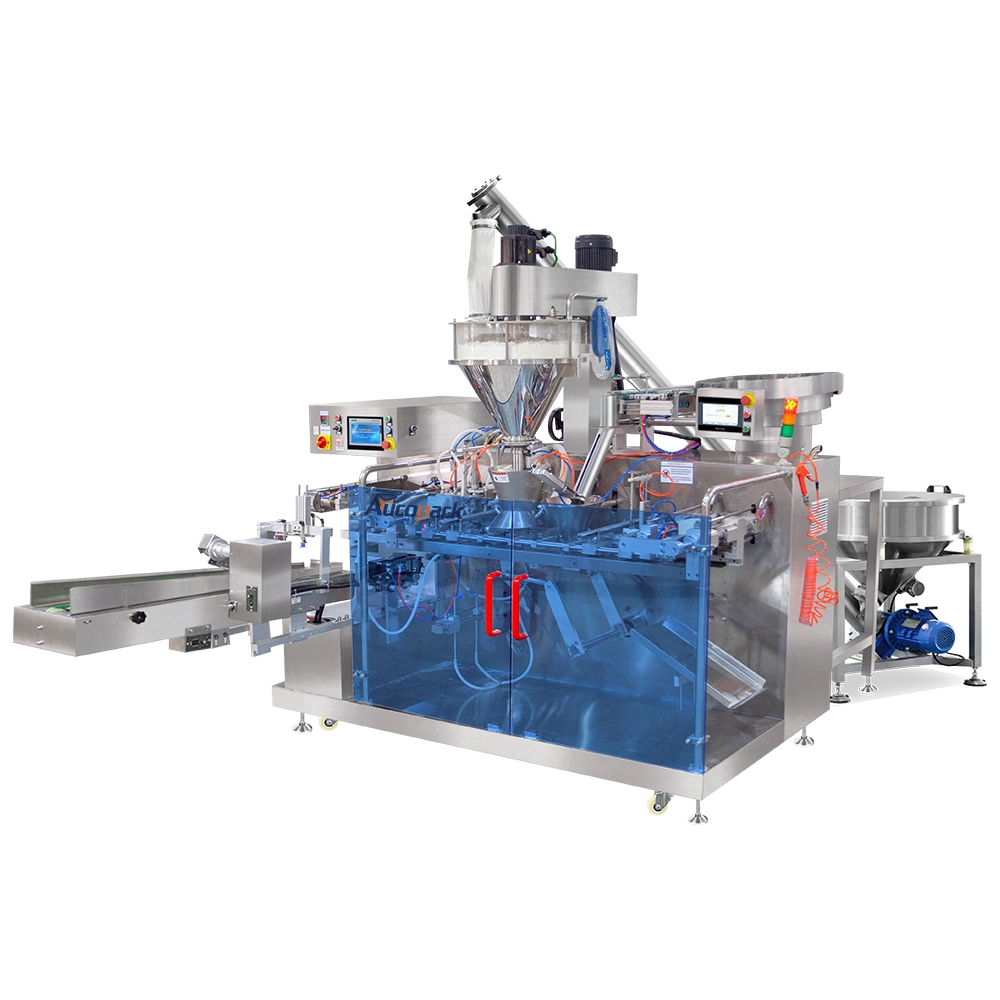

Milk Coffee Powder Zipper Doypack Machine with Spoon Dispenser

Smart powder packaging with zipper doypack and spoon filling, integrating servo dosing, digital temperature control, and modular hygiene architecture.

Online inquiry

Industries Application Features Parameters Pakcaging Styles Warranty and Services

Industries Application

coffee powder packaging machine.jpg

The Milk Coffee Powder Zipper Doypack Machine with Spoon Dispenser is a highly specialized packaging solution tailored for products like milk powder and coffee powder that require precise portioning and additional convenience features. This machine not only automates the process of filling zipper Doypack pouches but also integrates a spoon dispenser to enhance consumer convenience. Its advanced auger filling system ensures accurate dosing of powder products into each pouch, while the zipper sealing system provides an airtight, resealable package that preserves freshness. The built-in spoon dispenser adds value to the product, making it easy for end-users to measure servings. This feature is particularly suited for premium food products where consumer ease-of-use is a priority.

Features

All-in-One Retail Packaging
Spoon Dispensing Integration

This machine includes a dedicated spoon dispenser, automatically inserting a measured scoop into each pouch before sealing. With a servo-driven auger filler and optional dust collection system, it delivers smooth, accurate dosing without contamination. This machine combines zipper opening, powder filling, spoon placement, and sealing—all in one compact footprint. Ideal for coffee, creamer, protein powders, and any product needing portion control.

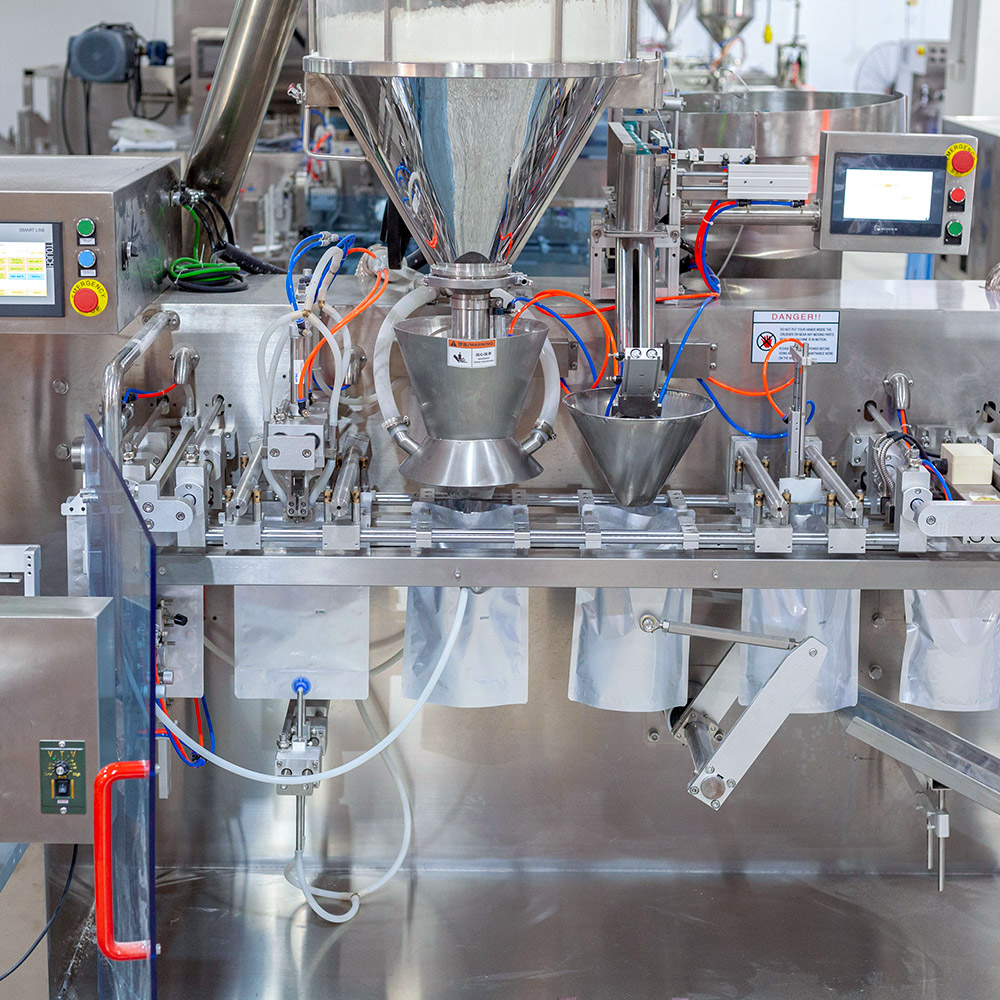

High-Precision Auger Filling System

Designed for accurate filling of fine powders like milk and coffee, ensuring consistent product dosage into zipper doypacks with minimal waste.

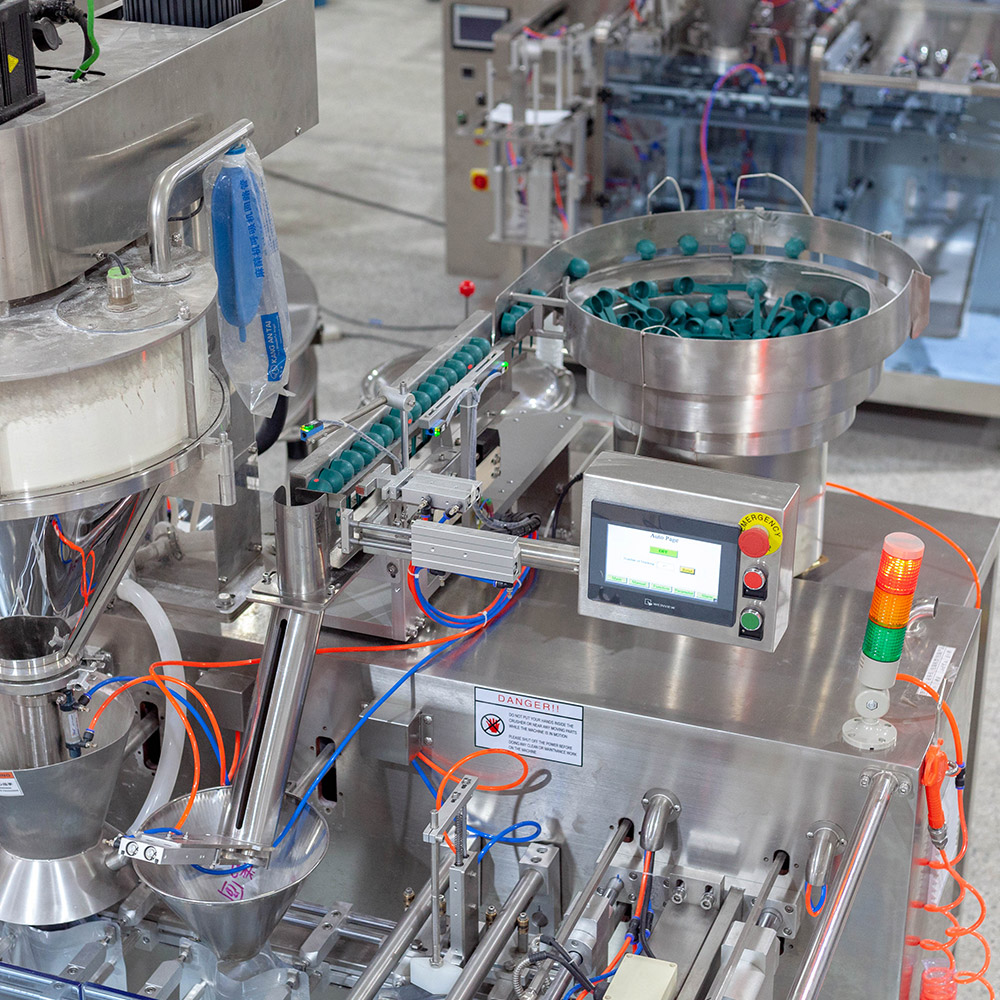

Integrated Spoon Dispenser

Features an automatic spoon dispensing system that accurately places a spoon into each pouch before filling, ensuring seamless integration.

Advanced Zipper Pouch Handle
Advanced zipper pouch handling technology

Ensures efficient feeding, opening, sealing of zipper doypacks, providing flexibility to handle various sizes and formats such as gusseted pouches.

Servo-Driven Sealing Synchronization
Servo-driven filling and sealing synchronization

Maintains precise coordination between powder filling and spoon dispensing, optimizing both speed and accuracy for high-volume production lines.

Dust Management System
Dust management system for fine powders

Equipped with a dust extraction unit to contain powder during the filling process, maintaining a clean operating environment and improving quality.

Airtight Zipper Sealing Mechanism

Utilizes temperature-controlled sealing jaws to ensure strong, reliable, and resealable zipper closures that protect the freshness of products.

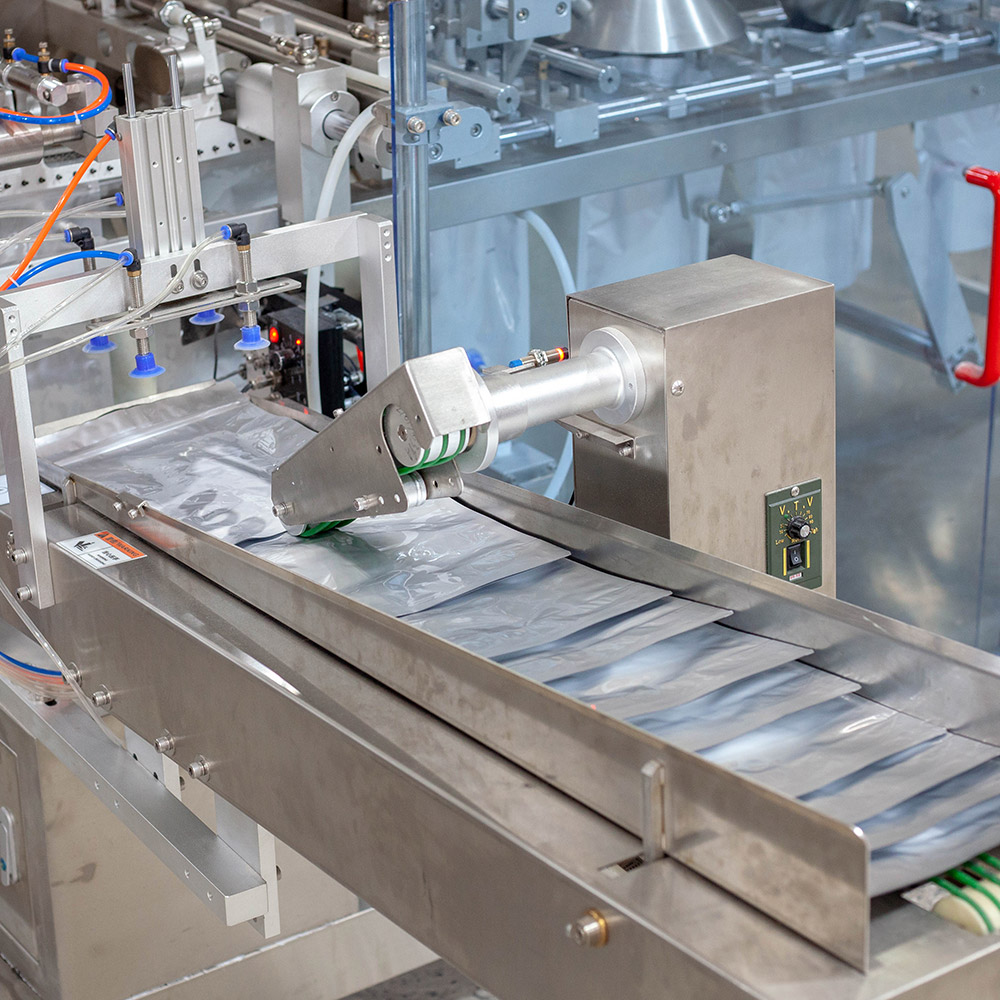

Auto Opening and Feeding System
Automated pouch opening and feeding system

Uses suction cups and mechanical arms to open premade zipper pouches with high precision, ensuring smooth operations and minimizing intervention.

HMI with Recipe Control
User-friendly HMI with recipe control

Allows operators to easily adjust settings for different product types, including spoon placement and powder fill levels, offering quick changeovers.

Parameters

Type	Compact Doypack Filling Machine
	LDB-300	LDB-430	LDB-600
Bag Material	Multi-layer Composite Premade Bag (e.g.:PET/PE)
Premade Bag Type	3-sides sealing bag,stand-up bag
Upgraded Bag Type	Gusset Bag, Zipper Bag, Box bag (Need additional purchase of functional device)
Bag Size	80mm≤ W ≤300mm	80mm≤ W ≤300mm	250mm≤ W ≤500mm
	100mm≤ L ≤300mm	100mm≤ L ≤430mm	380mm≤ L ≤600mm
Speed	0~15bags/min		0~10bags/min
Sealing Type	Straight grain, pitch is 1mm (Optional reticulate)
Sealing Width	10mm（5--20mm) can be customized
Votage	220V,Single-phase,50/60HZ,1.2KW
Air Pressure	0.65Mpa
Air Consumption	0.3m³/min（Standard machine,no additional function)
Body Dimension	17706001230mm		167711401450mm
Machine Weight	300kg	350kg	450kg

Pakcaging Styles

Zipper Stand-up Pouch (Doypack): This is the primary pouch style used for powdered products like milk powder and coffee powder. It features a bottom gusset that allows the pouch to stand upright, making it ideal for retail display. The zipper closure provides resealability, ensuring product freshness after opening. The zipper pouch also allows easy incorporation of a spoon, which is conveniently placed inside the pouch for consumer use.
Flat Bottom Pouch (Box Pouch) with Zipper: This pouch style offers increased capacity and stability due to its flat bottom and box-like structure, which makes it suitable for larger quantities of milk or coffee powder. The zipper provides resealability, while the box-like shape allows more room for including a spoon, ensuring convenient use for consumers.
Shaped Pouch with Zipper: A custom-shaped pouch can be used to make the packaging more visually appealing, while still having a zipper closure for resealability. This style is particularly suitable for specialty coffee powders or premium milk powders and offers a unique consumer experience, with room for a spoon dispenser.

Warranty and Services

12-month quality warranty.
24-month local fast replacement service for major electrical parts.
Comprehensive shipment services, including coordination of logistics, delivery tracking, and ensuring timely delivery to your location.
Technical support , Manual instructions, installation, and operation guides with delivery.
On-site setup, operation, and maintenance training as needed.

After the warranty period, we offer:

Lifelong maintenance services.
Spare parts support.
Operational training to ensure reliability.
Quick responses to any inquiries from our customer service team.
