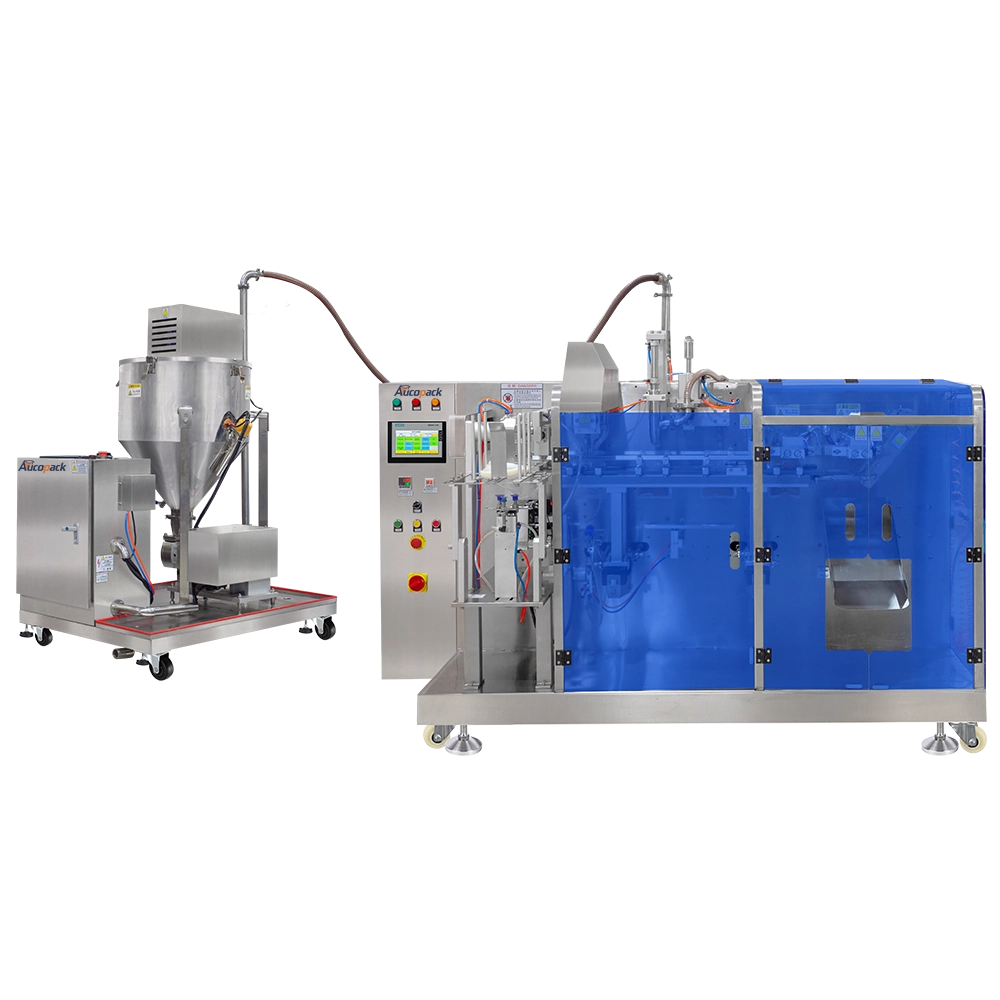

Liquid Premade Pouch Filling Machine with Heating Stirrer

Advanced liquid premade pouch filler with integrated heating stirrer ensures uniform viscosity, precise dosing, and seamless filling for packaging.

Online inquiry

Industries Application Features Parameters Pakcaging Styles Warranty and Services

Industries Application

sauce packgaing machine.jpg

The liquid premade pouch filling machine with heating stirrer is designed for industries such as food, cosmetics, and pharmaceuticals, where liquid products need to be precisely packaged. This machine is ideal for filling liquid or semi-liquid products, such as sauces, creams, oils, and gels, into pre-made pouches. The integrated heating and stirring functions ensure that the product maintains the desired temperature and consistency during the filling process, which is crucial for products that may solidify, separate, or require uniform mixing. This solution increases efficiency and packaging accuracy, while maintaining product quality and texture throughout the production cycle.

Features

Smart Control System
Versatile Liquid Handling

Viscous or heat-sensitive liquids require more than just filling—they demand constant motion and precise temperature. Engineered with an intuitive touch-screen interface, this liquid pouch machine offers programmable temperature control, mixing speed, and fill volume. ensures your sauces, soups or cosmetic serums, creams, and oil-based liquids stay homogeneous and pour-ready. Maintain ideal consistency and temperature throughout the filling process for products that look and perform their best—every pouch, every time.

Precision Liquid Dosing System
Precision volumetric liquid dosing system

Ensures accurate and consistent filling of liquids into premade pouches, minimizing spillage and ensuring precise control over product volume.

Heating & Stirring Mechanism
Integrated heating and stirring mechanism

Provides continuous heating and uniform stirring of liquid products, preventing sedimentation or separation during the filling process.

Flexible Premade Pouch Compatibility

Capable of handling a wide range of premade pouches, including spout and stand-up pouches, allowing for versatile packaging options.

Temperature-Controlled Sealing
Advanced temperature-controlled sealing system

Delivers strong, leak-proof seals, maintaining the integrity of liquid products while preventing spillage or contamination.

High-Speed Filling & Sealing
Automated high-speed filling and sealing operation

Features servo-driven mechanics for rapid and precise pouch filling, suitable for large-scale liquid packaging production with high efficiency.

User-friendly HMI with PLC
User-friendly HMI with PLC-based control system

Offers easy-to-use, programmable logic control for real-time adjustments, monitoring, and recipe management, allowing for optimized performance.

Sanitary Stainless Steel Construction

Compliant with FDA and GMP standards, ensuring easy cleaning and maintenance while preventing contamination in liquid product handling environments.

Maintains precise temperature
Integrated heating system with real-time monitoring

Maintains precise temperature control for heat-sensitive liquids, ensuring product consistency and quality throughout the packaging process.

Parameters

Type	Compact Doypack Filling Machine
	LDB-300	LDB-430	LDB-600
Bag Material	Multi-layer Composite Premade Bag (e.g.:PET/PE)
Premade Bag Type	3-sides sealing bag,stand-up bag
Upgraded Bag Type	Gusset Bag, Zipper Bag, Box bag (Need additional purchase of functional device)
Bag Size	80mm≤ W ≤300mm	80mm≤ W ≤300mm	250mm≤ W ≤500mm
	100mm≤ L ≤300mm	100mm≤ L ≤430mm	380mm≤ L ≤600mm
Speed	0~15bags/min		0~10bags/min
Sealing Type	Straight grain, pitch is 1mm (Optional reticulate)
Sealing Width	10mm（5--20mm) can be customized
Votage	220V,Single-phase,50/60HZ,1.2KW
Air Pressure	0.65Mpa
Air Consumption	0.3m³/min（Standard machine,no additional function)
Body Dimension	17706001230mm		167711401450mm
Machine Weight	300kg	350kg	450kg

Pakcaging Styles

Premade Spout Pouch: Spout pouches are widely used for liquid products due to their easy-to-pour feature. The spout allows for controlled dispensing of the liquid, making it ideal for sauces, liquid supplements, and beverages. The spout can be resealed, providing convenience for consumers.
Premade Stand-up Pouch (Doypack): These pouches can be used for thicker liquids or semi-liquid products. They stand upright thanks to the bottom gusset, which offers good shelf display. If necessary, the pouch can be equipped with a spout or a zipper for resealing after use.
Premade Flat Bottom Pouch (Box Pouch): Suitable for larger quantities of liquid products, the flat bottom provides stability for storage and handling. This type of pouch is often used for bulk liquid packaging in both food and non-food industries.
Premade Zipper Pouch: Though zipper pouches are more commonly used for dry products, they can also be used for liquid products that need resealing after each use, such as viscous liquids or gels. However, careful sealing is required to prevent leaks.
Premade Shaped Pouch: For specialized or unique liquid packaging requirements, shaped pouches can be customized to meet brand aesthetics while still functioning effectively for liquid filling.

Warranty and Services

12-month quality warranty.
24-month local fast replacement service for major electrical parts.
Comprehensive shipment services, including coordination of logistics, delivery tracking, and ensuring timely delivery to your location.
Technical support , Manual instructions, installation, and operation guides with delivery.
On-site setup, operation, and maintenance training as needed.

After the warranty period, we offer:

Lifelong maintenance services.
Spare parts support.
Operational training to ensure reliability.
Quick responses to any inquiries from our customer service team.
