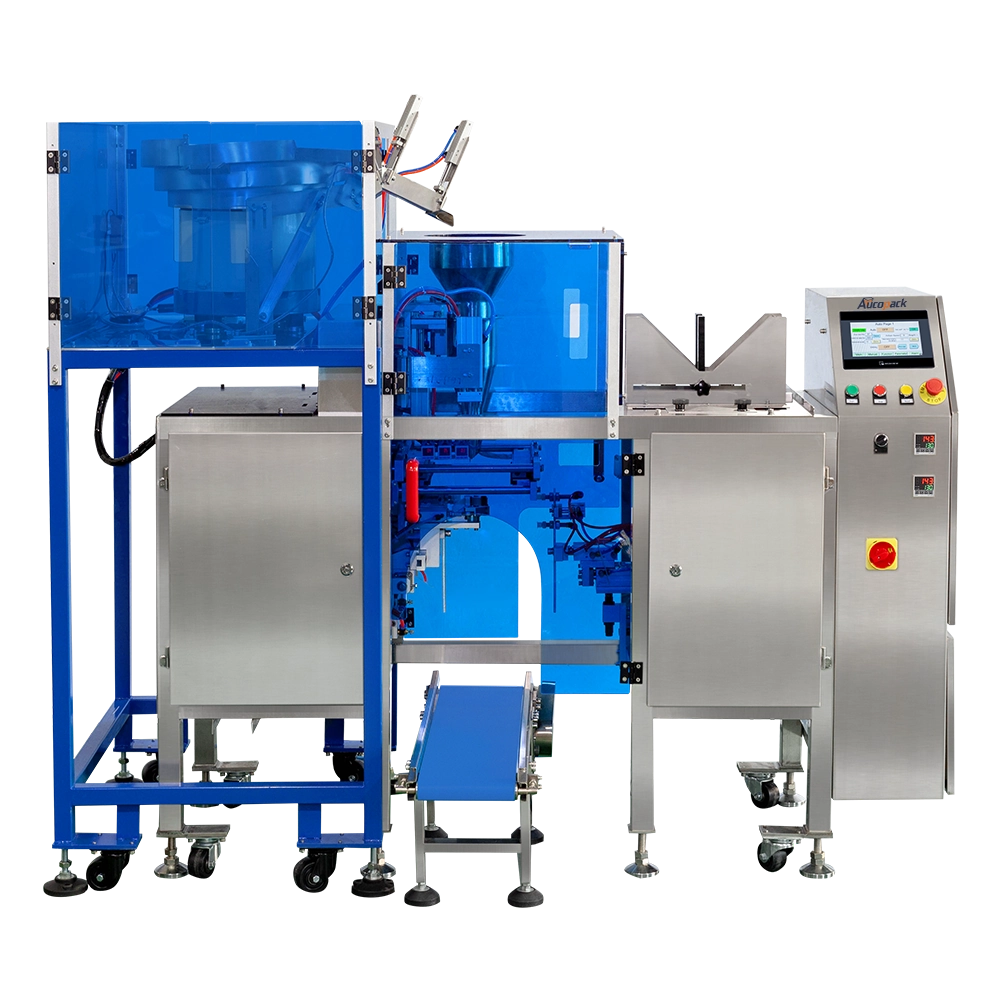

Automatic Seed Counting Zipper Premade Pouch Packing Machine

Revolutionize seed packaging process with doypack packing machine. offers seed counting and sealing into doypack with zippers, ensuring consistency.

Online inquiry

Industries Application Features Parameters Pakcaging Styles Warranty and Services

Industries Application

Automatic Seed Counting Zipper Premade Pouch Packing Machine.jpg

The Automatic Seed Counting Zipper Premade Pouch Packing Machine is specifically designed for the agricultural and seed industry, offering precise seed counting and packaging solutions. It is ideal for packaging a variety of seeds, such as vegetable seeds, flower seeds, and crop seeds, into zipper-sealed premade pouches. By automating the seed counting, filling, and sealing processes, this machine ensures high accuracy and consistency, reducing waste and labor costs. The zipper feature allows for easy resealing, providing convenience to the end-user. This machine is perfect for companies aiming to increase production efficiency while maintaining packaging precision and product integrity.

Features

Smart Counting System
Precision in Every Seed

Designed for seed companies, research labs, and small-batch operations, this compact machine integrates counting, pouch handling, nitrogen flushing (optional), and zipper sealing into one streamlined solution. Unlike weight-based systems, using optical sensors and high-speed counting technology, it delivers accurate counts, pouch after pouch.— This machine features anti-static materials, smooth transfer paths, and gentle handling from hopper to pouch.

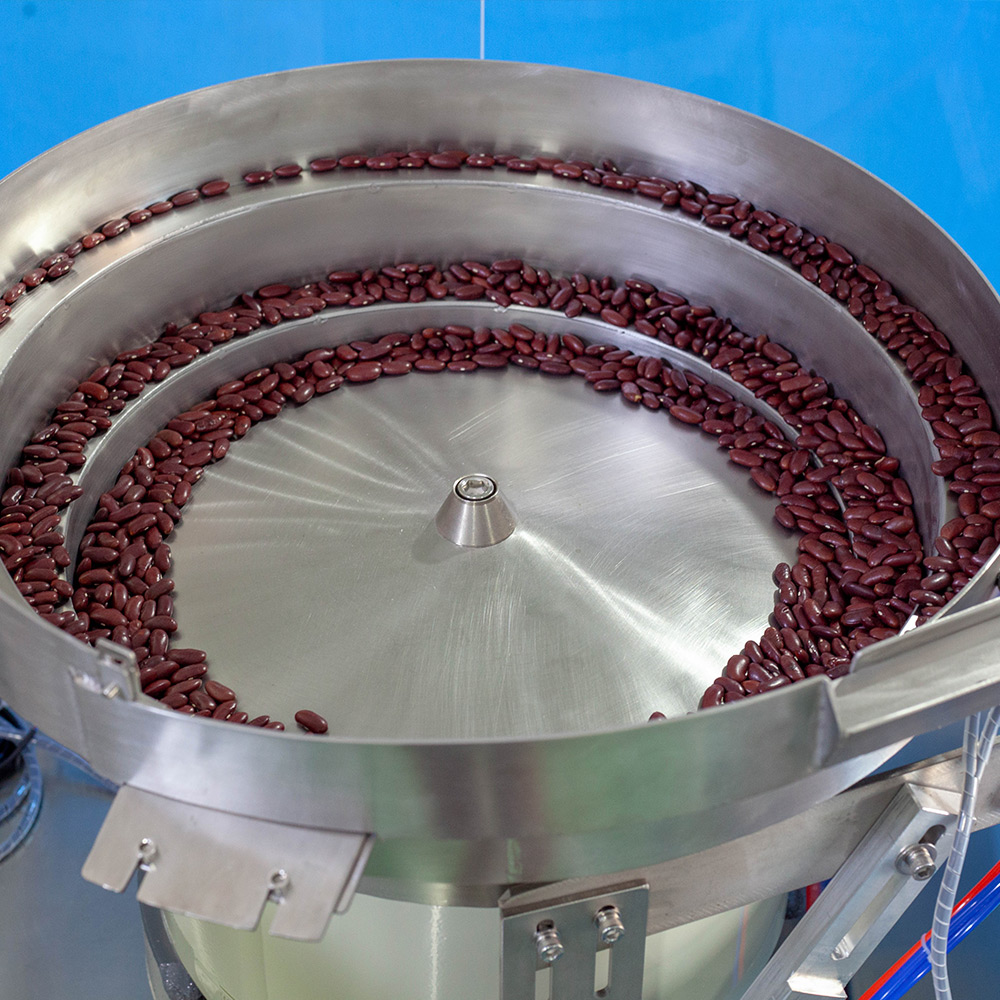

High-Precision Seed Counting System

Utilizes advanced optical sensors to ensure accurate counting of seeds, perfect for packaging high-value seeds like flower or agricultural seeds.

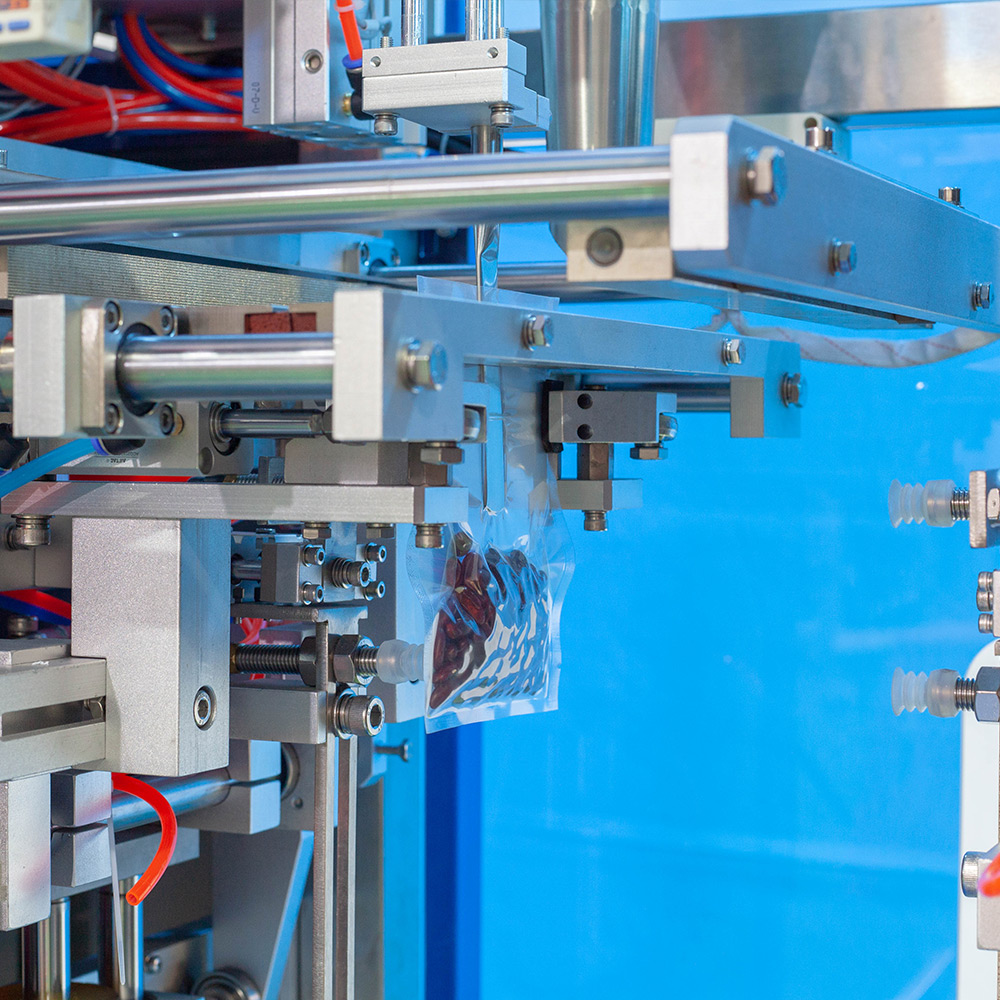

Alignment & Sealing Mechanism
Zipper pouch alignment and sealing mechanism

Ensures that each zipper pouch is perfectly aligned before sealing, offering a robust and airtight closure that maintains product integrity.

Auto Pouch Feeding and Opening
Automated pouch feeding and opening technology

Uses suction cups and mechanical arms to efficiently open a variety of zipper pouch formats, ensuring smooth handling during the filling process.

Seed-Friendly Filling System

Specially designed to handle delicate seeds without damage, featuring a gentle dispensing mechanism that maintains seed quality throughout the package.

Versatile Zipper Pouch Handling

Accommodates a wide range of zipper premade pouch sizes and types, including gusseted and stand-up pouches, allowing for flexibility in product.

Counting Accuracy Monitoring
Real-time counting accuracy monitoring

Equipped with a sophisticated HMI and PLC system that continuously monitors the accuracy of the seed counting process, providing real-time data.

Sanitary Stainless Steel Construction
Sanitary and seed-safe stainless steel construction

Built with food-grade materials and a design that facilitates easy cleaning, ensuring compliance with agricultural standards and preventing contamination.

Integrated Rejection System
Integrated rejection system for underfilled pouches

Automatically identifies and rejects pouches that are underfilled or have counting discrepancies, ensuring that pouches have the correct seed count.

Parameters

Type	Compact Doypack Filling Machine
	LDB-300	LDB-430	LDB-600
Bag Material	Multi-layer Composite Premade Bag (e.g.:PET/PE)
Premade Bag Type	3-sides sealing bag,stand-up bag
Upgraded Bag Type	Gusset Bag, Zipper Bag, Box bag (Need additional purchase of functional device)
Bag Size	80mm≤ W ≤300mm	80mm≤ W ≤300mm	250mm≤ W ≤500mm
	100mm≤ L ≤300mm	100mm≤ L ≤430mm	380mm≤ L ≤600mm
Speed	0~15bags/min		0~10bags/min
Sealing Type	Straight grain, pitch is 1mm (Optional reticulate)
Sealing Width	10mm（5--20mm) can be customized
Votage	220V,Single-phase,50/60HZ,1.2KW
Air Pressure	0.65Mpa
Air Consumption	0.3m³/min（Standard machine,no additional function)
Body Dimension	17706001230mm		167711401450mm
Machine Weight	300kg	350kg	450kg

Pakcaging Styles

Zipper Stand-up Pouch (Doypack): This is the most common style for seed packaging. It features a bottom gusset that allows the pouch to stand upright, combined with a resealable zipper. This style is used widely for seeds of all types, providing stability on the shelf and preserving product freshness for multiple uses.
Flat Bottom Zipper Pouch (Box Pouch): This pouch style offers increased stability with a flat base and higher volume capacity, making it ideal for larger quantities of seeds, such as lawn or agricultural seeds. The zipper adds the convenience of resealing to maintain seed quality.
Three-Side Seal Zipper Pouch: This compact design is sealed on three sides and features a zipper for resealability. It’s used for smaller seed packets or sample sizes, providing an economical and convenient packaging solution while ensuring product protection.

Warranty and Services

12-month quality warranty.
24-month local fast replacement service for major electrical parts.
Comprehensive shipment services, including coordination of logistics, delivery tracking, and ensuring timely delivery to your location.
Technical support , Manual instructions, installation, and operation guides with delivery.
On-site setup, operation, and maintenance training as needed.

After the warranty period, we offer:

Lifelong maintenance services.
Spare parts support.
Operational training to ensure reliability.
Quick responses to any inquiries from our customer service team.
