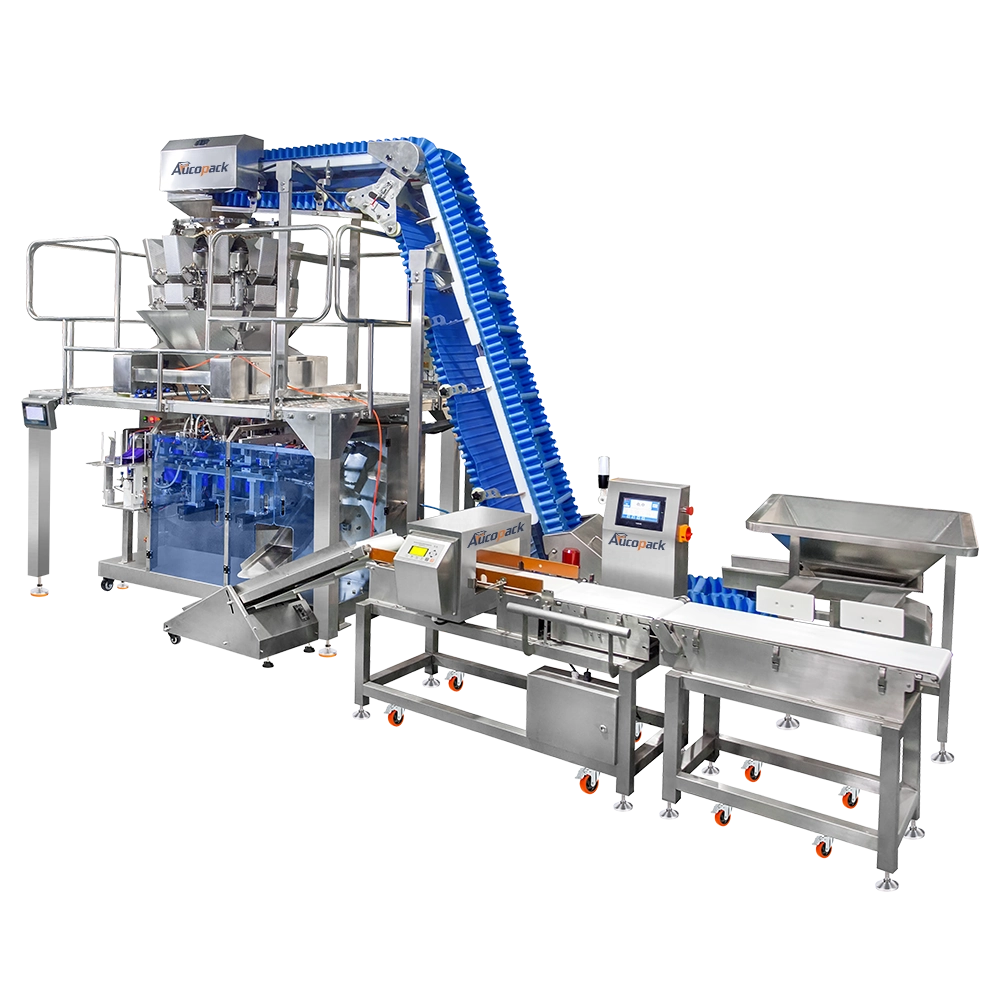

Automatic Granule Food Doypack Filling Machine Packaging Solutions

Crafted for future-ready food manufacturing, automatic granule doypack filler integrates digital control, modular design, and aseptic process engineering.

Model: LDB-300A / LDB-430/ LDB-600A

Pouch Size (mm): 80mm≤W≤300mm / 100mm≤L≤430mm

Packing Speed: 0-60 bags/min

Power: 1.2KW

Applicable Bag Type: 3-side sealing bag,stand-up bag

Online inquiry

Industries Application Features Parameters Pakcaging Styles Warranty and Services

Industries Application

nuts packaging machine.jpg

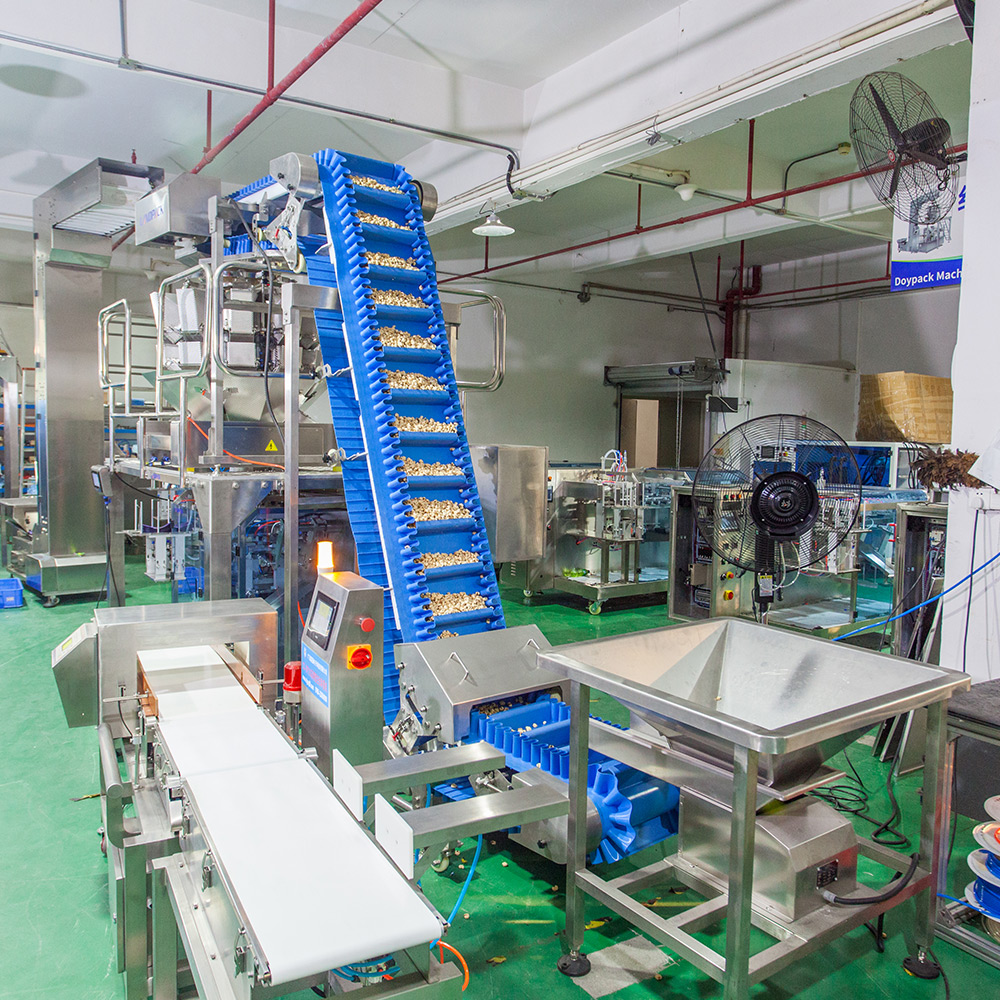

The Automatic Granule Food Doypack Filling Machine is a high-performance solution specifically designed for efficient packaging operations in the food processing and agricultural sectors. This advanced system excels in precise dosing and filling of granular products such as grains, nuts, dried fruits, and sugar into doypack pouches, ensuring product safety and quality retention. With features like automated filling, sealing, and integrated quality control, the machine reduces human intervention, lowers operational costs, and improves overall productivity. The user-friendly HMI controls and modular design allow for easy maintenance, while its compatibility with various pouch sizes provides manufacturers with the flexibility to meet diverse packaging needs. This machine is ideal for companies seeking to streamline their packaging processes while maintaining high standards of quality and consistency, making it a reliable and efficient choice for modern granule food packaging operations.

Features

Precision Weighing & Filling
Every Grain, Perfectly Counted

Integrated with multi-head weighers or volumetric cup fillers, the system ensures accurate, consistent fills—whether you’re packaging rice, lentils, candies, or pet kibble. Supports a wide range of premade pouch styles—stand-up, gusseted, zipper, or flat pouches. This integrated system combines pouch loading, opening, granule filling, sealing, and discharge—all in one compact, high-speed unit.

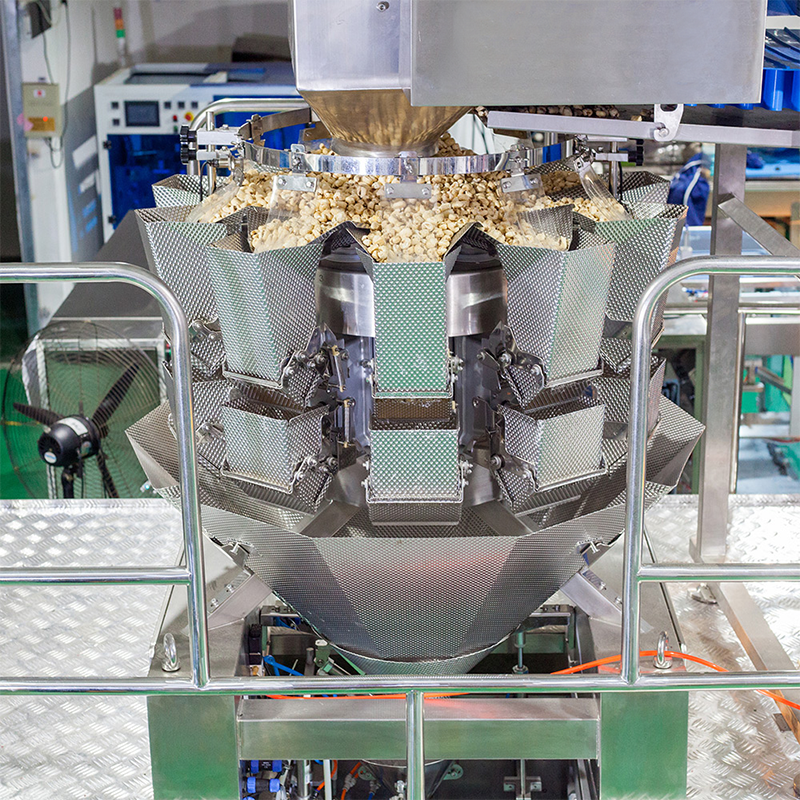

Precision Multi-Head Weigher System

Features advanced multi-head weighing technology, ensuring accurate and efficient filling of granular food products, optimizing portion control.

Versatile Doypack Pouch Handle
Versatile doypack pouch handlingy

Designed to handle a variety of doypack formats, including flat-bottom, gusseted, offering flexibility for different packaging requirements.

Servo-Driven Filling Mechanism
High-speed servo-driven filling mechanism

Provides fast and precise granule dispensing, synchronizing the filling and sealing process to optimize production efficiency for food packaged.

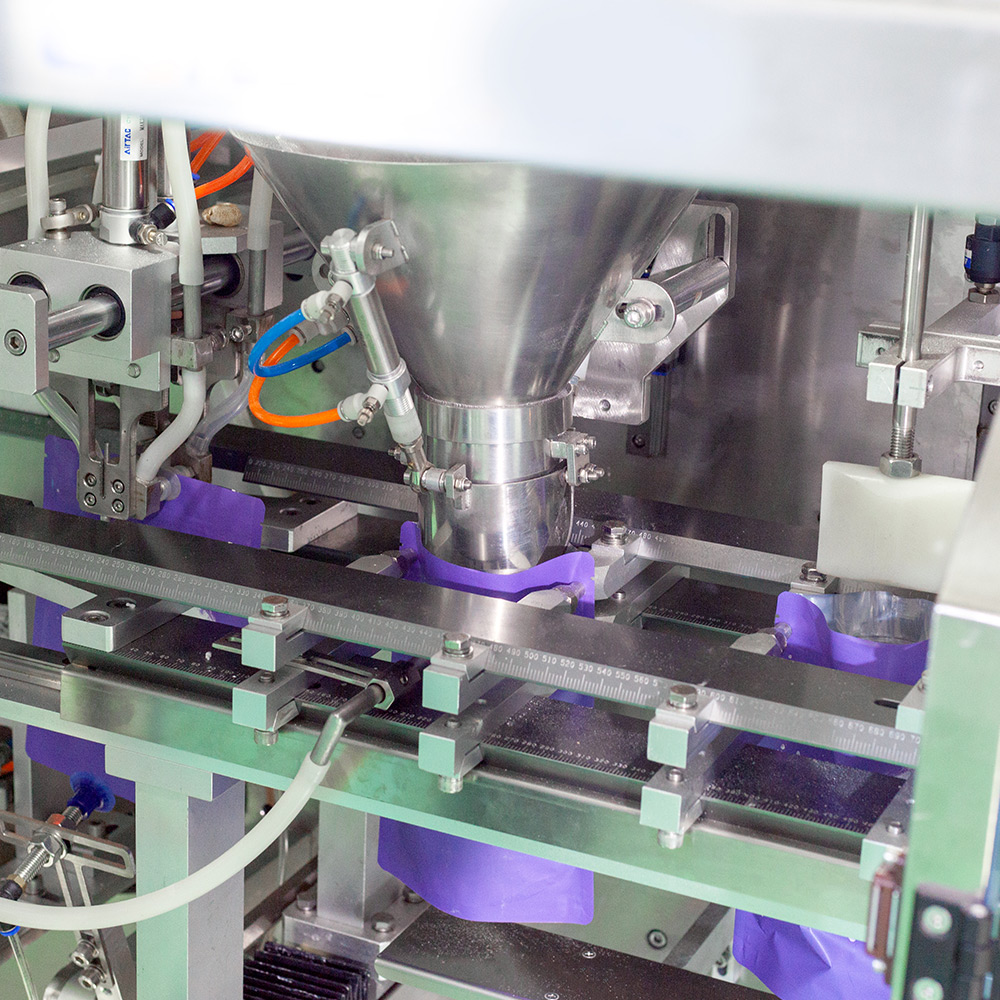

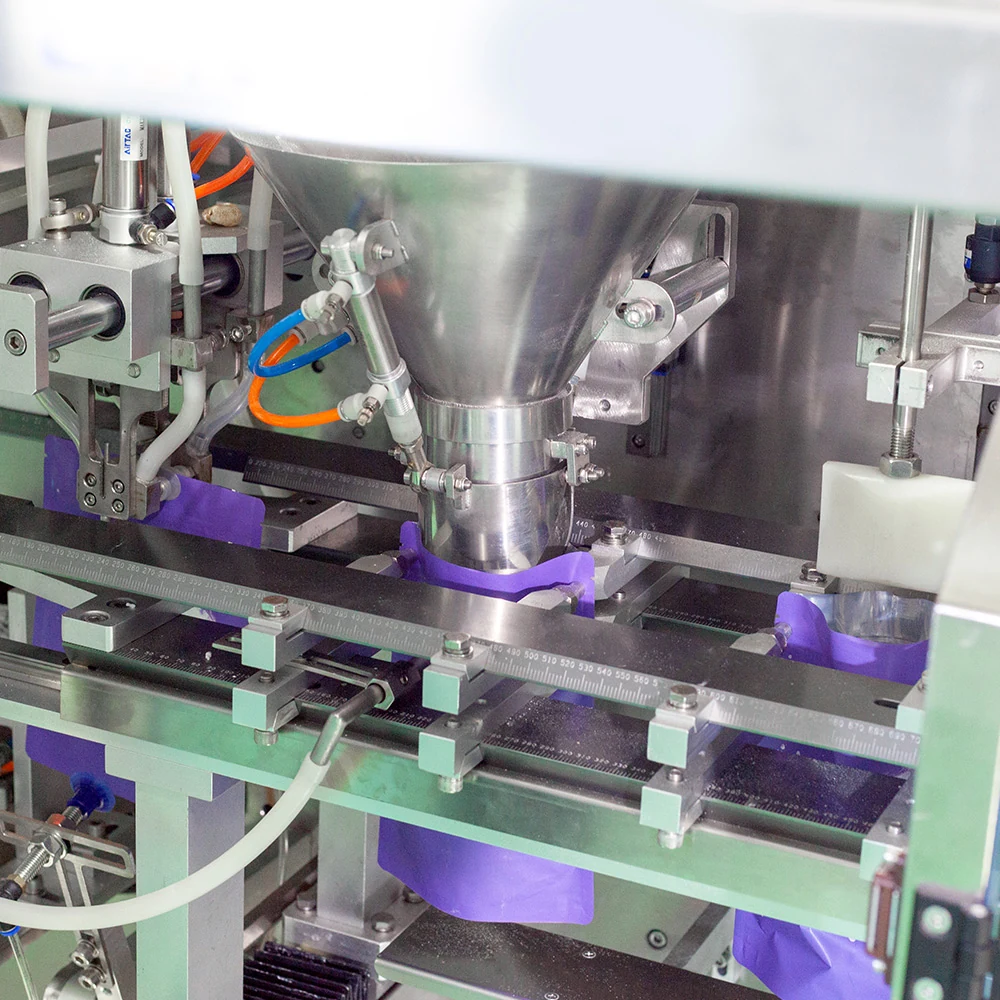

Auto Opening and Feeding System
Automated pouch opening and feeding system

Utilizes suction cups and mechanical arms for smooth and accurate opening of premade doypacks, ensuring minimal downtime and maximizing productivity.

Temperature-Controlled System
Temperature-controlled heat sealing system

Delivers airtight seals with adjustable temperature settings for various pouch materials, ensuring product freshness and preventing leakage.

Granule Vibratory feeder Distribution
Vibratory feeder for even granule distribution

Ensures uniform distribution of granular food products within the pouch, reducing clumping and enhancing the visual appearance and weight consistency.

HMI with Real-Time Monitoring
User-friendly HMI with real-time monitoring and recipe control

Allows monitor the packaging process, adjust settings for different granule sizes and pouch formats, and store multiple product recipes.

Integrated Quality Control System

Detects improperly sealed pouches, automatically rejecting defective packages to ensure that only properly sealed pouches reach production line.

Parameters

Type	Compact Doypack Filling Machine
	LDB-300	LDB-430	LDB-600
Bag Material	Multi-layer Composite Premade Bag (e.g.:PET/PE)
Premade Bag Type	3-sides sealing bag,stand-up bag
Upgraded Bag Type	Gusset Bag, Zipper Bag, Box bag (Need additional purchase of functional device)
Bag Size	80mm≤ W ≤300mm	80mm≤ W ≤300mm	250mm≤ W ≤500mm
	100mm≤ L ≤300mm	100mm≤ L ≤430mm	380mm≤ L ≤600mm
Speed	0~15bags/min		0~10bags/min
Sealing Type	Straight grain, pitch is 1mm (Optional reticulate)
Sealing Width	10mm（5--20mm) can be customized
Votage	220V,Single-phase,50/60HZ,1.2KW
Air Pressure	0.65Mpa
Air Consumption	0.3m³/min（Standard machine,no additional function)
Body Dimension	17706001230mm		167711401450mm
Machine Weight	300kg	350kg	450kg

Pakcaging Styles

Stand-up Pouch (Doypack): This is the most common style for granule food products such as rice, sugar, nuts, seeds, or candies. It features a bottom gusset that allows the pouch to stand upright on retail shelves, providing excellent stability and visibility. This style is ideal for smaller to medium-sized quantities of granulated food.
Flat Bottom Pouch (Box Pouch): This style offers increased capacity and better stability, making it suitable for larger quantities of granule foods. The flat bottom structure allows the pouch to stand firmly, providing more volume for bulk packaging. It’s often used for products like dried beans, grains, or pet food.
Zipper Stand-up Pouch: A zipper can be added to the stand-up pouch to provide resealability, which is convenient for consumers who need to access products like nuts, dried fruits, or other granular foods multiple times. The zipper helps maintain product freshness and prevents spillage.
Quad Seal Pouch: This type of pouch features seals on all four corners, providing more strength and durability, making it suitable for heavier or bulkier granulated products like larger quantities of cereals or dried goods. The quad-seal design keeps the pouch shape intact during handling and storage.

Warranty and Services

12-month quality warranty.
24-month local fast replacement service for major electrical parts.
Comprehensive shipment services, including coordination of logistics, delivery tracking, and ensuring timely delivery to your location.
Technical support , Manual instructions, installation, and operation guides with delivery.
On-site setup, operation, and maintenance training as needed.

After the warranty period, we offer:

Lifelong maintenance services.
Spare parts support.
Operational training to ensure reliability.
Quick responses to any inquiries from our customer service team.
