Automatic 2 Head Weigher Premade Pouch Packing Machine

Supercharge packaging process with premade pouch packing machine. With dual-head precision weighing and auto pouch filling, it ensures reliable performance.

Online inquiry

Industries Application Features Parameters Pakcaging Styles Warranty and Services

Industries Application

nuts packaging machine.jpg

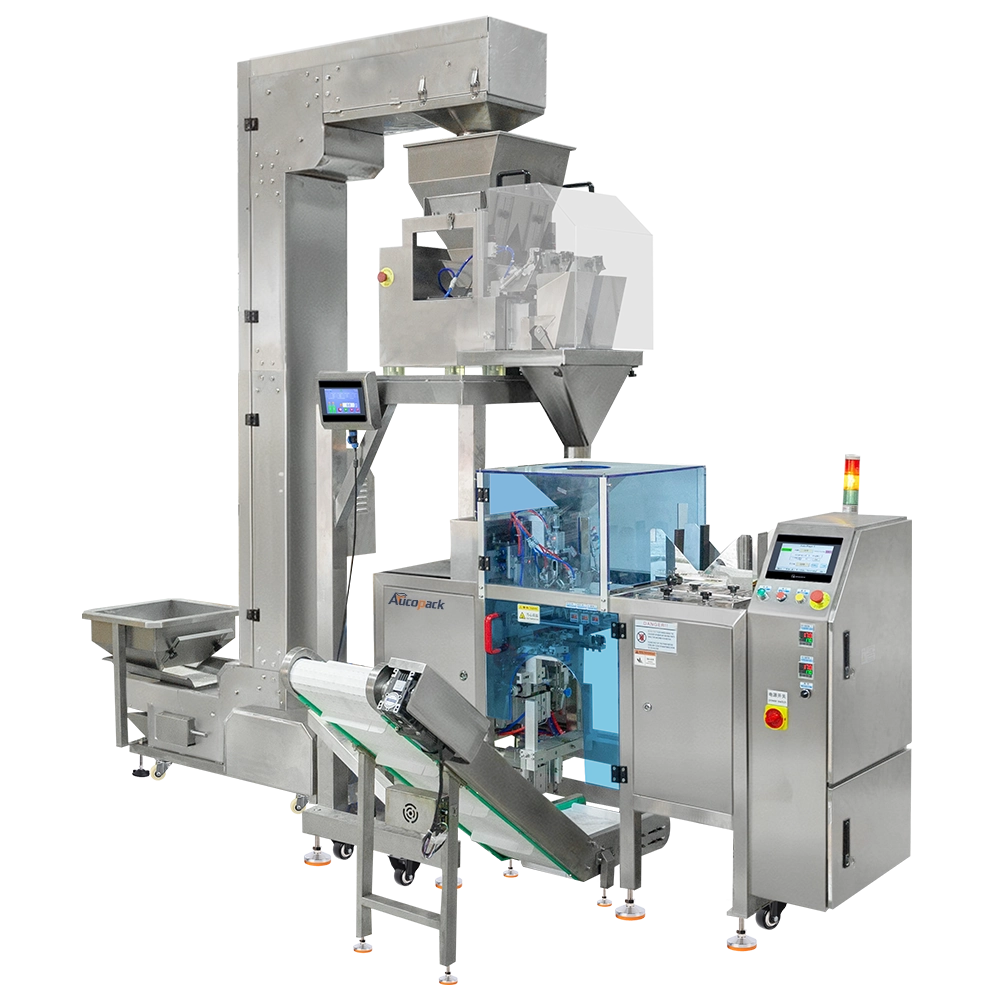

The automatic 2 head weigher premade pouch packing machine is a versatile packaging solution designed for efficiently handling small to medium-sized production lines. It combines precise weighing with automated pouch filling and sealing, making it suitable for industries like food, pharmaceuticals, and cosmetics. This machine utilizes two heads for accurate weight distribution, ensuring consistency and reducing product waste. It is compatible with various pouch types and materials, providing a flexible and reliable option for packaging products such as snacks, powders, or granules. Its automated features improve productivity, reduce labor costs, and enhance packaging efficiency.

Features

Dual-Head Accuracy
Balanced Speed and Precision

Equipped with two high-precision load cells, this system offers accurate weight combinations for granular, small solid, and irregular products like seeds, beans, snacks, or bolts. Features an easy-to-use touch screen, allowing operators to fine-tune fill weights, sealing temperature, and pouch size on the fly. It’s the ideal balance between speed and cost, boosting productivity while maintaining reliable performance in every pouch.

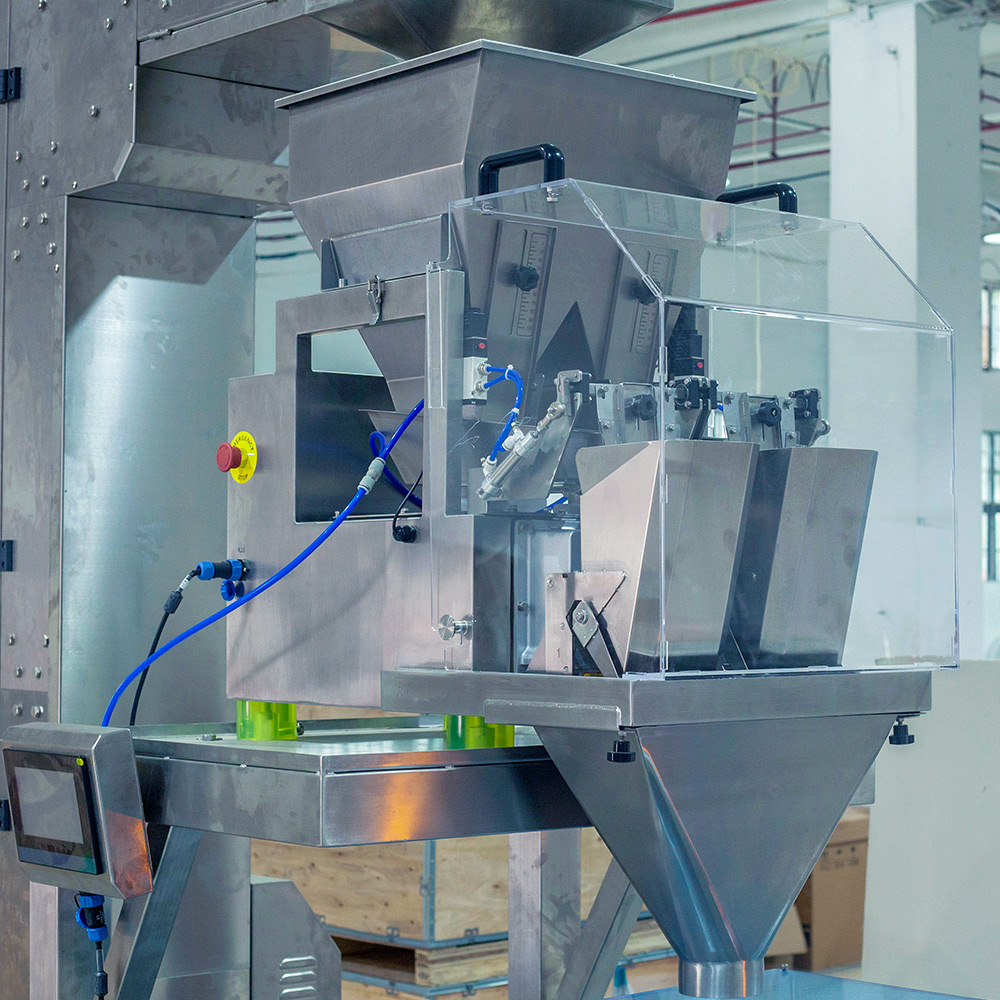

Dual-head linear weigher system

Ensures precise and accurate weighing for products like grains, snacks, or small hardware, providing reliable portion control and reducing product waste.

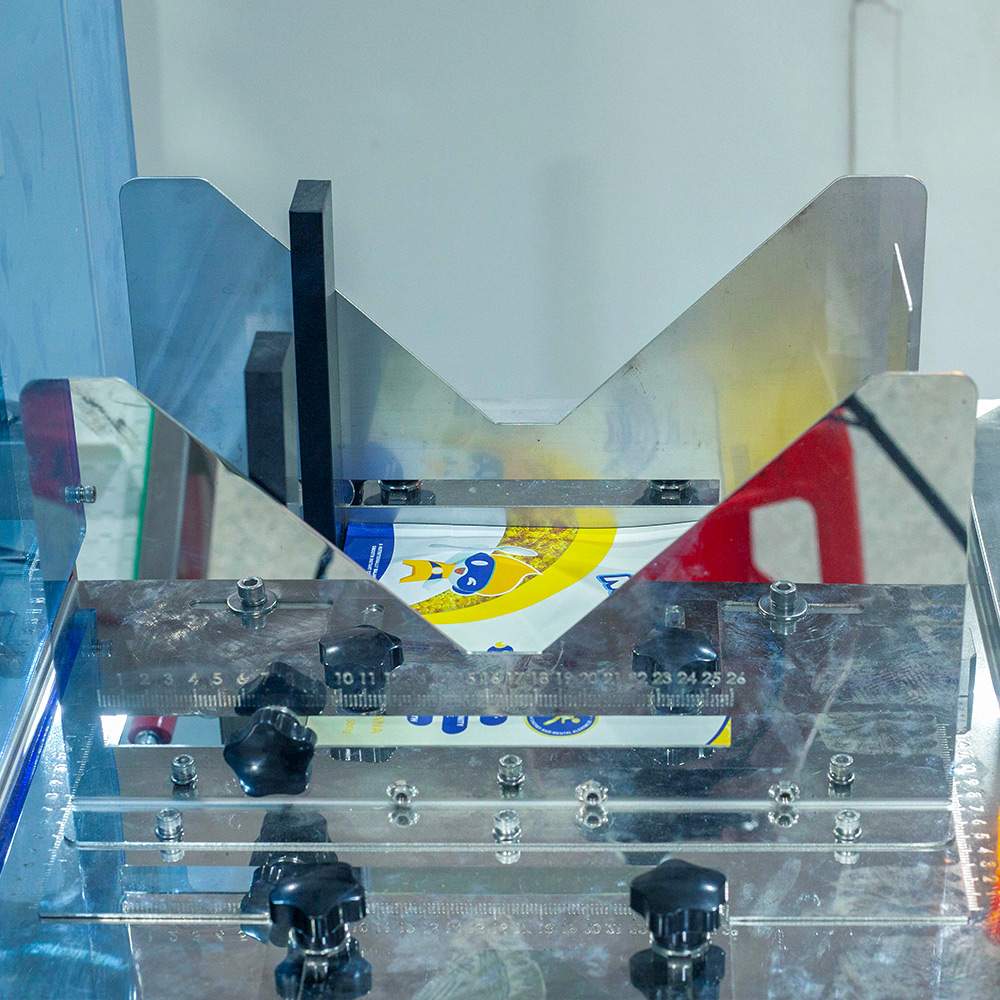

Automated Premade Pouch Feeding

Efficiently handles a wide variety of pouch formats, such as flat-bottom and gusseted pouches, ensuring smooth and seamless pouch feeding and opening.

Temperature-Controlled Heat Sealing

Offers precise temperature adjustments for different packaging materials, ensuring secure and airtight seals that maintain product freshness and integrity.

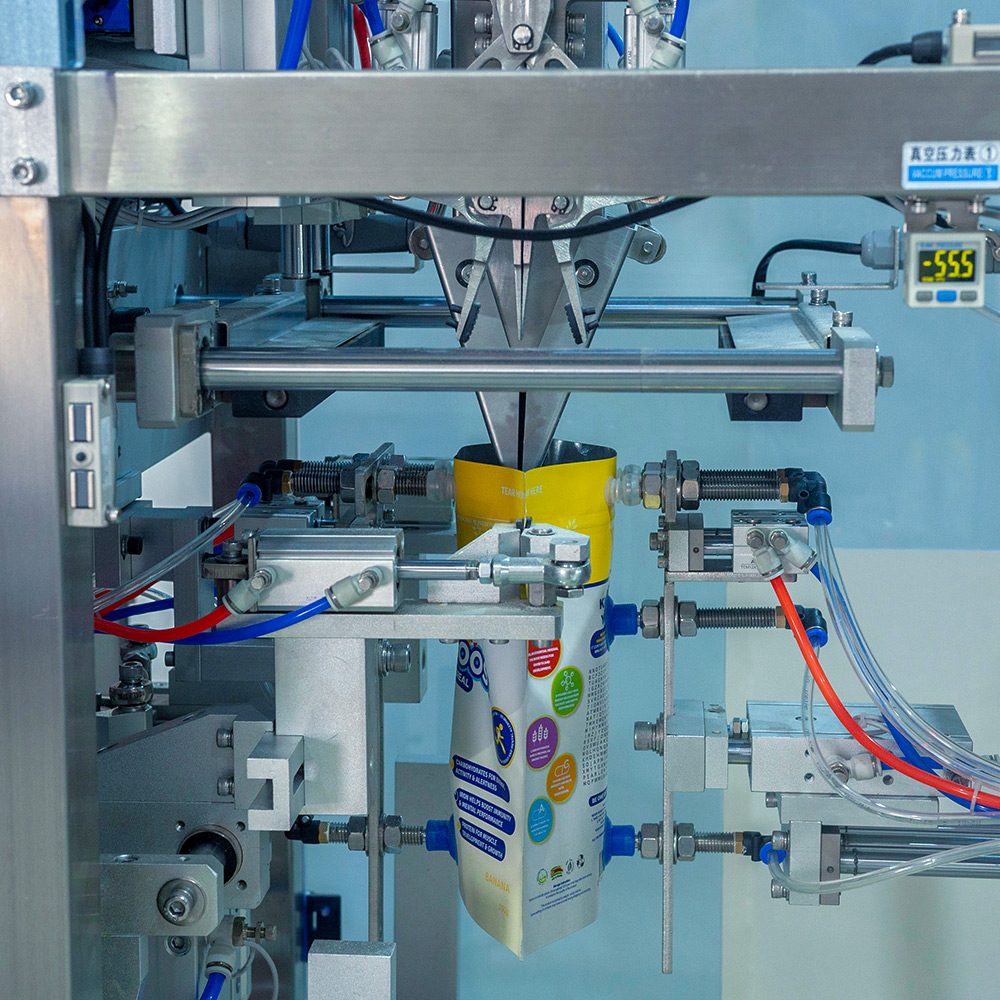

Servo-Driven Filling and Sealing

Synchronizes the filling and sealing steps to optimize production speed and maintain high accuracy, suitable for medium to high production volumes.

User-Friendly HMI with PLC
User-friendly HMI with PLC integration

Enables real-time monitoring and control of machine parameters, allowing for quick adjustments and recipe management to enhance efficiency.

Food-Grade Stainless Steel
Compact, food-grade stainless steel construction

Designed to meet GMP and FDA standards, this machine is built for easy cleaning, ensuring a sanitary solution for food applications.

Integrated Product Detection System

Identifies any improperly defective pouches and automatically rejects them, ensuring consistent product quality throughout the packaging process.

Integration Modular Design
Modular design for streamlined integration

Easily integrates with upstream and downstream systems for complete automation of the packaging line, enhancing overall production efficiency.

Parameters

Type	Compact Doypack Filling Machine
	LDB-300	LDB-430	LDB-600
Bag Material	Multi-layer Composite Premade Bag (e.g.:PET/PE)
Premade Bag Type	3-sides sealing bag,stand-up bag
Upgraded Bag Type	Gusset Bag, Zipper Bag, Box bag (Need additional purchase of functional device)
Bag Size	80mm≤ W ≤300mm	80mm≤ W ≤300mm	250mm≤ W ≤500mm
	100mm≤ L ≤300mm	100mm≤ L ≤430mm	380mm≤ L ≤600mm
Speed	0~15bags/min		0~10bags/min
Sealing Type	Straight grain, pitch is 1mm (Optional reticulate)
Sealing Width	10mm（5--20mm) can be customized
Votage	220V,Single-phase,50/60HZ,1.2KW
Air Pressure	0.65Mpa
Air Consumption	0.3m³/min（Standard machine,no additional function)
Body Dimension	17706001230mm		167711401450mm
Machine Weight	300kg	350kg	450kg

Pakcaging Styles

Stand-up Pouch (Doypack): Ideal for medium-weight products such as nuts, snacks, or candies. The stand-up design with a bottom gusset allows the pouch to stand on retail shelves, and the 2-head weigher provides accurate portion control.
Flat Bottom Pouch (Box Pouch): Offers greater capacity and stability, suitable for bulkier products like coffee, dried beans, or rice. The flat bottom ensures stability, and the 2-head weigher is used for precise product weighing.
Zipper Pouch: This style features a resealable zipper, providing consumer convenience for products like dried fruits, snacks, and powdered mixes. The zipper maintains freshness, and the 2-head weigher allows for accurate filling of the desired quantity.
Three-Side Seal Pouch: Suitable for small-portion packaging or sample packs of products like spices or seasonings. The pouch is sealed on three sides, with an opening for filling, which the 2-head weigher handles efficiently.

Warranty and Services

12-month quality warranty.
24-month local fast replacement service for major electrical parts.
Comprehensive shipment services, including coordination of logistics, delivery tracking, and ensuring timely delivery to your location.
Technical support , Manual instructions, installation, and operation guides with delivery.
On-site setup, operation, and maintenance training as needed.

After the warranty period, we offer:

Lifelong maintenance services.
Spare parts support.
Operational training to ensure reliability.
Quick responses to any inquiries from our customer service team.
